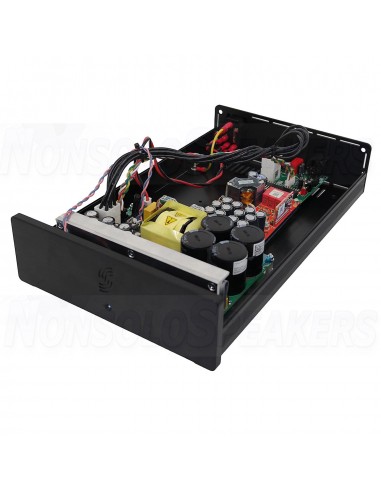

SoundImpress PU500-1CH-Kit DIY Mono amplifier Kit|500WPC|Eigentakt by Purifi
SHIPMENT IN 5/7 WORKING DAYS
€1,299.95
Tax included
No review at the moment
No review at the momentSoundImpress PU500-1CH-Kit DIY Mono amplifier Kit | 500WPC | Eigentakt | Powered by Purifi
Build your own high-end class D monoblock amplifier based on the Eigentakt technology from Purifi Audio
Estimated Shipping Costs
Shipping Costs
€18.00
Shipping Time
.
Want to check another country or courier?
You might also like
SoundImpress PU500-1CH-Kit DIY Mono amplifier Kit | 500WPC | Eigentakt | Powered by Purifi
Build your own high-end class D monoblock amplifier based on the Eigentakt technology from Purifi Audio
Highlights
- All-in-one monoblock kit
- Easy assembly and no soldering required
- Unprecedentedly low distortion over frequency and power range
- Neutral and transparent reproduction
- Plenty of power (500W @ 4 ohm and 950W @ 2 ohm)
- Compact design
-
Product details
SoundImpress DIY PU500-1CH-Kit | 1x500W @ 4 ohm | Eigentakt | Powered by Purifi
The Eigentaktimplementation from Purifi is one the best amplifier technologies available. This class D technology meets high standards and gives super performance an any playback level, regardless of load. The EVAL3 stands among the top of our amplifier module technology.
Besides impeccable performance, this kit features everything you need to build your own Eigentakt monoblock amplifier. The main parts are the Purifi EVAL3 amplifer modules, SMPS1200A400 switch mode power supply and the SoundImpress DIY Monoblock Case. The amplifier module and power supply combination enable the best performance available from the Ncore technology. The black anodized case provides good heat dissipation and a compact design.
Along with the main parts, everything else you need to build a powerful high-quality monoblock amplifier is included. Assembly only requires proper positioning, around 25 bolts to be tightened and some connectors to be clicked. Anybody comfortable with a screwdriver can build one of the best amplifiers available.
.
Specifications
- Article number PU500-1CH-Kit
- Rated power output 1 x 950 watts at 2 ohms 1 x 500 watts at 4 ohms 1 x 250 watts at 8 ohms
- Minimum load 2 ohms
- Efficiency > 94% @ 500W, 4Ω, 1kHz
- Signal-to-noise ratio (SNR) 129 dB
- Frequency response 0 - 20,000 Hz
- Gain 13 dB
- Amplifier Classification Class D
- Circuit Topology Eigentakt™
- Speaker output channels 1

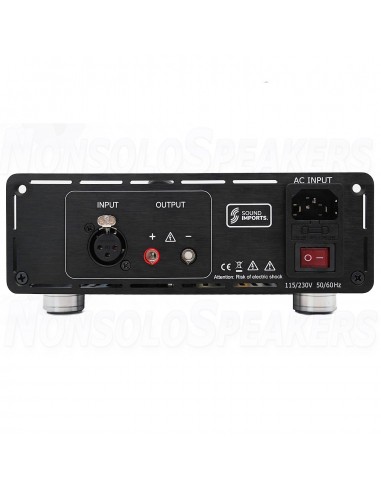

- Input connection type XLR
- Speaker output connection type Banana-plug
- Power Requirements 110/220 VAC, 50Hz/60Hz
- Power inlet connector IEC C14
- Current limit 40A
-
What’s In The Box

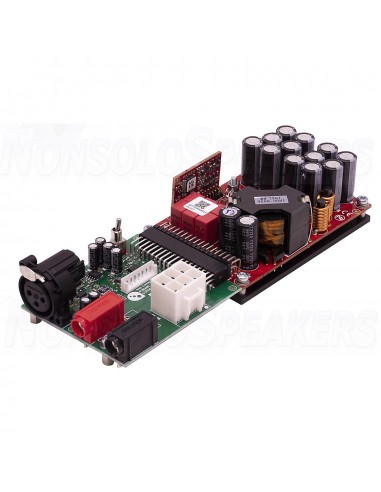

- Purifi EVAL3 amplifer module

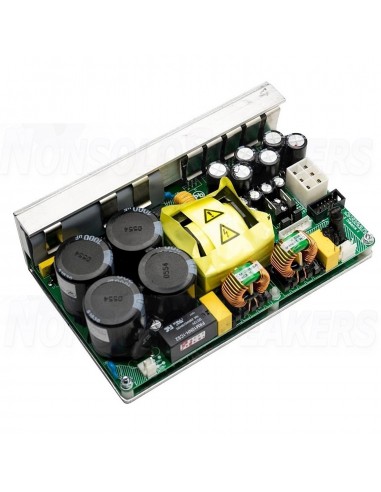

- SMPS1200A400 switch mode power supply

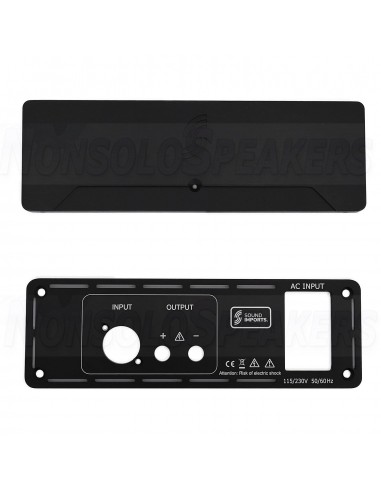

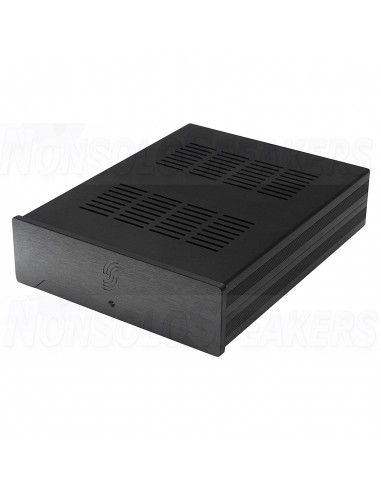

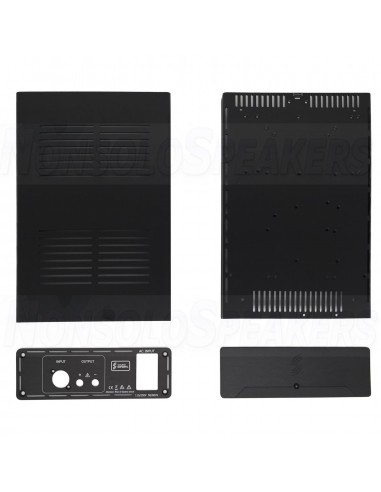

- SoundImpress DIY Monoblock Case
- Signal cable with XLR female chassis

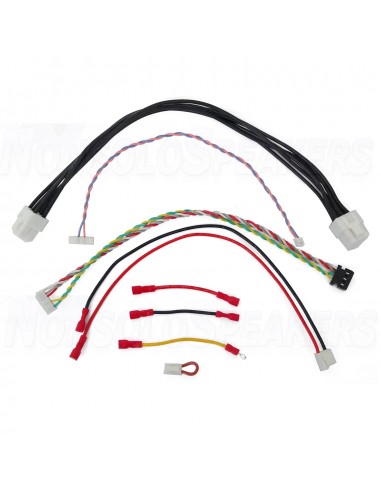

- All internal cables
- IEC C14 power connector (including fuse)
- On/Off Switch Binding posts
- All needed bolts
