SoundImpress DIY 4CH amplifier kit |400WPC by ICEpower
SoundImpress DIY 4CH amplifier kit |400WPC | Powered by ICEpower
Build your own high-performance quad amplifier based on the 700AS2 module from ICEpower.
SoundImpress DIY 4CH amplifier kit |400WPC | Powered by ICEpower

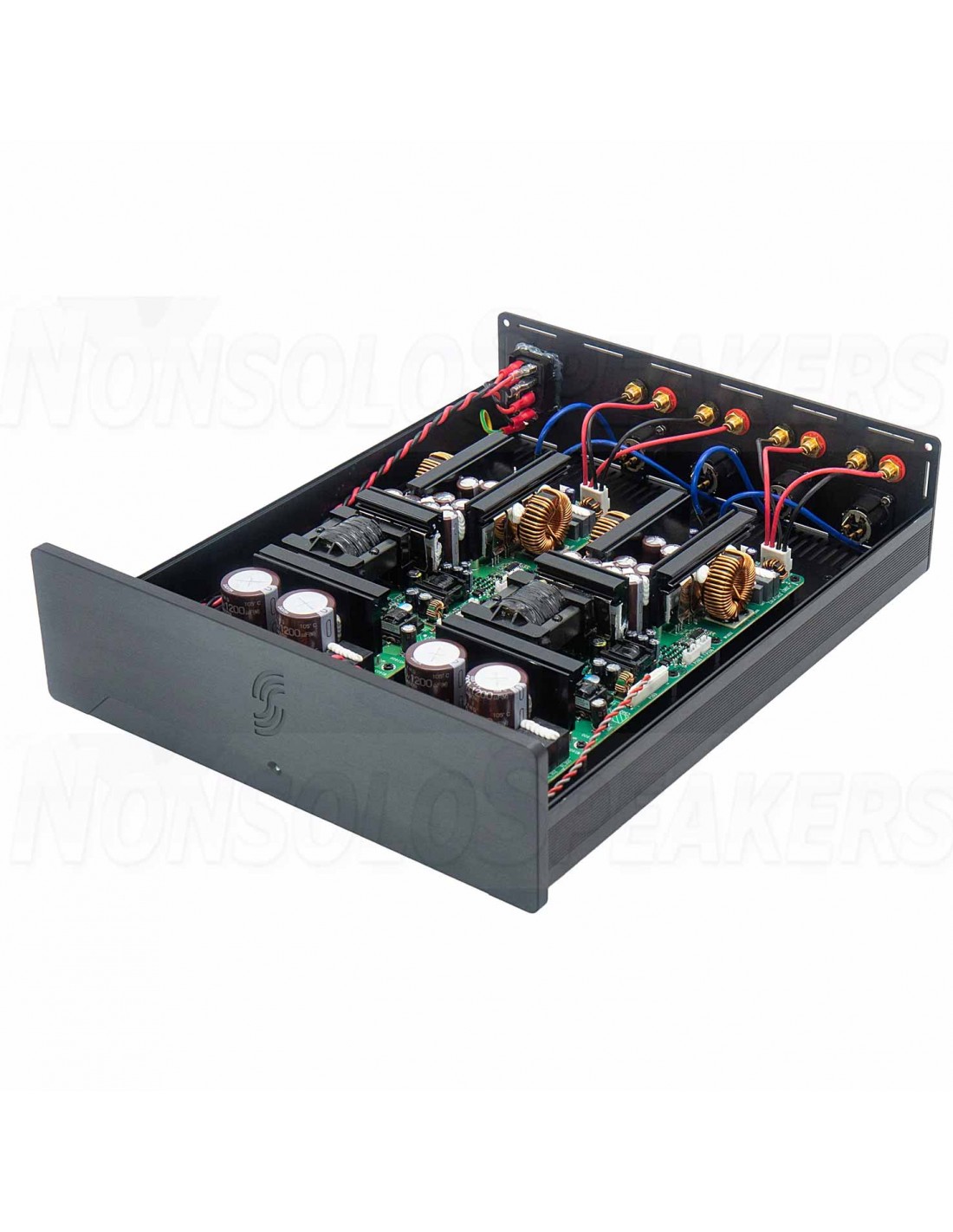

Build your own high-performance quad amplifier based on the 700AS2 module from ICEpower. This SoundImpress DIY quad amplifier kit all-in-on amplifier, designed for a wide range of audio applications, ranging from public address systems to ultrahigh-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier kit gives you the opportunity to make an amplifier, when properly assembled, built to last as it's modules are extensively tested.
.
Highlights
- All-in-one quad amplifier kit
- Amplifier and Power Supply integrated solution
- Easy to assamble
- Universal mains with active Power Factor Correction
- Detailed step-by-step instructions
- Very low distortion over whole frequency range
- Minimum load impedance at 2.7 Ohm
- Thermal and over-current protection
- Sound optimized soft clipping
-
Product details
Specifications
- Article number ICE700-4CH-Kit
- Rated power output 4 x 400 watts at 4 ohms 4 x 335 watts at 8 ohms
- Minimum load 2.5 Ohm
- Efficiency 84%
- Distortion 0.006 % THD+N
- Gain 27.4 dB
- Input impedance 36 kOhm
- Amplifier Classification Class D

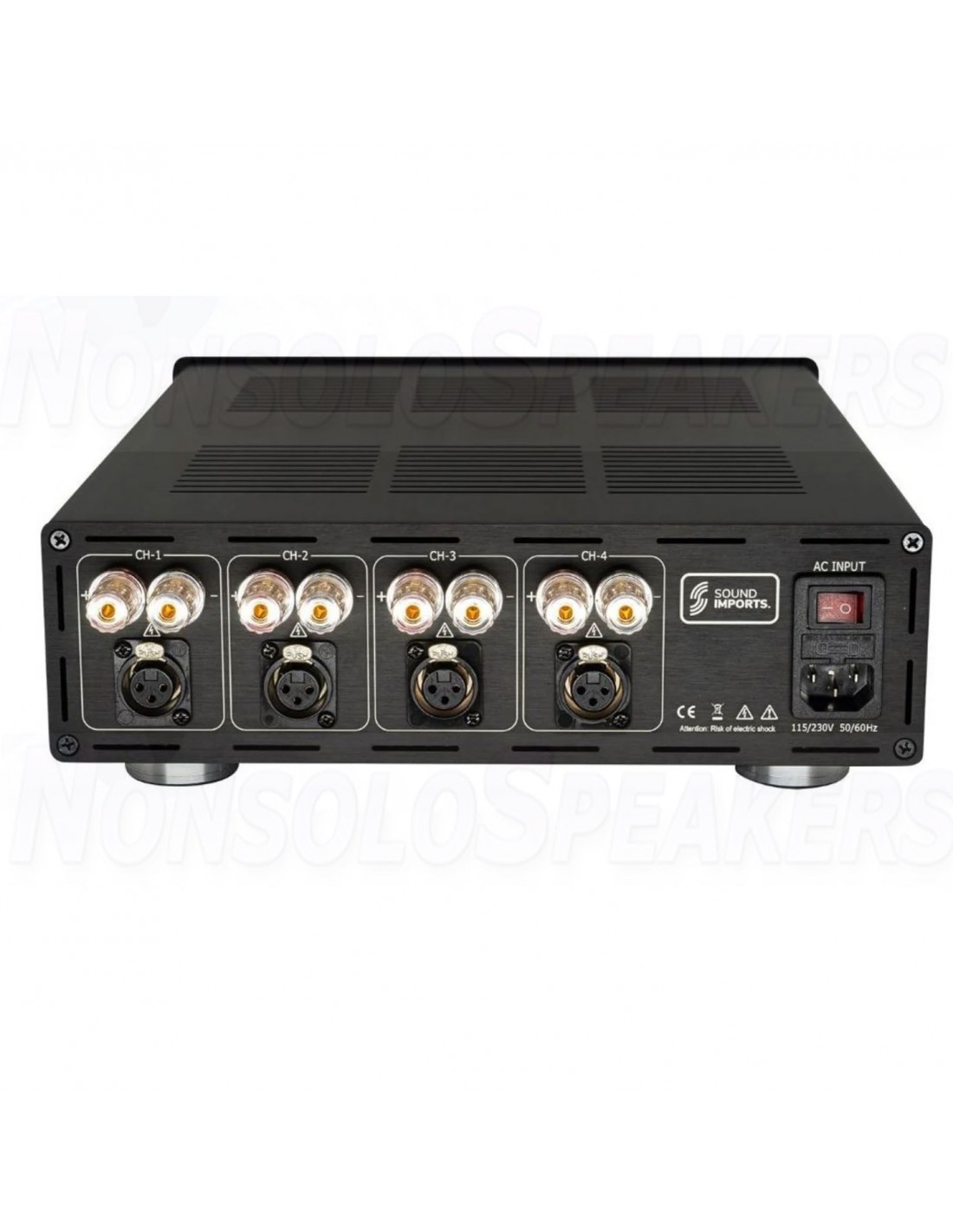

- Speaker output channels 4
- Input connection type XLR
- Speaker output connection type Gold plated binding posts
- Power Requirements 110/220 VAC, 50Hz/60Hz
- Power inlet connector IEC C14
-

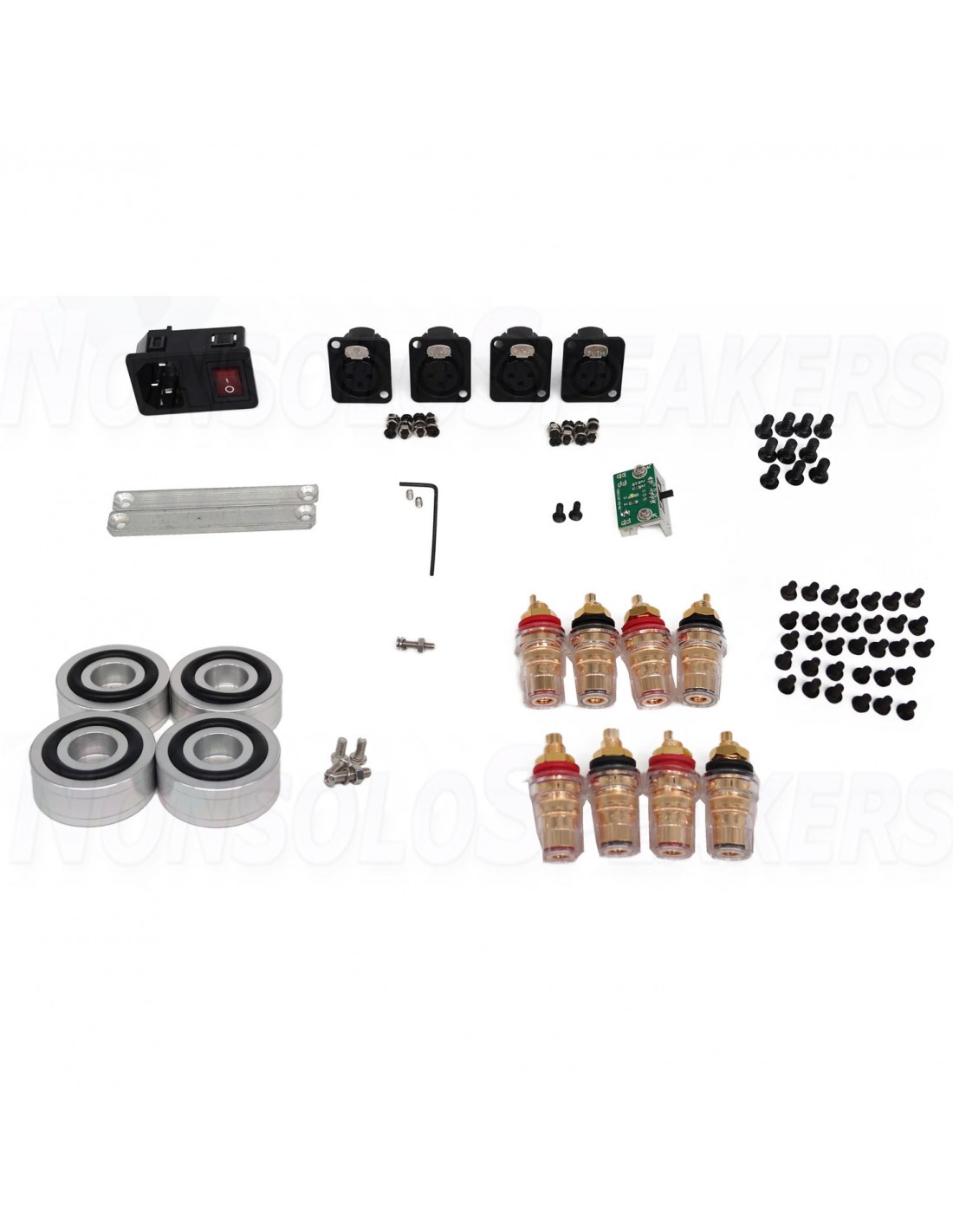

What’s In The Box

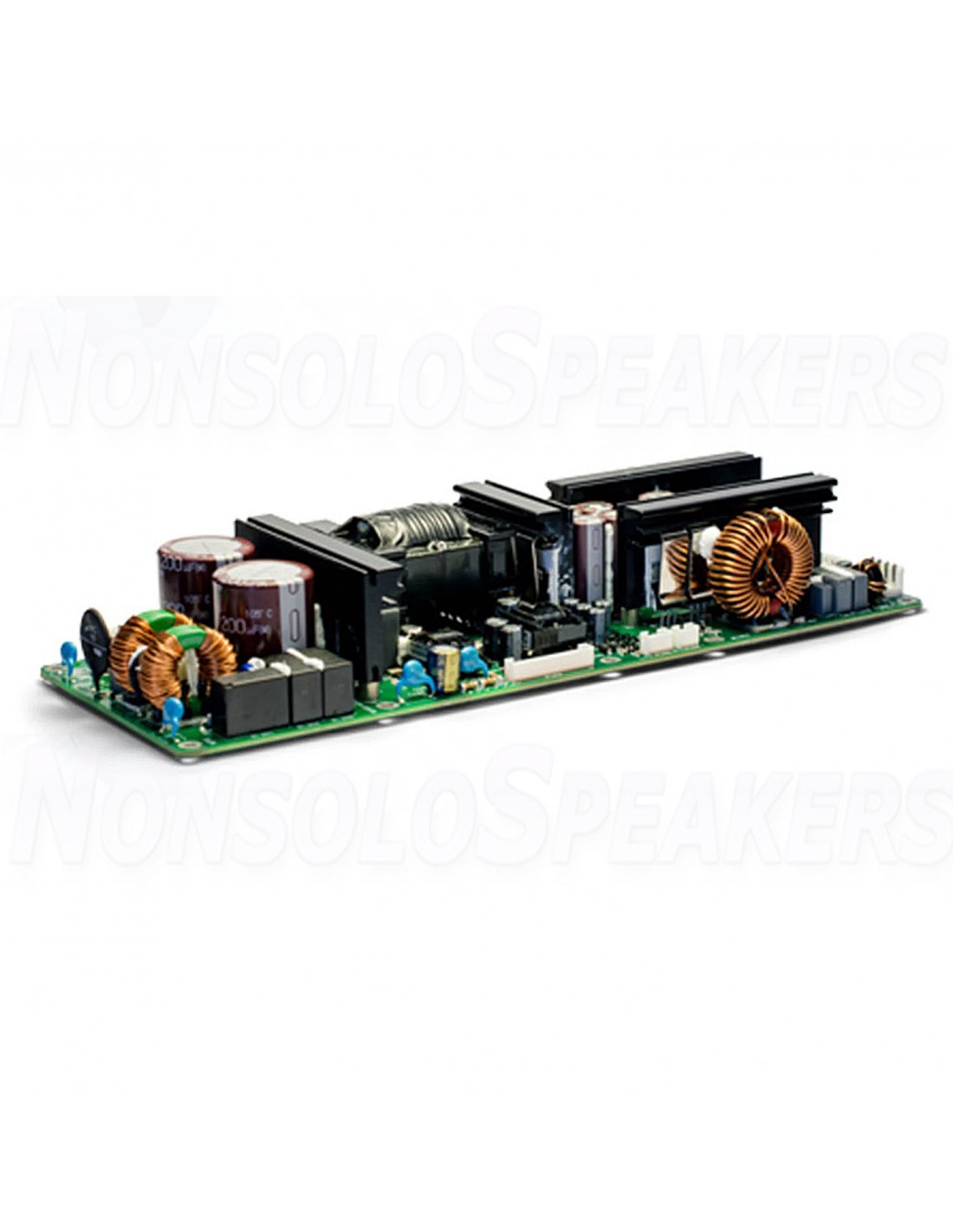

- 2x ICEpower 700AS2 amplifier module with integrated power supply

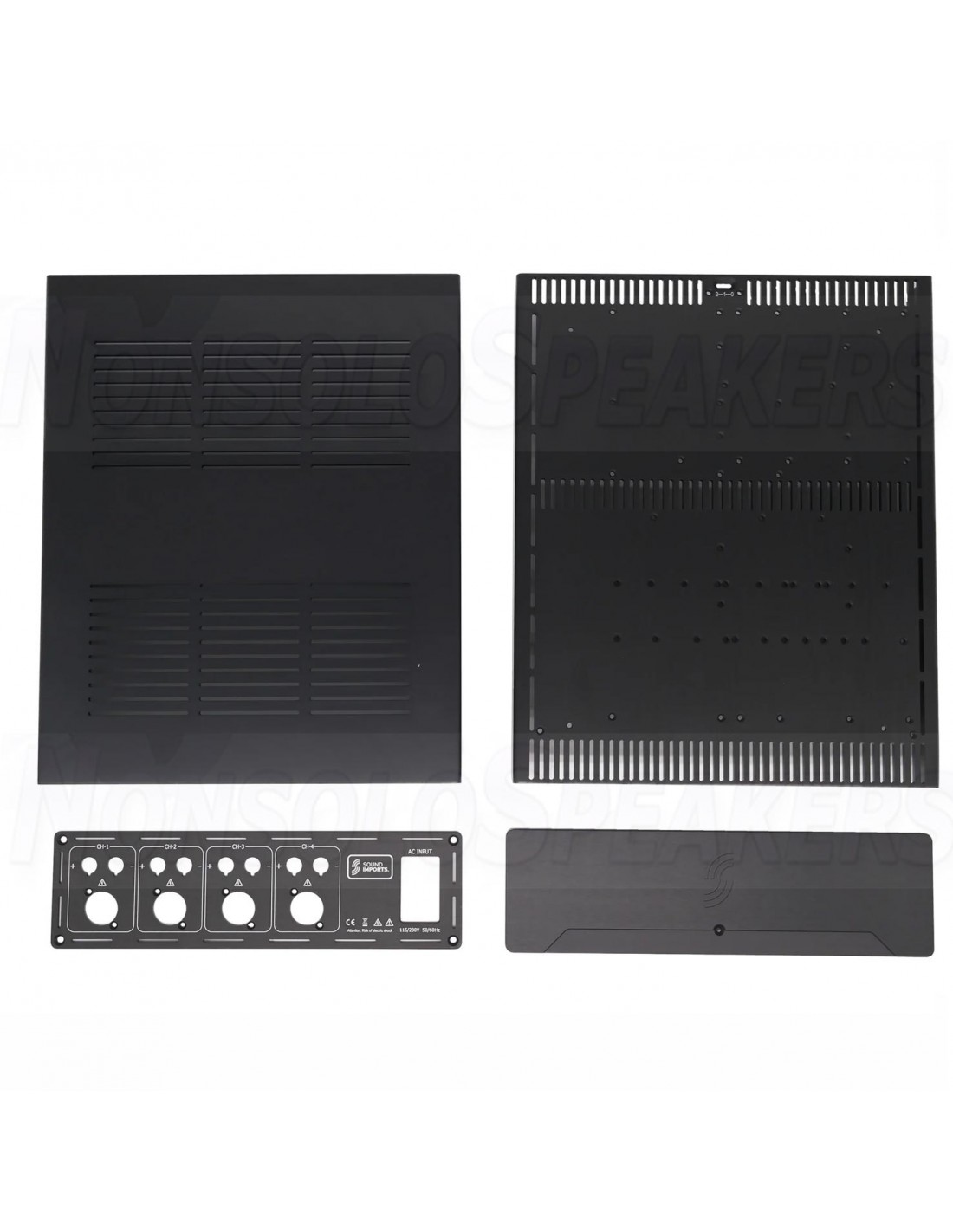

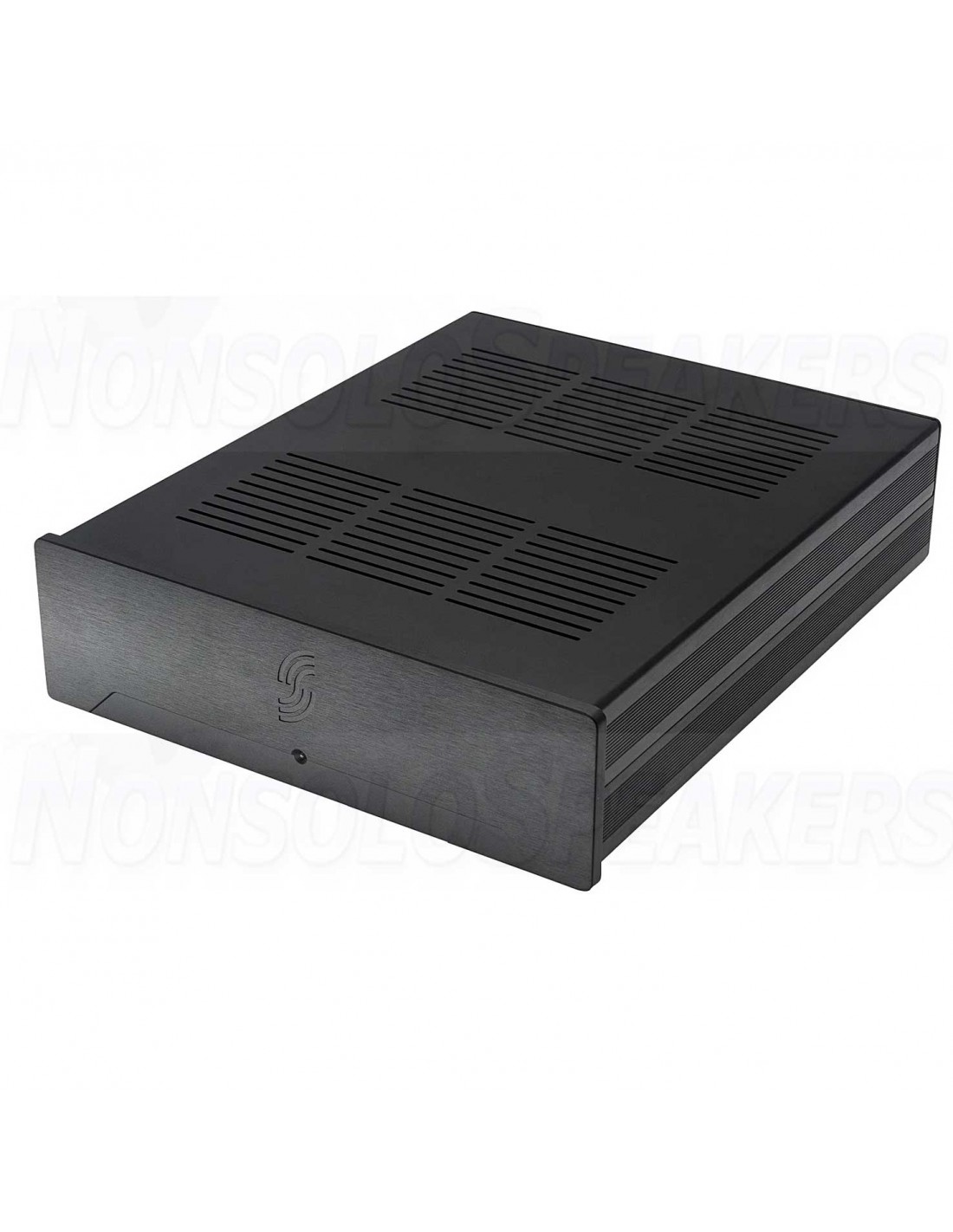

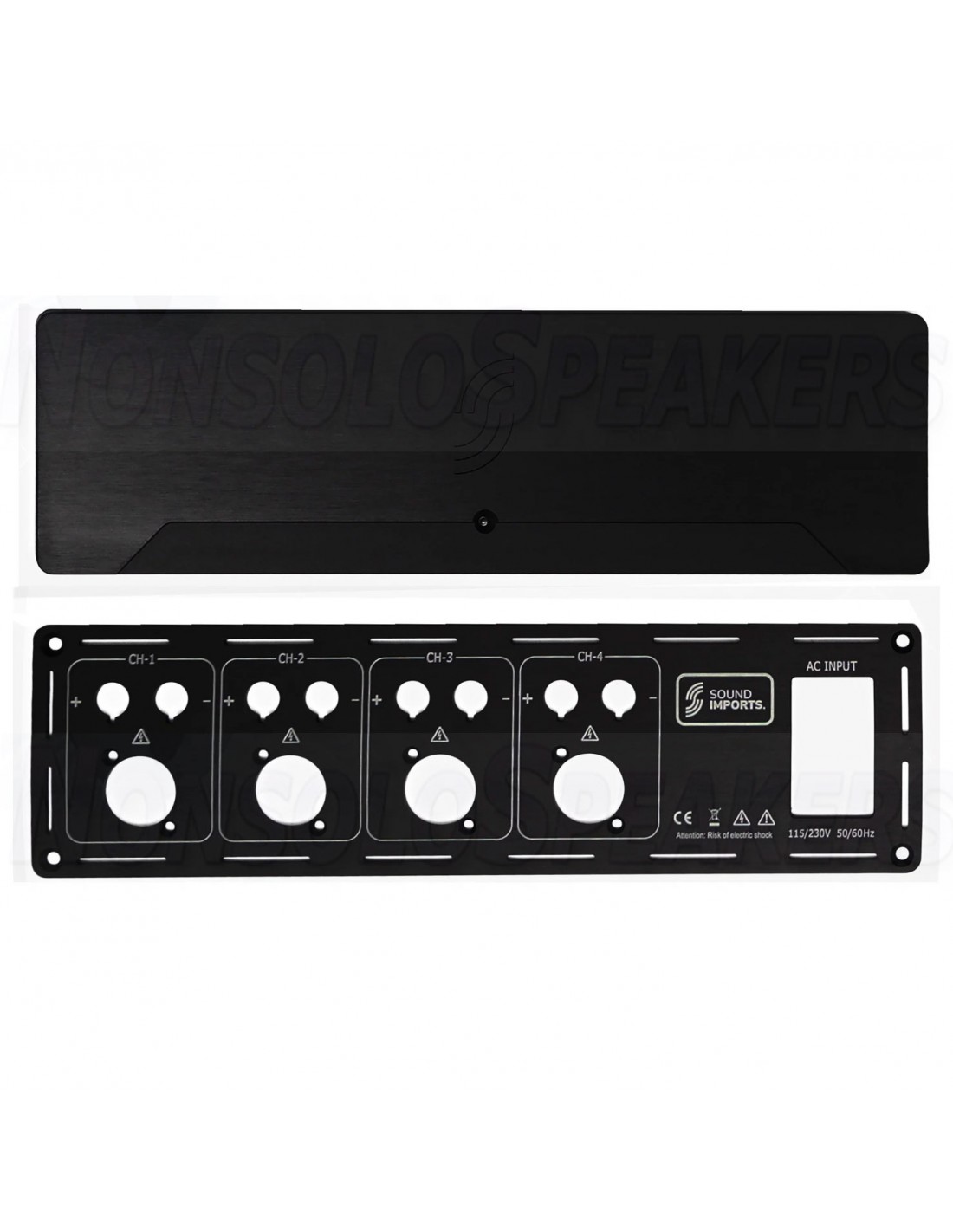

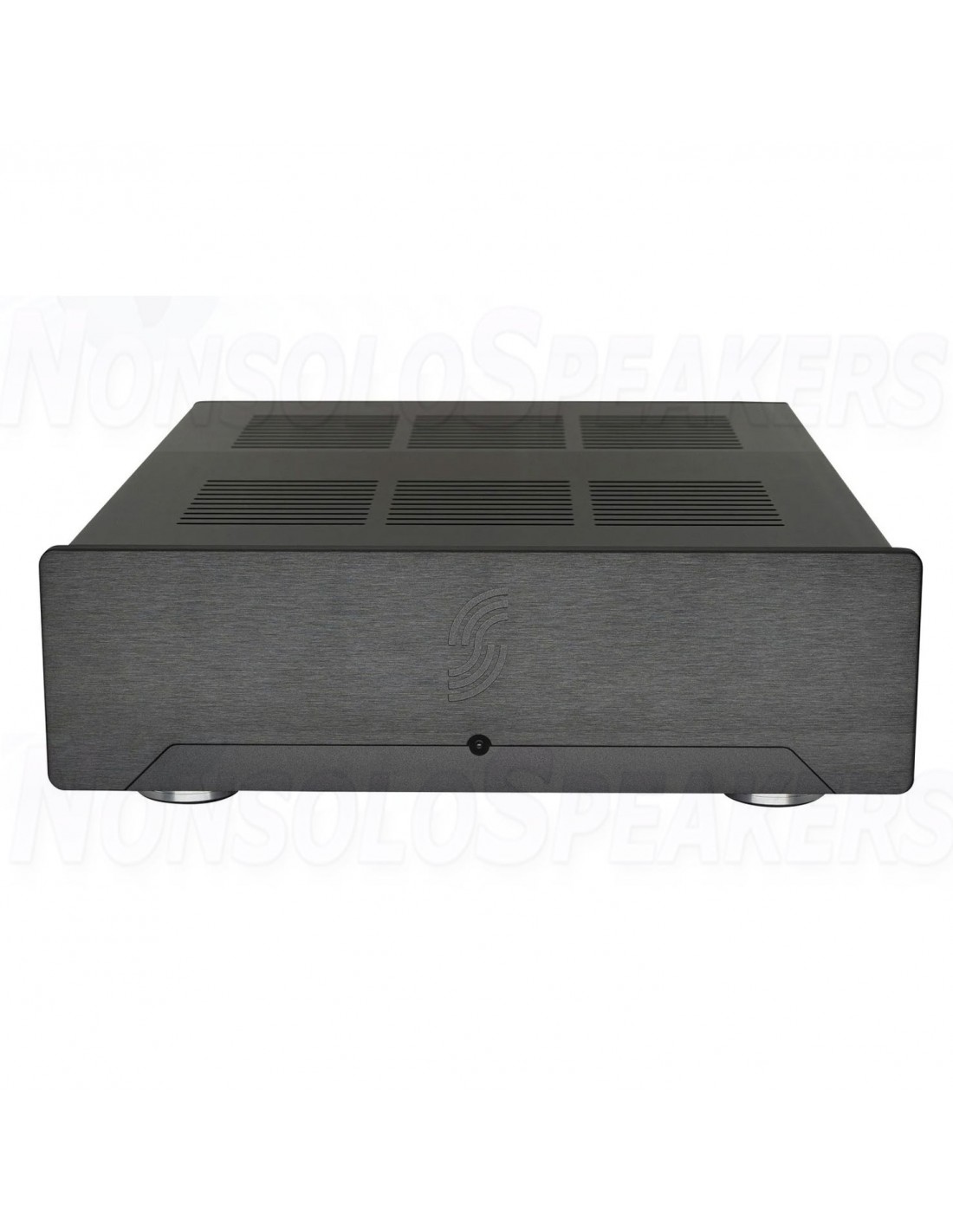

- Aluminum enclosure

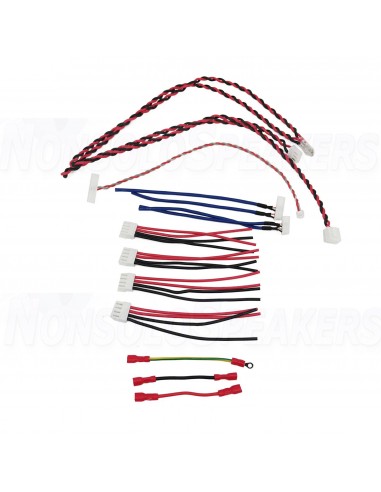

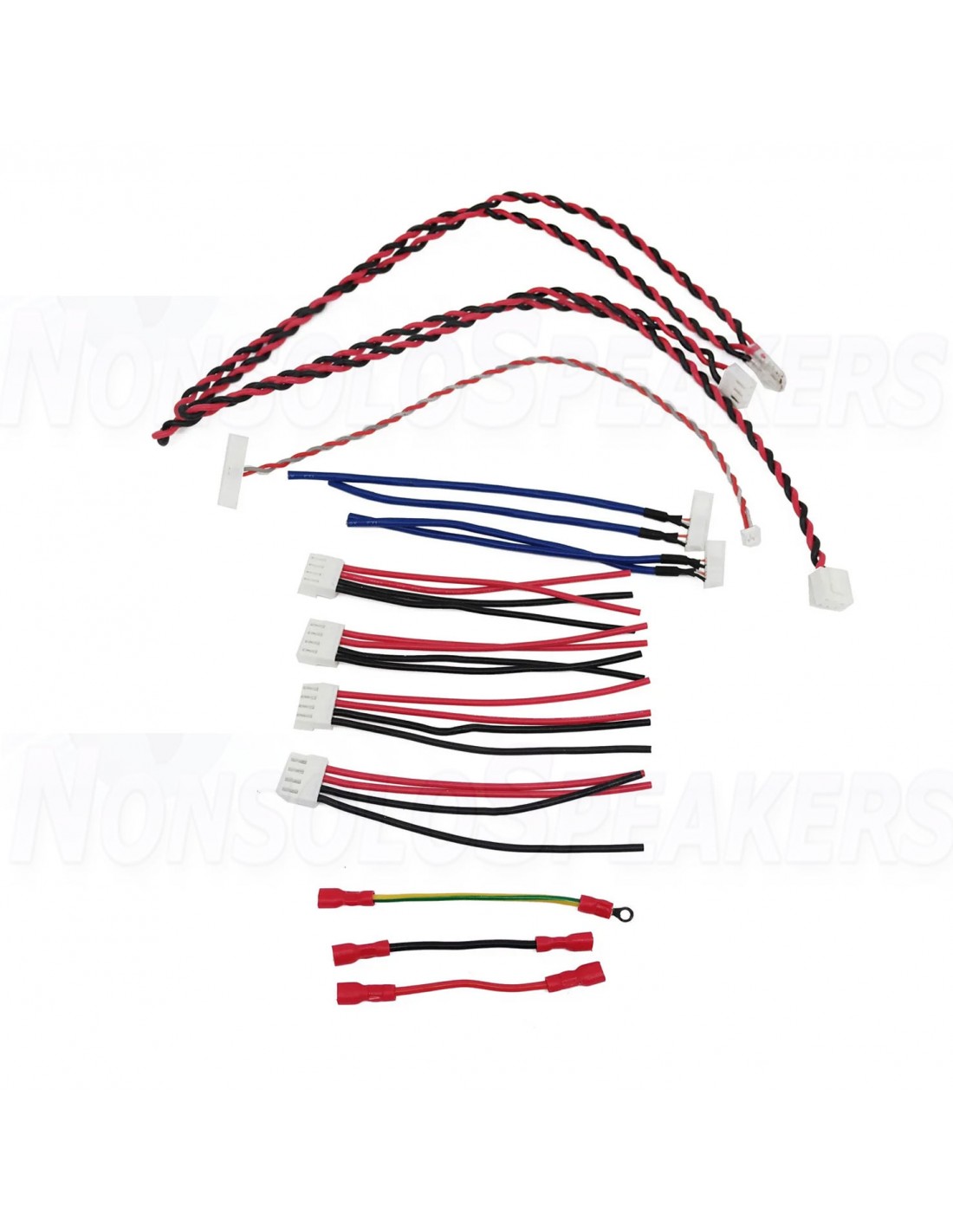

- All internal cables
- All needed mounting materials
- 8x binding posts (4 pair)
- 4x input XLR connector
- On/Off Switch
- IEC C14 power connector (including fuse)
- IEC C13 power cable (UK/EU/US)
