Build your own high-end class D monoblock amplifier based on the Nilai technology from Hypex.
Hypex Nilai500DIY 1-channel Nilai Mono amplifier kit
Build your own high-end class D monoblock amplifier based on the Nilai technology from Hypex.
-
Highlights
Nilai® Class D technology inside
Impressive performance despite load
Neutral and transparent reproduction
Flat, fully load-independent frequency response
Plenty of power combined with high efficiency
Compact design
Carefully high-grade components
Balanced XLR input, goldplated binding posts output
12V Trigger
Easy to assemble offers a ready-to-go DIY-experience
5 year / 20.000h warranty
-
Specifications
Article number
Nilai Mono Kit
Rated power output (RMS)
1 x 500 watts at 2 ohms
1 x 525 watts at 4 ohms
1 x 260 watts at 8 ohms
Minimum load 2 ohms
Signal-to-noise ratio (SNR) 134dB
Distortion. 0.0005% THD+N (20 Hz - 20 kHz, 4 ohms, 100W)
Frequency response. 0 - 70kHz
Circuit Topology Hypex Nilai®
Amplifier classification. Class D
Speaker output channels 1
XLR in/out 1/0
Banana plug compatible
Auto turn-on
12V trigger
Power requirements 110/240 VAC, 50Hz/60Hz
Power inlet connector IEC C13
Dimensions (D x W x H) 300 x 205 x 80 mm
Case material Matte Black Aluminum
-
Product details
Hypex Nilai500DIY 1CH Nilai® 1x500W Mono Amplifier
The Nilai® technology is the latest amplifier technologie from Hypex and the long-awaited successor to the acclaimed NC400 Ncore amplifier. This new class D technology boosts all previous achieved performances to a next level. The Nilai500 stands among the top of our amplifier module technology.
Besides impeccable performance, this kit features everything you need to build your own Nilai monoblock amplifier. The main parts are the Nilai500 amplifier module, PS500 power supply and the DIY Monoblock case. The amplifier module and power supply combination enable the latest and best performance available from the Nilai technology.
.
This amplifier can deliver all its power from as low as 2 ohm impedance combined with ultra low distortion, very low idle loss, and very noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour. This results in performances such as the max output power of 500Wrms at 4 ohm, a Signal-to-Noise Ratio (SNR) of 134dB and astonishing distorting level of 0.00015%.

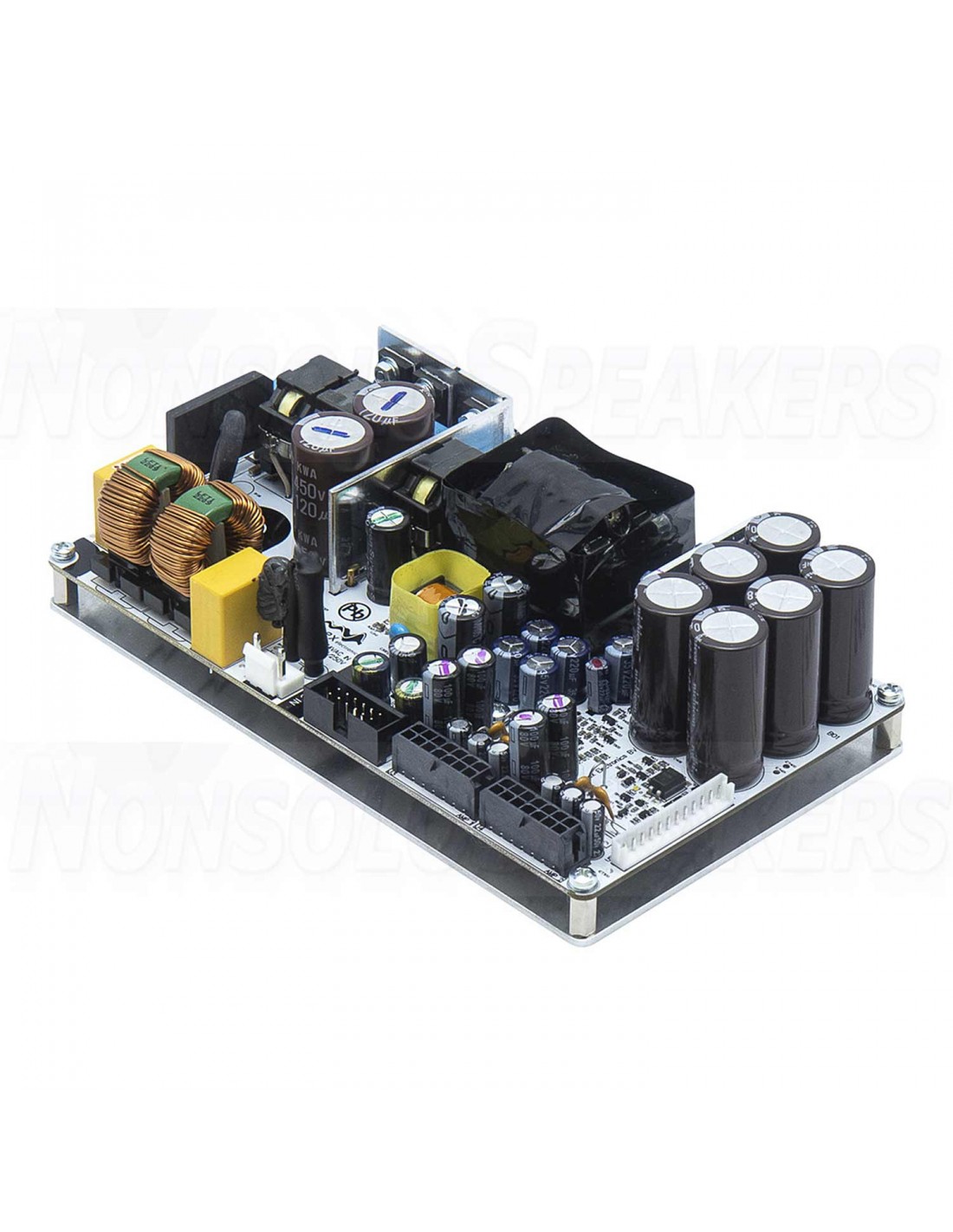

An amplifier is only as good as the power supply it contains. In this Nilai500 DIY mono amplifier, the power supply providing the power for the amplifier is a compact, high power, highly efficient PFC power supply, including standby power supply. Including these properties and carefully selected high-grade power supply components makes this technology ideal for powering the Nilai500 amplifier module.

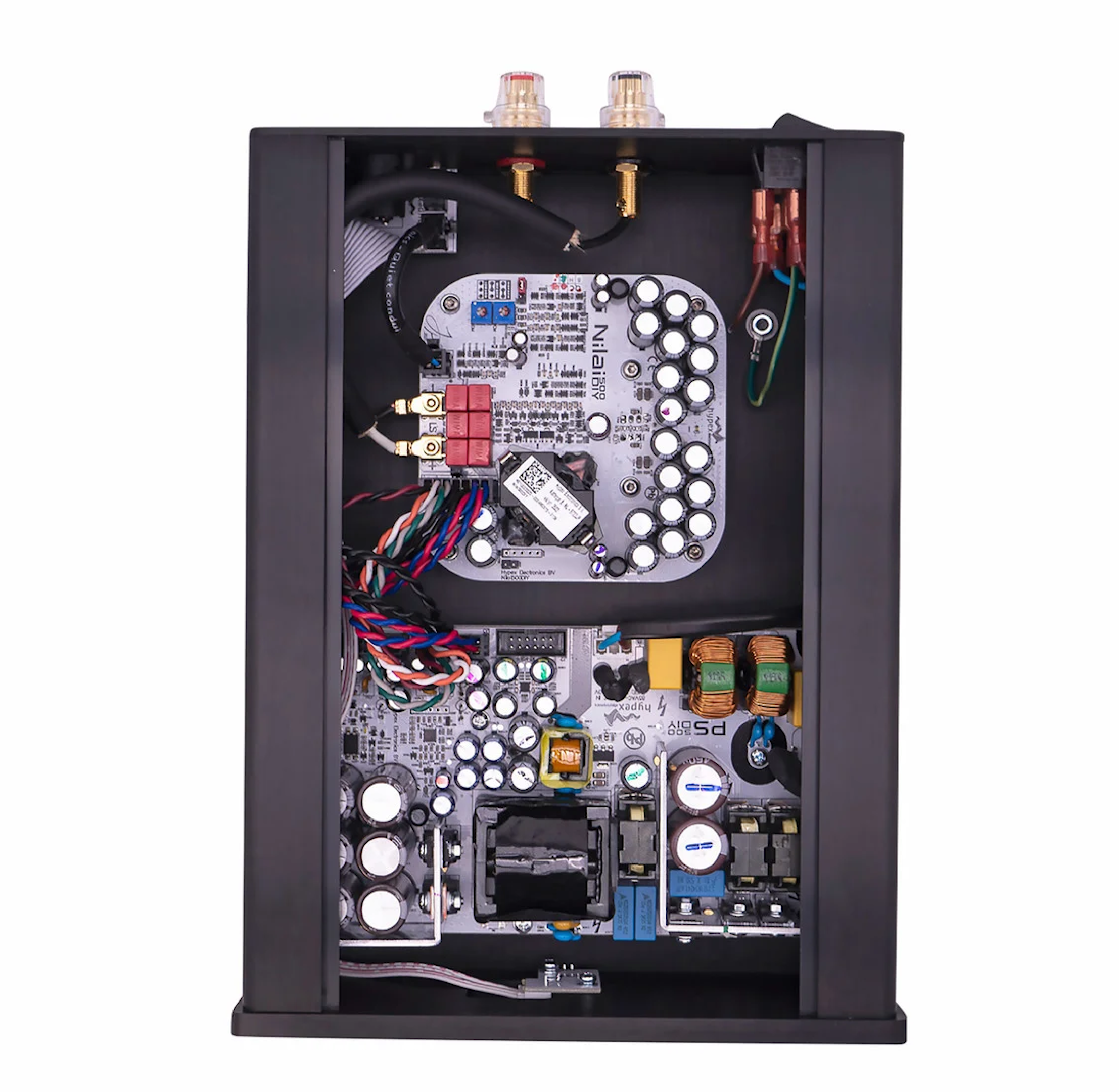

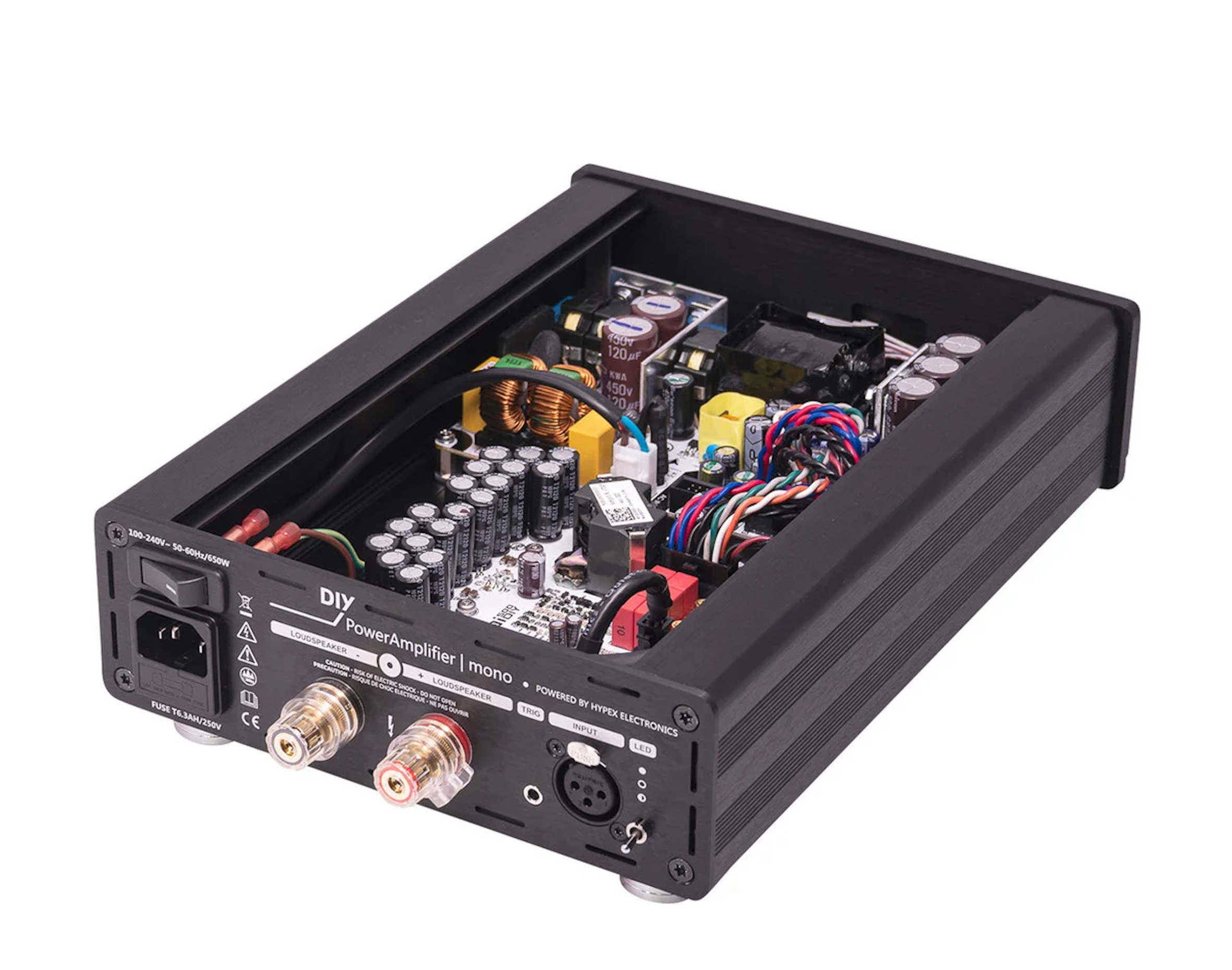

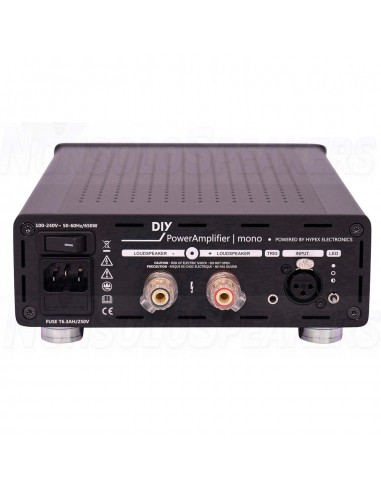

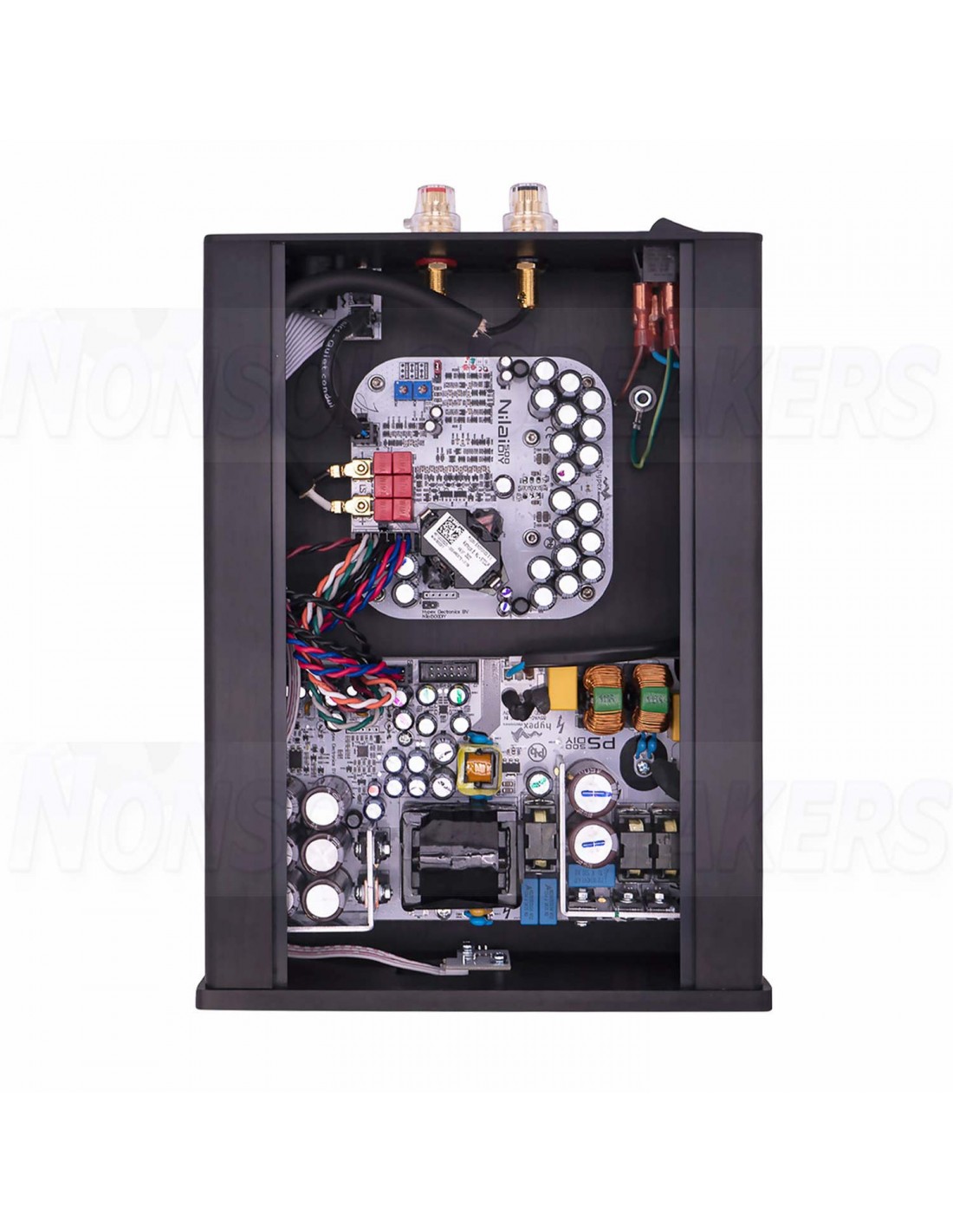

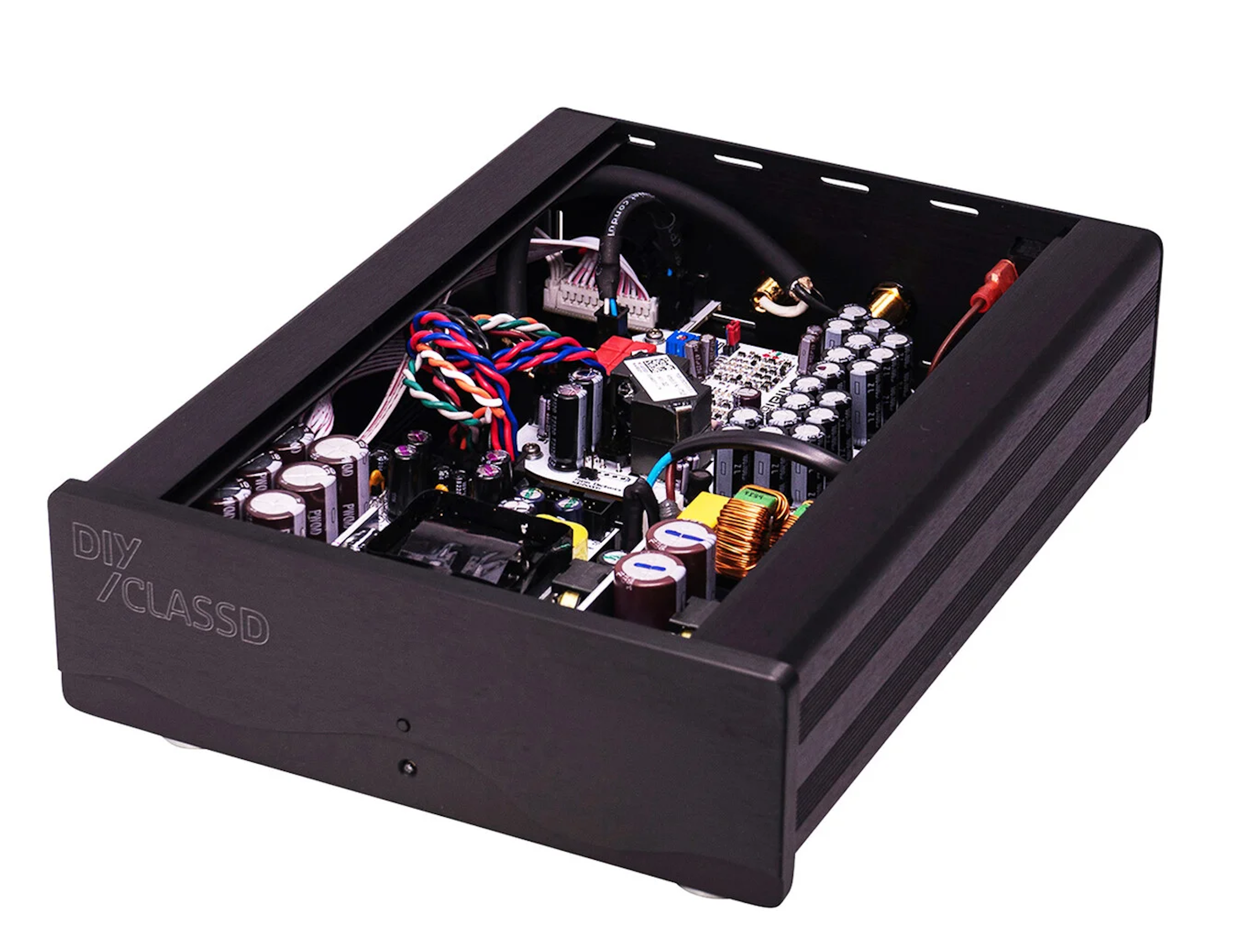

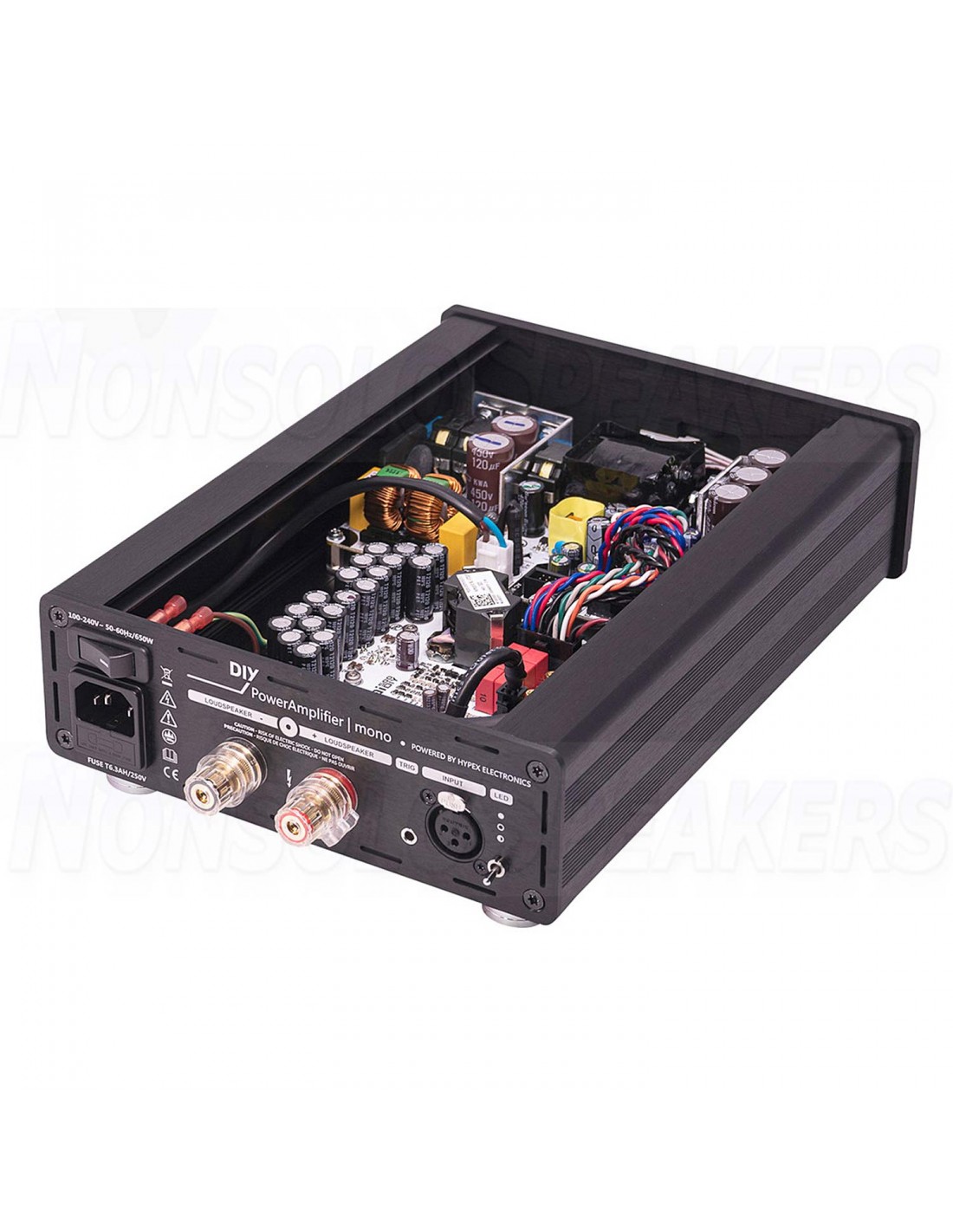

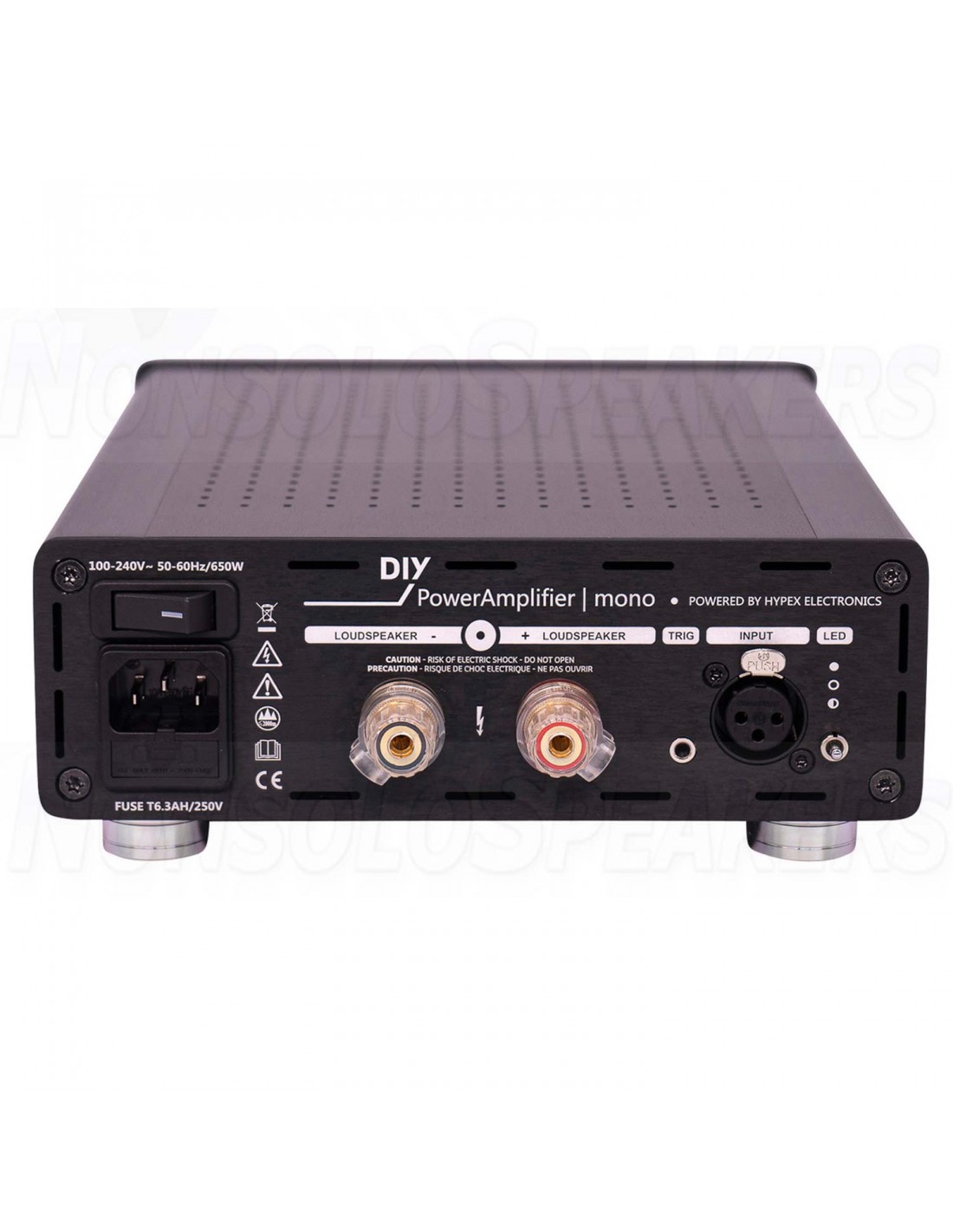

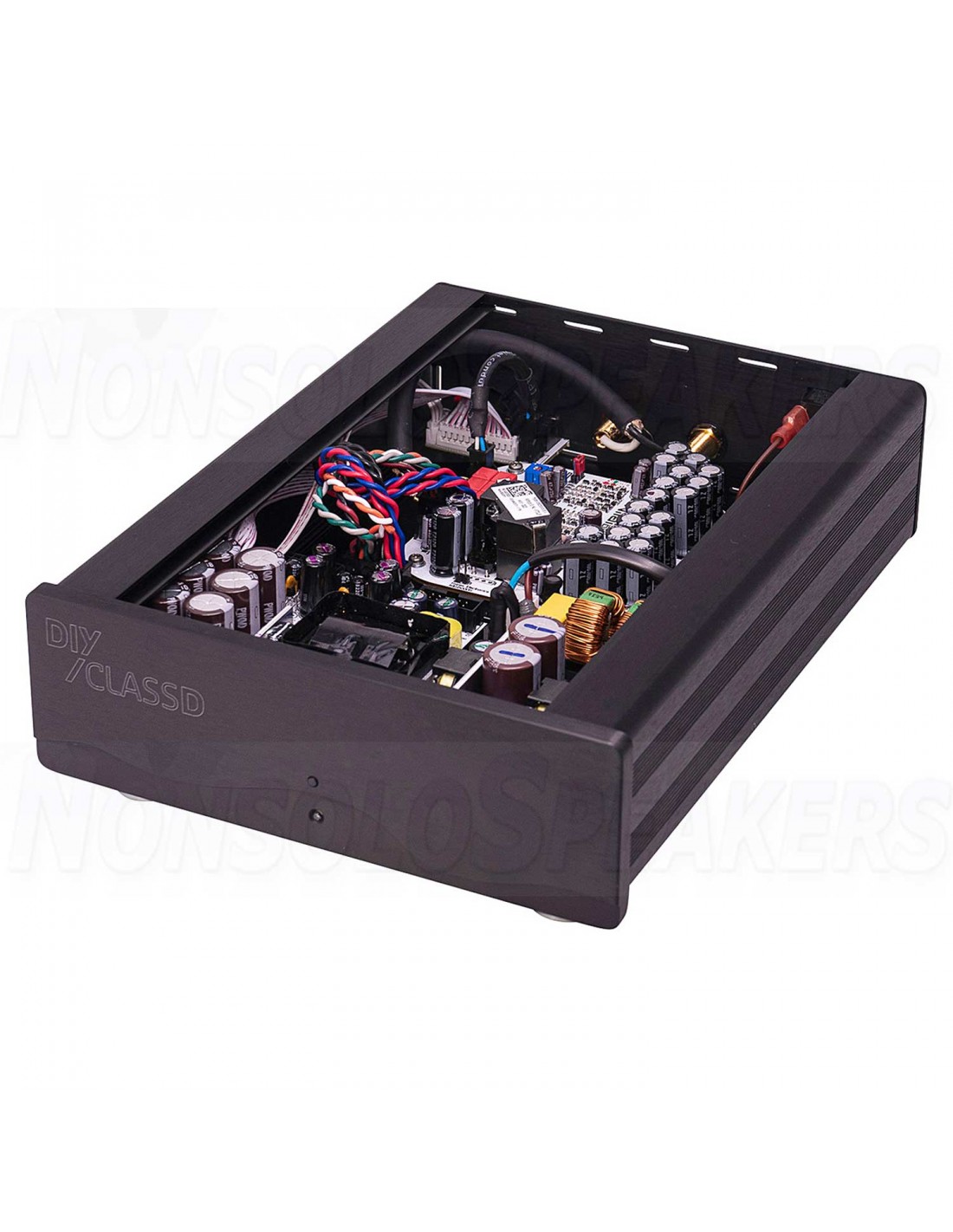

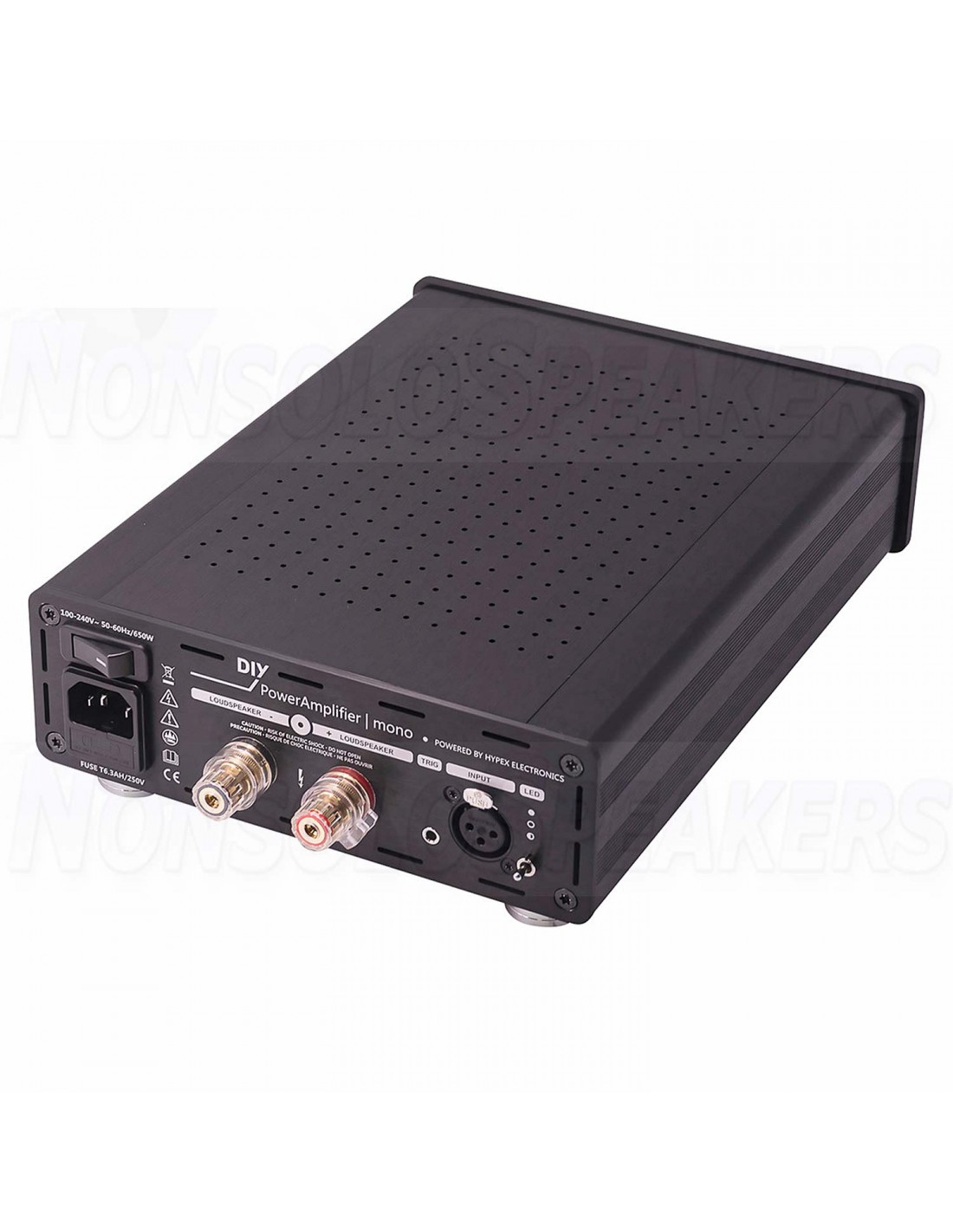

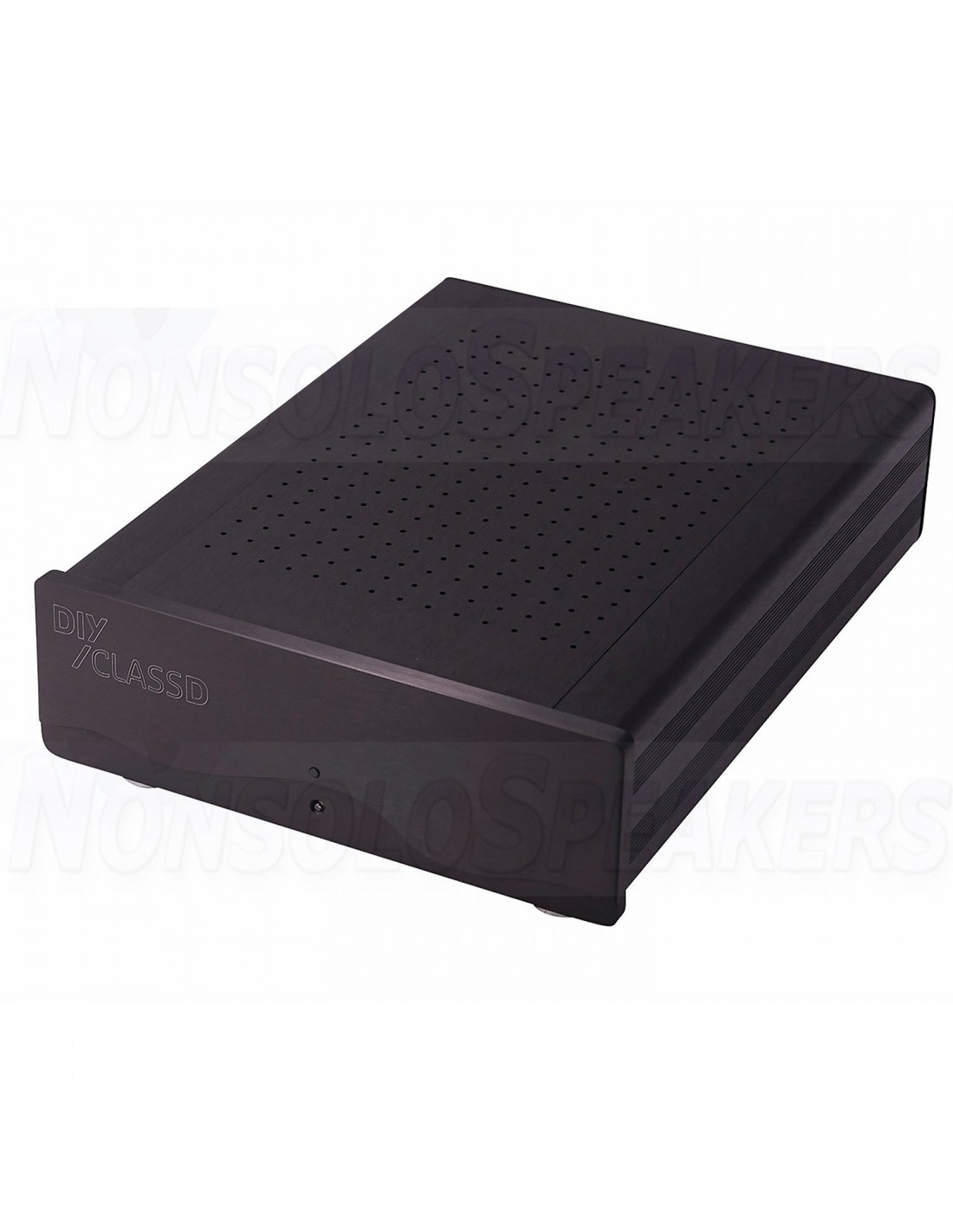

The aluminum enclosure houses the Hypex Nilai500 amplifier module and power supply, the best thermal material for audio devices. The in- and output connections are provided through high-quality gold plated binding posts and XLR-chassis from Neutrik. The power supply can operate from both 110 and 230 VAC mains voltage due to it's universal mains input.
Along with the main parts, everything else you need to build a powerful high-quality monoblock amplifier is included. Including an easy to follow instruction manual which gives you the ability to realize a high end power amplifier at a fraction of the costs. Assembly only requires proper positioning, around 30 bolts to be tightened and some connectors to be clicked. Anybody comfortable with a screwdriver can build one of the best amplifiers available within just 30-60 minutes.
Check out this Nilai500DIY 2CH Nilai Stereo Kit based on the same Nilai® technology from Hypex or the DIY PreAmplifier kit which perfectly matches this mono amplifier.
-
What’s In The Box

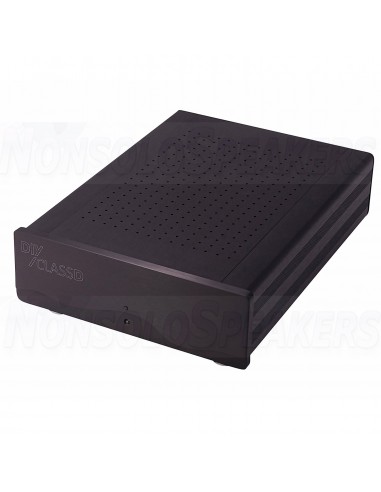

DIY mono case "matte black"
Complete internal cable harness
PS500DIY power supply

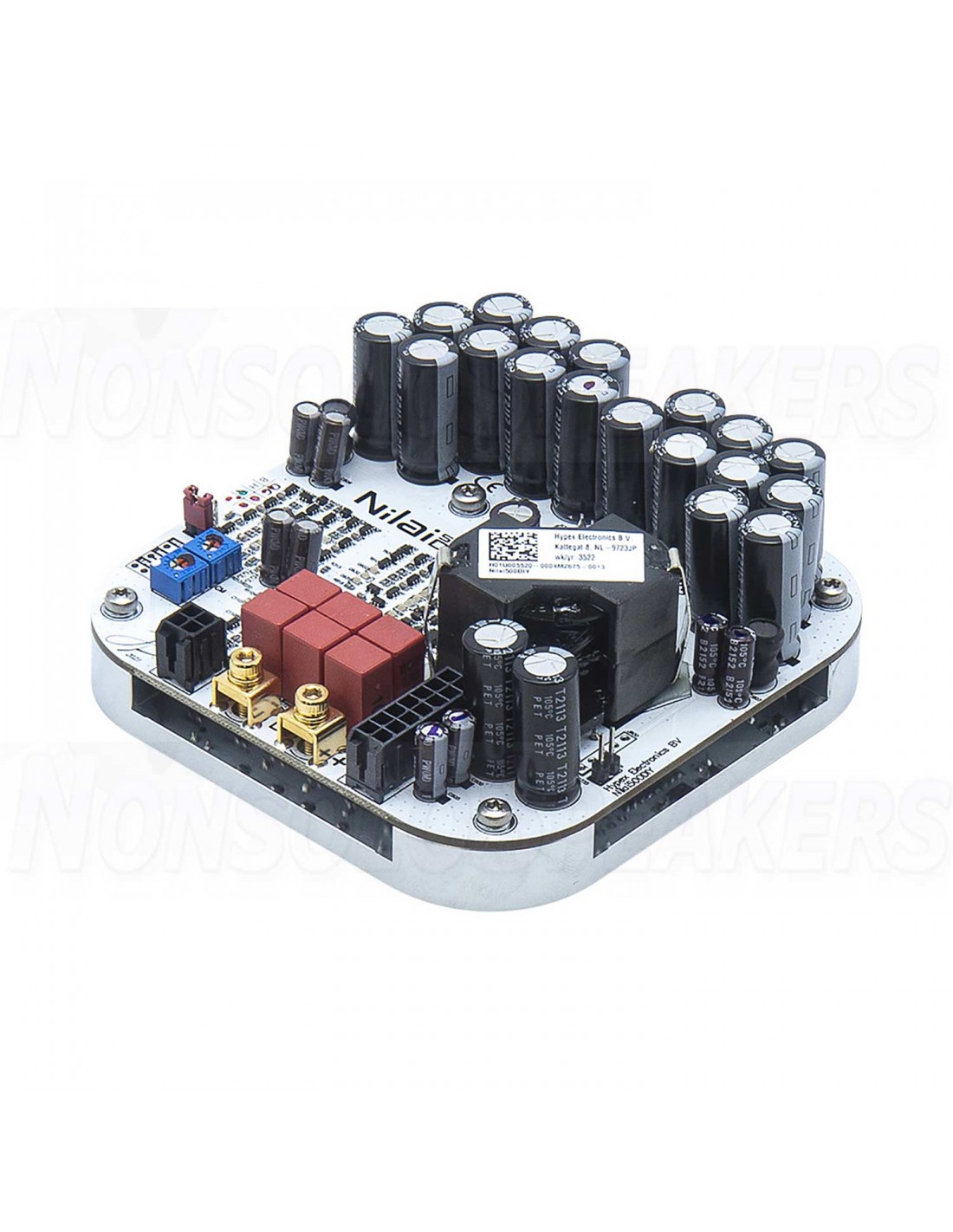

Nilai500DIY amplifier module
Inputboard and frontboard
All needed mounting materials
TX-10 and TX-20 Torx key
1.5mm and 2.5mm Allen key
IEC C13 power cable (UK/EU/US) including fuse
Assembly instruction manual
