Hypex DIY PreAmplifier Kit

Product description

Build your own high-performance stereo amplifier based on the UcD400HG HxR modules from Hypex.

.

Highlights

Easy assembly and no soldering required

Detailed step-by-step instructions

Fully analogous

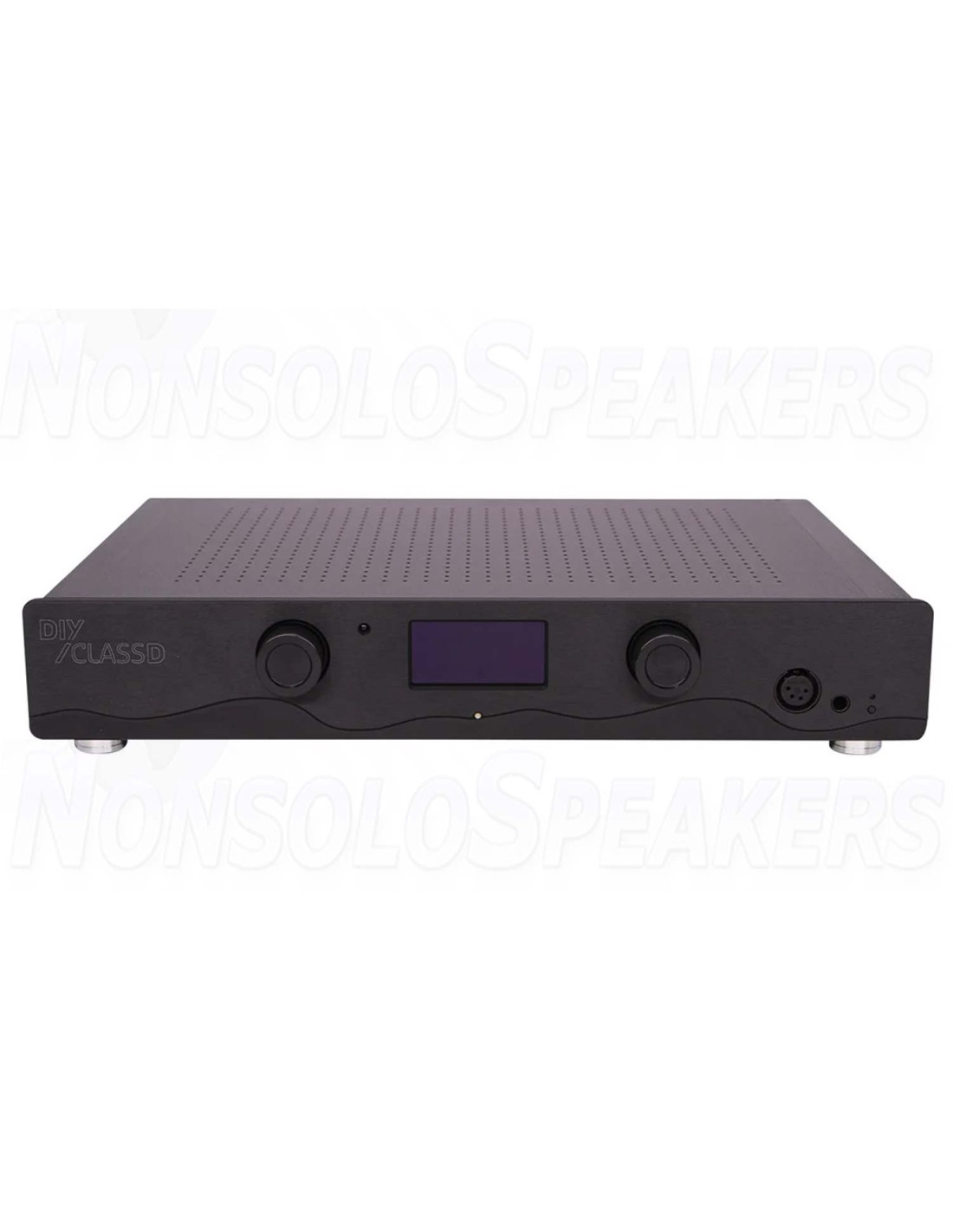

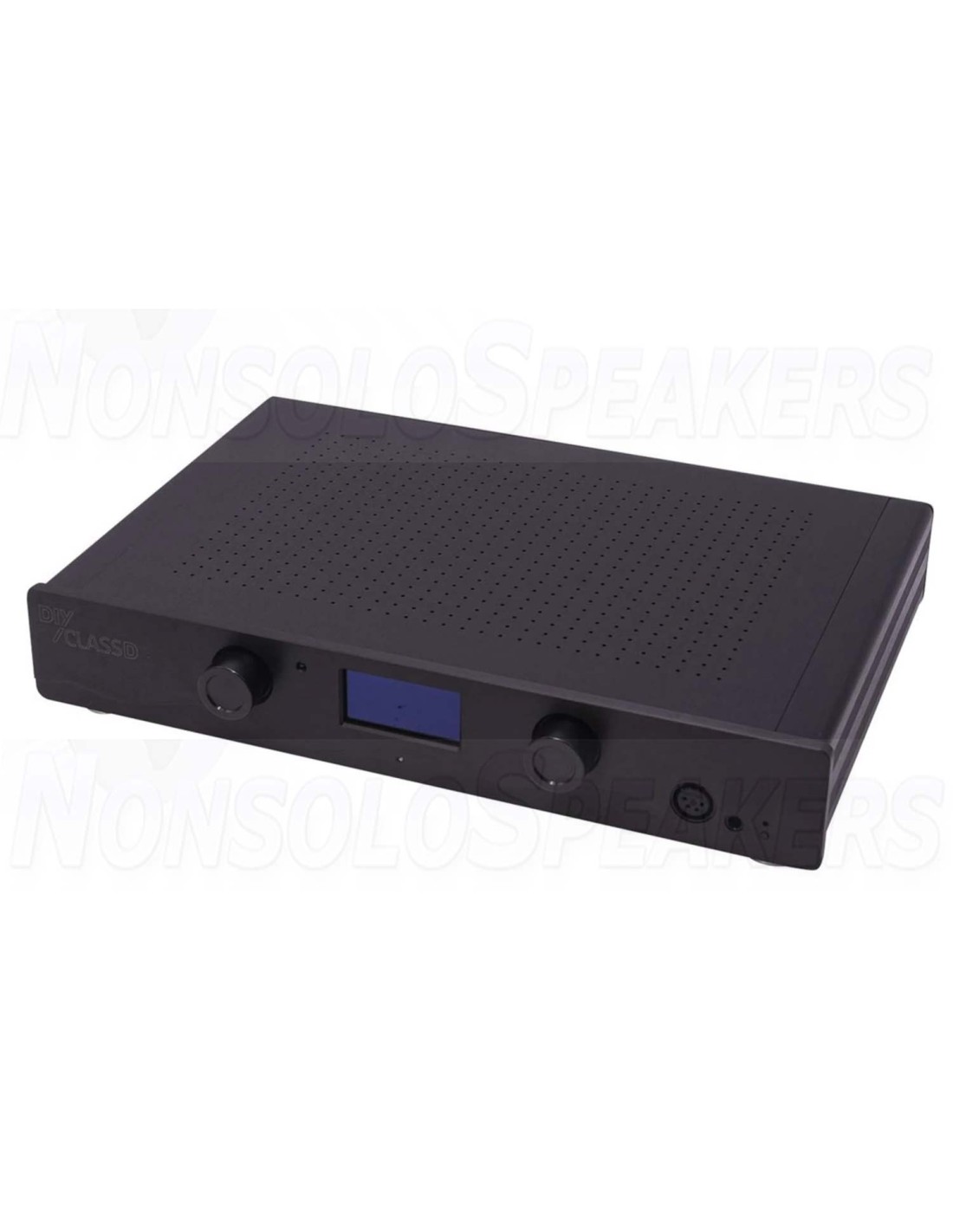

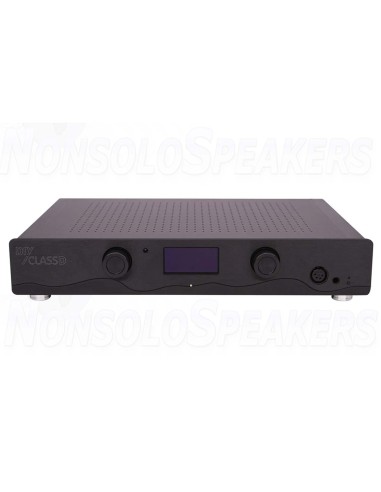

2.7" monochrome OLED display

Remote control included

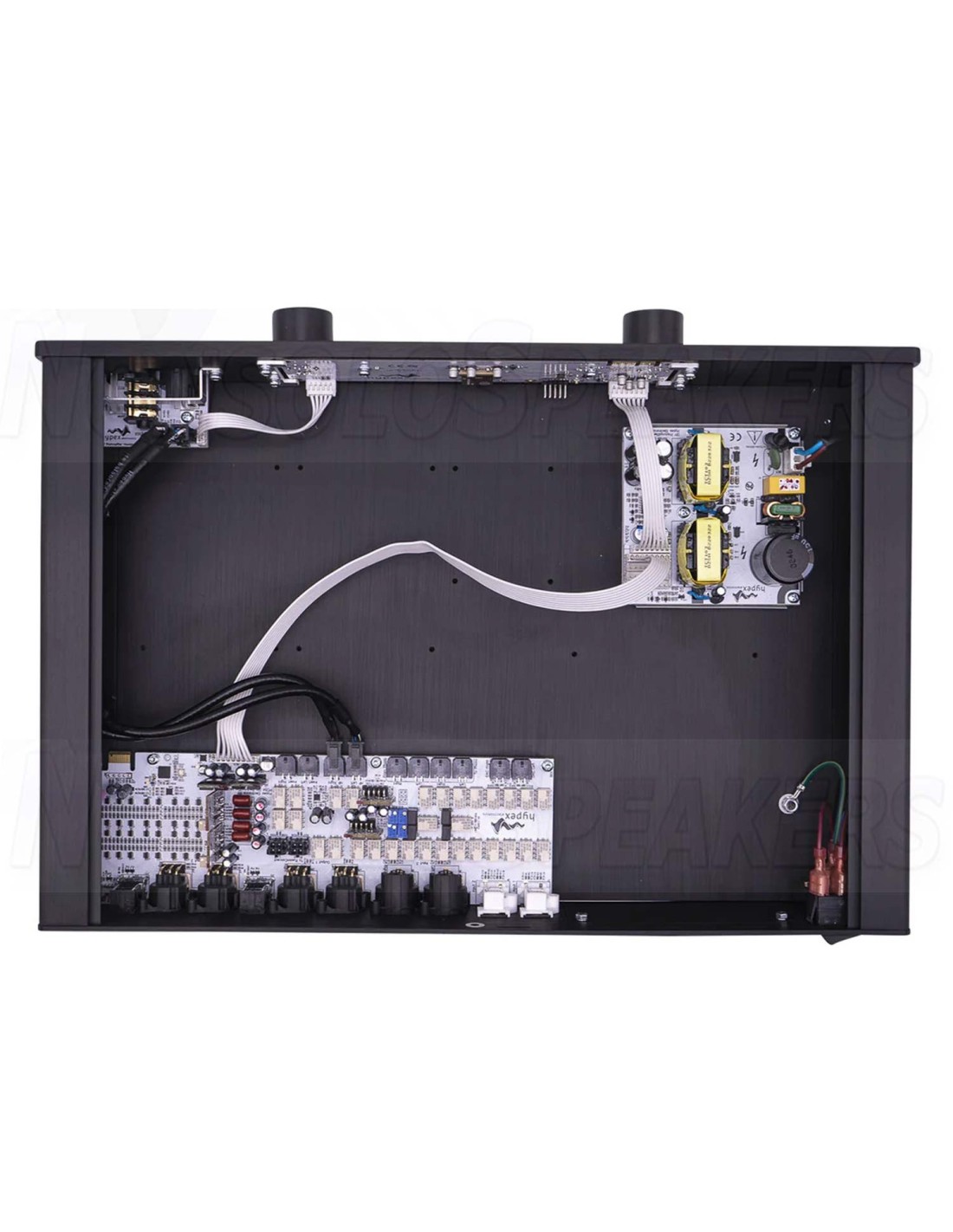

Modular design

Discrete op amps & voltage regulators

.

Product details

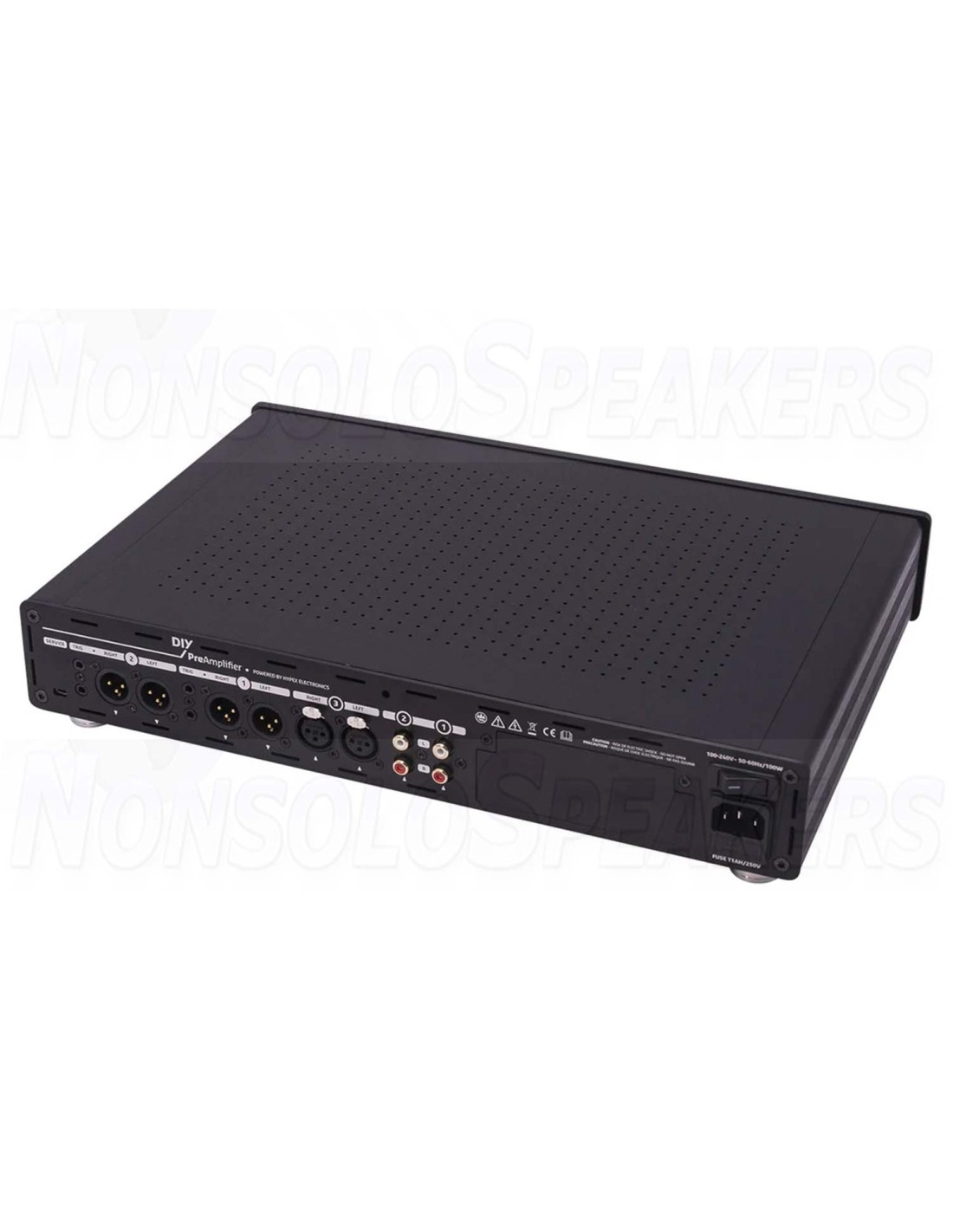

Hypex DIY PreAmplifier Kit

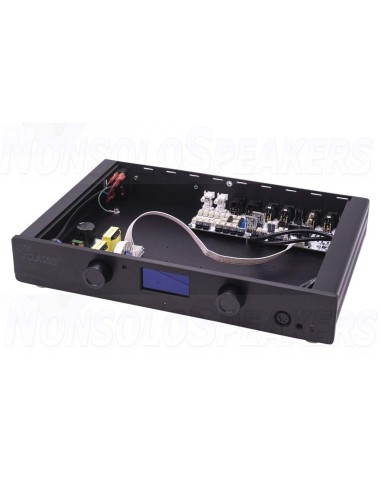

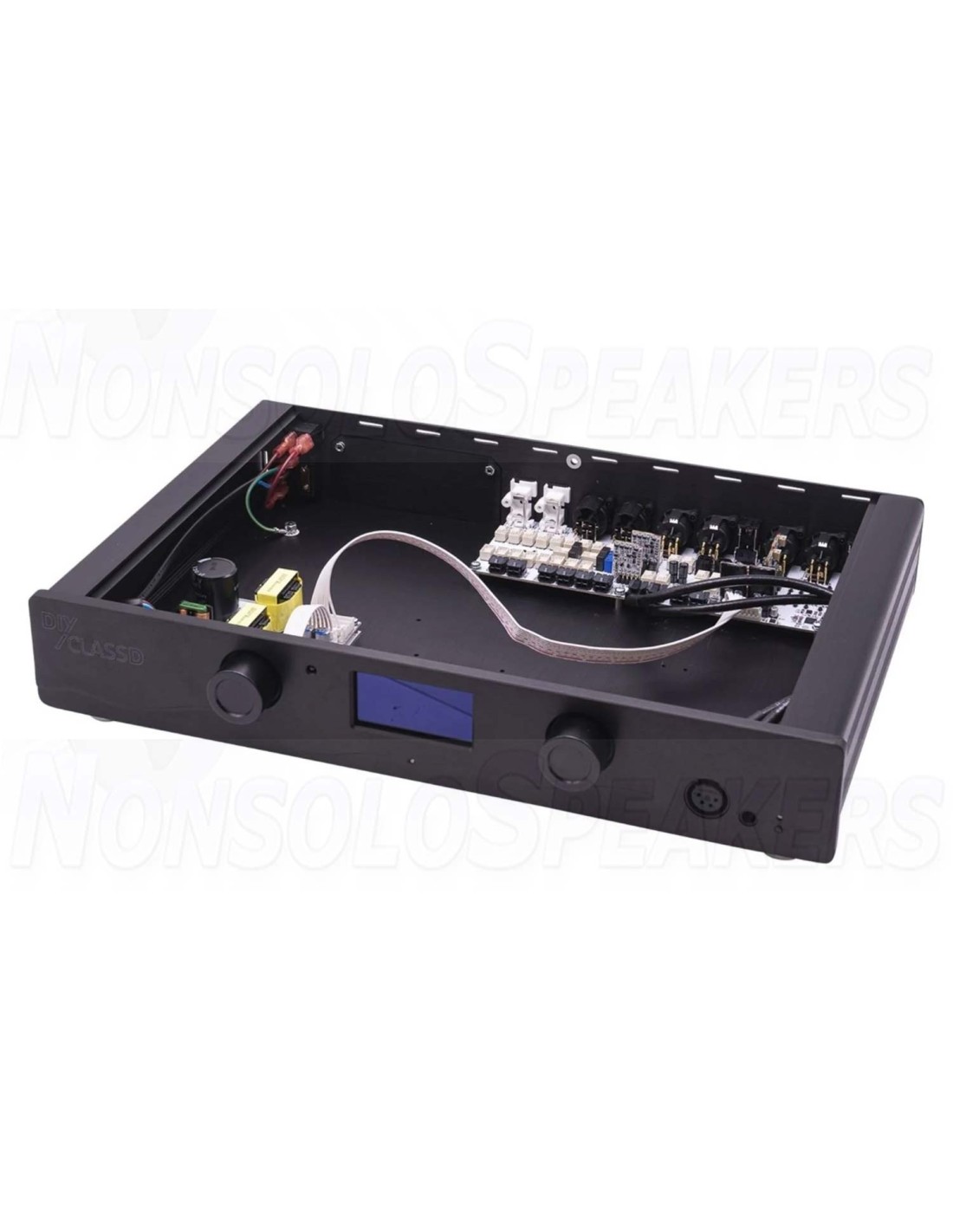

To complement our DIYclassD amplifier kits we introduce our brand new DIYclassD PreAmplifier kit. Just like our amplifier kits you get a complete kit to assemble a fully analogue high-end preamplifier. Add-ons like a DAC, Phono stage and EQ will be released in the nearby future. Because of it's modular design, add-ons can be added at a later stage after you have finished building your analogue DIY PreAmplifier.

Build yourself a state-of-the-art high-end preamplifier with this DIY kit by DIYclassD. DIYclassD is part of Hypex Electronics. At DIYclassD our aim is to serve the global DIY community and consumer market for Hypex products.

With the easy to follow instructions you will be able to realize a high end preamplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD Nilai® power amplifier kits you can create a complete set of superbly sounding equipment.

All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier) • 5.5mm hex nut driver (or combination plier) • 7mm hex nut driver (or combination plier) • 3.5mm flat type screwdriver.

.

Features

• Item Number: DIY PreAmplifier Kit
• EAN 8785256846030
• Product Type PreAmplifier

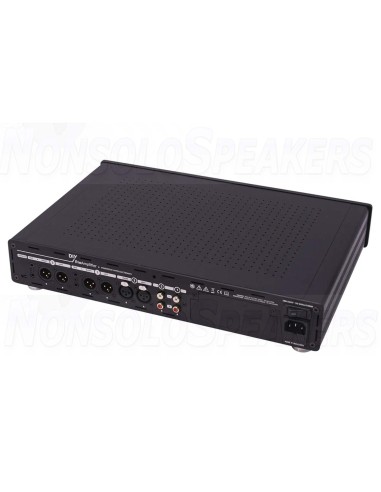

• Inputs 2x RCA Unbalanced Analog In | Female XLR Stereo Balanced Analog In
• Outputs 2x Male XLR Stereo Balanced Analog Out
• THD(+N) -140 dB @1kHz, 4Vrms input, 0dB
• SRV 122 dB
• USB Compatibility :Mini-USB can be used to configure the preamp and update the firmware. This connection does not support USB audio.
• Headphone Amplifier Output Power 19 dBu (7 Vrms)
• Power Consumption 10W
• Standby Power Consumption <0.5W

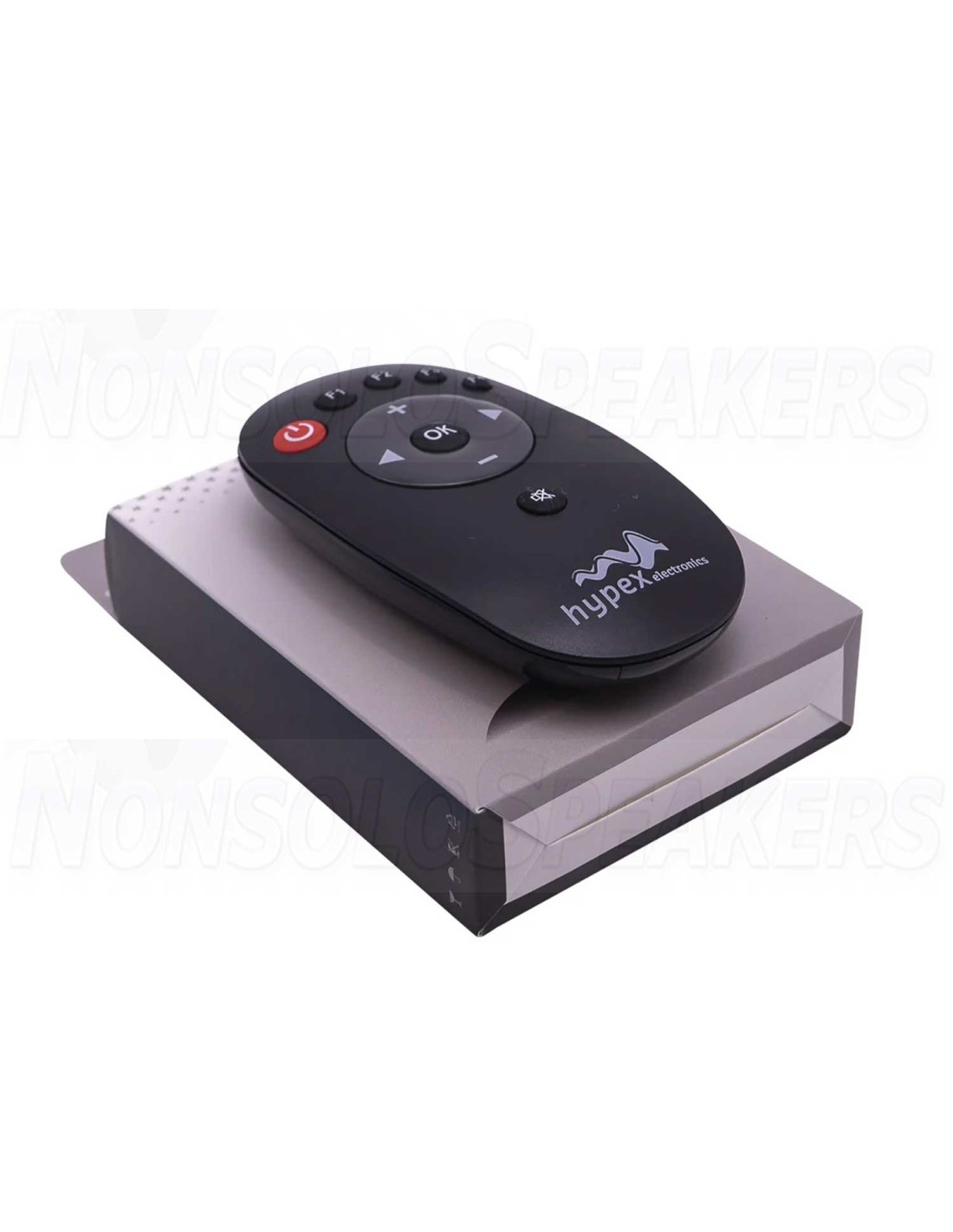

• Remote Control Included
• Dimensions 417mm x 77mm x 340mm
• Weight 4 kg
