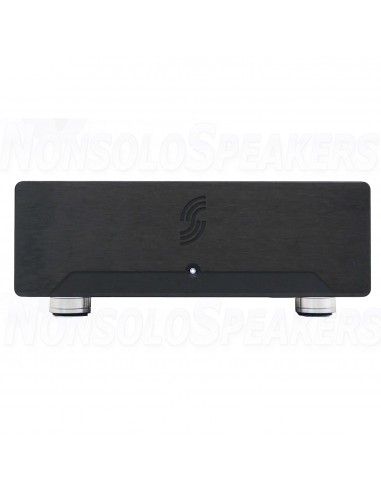

SoundImpress HY250-1CH Mono Amplifier |250WPC |Ncore® |Powered by Hypex

This SoundImpress amplifier is a self-contained high-end class-D mono amplifier intended for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use. The SoundImpress brand stands for outstanding quality, timeless designs, and Dutch craftsmanship. This amplifier is built to last as it is extensively tested and manually assembled to ensure every last detail is checked.

.

Highlights

• Ncore® technology inside
• Impressive performance despite load
• Neutral and transparent reproduction
• Flat, fully load-independent frequency response
• Plenty of power combined with high efficiency
• Compact design
• XLR input, binding posts output
• Assembled by hand in the Netherlands
• 5 year Warranty

-

Product details

SoundImpress HY250-1CH 1x250W Ncore Mono Amplifier

The HY250-1CH is a compact, high performance, one channel and no-nonsense class-D power amplifier. It incorporates the proven and renown Hypex Ncore® technology, which settles for nothing less than an impressive performance!

The performance stands out with authoritative and tightly controlled low registers, high dynamics and crystal clear mid- and high-frequencies. The super-low noise level generates a completely black background to reveal the tiniest of details in every recording.

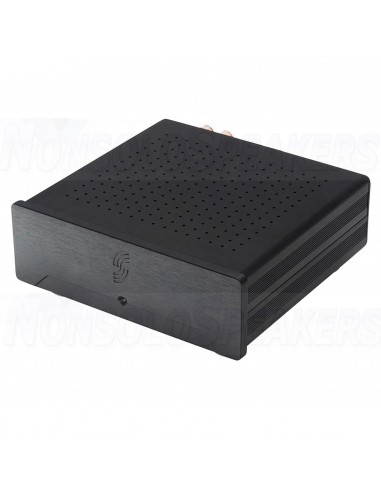

All SoundImpress amplifiers are hand assembled in the Netherlands. The custom milled aluminum enclosure houses the Hypex NC250MP amplifier module, the best thermal material for audio devices. The in- and output connections are provided through high-quality binding posts from CMC and XLR-chassis from Neutrik and wiring from Mogami and Belden. It can operate from both 110 and 230 VAC mains voltage due to its universal mains input compatibility featuring an automatic input voltage doubler.

Small and powerful

This amplifier can deliver all its power from as low as 2 ohm impedance combined with low idle loss, very low distortion and noise levels. Chief distinguishing features are flat frequency response irrespective of load impedance, nearly frequency independent distortion behaviour and very low radiated and conducted EMI. This results in performances such as the max output power of 250 Wrms at 4 ohm, a Signal-to-Noise Ratio (SNR) of 121 dB and astonishing distorting level of 0.0015%.

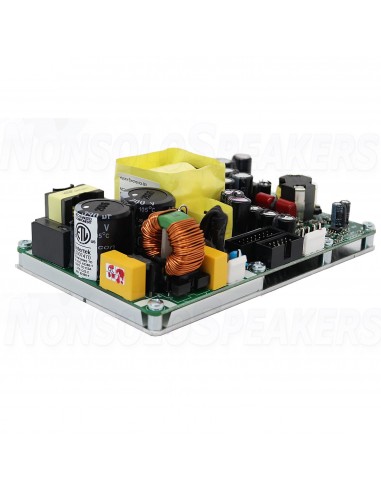

An amplifier is only as good as the power supply it contains. In this SoundImpress amplifier, the power supply and amplifier are located on one board. The switched-mode power supply (SMPS) providing the power for the amplifier is a compact, high power, highly efficient, regulated half bridge converter with synchronous rectification on the main output rails. These properties make this technology ideal for powering Class D audio amplifiers.

Specifications

• Article number HY250-1CH
• Rated power output (RMS) 1 x 180 watts at 2 ohms 1 x 250 watts at 4 ohms 1 x 130 watts at 8 ohms
• Minimum load 2 ohm
• Signal-to-noise ratio (SNR) 121 dB
• Distortion 0.0015% THD+N (10 Hz - 20 kHz)
• Efficiency 92 %
• Frequency response 0 - 50,000 Hz
• Circuit Topology Ncore®
• Amplifier classification Class D
• Speaker output channels 1
• XLR in/out 1/0
• Banana plug compatible
• Power requirements 100-240VAC (Auto-switching)
• Power inlet connector IEC C14
• Dimensions (D x W x H) 191mm x 200mm x 78mm (size incl feet, excl connectors)
• Case material Aluminum

-

What’s In The Box

• SoundImpress HY250-1CH Stereo Amplifier
• IEC C13 power cable (UK/EU/US)
• SoundImpress manual
