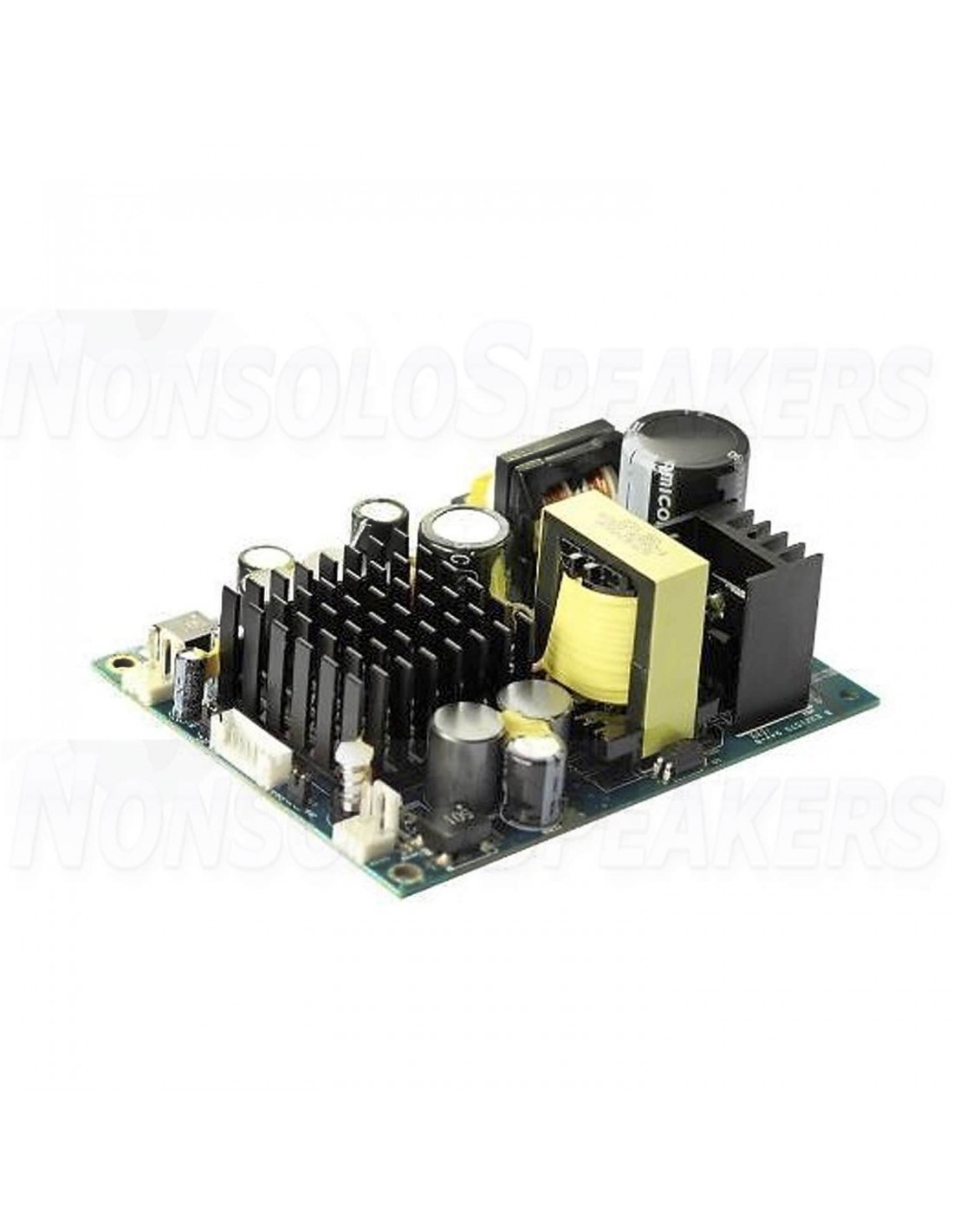

Luxus Audio Wagner - Class D amplifier - 2x75W @ 4ohm
Data sheet
Brand Luxus Audio
Chips TAS5611
Output Power [Watt] 50
Channel 2
.
Wagner is a 2 x 75W @ 4ohm class D Amplifier with power supply included:
Class-D and switching power Design for high efficiency, high stability and lighter weight
Output power: 50W x 2CH (8ohm)
Easy for application
.
Application
Active speakers
Musical instruments amplifiers
Combo Amplifier
Powered professional speakers
Monitor Speakers
.
Technical Specification
Output power ref. to 1% ............................................... ......................................... 50W / 8ohm x2CH
S / N Ratio @ rated power ................................................................................> 100 db / A-Weighted
THD @ -3db rated power ............................................ .................................................. .......... <0.1%
Input sensitivity with jumper .............................................. .................................................. ..... 0.6 Volt
Input sensitivty without jumper .............................................. .................................................. .1.2 Volt
Input Impedance ................................................ .................................................. ...................... 22KO
Frequency response 20HZ ~ 20KHz ............................................. ........................................ +/- 1.5dB
Crosstalk @ 1KHz ............................................... .................................................. ........................ 80dB
Dimension: 105 (L) x 85 (W) x 41 (H) mm
.
Other Specifications
Universal AC Input Voltage: 90V ~ 260V
Short circuit protection
Over-current protection
Thermal Protection
RoHS compliant
Bridge configuration NOT available
Jumper for half input sensitivity for each channel for 2 ways purpose
