Here is the upgrade version of the original 2 x 150 watt class D T-Amp card with audio amplifier. Listen to your music like never before with 100 Watts per channel of Tripath Class-T technology on an audiophile level

SHIPMENT IN 7/10 WORKING DAYS
€49.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32221 - 2x150W amplifier class D - TAS5613

Sure Electronics - AA-AB32221

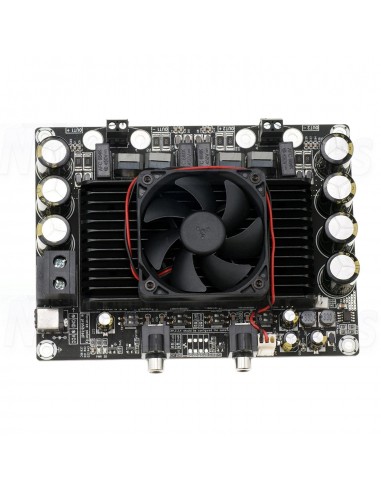

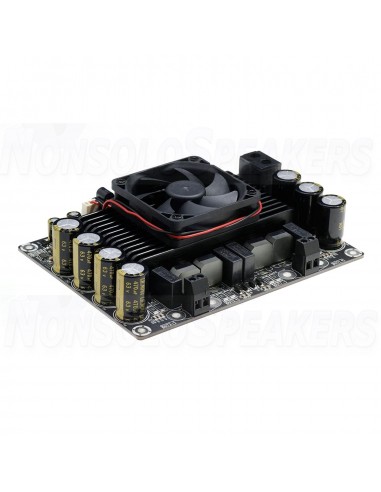

Here is the upgrade version of the original 2 x 150 watt class D T-Amp card with audio amplifier. Listen to your music like never before with 100 Watts per channel of Tripath Class-T technology on an audiophile level. The amplifier includes a silent fan to dissipate heat. This amplifier board supports stereo (double) amplification using the two-channel PBTL topology. Thanks to the dedicated heat sink design with temperature controlled fan, it is able to simultaneously supply the maximum dual channel power from 150 W RMS to 4 ohms without using an additional heat sink.

In addition to the integrated protection of the chip, the ESD protection components used in the entire input and output of the amplifier board guarantee its robustness and reliability. A low-noise, temperature-controlled cooling fan is mounted above the robust heat sink to maximize heat dissipation. Also included are thermal protection, over / under voltage and current circuits to extend the life of the amplifier board.

Mounting holes are provided as a 2.5mm x 5.5mm power jack for quick connection. Phoenix type screw terminals are included for quick connection of speaker cables. The RCA line level inputs are pre-attached to make this board ready for rock. Recommended power supply: ALC24V6AJ.

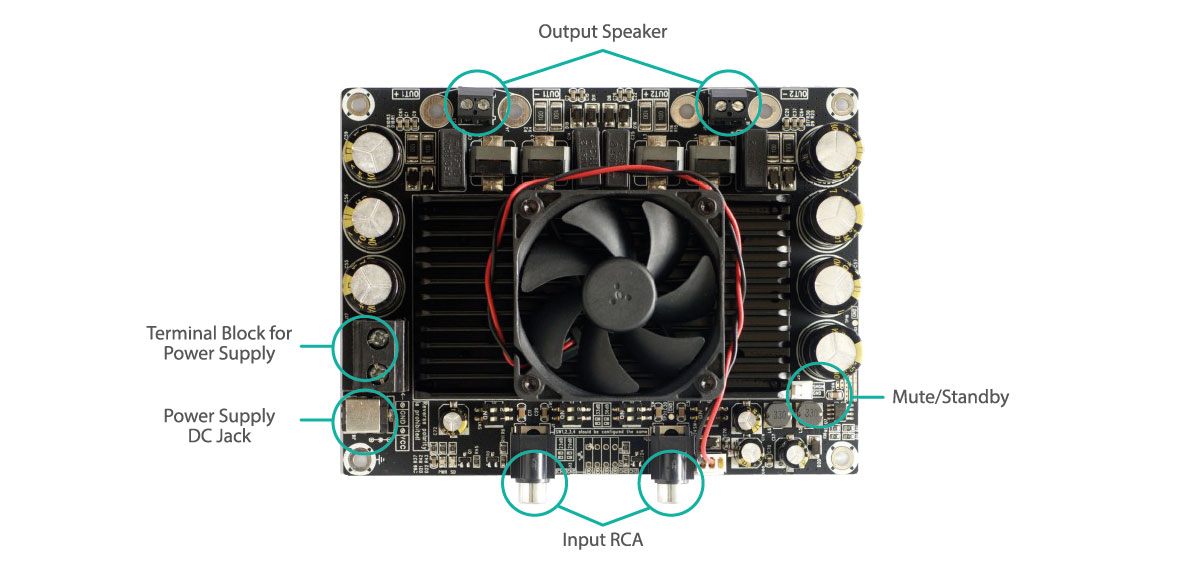

Dettaglio di connessione amplificatore in classe D

Features AA-AB32221

Parametri  Condizioni di Test Valori
Corrente massima 300 W @ 4 Ohm 9.0 UN
Tensioni di Alimentazione  - 18-38 V
Efficienza 150 W @ 4 Ohm 91-96 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

6.1-10 W

3.2-5 W
Frequenza Swhitching SD Floating 394 kHz
Potenza in Standby SD collegato a GND, FAN OFF 1.1-2 W
Sensibilità  di ingresso (RMS) @ 4 Ω, 150 W, 1 KHz 2.4 V
Impedenza di ingresso - 10 KΩ
Guadagno

K1 ON, K2 ON

K1 ON, K2 OFF

K1 OFF, K2 ON

K1 OFF, K2 OFF

20 dB

26.8 dB

30.1 dB

32.5 dB
Impedenza di carico minima - 4 Ω
Potenza in uscita

@ 4 Ω THD + N 1%

@ 4 Ω THD + N 10%

144 W

150 W
Larghezza di banda @ ± 3dB @ 4 Ω 20-20K Hz
THD

@ 4 Ω, 1W, 1KHz

@ 4 Ω, 10W, 1KHz

0.019 %

0.039 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 206mV
SNR 144 W @ 4 Ω THD + N 1% 94 dB
Temperature
 - 50 °C

Others features AA-AB32221

Parametri Specifiche
Chip TAS5613
Dimensioni 15,2 x 11,4 x 3,8 cm.
Potenza 2 x 150W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

WONDOM AA-AB32221
