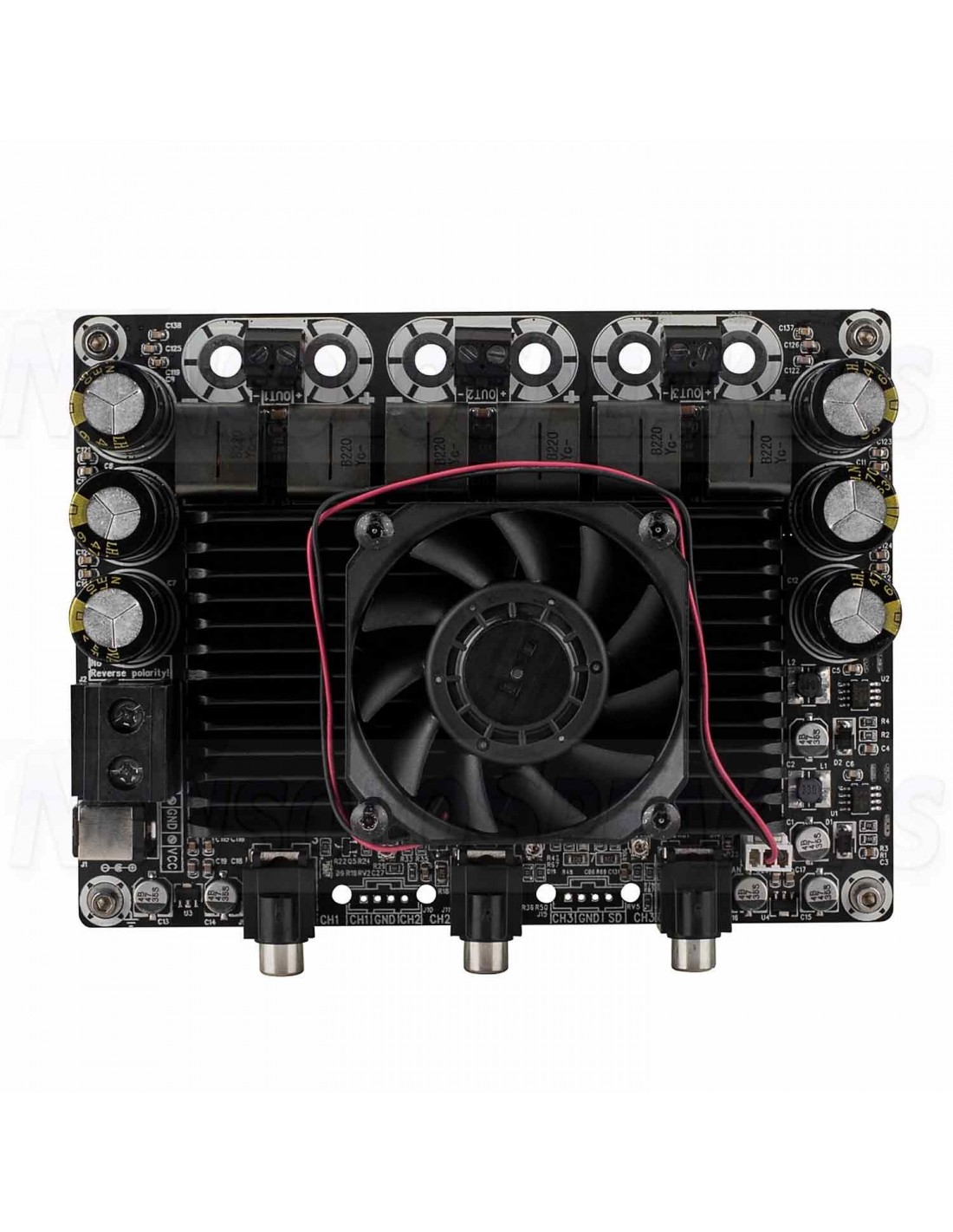

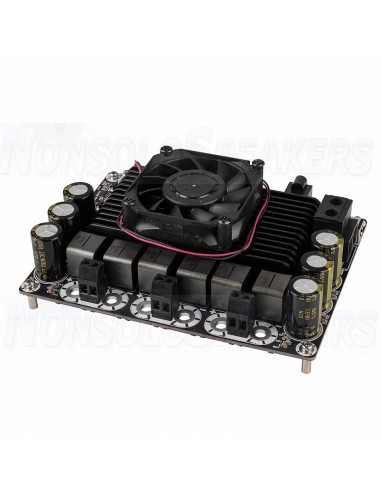

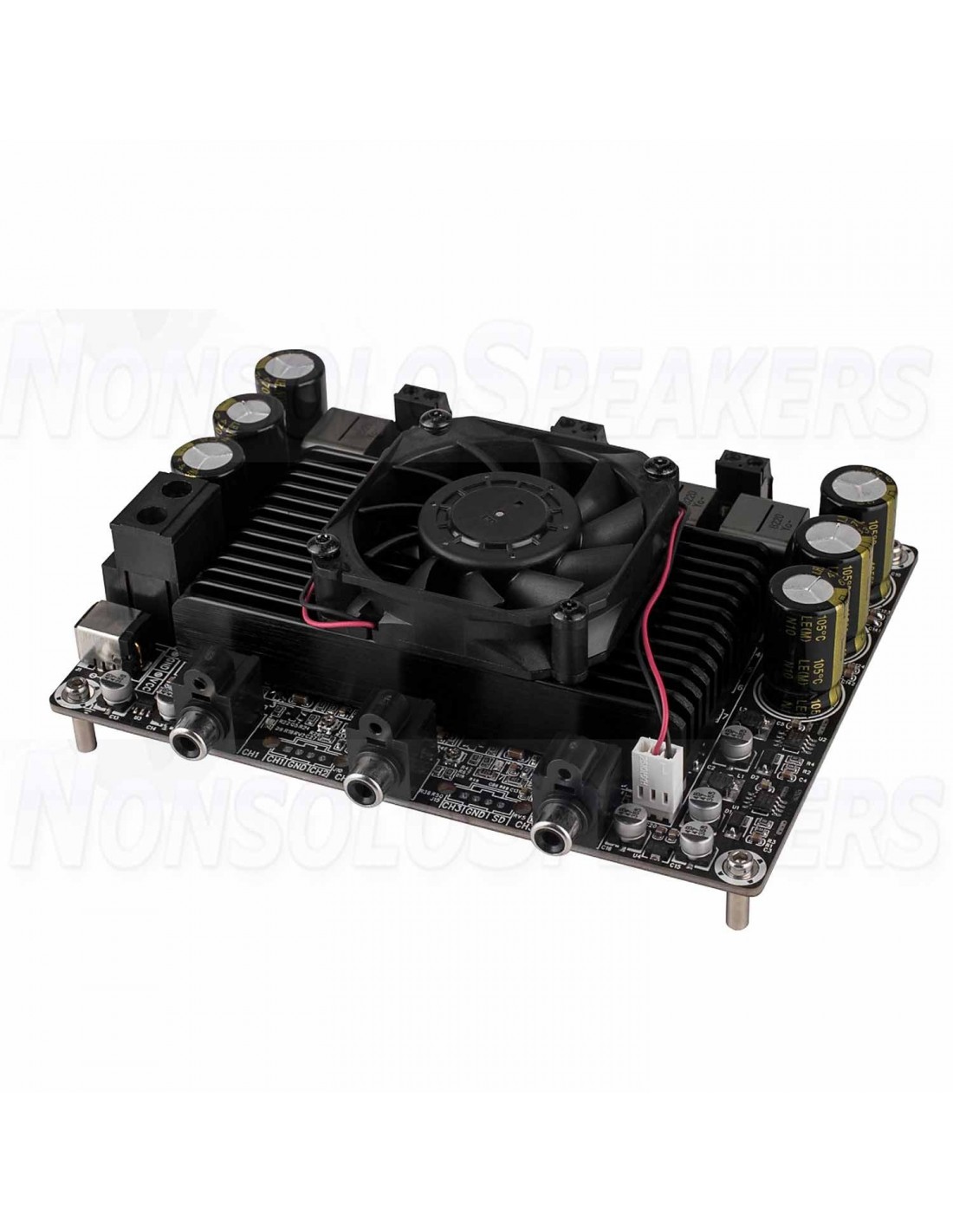

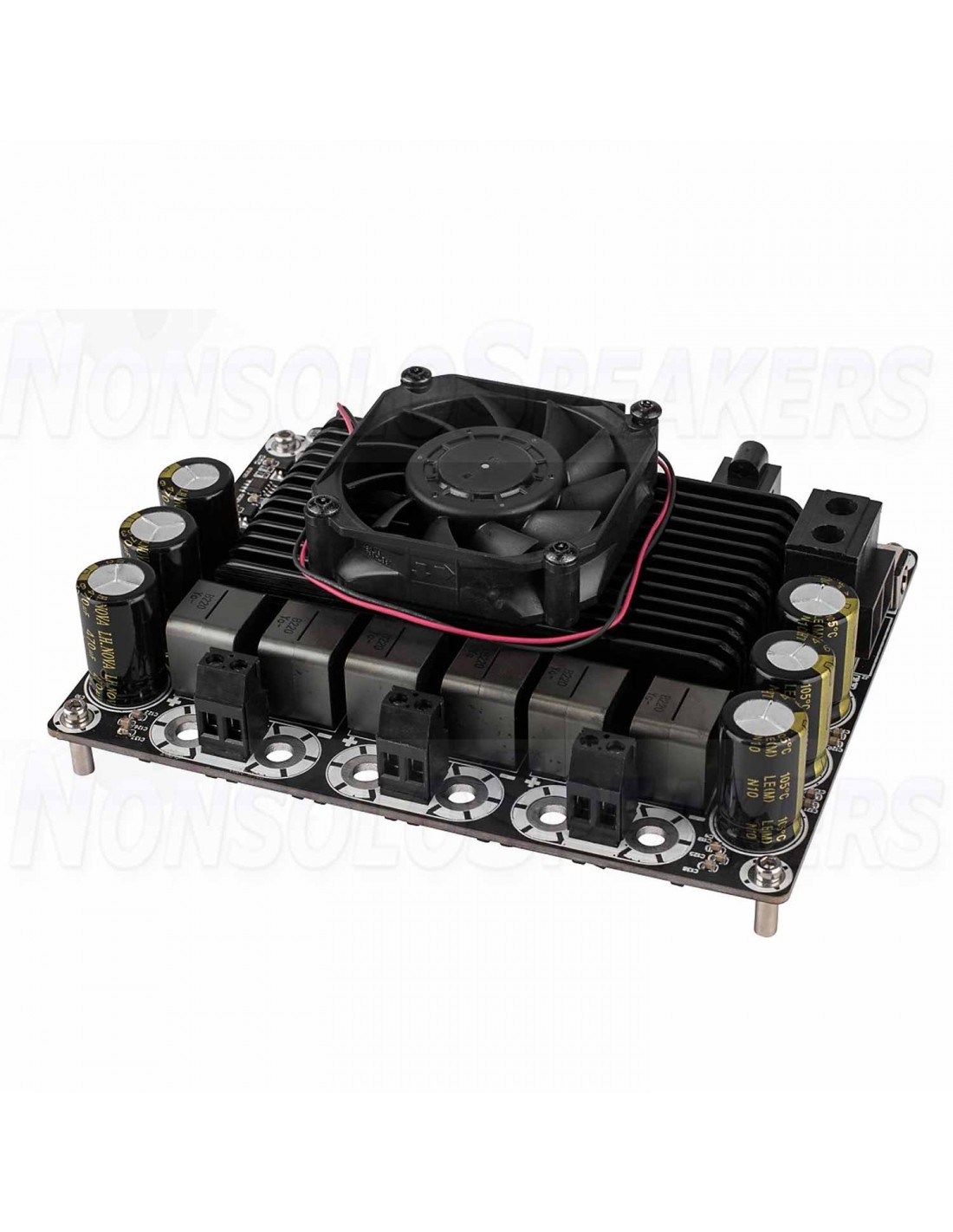

WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D
WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D
WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D
WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D
WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D
WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D

WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D

WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D

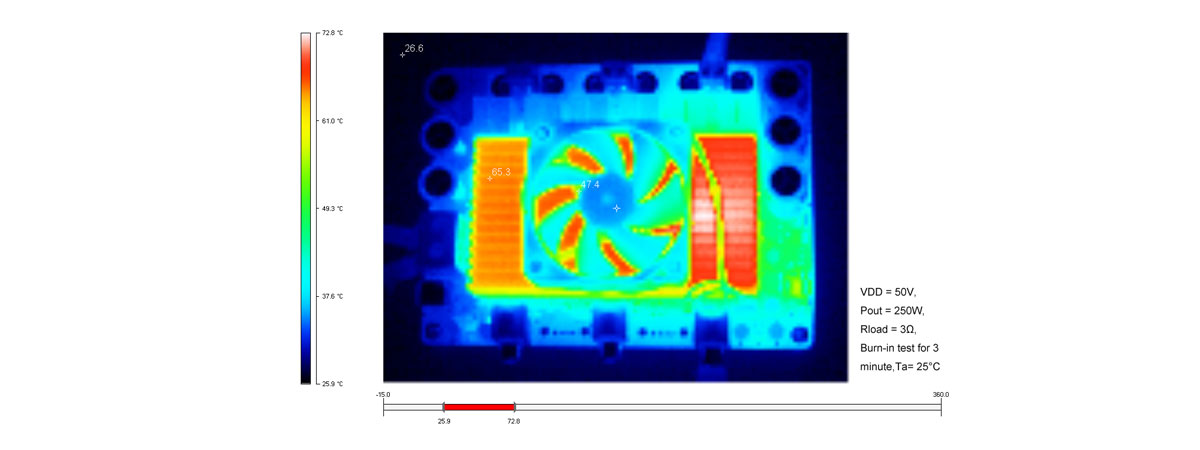

This audio amplifier board uses T-AMP technology - AA-AB33511, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

SHIPMENT IN 7/10 WORKING DAYS
€112.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB33511 - 2x300W + 1x500W@3ohm amplifier class D

This audio amplifier board uses T-AMP technology - AA-AB33511, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

Therefore the audible noise and the loss of inactive power carried by the fan could be omitted when the output RMS power is moderate.

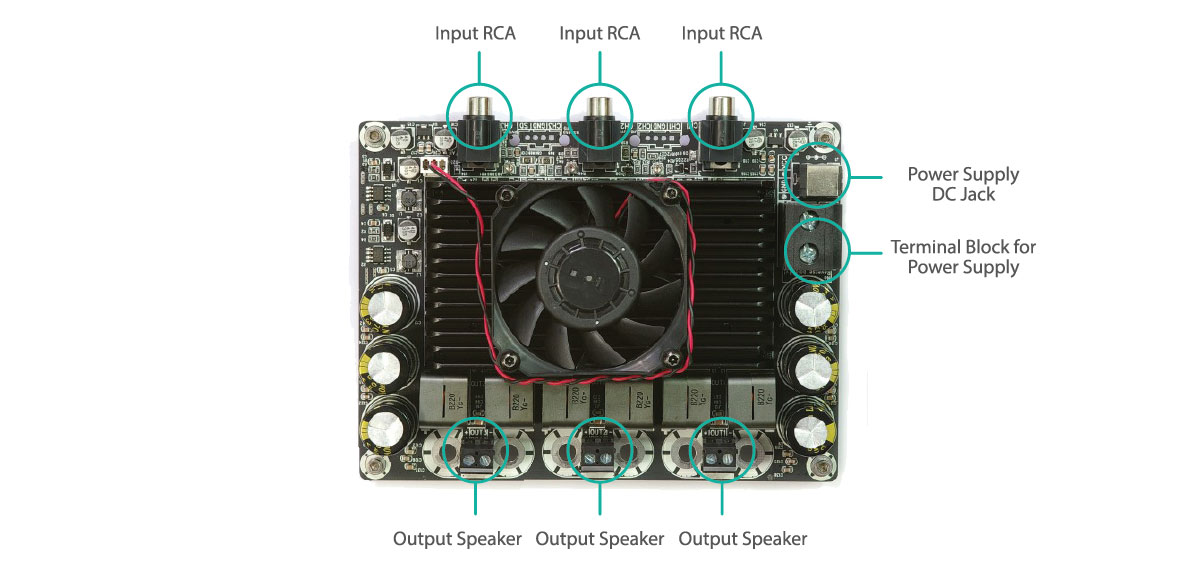

Dettaglio di connessione amplificatore in classe D

Features AA-AB33511

Parametri  Condizioni di Test Valori
Corrente massima 600 W @ 3 Ohm 12.6 A
Tensioni di Alimentazione  - 24-52 V
Efficienza 500 W @ 3 Ohm 92-97 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

20-25 W

16.5-18 W
Frequenza Swhitching SD Floating 660 kHz
Potenza in Standby SD collegato a GND, FAN OFF 1-3 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 500 W, 1 KHz 1.44 V
Impedenza di ingresso - 33 KΩ
Guadagno - 28.5-32.5 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

312 W

500 W

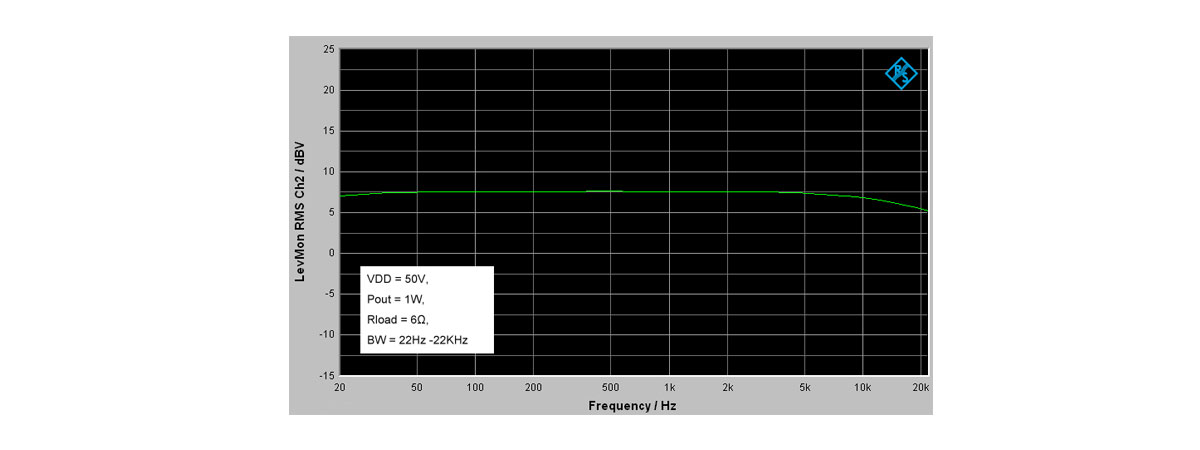

Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz

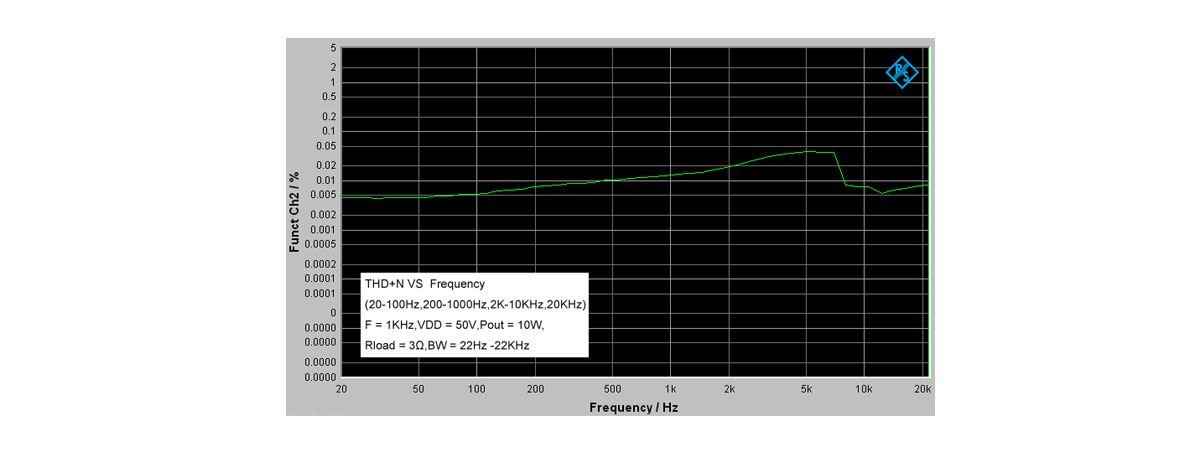

THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.011 %

0.01 %

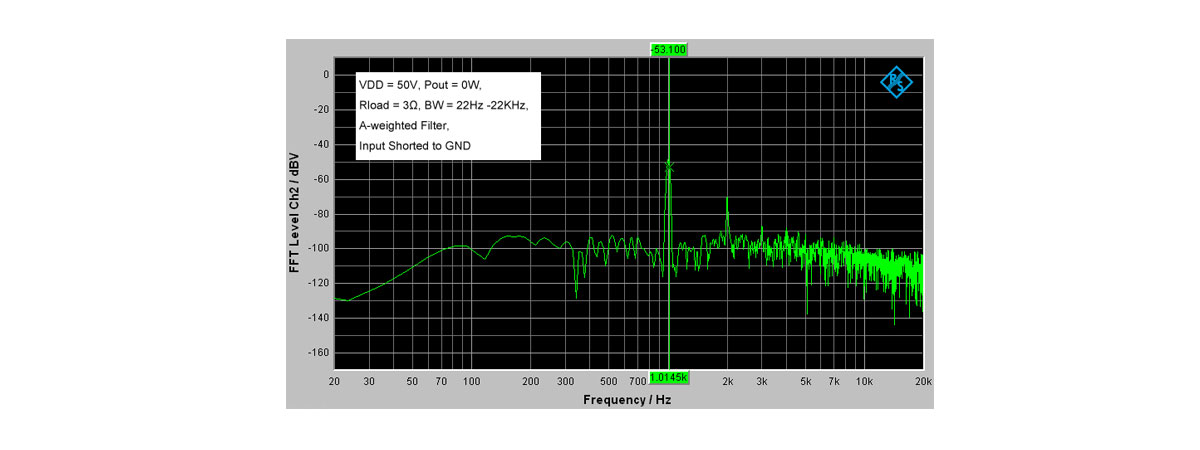

Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 224 mV
SNR 312 W @ 3 Ω THD + N 1% 91 dB
Temperature
 - 50 °C

Others features AA-AB33511

Parametri Specifiche
Chip T-AMP STA516BE
Dimensioni 15,2 x 11,4 x 3,7 cm.
Potenza 2 x 300W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

AA-AB33511
