    WONDOM AA-AB31282 - 1x200W@3ohm amplifier class D T-AMP

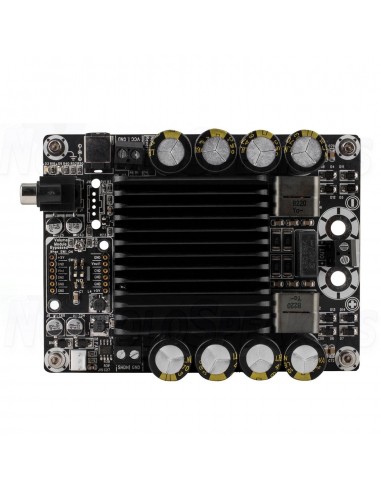

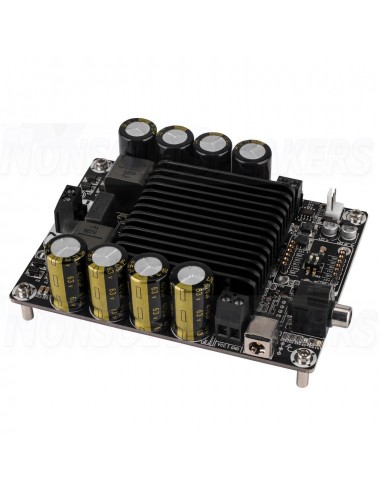

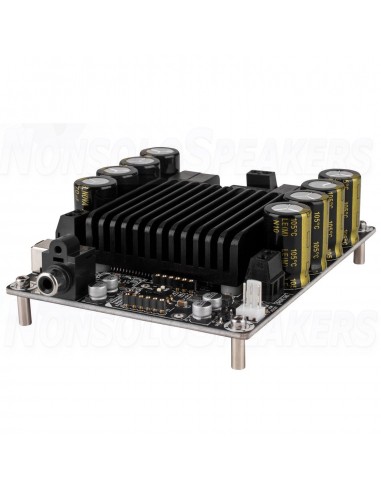

    Here is the 1 x 200 Watt amplifier board, AA-AB31282. This audio amplifier board uses Sure Electronics' T-AMP technology, characterized by low distortion and low noise level.

    Estimated Shipping Costs
    Shipping Costs
    €59.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    WONDOM AA-AB31282 - 1x200W@3ohm amplifier class D T-AMP

    Here is the 1 x 200 Watt amplifier board, AA-AB31282. This audio amplifier board uses Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. This amplifier board supports mono amplification using the PBTL topology. Thanks to the dedicated heat sink design, it is able to provide a single channel maximum power from 200 W RMS to 3 ohms without adding any extra heat sink.

    In addition to the integrated protection of the chip, the ESD protection components used in the entire input and output of the amplifier board guarantee its robustness and reliability. Recommended power supply: ALC24V6AJ.

    Dettaglio di connessione amplificatore in classe D

    Features AA-AB31282

    Parametri Condizioni di TestValori
    Corrente massima200 W @ 3 Ohm34 V
    Tensioni di Alimentazione -15-36 V
    Efficienza200 W @ 3 Ohm85-93 %
    Potenza Inattiva

    SD Floating, FAN ON

    SD Floating, FAN OFF

    4,6-8 W

    3.9-7 W

    Frequenza SwhitchingSD Floating660 kHz
    Potenza in StandbySD collegato a GND, FAN OFF0.7-2 W
    Sensibilità  di ingresso (RMS)-1.3-1.8 V
    Impedenza di ingresso-10-11 KΩ
    Guadagno-26 dB
    Impedenza di carico minima-2 Ω
    Potenza in uscita

    @ 3 Ω THD + N 1%

    @ 3 Ω THD + N 10%

    150 W

    200 W

    Larghezza di banda @ ± 3dB@ 1.5 Ω20-20K Hz
    THD

    @ 3 Ω, 1W, 1KHz

    @ 3 Ω, 10W, 1KHz

    0.0051-0.01 %

    0.069-0.1 %

    Livello di rumore in uscitaPonderazione, Ingresso collegato a GND129-300 mV
    SNR150 W @ 3 Ω THD + N 1%96-101 dB
    Temperature
    		-50 °C

    Others Features

     AA-AB31282

    ParametriSpecifiche
    ChipT-AMP
    Dimensioni12,2 x 9,1 x 2,2 cm.
    Potenza1 x 200W
    Classe AmplificatoreD
    Controllo di volume Opzionale
    Protezione da cortocircuitiSi
    Protezione da sovratemperaturaSi

    Performance tipiche

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    WONDOM AA-AB31282
