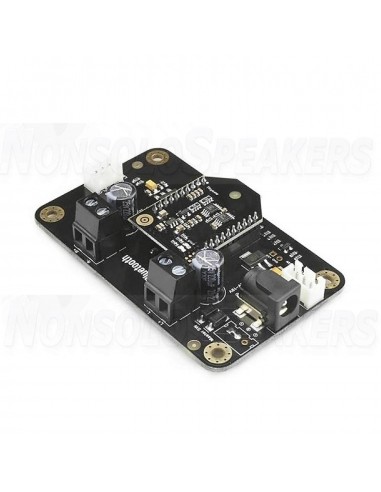

Luxus Audio AMB2015NM - 2x15W Bluetooth Class D amplifier with Molex

Data sheet

Brand Luxus Audio
Output Power [Watt] 15
Channel 2
Power Supply (Volt) 12

.

AMB2015NM is a class D amplifier with integrated bluetooth module. Each of the two channels has an output power of 15 watts. The amplifier can be powered via a 15 volt power supply and can be used to manage 4 and 8 ohm passive speakers. The sound source can be Molex (through a special external mono or RCA adapter) or bluetooth, which can be selected using the appropriate switch on the board.

.

Features

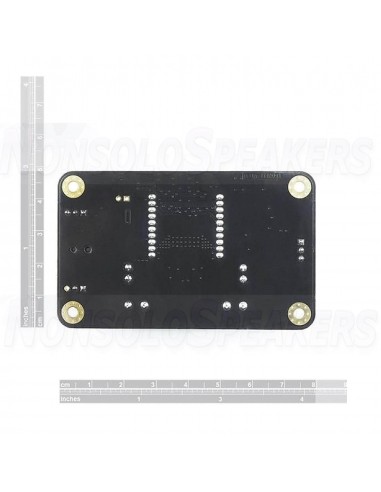

     Measurements: 4.8x8cm
     Bluetooth 4.0
     Class D amplifier
     15 watts of output power per channel
     Short circuit protection
     Overheating protection

.

Possible Applications

     PC
     Amplifier for musical instruments
     Homemade DIY
     Car Audio

.

Documentation

     Guide to change the name of the bluetooth
     Guide to enable the Bluetooth connection password
     Guide to manage the bluetooth audio tones
     Guide to configure auto-connection and automatic Bluetooth disconnection
