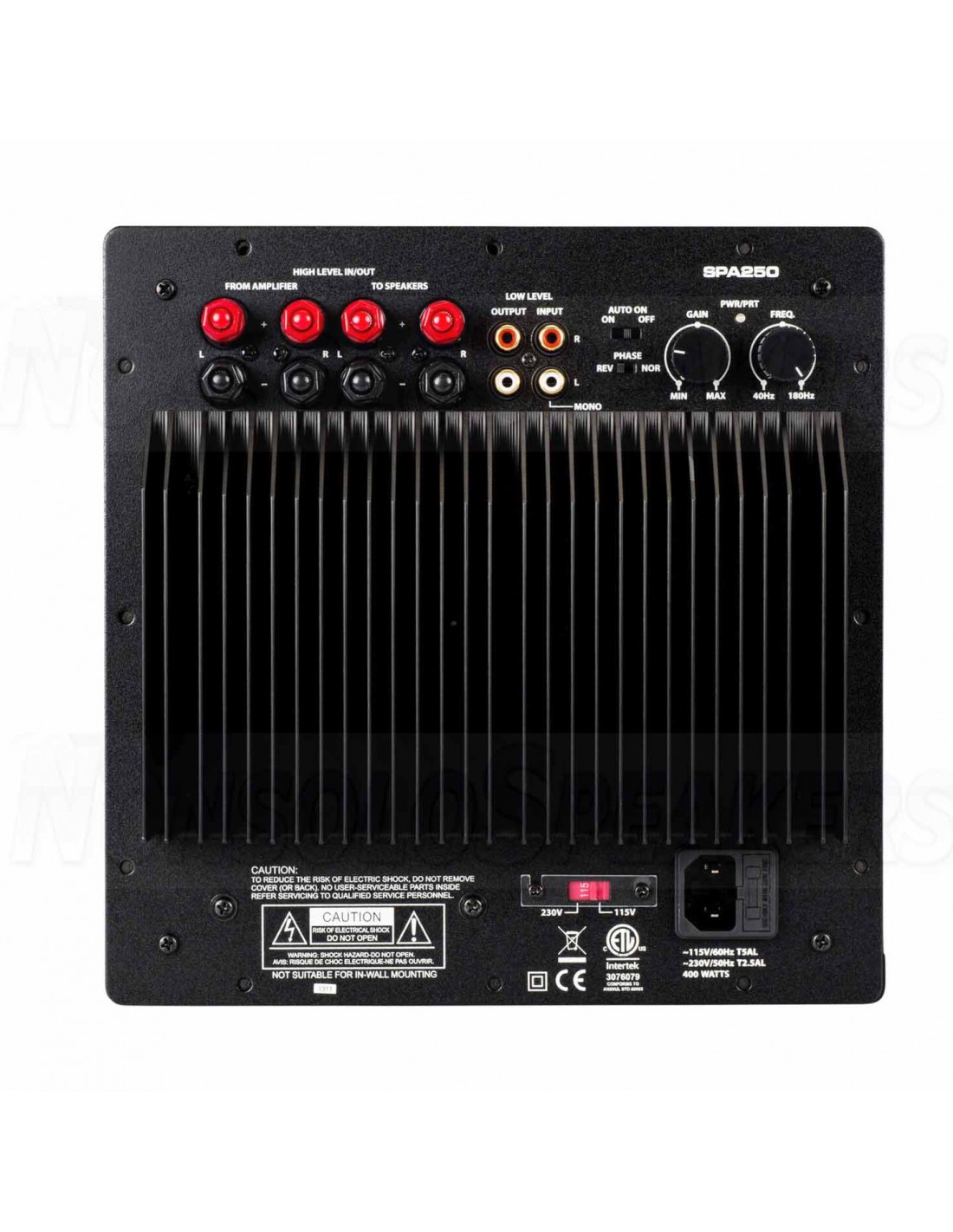

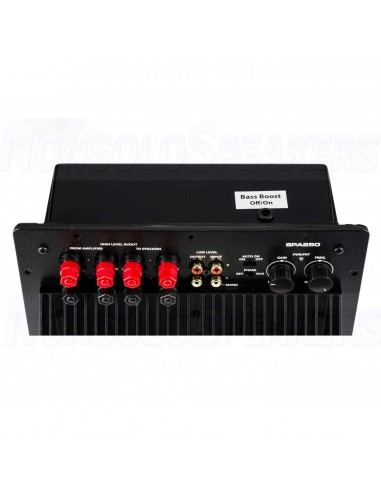

Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier
Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier

Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier

Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier

Engineered to provide flexibility, ample power, and reliability, the Dayton Audio SPA250 delivers high fidelity subwoofer amplification which is tailored for home audio and home theater audio systems.
SHIPMENT IN 7-10 WORKING DAYS
€253.80 €282.00 -10%

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?



Dayton Audio SPA250 250 Watt Subwoofer Plate Amplifier

The Dayton Audio SPA250 subwoofer amplifier produces 250 watts of clean power output, and combines with a host of flexible user options to make it an unbeatable choice. A user-configurable bass boost circuit creates a 6 dB peak at 35 Hz, which allows sealed subwoofer designs and certain ported enclosures to achieve their optimum bass extension and maximum "flat" output.

The SPA250 features RCA line level and banana jack speaker level inputs and outputs, automatic power-on that is triggered by any audio input signal, and a phase reverse switch to match the subwoofer to your room and your other speakers. A single amp can accept a stereo input signal and combine it into mono, which is preferred for sub bass reproduction. A preamp or receiver's LFE output may be connected to the SPA250's Left (mono) input. The internal low pass crossover is fully adjustable between 40 and 180 Hz, and of course the amp has built-in protection against internal and external faults.

• Variable low-pass filter at 24 dB/octave attenuation from 40 Hz ~ 180 Hz
• Switchable phase 0° (NOR) or 180° (REV)
• Variable gain MIN/MAX input voltage dependent
• Speaker level high-pass outputs 6 dB/octave at approximately 180 Hz @ 4 ohms, 90 Hz @ 8 ohms (i.e. 220 uF electrolytic capacitor)
• Line-level full bandwidth (10 Hz- 20 kHz) outputs/throughputs for adding or "daisy chaining" additional amplifiers
• Subsonic filter 12 dB/octave high-pass filter centered at 20 Hz
• Damping factor at rated power: 114 @ 100 Hz

Specifications

Article numberSPA250
Rated power output

1 x 252 watts at 4 ohms
1 x 156 watts at 8 ohms

Rated power output bridged-
Minimum load4 ohms
Signal-to-noise ratio (SNR)90 db
Distortion-
Distortion bridged-
Amplifier classificationClass AB
Circuit topology-
Efficiency-
Frequency response-
Input impedance10.4k ohms
Input sensitivity-
Auto turn-on sensitivity≥10 mV
DSP-
DAC-
Maximum sampling rate-
Speaker output channels1 (+2 high level pass through channels)
Analog in/out2/2
S/PDIF in/out-/-
AES/EBU in/out-/-
Coaxial in/out-/-
RCA in/out1/1
XLR in/out-/-
Jack in/out-/-
USB connection-
Network connection-
Bluetooth-
Subwoofer pre-out-
Auto on/off
Remote control-
App control-
Equalizer (EQ) adjustment-
Equalizer (EQ) profiles-
Phase control (0° or 180°)
Crossover frequency adjustment
Presets-
Control software-
Windows/Mac compatible-/-

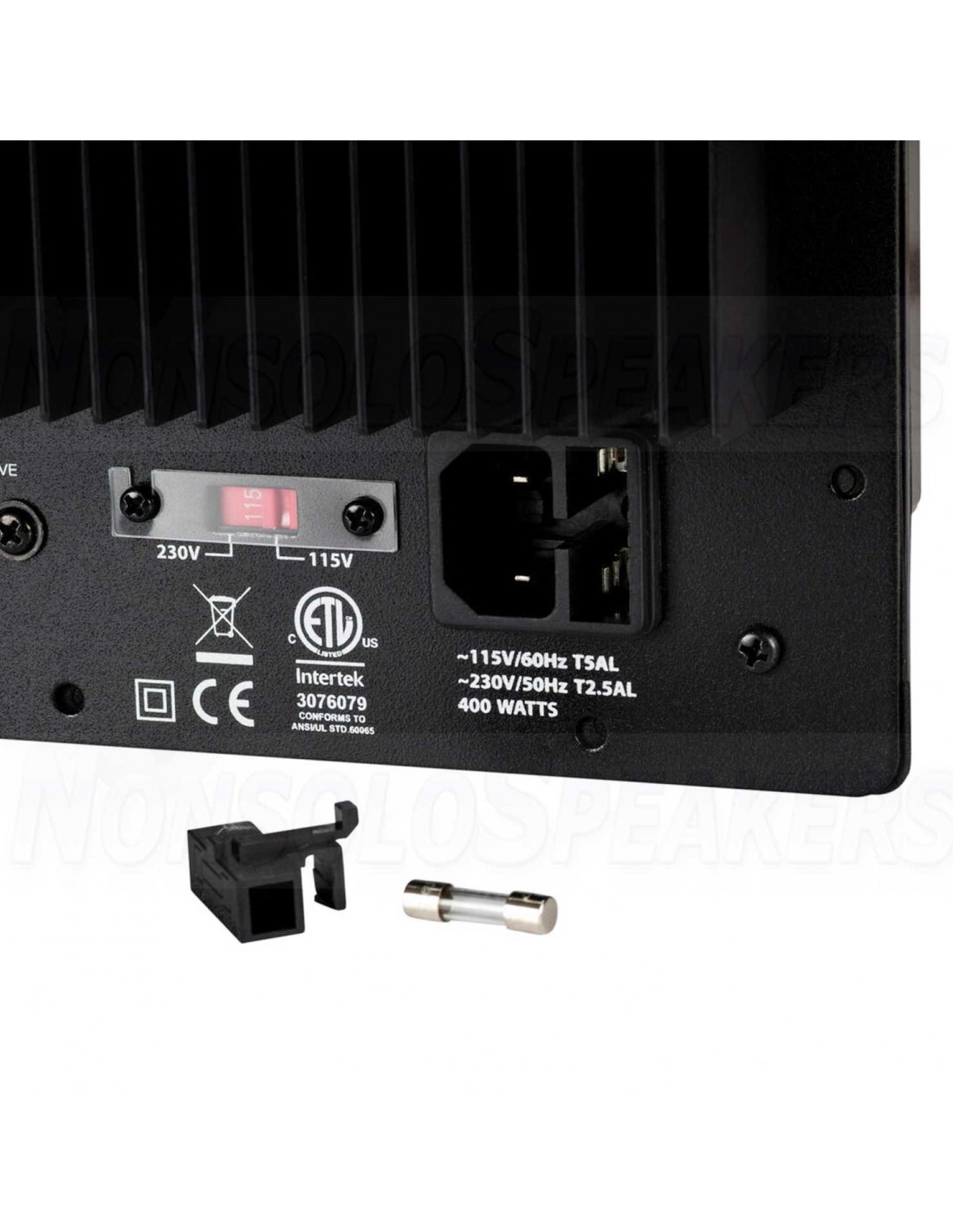

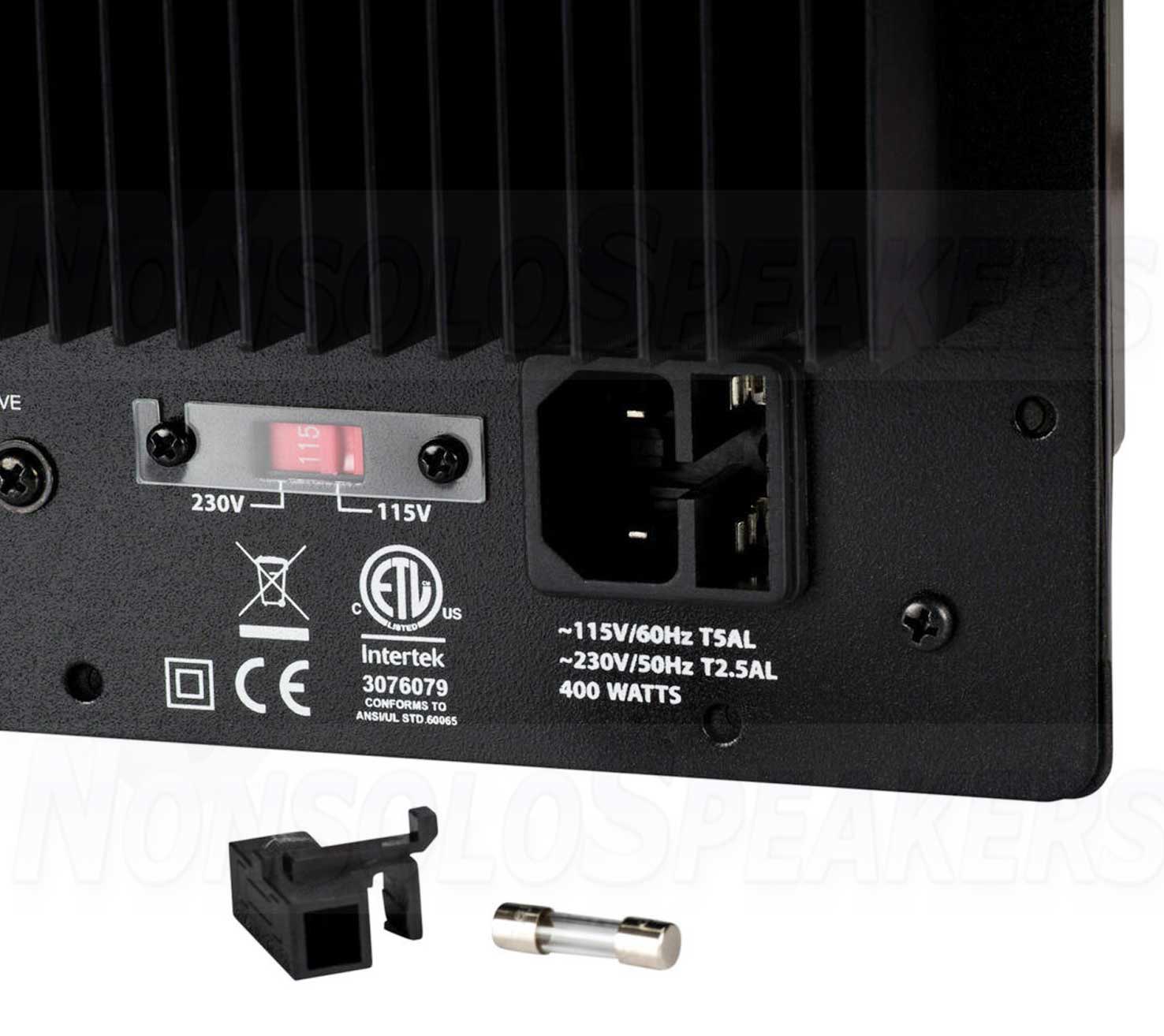

Power requirements115/230 VAC
Power inlet connectorIEC C18
Standby power consumption0.29 watts (at 115 VAC)
Current limit-
Under/over voltage protection-
Dimensions (H x W x D)249 x 249 x 127 mm
Cutout dimensions216 x 216 mm
SPA250
