Dayton Audio SPA1000 Subwoofer Plate Amplifier
Product description
The Dayton Audio SPA1000 subwoofer amplifier provides nearly a kilowatt of clean, reliable audio power—just what you need to get big sound out of large, low-efficiency subwoofer speaker systems.
.
Highlights
High power Class-AB output stage for clean, controlled output
Patented tracking downconverter power supply for high efficiency
Toroidal power supply transformer
Low frequency parametric EQ allows you to boost or cut for custom-tailored sound
Advanced soft clip circuitry improves headroom and protects woofers
OTC™ (Optimized Thermal Circuit) protects your plate amplifier from potential heat damage
Hercules heat sinks dissipate and control heat for extreme reliability
.
Product details

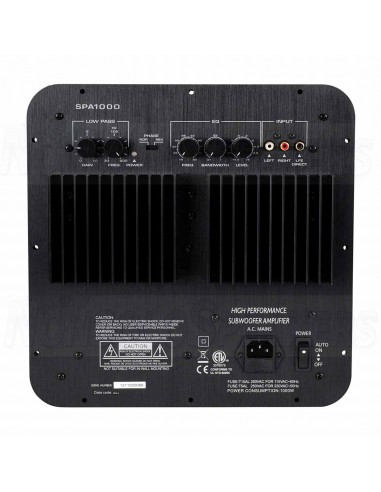

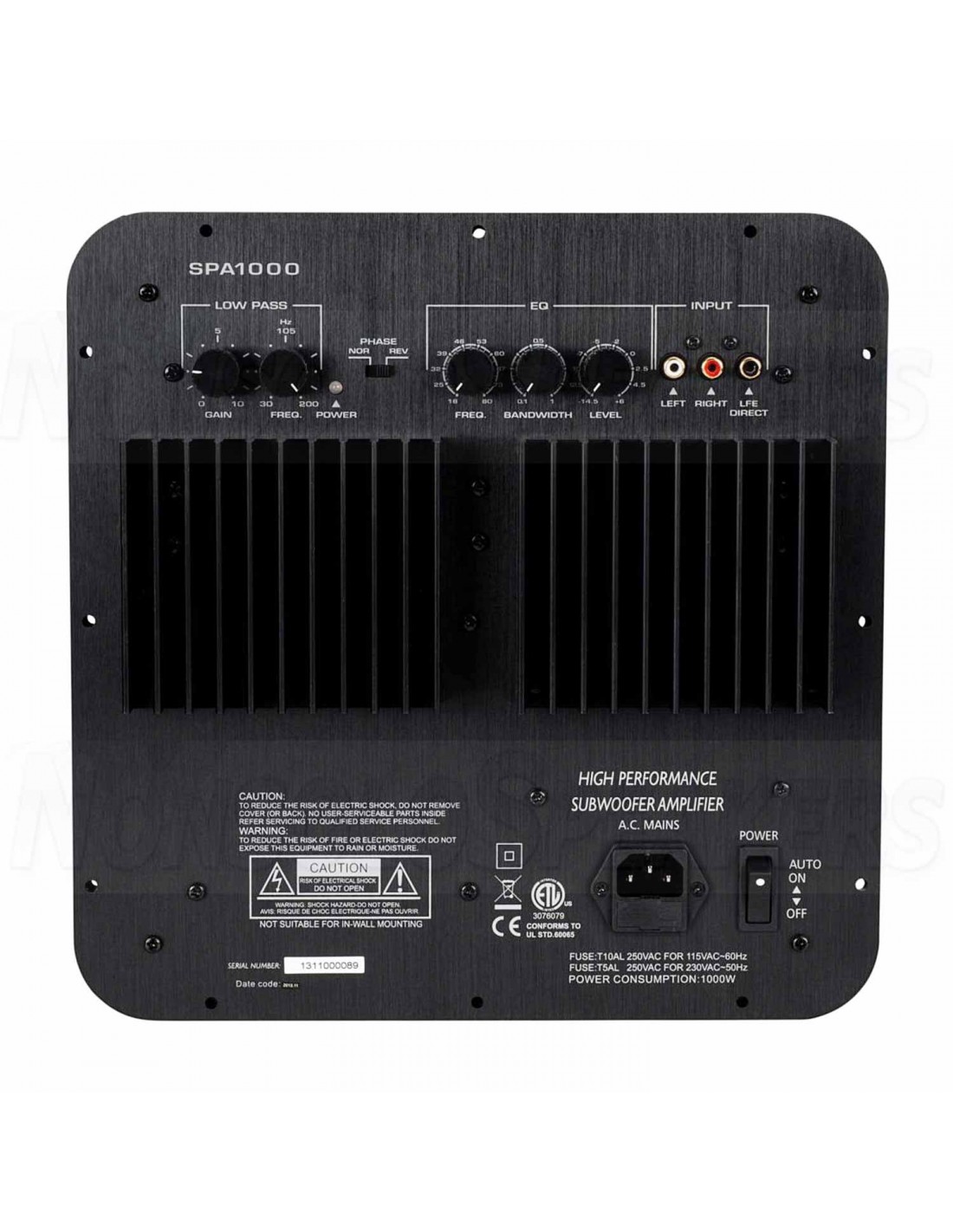

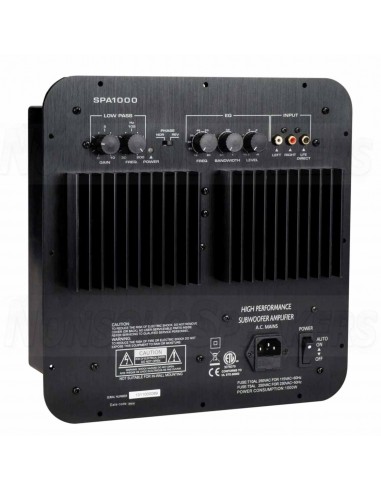

Dayton Audio SPA1000 1000W Subwoofer Plate Amplifier
The Dayton Audio SPA1000 is one of the most technologically advanced subwoofer amplifiers on the market today! The Dayton Audio SPA1000 subwoofer amplifier is based on a state-of-the-art Class-G circuit topology that combines the proven high power, high fidelity characteristics of a Class-AB amplifier with a patented tracking down converter power supply to achieve an operating efficiency up to 86%. You get the efficiency of a Class-D amplifier without compromising audio quality and reliability. The Class-AB output stage provides the clean and low-distortion sound that audiophiles demand, without any of the instability problems that plague other high-efficiency amplifier designs.
This American-designed and engineered amplifier uses patented circuitry that continuously tracks the input signal to modulate or control the voltage available to the output stage. This "tracking" capability delivers the exact amount of power based on demand instead of constantly keeping it in reserve, so the output stage only draws the amount of power that is required at any given time. Less energy is wasted as heat, and more power is available for the subwoofer driver. With its enhanced thermal management, the SPA1000 is an upgrade over previous models—making it a nearly bulletproof amplifier choice for today's demanding HT audio and music playback applications.
.
Specifications
Article numberSPA1000
Rated power output
1 x 950 watts at 4 ohms
1 x 497 watts at 8 ohms
Rated power output bridged-
Minimum load4 ohms
Signal-to-noise ratio (SNR)98 dB
Distortion0.92 % THD (at rated power)
Distortion bridged-
Amplifier classificationClass G
Circuit topology-
Efficiency86 %
Frequency response-
Input impedance12k ohms
Input sensitivity-
Auto turn-on sensitivity-
DSP-
DAC-
Maximum sampling rate-
Speaker output channels1
Analog in/out1/ -
S/PDIF in/out-/-
AES/EBU in/out-/-
Coaxial in/out-/-
RCA in/out2/ -
XLR in/out-/-
Jack in/out-/-
USB connection-
Network connection-
Bluetooth-
Subwoofer pre-out-
Auto on/off
Remote control-
App control-
Equalizer (EQ) adjustment
Equalizer (EQ) profiles-
Phase control (0° or 180°)
Crossover frequency adjustment
Presets-
Control software-
Windows/Mac compatible-/-
Power requirements115 / 230 VAC
Power inlet connectorIEC C14
Standby power consumption18.4 watts
Current limit-
Under/over voltage protection-
Dimensions (H x W x D)303 x 303 x 133 mm
Cutout dimensions254 x 254 mm
Dayton Audio SPA1000
