Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0

Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0

Name: Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0
Brand: Dayton Audio
SKU: Dayton Audio KABD-250
Price: 99.95 EUR
Availability: InStock

Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0

SHIPMENT IN 5-7 WORKING DAYS

€99.95

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0

Product description

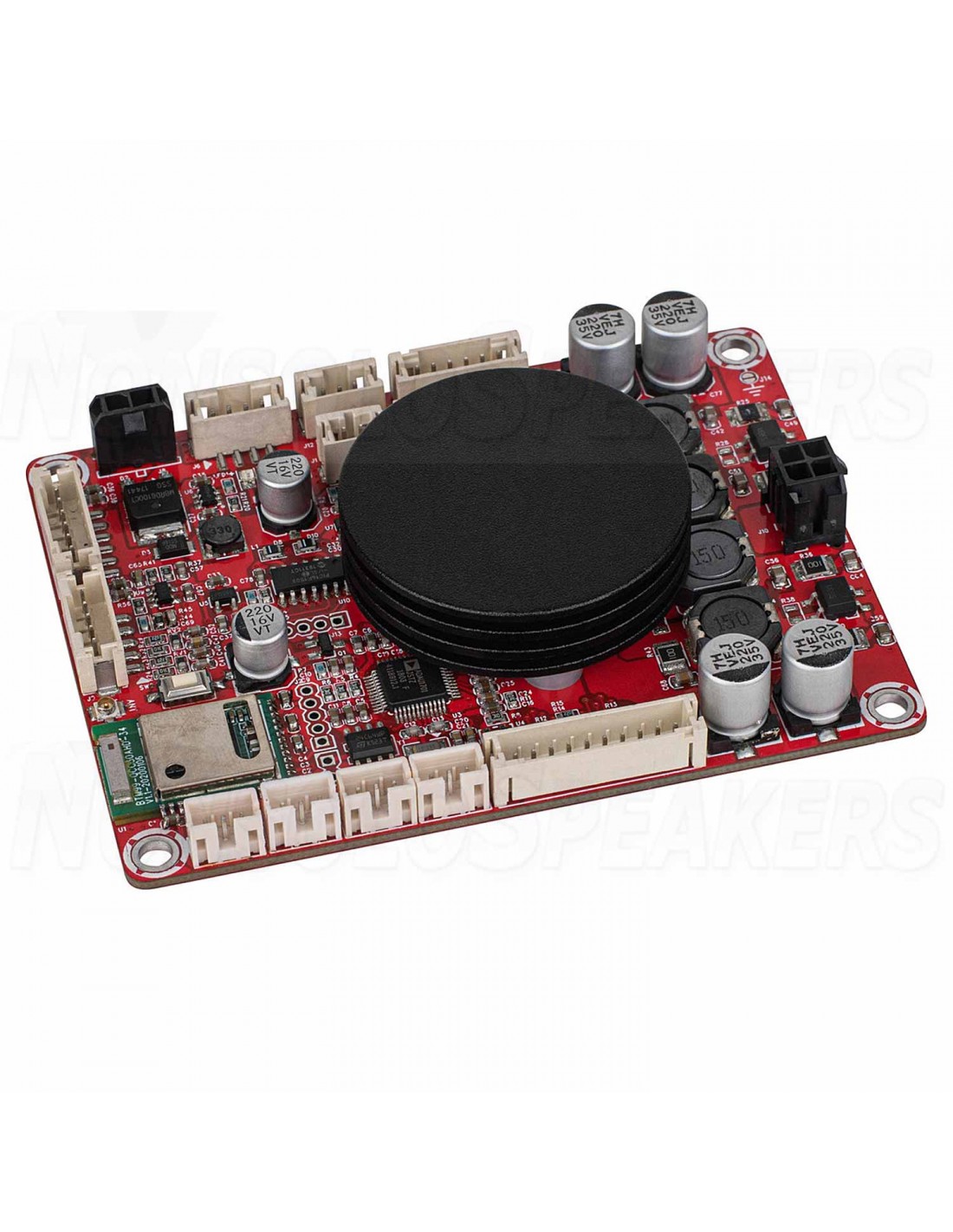

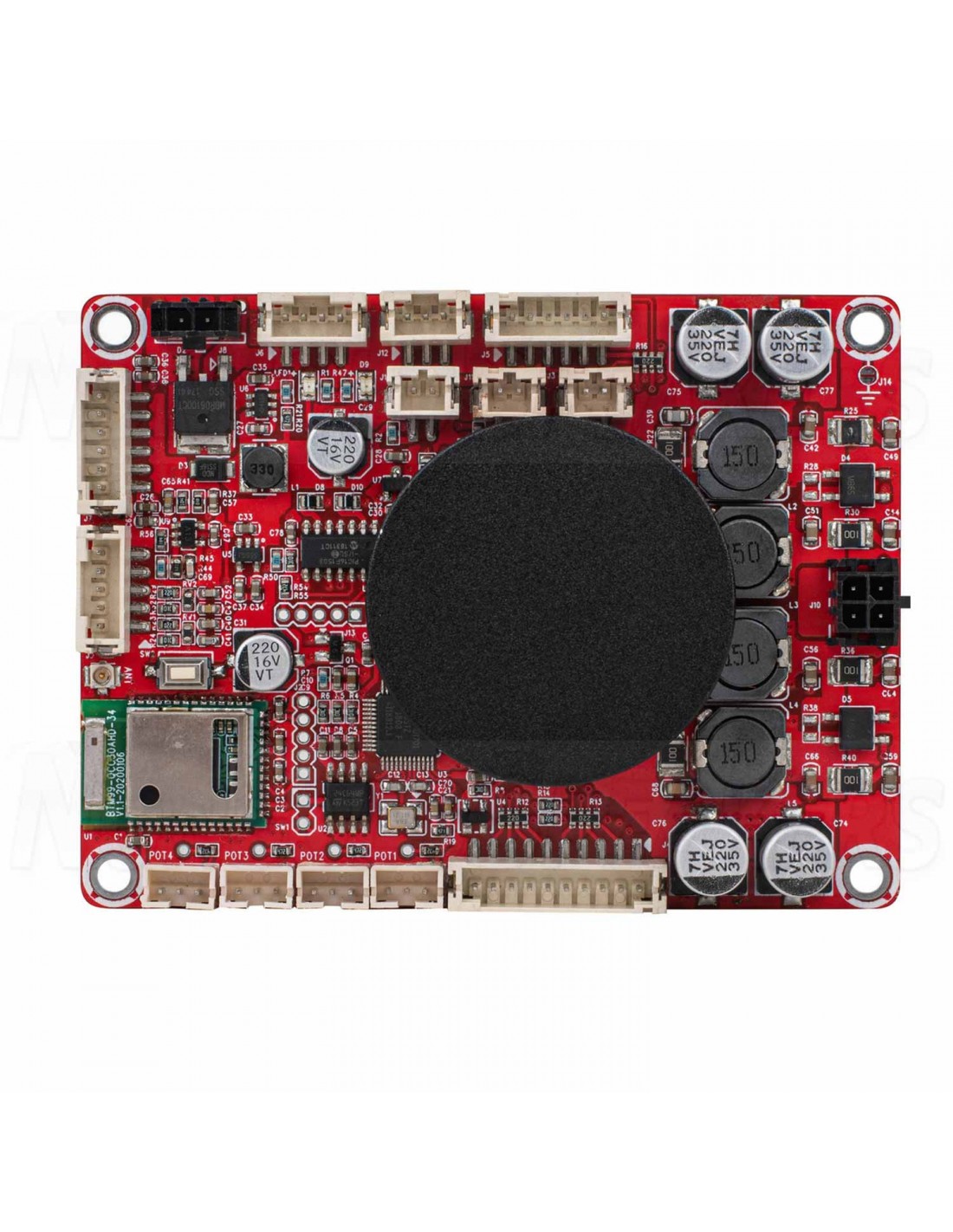

Dayton Audio KABD-250 combines a 2 x 50W amp board, Bluetooth 5.0 and a ADAU1701 digital signal processor all in one amp board. This enables you to customize your next DIY audio project's sound using SigmaStudio software and Dayton Audio ICP1 Bluetooth programmer.

Highlights

All-in-one board design reduces space needed for audio DIY projects
Wire harnesses make installation quick and simple with no soldering required -- includes power, Bluetooth reset button and speaker cables
Separate ports for powering by battery or direct DC input from 12 to 24V power source
Program with SigmaStudio software and Dayton Audio KPX In-Circuit Programmer (sold separately)
Efficient 2 x 50W of power from the TPA3116 amp chip

Product details

Dayton Audio KABD-250 2 x 50W + DSP Amplifier Board aptX HD Bluetooth 5.0

Dayton Audio KABD-250 combines a 2 x 50W amp board, Bluetooth 5.0 and a ADAU1701 digital signal processor all in one amp board. Included with the KABD-250 are three wire harnesses: one for DC power, Bluetooth reset button, and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have additional on board connectors, wiring harnesses (sold separately) are available to speed-up installation and create confident connections without soldering. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below.

Endless Applications

Use this full function, adjustable amplifier board with built-in DSP chip and Bluetooth5.0 in endless wireless audio applications that seem impossible to produce the right sound quality. So if you’re a hobbyist or manufacturer enjoy presetting this full functioning 2 x 50W DSP amplifier board to peak performance in your finished product. The KABD-250 is also CE and FCC ready for certification purposes.

Portable Power Paths

For portable applications, there are three battery holder/charging boards which permit the connection of li-Ion rechargeable batteries to power the board. First is the Dayton Audio LBB-3v2 3-cell 18650 battery holder/charger board that is the same size as the KABD-250 which makes it easy to stack the boards with standoffs. This battery board must use a 5 to 24 VDC power supply. If you desire more wattage output, use the 5-cell 21 VDC Dayton Audio LBB-5Sv2 or LBB-5v2 board. They work with 5 to 24 VDC power supplies. The LBB-5S uses 18650 Li-Ion batteries, and the LBB-5 uses 26650 Li-Ion batteries which delivers more play time. These portable power sources are highly recommended since all three provide under/over voltage protection.

Specifications:

Power output (w/ 24 VDC power supply): 2 x 50W @ 4 ohms • SNR: 88 dB 2 x 50W @ 4 ohm, THD+N=1%, 26 dB, A-weighting • 2 x 50W @ 4 ohm, THD+N = 1%, 200 Hz • THD+N: 0.06% 10W @ 4 ohm 1 kHz 24 dB • Frequency response: 20 to 20,000 Hz (±3 dB) • Impedance: 4-8 ohms • Recommended power supply: 12 to 24 VDC, 4A • Board mounting holes center to center spacing: 3.32" x 2.4" (84 x 61 mm) • Hole diameter: 0.14" (3.5 mm) • Dimensions: 3.6" L x 2.7" W x 0.9" H.

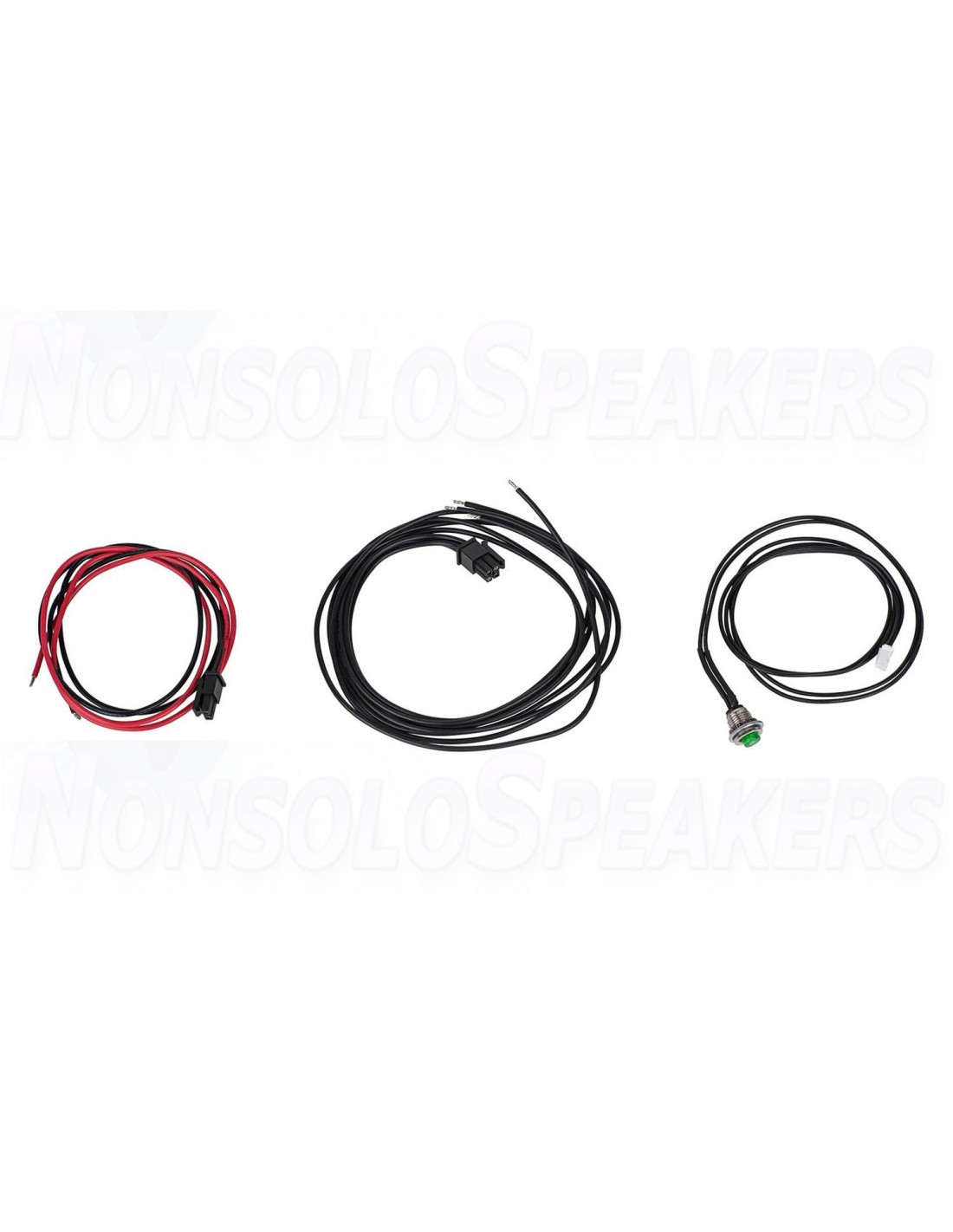

Package Includes

One Dayton Audio KABD-250 DSP Amplifier Board
One 2-conductor power cable 20"
One 4-conductor speaker cable 20"
One Bluetooth reset push button with cable 20"

Specifications

Article numberKABD-250

Rated power output2 x 50W @ 4 ohms

Minimum load4 ohms

Signal-to-noise ratio (SNR)88 dB

Distortion1%, 200 Hz

Frequency response20 to 20,000 Hz (±3 dB)

Gain26 dB

Amplifier ClassificationClass D

Circuit TopologyTexas Instruments TPA3116

Speaker output channels2

Input connection type4 pin PCB connector Bluetooth

Speaker output connection type4 pin PCB connector

BluetoothBluetooth 5.0

Power Requirements12 to 24 VDC, 4A

Power inlet connector2 pin PCB connector

Dimensions (L x W x H)91 x 69 x 23 mm

Mounting hole spacing84 x 61 mm

Mounting hole diameter3.5 mm

Reference Dayton Audio KABD-250

In stock 10 Items
