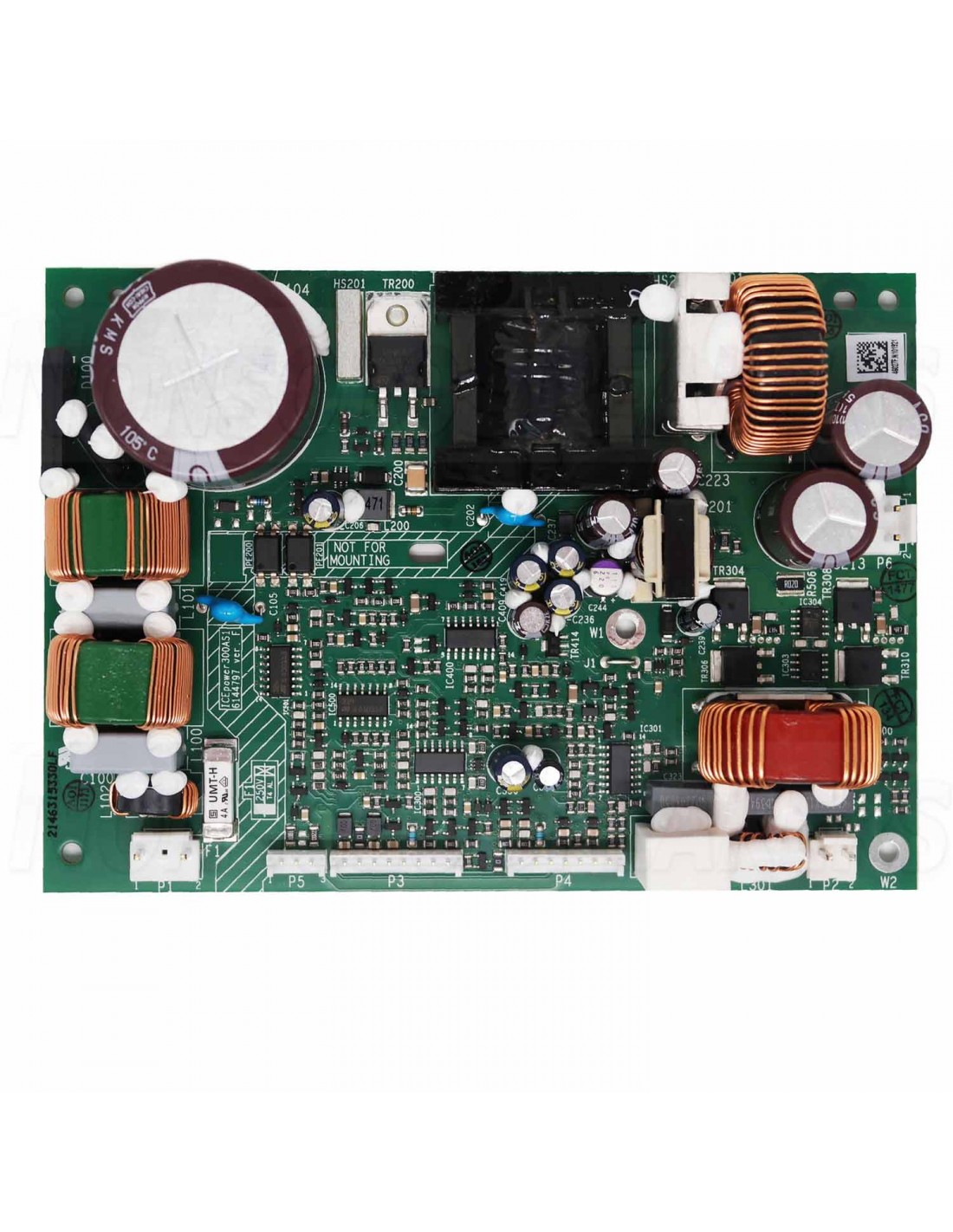

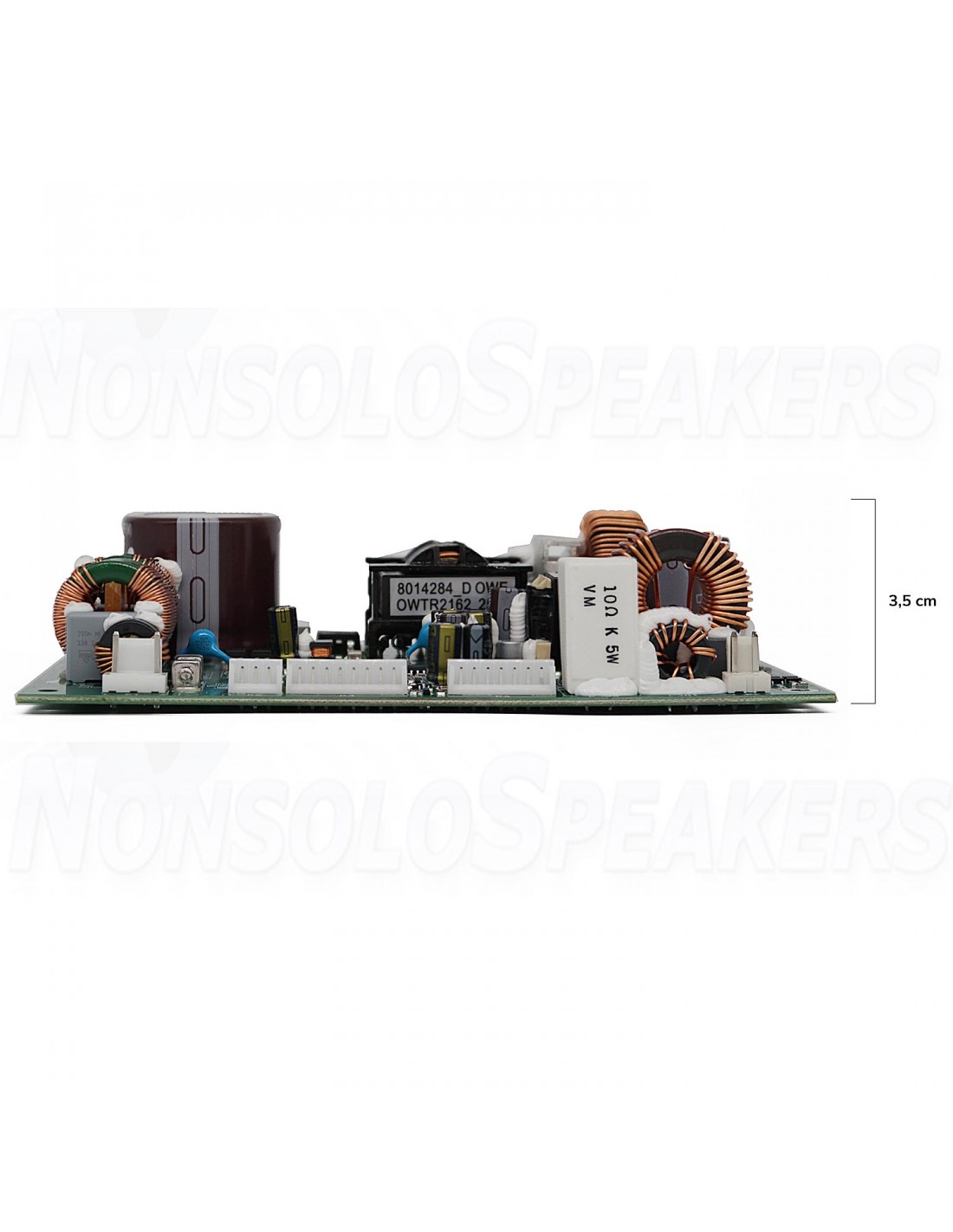

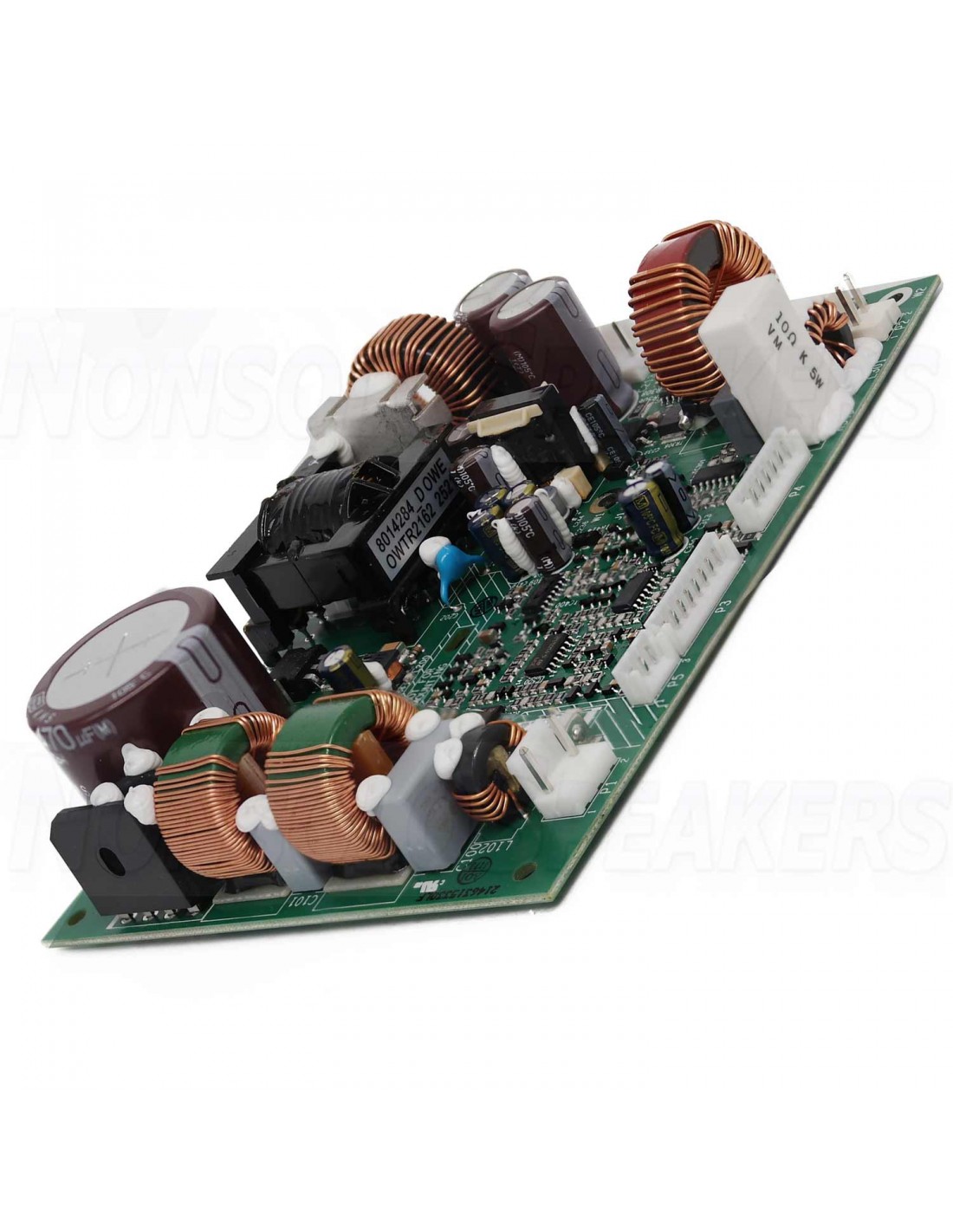

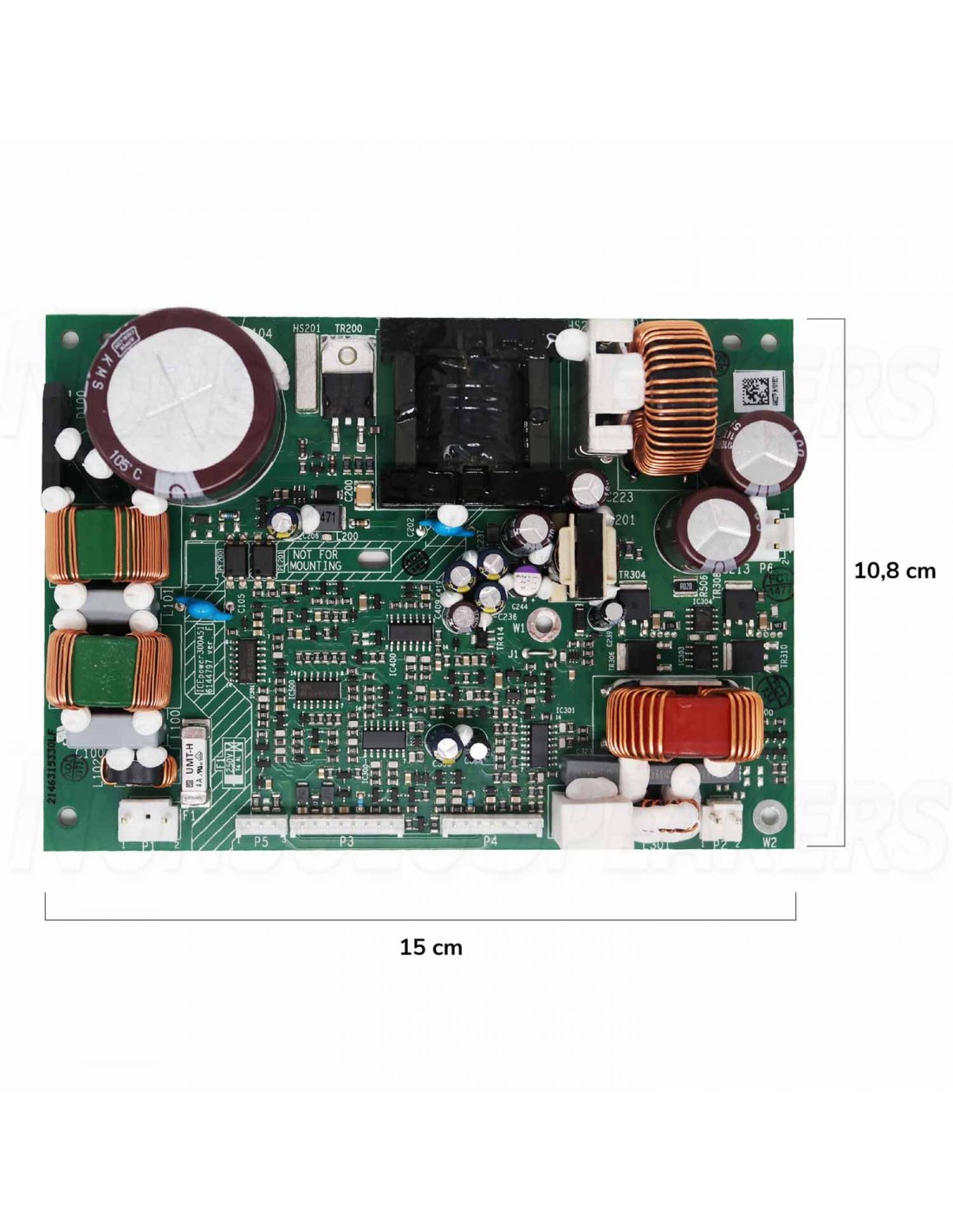

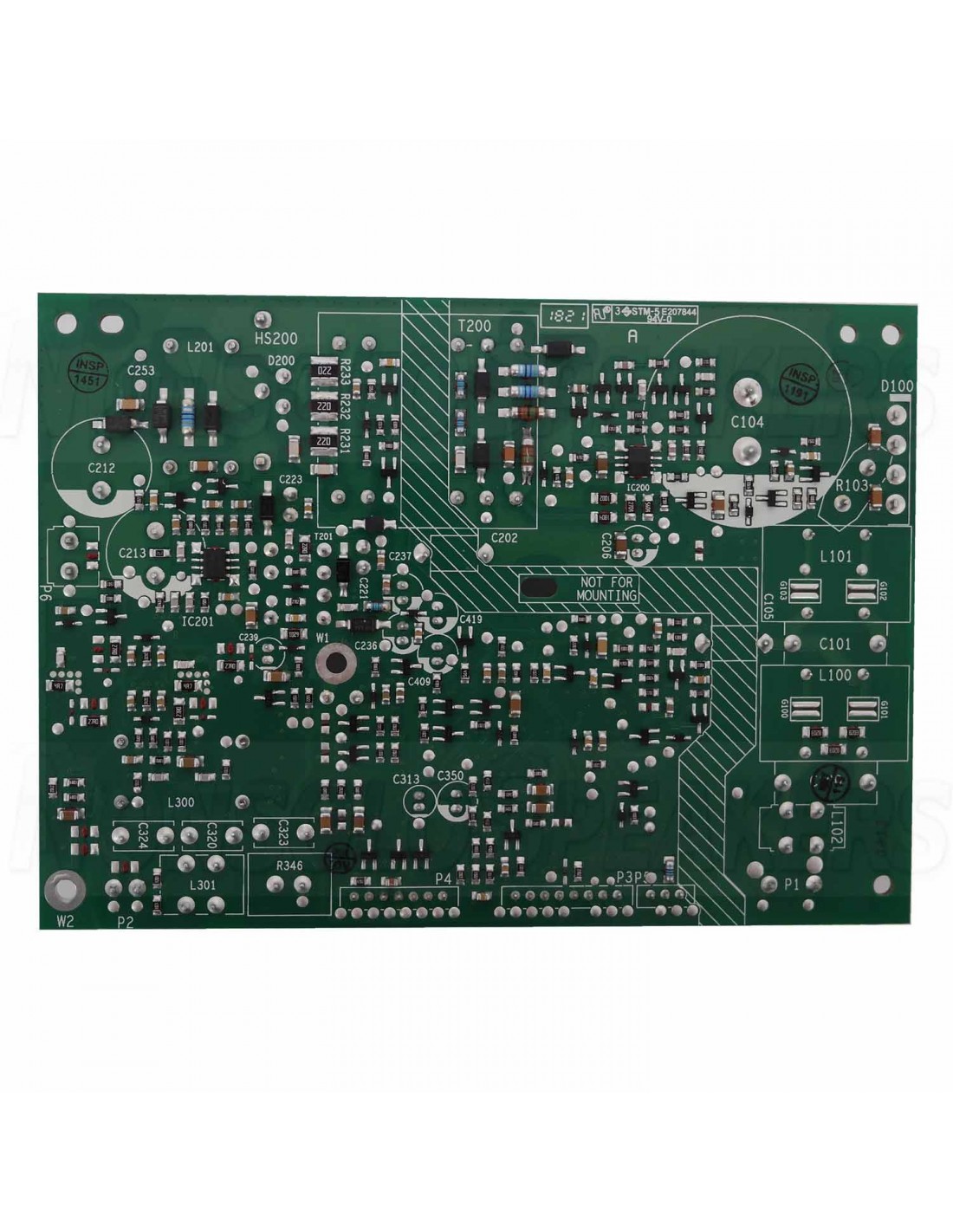

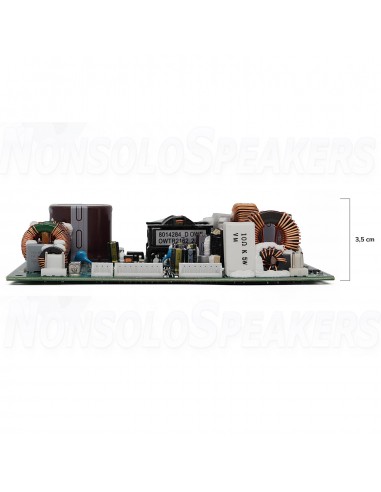

ICEpower 300AS1 Amplifier Module with Integrated Power Supply

The 300AS1 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. It features a DC hanger bus for a modular approach on two or three-channel amplifiers.

The 300AS1 is a self-contained, 300-watt single-channel amplifier module. The integrated power supply, a comprehensive set of features and modular extendibility make the 300AS1 stand out from our amplifier modules category. This 300AS1 offers excellent musical performance thanks to the ICEpower HCOM control and modulation techniques. This 300-watt member of the AS-family features excellent protection circuits. Besides the extra power compared to the 100AS1 and 200AS1 models, this module comes with some extended features: There are 5V and 12V trigger inputs and signal sense available. The 5 +VDC and 12 -/+VDC auxiliary outputs allow you to connect other circuits like DSP’s, pre-amplifiers or streaming modules with ease. The DC hanger bus forwards the supply rails to a second or even third 300A module allowing you to build your own 2-channel or 3-channel amplification solution for your project. The included cable set gives access to all these cool features. The 300A1 is the amplifier modules without a power supply that can be connected to the DC hanger bus of this amplifier and supply module. Looking for the cool features from the AS (Amplifier and Supply) series but are you in need of more power? Check out the 700AS1, 700AS2 or 1200AS1 and 1200AS2.

.

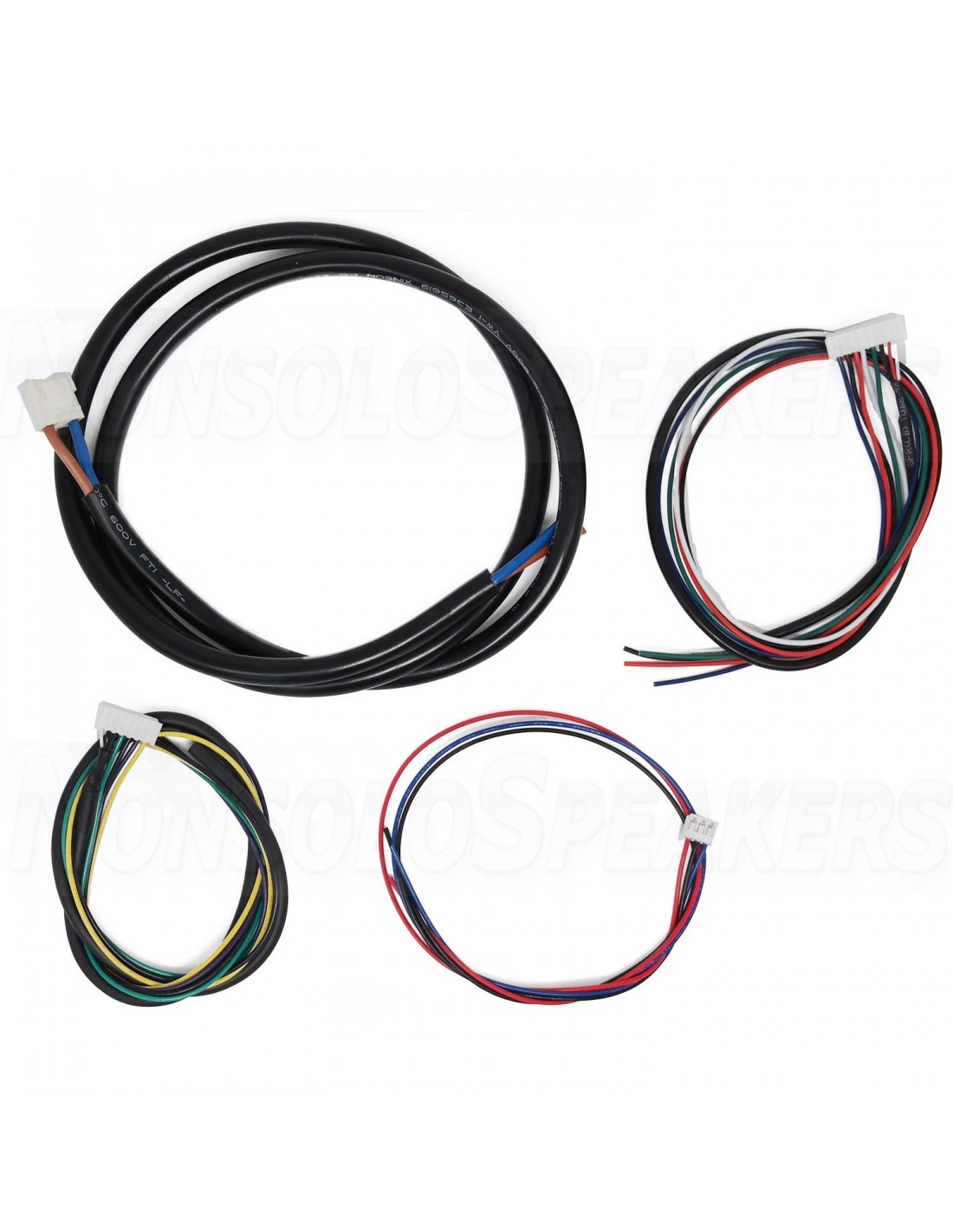

Cable set

The included cable set gives access to all the functions of the 300AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Highlights

Specifications

Article number 300AS1
