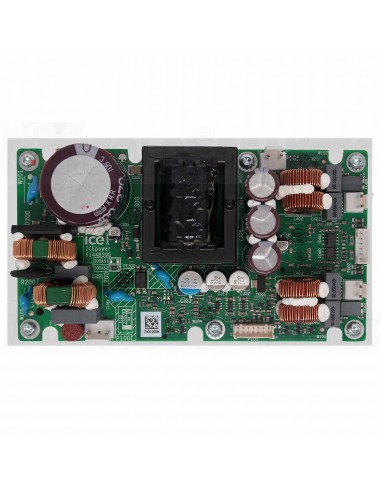

ICEpower 100AS1 Amplifier Module with Integrated Universal Mains Power Supply

The 100AS1 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.

This 100-watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it an excellent choice from the amplifier module category for a wide range of applications. The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production. There is a user-friendly control interface, that features stand-by control, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for a simple operation; just connect the mains, signal and speakers and you are ready to play some music!

.

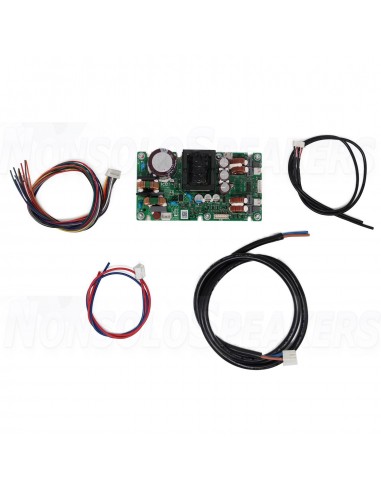

Cable set

The included cable set gives access to all the functions of the 100AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Highlights

Self-contained module, no need for additional circuits

Minimum load of 3 Ω

Extended but user-friendly control interface

8 +Vdc and 17 ±Vdc auxiliary outputs

.

Specifications

Article number 100AS1 Rated power output 100 watts at 4 ohms 50 watts at 8 ohms

Minimum load 3 Ohm

Efficiency 72%

Distortion 0.006 %

THD+N (1000 Hz at 100 watts)

Frequency response 3 - 50,000 Hz

Gain 21 dB

Input sensitivity 2.7 Vp

Input impedance 2.8 kOhm

Amplifier Classification

Class D Speaker output channels 1

Power Requirements 100 - 240 VAC

Current limit 12.5 A

Dimensions (L x W x H) 140 x 77 x 36.5 mm

Mounting hole spacing 130 x 67

Mounting hole diameter 3.5 mm.

.

What’s In The Box?

1 x 100AS1 amplifier module with integrated SMPS

Cable set:

1 x (NA) Audio input 2 channel

1 x (K) Mains without Earth

1 x (F) 2pole Universal Speaker

1 x (NC) Signal Sense & Trigger
