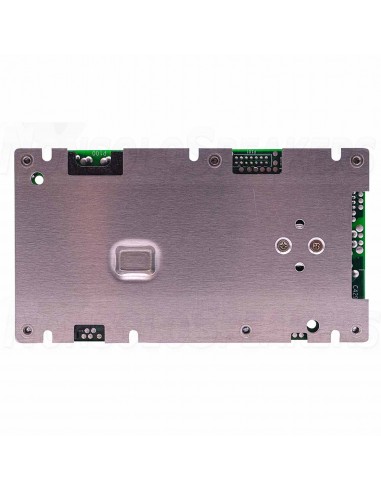

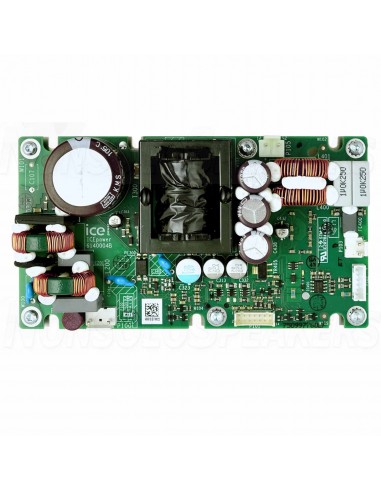

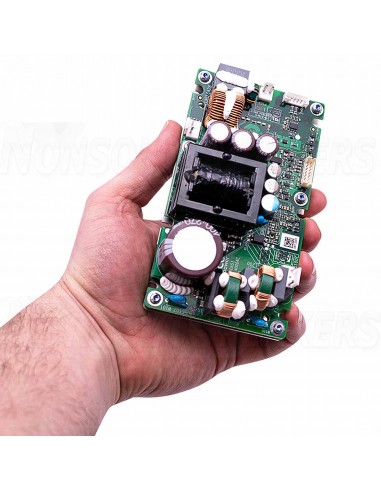

ICEpower 200AS1 Amplifier Module with Integrated Universal Mains Power Supply

The 200AS1 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.

Product details

ICEpower 200AS1 Amplifier Module with Integrated Universal Mains Power Supply This 200-watt high-performance, reliable and self-contained amplifier module from the AS-series. The integrated power supply, ruggedness, and easy-to-use control features make it a great competitor from the amplifier module category for a wide range of applications. The AS-series from ICEpower offers excellent audio performance thanks to the patented modulation and control techniques. The capable integrated SMPS can continuously output up the 300 watts. The ruggedness is further improved with protection circuits, brand-name components and extensive test and burn-in during production. This module has a user-friendly control interface, that features stand-by control, auxiliary power outputs and various status control in- and outputs. Thinking that is too complicated? We haven’t mentioned the plug-n-play compatibility yet; Just connect the mains, signal and speakers and you are ready to play some music!

.

Highlights

Fully integrated module, no need for additional circuits

Minimum load of 2.7 Ω

Extended monitor and status interface

8 +Vdc and 17 +/- Vdc auxiliary outputs

.

Specifications

Article number 200AS1

Rated power output 1x 200 watts at 4 ohms

Minimum load 3 Ohm

Efficiency 78%

Distortion 0.006 %

THD+N Gain 24 dB

Input sensitivity 2.5 Vp

Input impedance 3.0 kOhm

Amplifier Classification Class D

Speaker output channels 1

Power Requirements 85-264 VAC

Current limit 24 A

Dimensions (L x W x H) 140 x 77 x 36.5 mm

Mounting hole diameter 3.5 mm

.

What’s In The Box?

1 x 200AS1 amplifier module with integrated SMPS

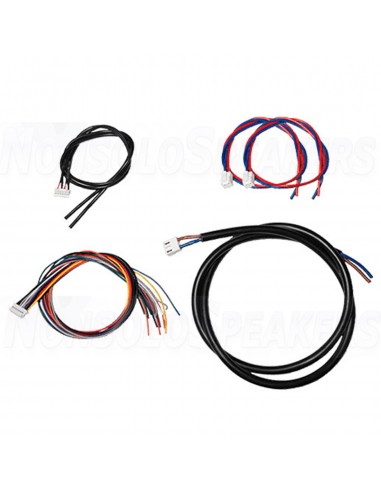

Cable set

1 x (NA) Audio input 2 channel

1 x (K) Mains without Earth

1 x (F) 2pole Universal Speaker

1 x (NC) Signal Sence & Trigger
