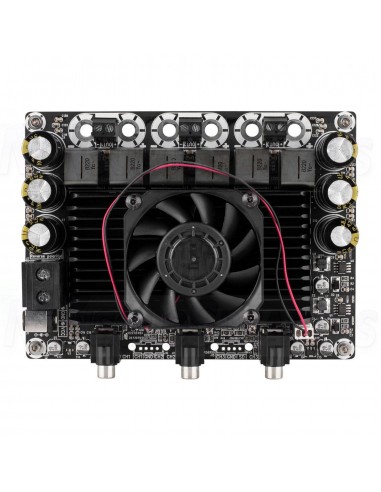

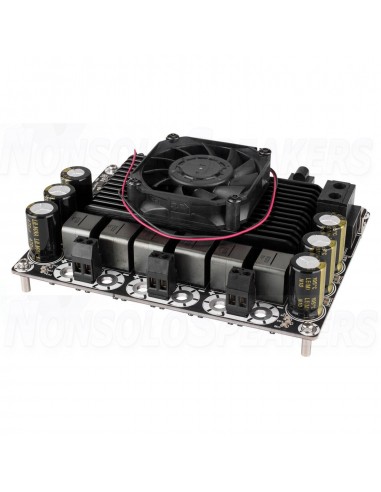

    WONDOM AA-AB33312 - 2x200W + 1x400W@3ohm amplifier class D

    This audio amplifier board uses T-AMP technology - AA-AB33312, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

    Estimated Shipping Costs
    Shipping Costs
    €59.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    WONDOM AA-AB33312 - 2x200W + 1x400W@3ohm amplifier class D

    This audio amplifier board uses T-AMP technology - AA-AB33312, characterized by low distortion and low noise level. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius.

    Therefore the audible noise and the loss of inactive power carried by the fan could be omitted when the output RMS power is moderate.

    Dettaglio di connessione amplificatore in classe D

    FEATURES AA-AB33312

    Parametri Condizioni di TestValori
    Corrente massima400 W @ 3 Ohm19 A
    Tensioni di Alimentazione -24-50 V
    Efficienza400 W @ 3 Ohm90-95 %
    Potenza Inattiva

    SD Floating, FAN ON

    SD Floating, FAN OFF

    18 W

    14.8 W

    Frequenza SwhitchingSD Floating700 kHz
    Potenza in StandbySD collegato a GND, FAN OFF0.9 W
    Sensibilità  di ingresso (RMS)@ 3 Ω, 400 W, 1 KHz1.24 V
    Impedenza di ingresso-33 KΩ
    Guadagno-28.5-32.5 dB
    Impedenza di carico minima-3 Ω
    Potenza in uscita

    @ 3 Ω THD + N 1%

    @ 3 Ω THD + N 10%

    270 W

    400 W

    Larghezza di banda @ ± 3dB@ 3 Ω20-20K Hz
    THD

    @ 3 Ω, 1W, 1KHz

    @ 3 Ω, 10W, 1KHz

    0.01 %

    0.008 %

    Livello di rumore in uscitaPonderazione, Ingresso collegato a GND260 mV
    SNR270 W @ 3 Ω THD + N 1%95 dB
    Temperature
    		-50 °C

    OTHERS FEATURES AA-AB33312

    ParametriSpecifiche
    ChipT-AMP STA516BE
    Dimensioni15,2 x 11,4 x 3,7 cm.
    Potenza2 x 200W
    Classe AmplificatoreD
    Controllo di volume Opzionale
    Protezione da cortocircuitiSi
    Protezione da sovratemperaturaSi

    Performance

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    WONDOM AA-AB33312
