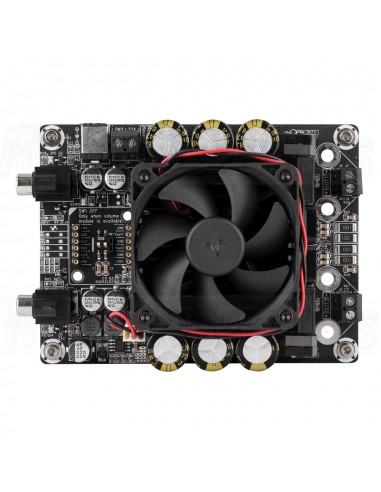

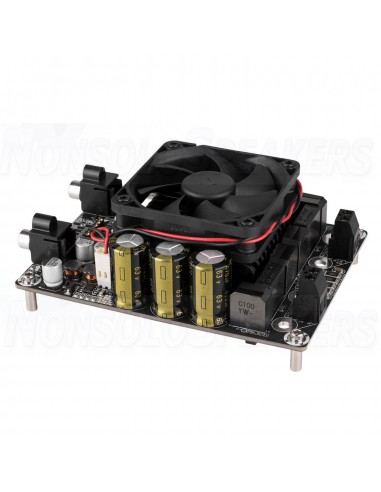

This audio amplifier board uses Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. Listen to your music like never before with 300 Watts per channel of Tripath Class-T technology on an audiophile level. The amplifier includes a silent fan for heat dissipation.

SHIPMENT IN 7/10 WORKING DAYS
€66.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32195 - 2x300W amplifier class D T-AMP

This audio amplifier board uses Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. Listen to your music like never before with 300 Watts per channel of Tripath Class-T technology on an audiophile level. The amplifier includes a silent fan for heat dissipation.

This amplifier board supports stereo (double) amplification using the two-channel PBTL topology. Thanks to the dedicated heat sink design with temperature controlled fan, it is capable of delivering maximum dual channel power from 300 W RMS to 3 ohms simultaneously without an extraordinary heat sink. In addition to the integrated protection of the chip, the protection components against ESD discharges and used throughout the input and output of the amplifier board guarantee its robustness and reliability.

This amplifier board supports mono amplification using the PBTL topology. The fan works when the heat sink temperature reaches 45 degrees Celsius and stops when the temperature drops to 40 degrees Celsius. Therefore the audible noise and the loss of inactive power carried by the fan could be omitted when the output RMS power is moderate. Recommended power supply: ALC24V6AJ.

Dettaglio di connessione amplificatore in classe D AA-AB32195

Features AA-AB32195

Parametri  Condizioni di Test Valori
Corrente massima 600 W @ 3 Ohm 14.2 UN
Tensioni di Alimentazione  - 15-40 V
Efficienza 300 W @ 3 Ohm 86-91 %
Potenza Inattiva

SD Floating, FAN ON

SD Floating, FAN OFF

9.6-18 W

8-15 W
Frequenza Swhitching SD Floating 674 kHz
Potenza in Standby SD collegato a GND, FAN OFF 0.8-5 W
Sensibilità  di ingresso (RMS) @ 3 Ω, 300 W, 1 KHz 917 mV
Impedenza di ingresso - 33 KΩ
Guadagno - 26-30 dB
Impedenza di carico minima - 3 Ω
Potenza in uscita

@ 3 Ω THD + N 1%

@ 3 Ω THD + N 10%

206 W

300 W
Larghezza di banda @ ± 3dB @ 3 Ω 20-20K Hz
THD

@ 3 Ω, 1W, 1KHz

@ 3 Ω, 10W, 1KHz

0.0052 %

0.025 %
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 209 mV
SNR 206 W @ 3 Ω THD + N 1% 94.8 dB
Temperature
 - 50 °C

Features AA-AB32195

Parametri Specifiche
Chip T-AMP
Dimensioni 12,1 x 9,1 x 3,8 cm.
Potenza 2 x 300W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

Performance

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D

Amplificatore Digitale Classe D
