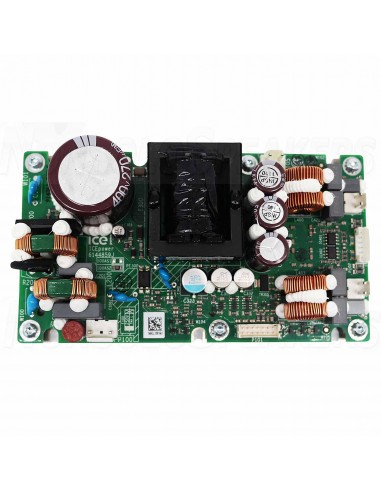

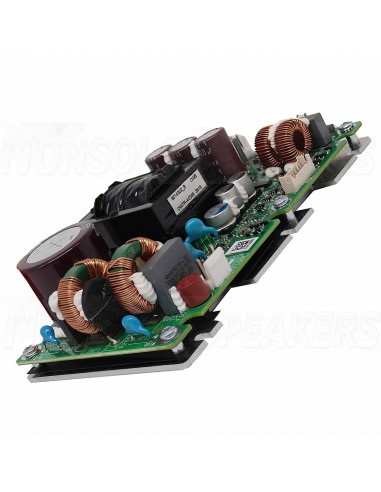

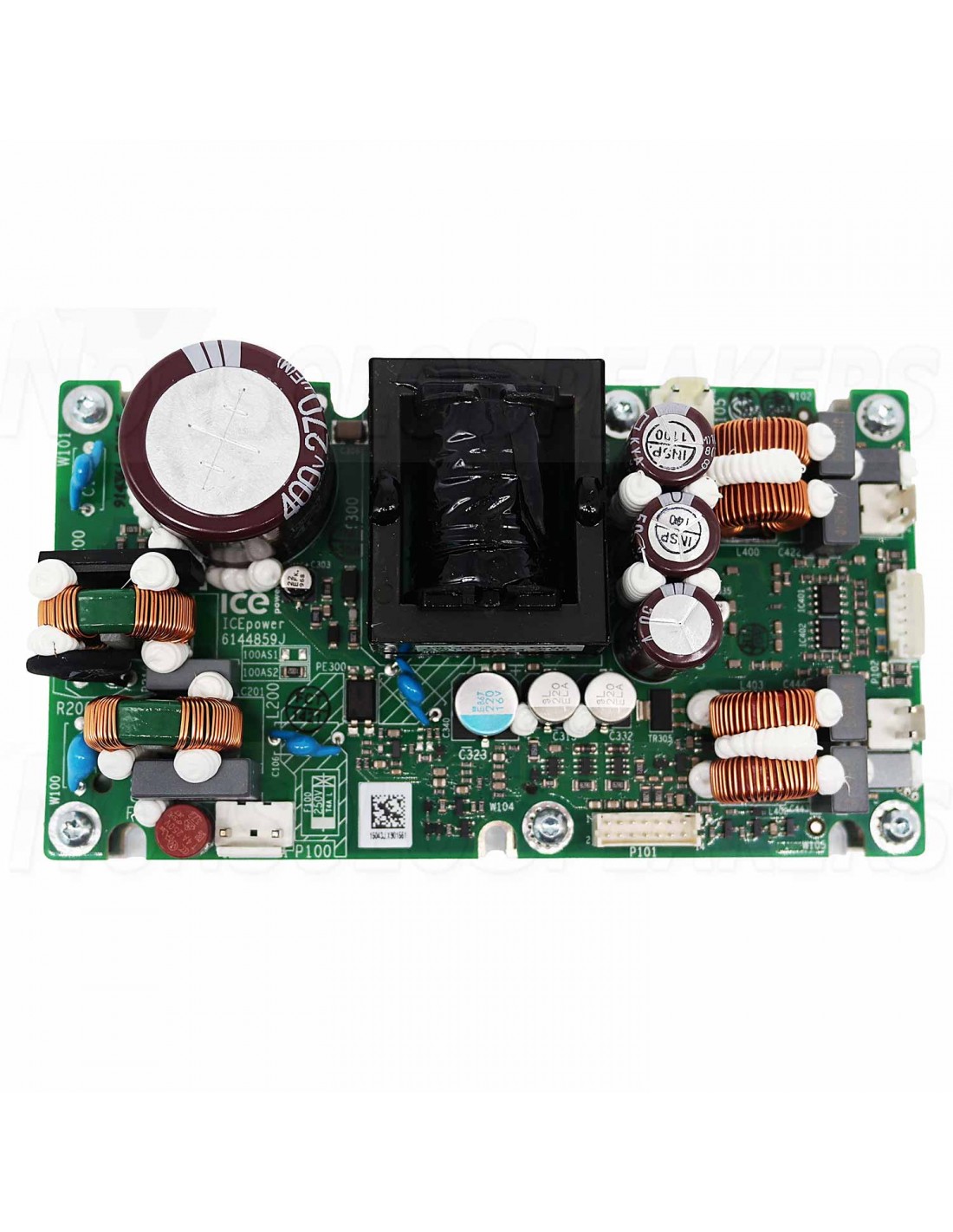

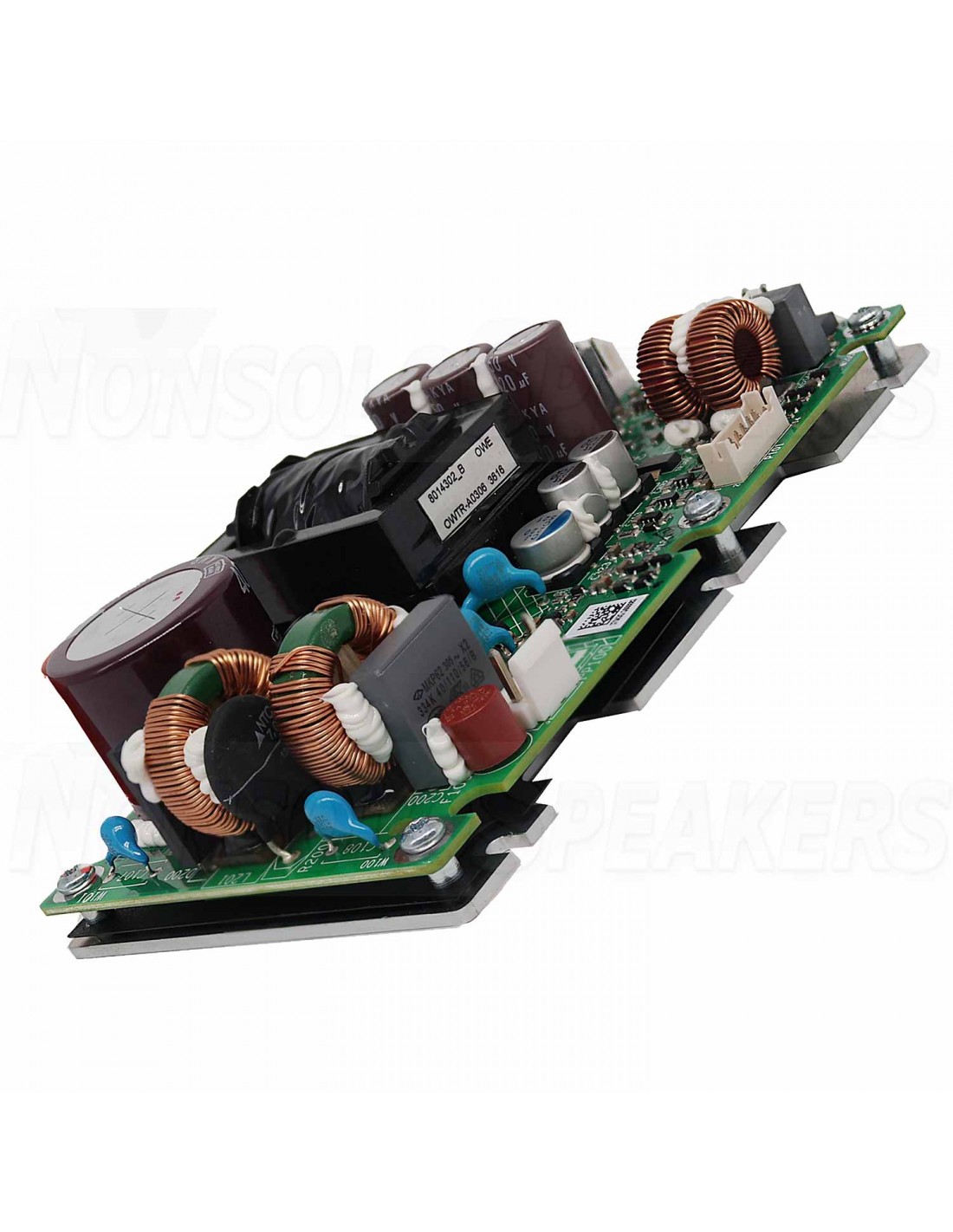

ICEpower 100AS2 Amplifier Module with Integrated Universal Mains Power Supply

The 100AS2 is a single-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.

Product details

ICEpower 100AS2 Amplifier Module with Integrated Universal Mains Power Supply This 100-watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it an excellent choice from the amplifier module category for a wide range of applications. The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production. There is a user-friendly control interface, that features stand-by control, Auto-on/ signal detect, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for a simple operation; just connect the mains, signal and speakers and you are ready to play some music!

.

Cable set

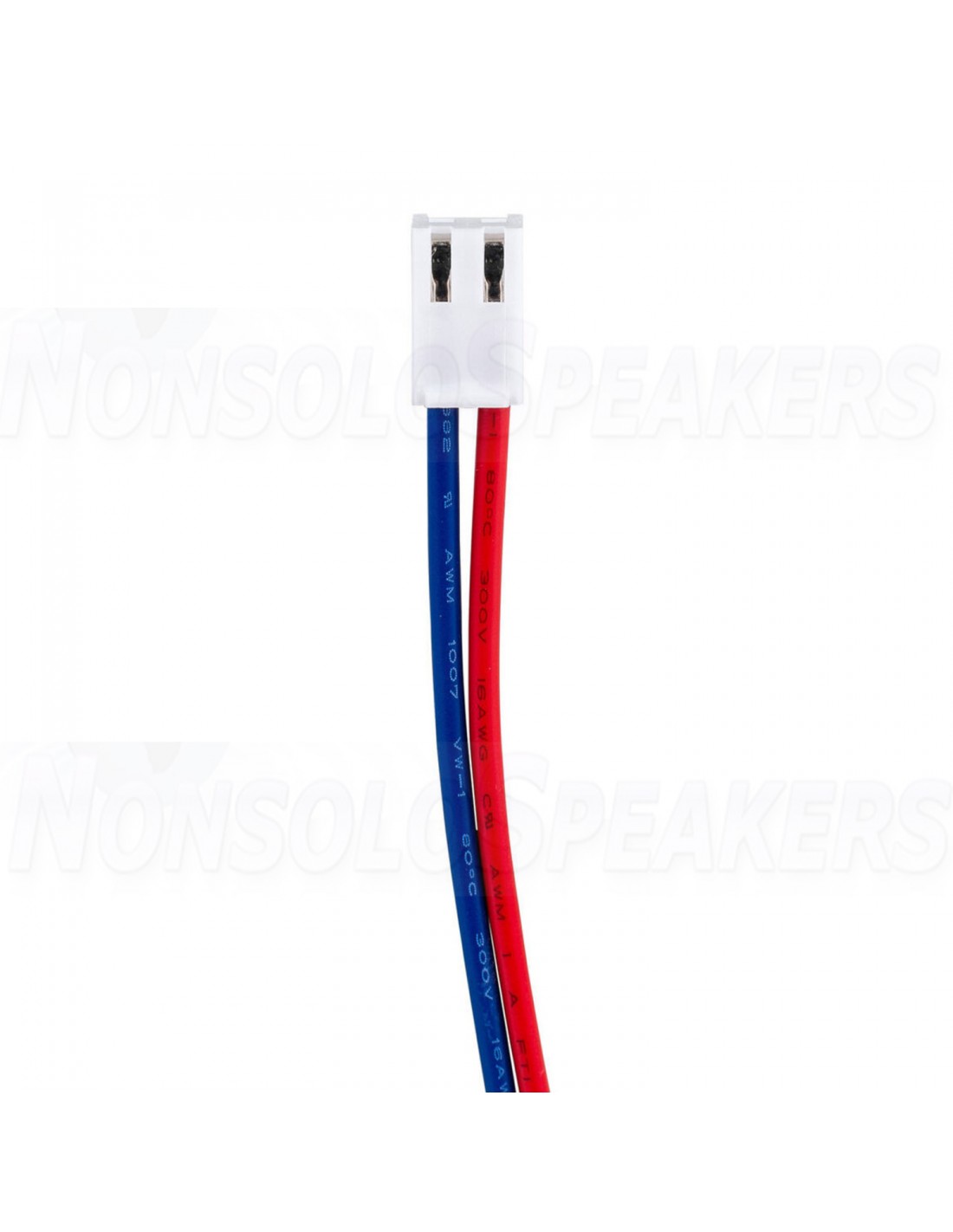

The included cable set gives access to all the functions of the 100AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Specifications

Article number 100AS2

Rated power output 2x 100 watts at 4 ohms 2x 50 watts at 8 ohms

Minimum load 3 Ohm

Efficiency 72%

Distortion 0.006 %

THD+N Gain 21 dB

Input sensitivity 2.7 Vp

Input impedance 2.8 kOhm

Amplifier Classification Class D

Speaker output channels 2

Power Requirements 85-264 VAC

Current limit 12.5 A

Dimensions (L x W x H) 140 x 77 x 36.5 mm

Mounting hole diameter 3.5 mm

.

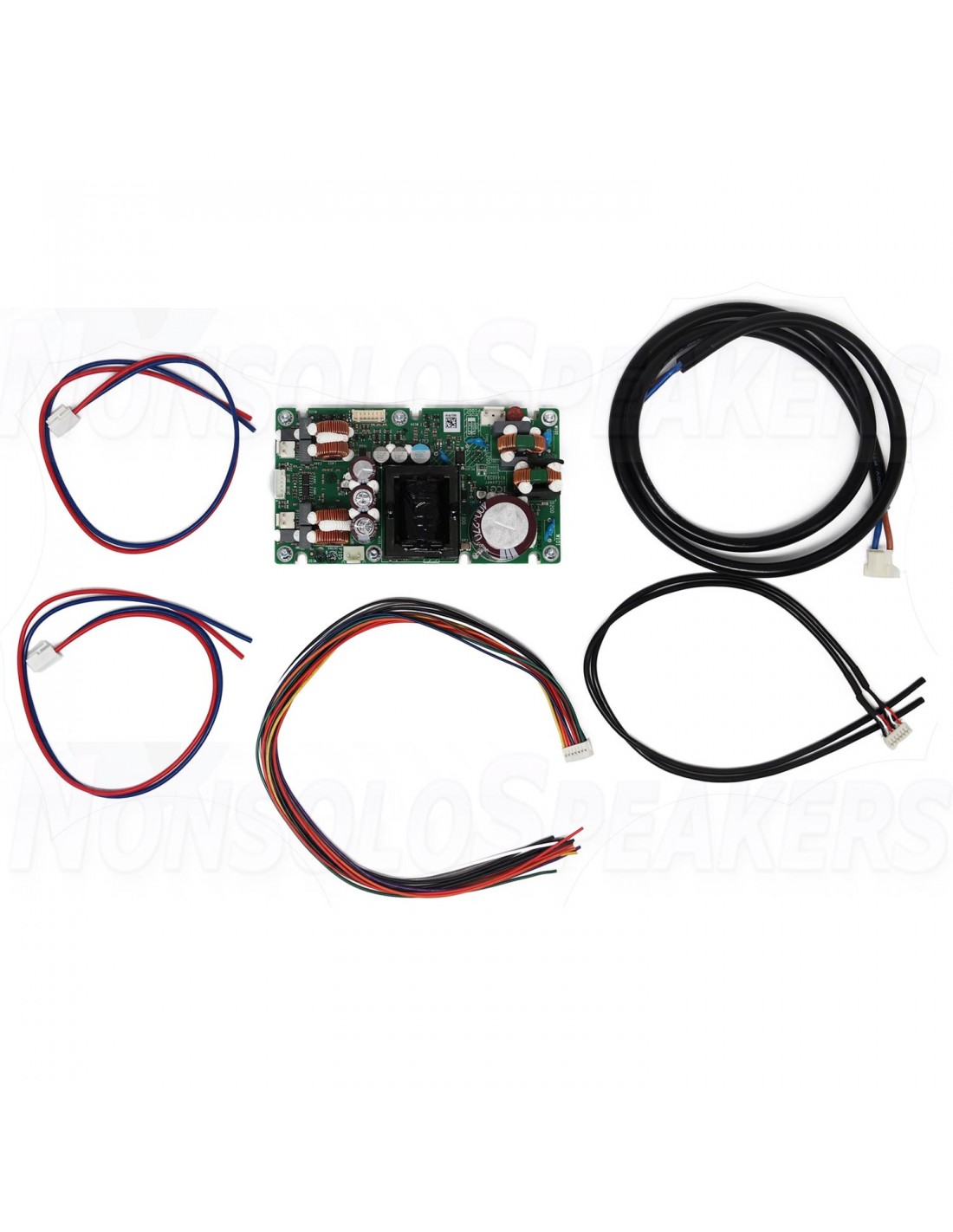

What’s In The Box?

1 x 100AS2 amplifier module with integrated SMPS

Cable set:

1 x (NA) Audio input 2 channel

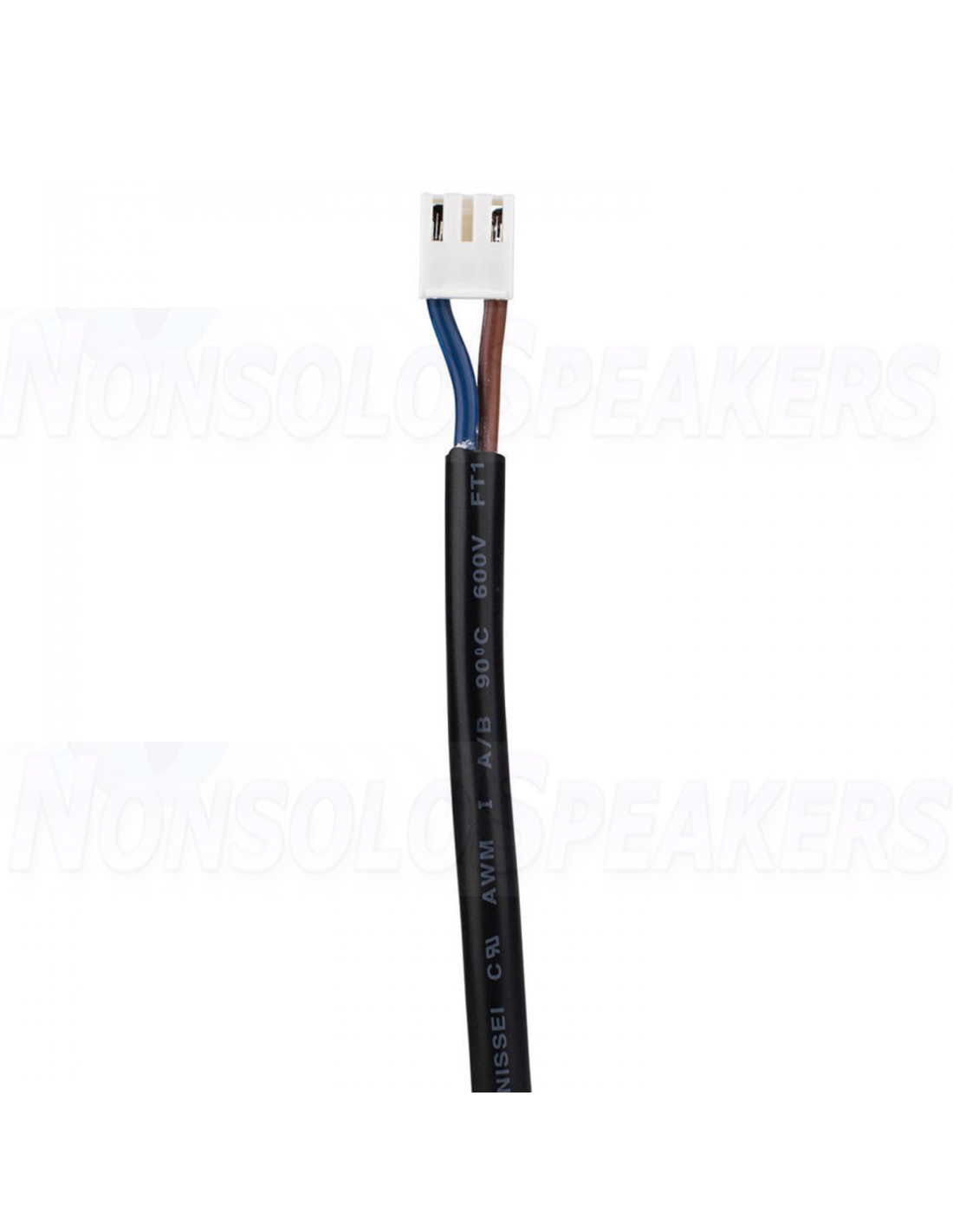

1 x (K) Mains without Earth

2 x (F) 2pole Universal Speaker

1 x (NC) Signal Sense & Trigger
