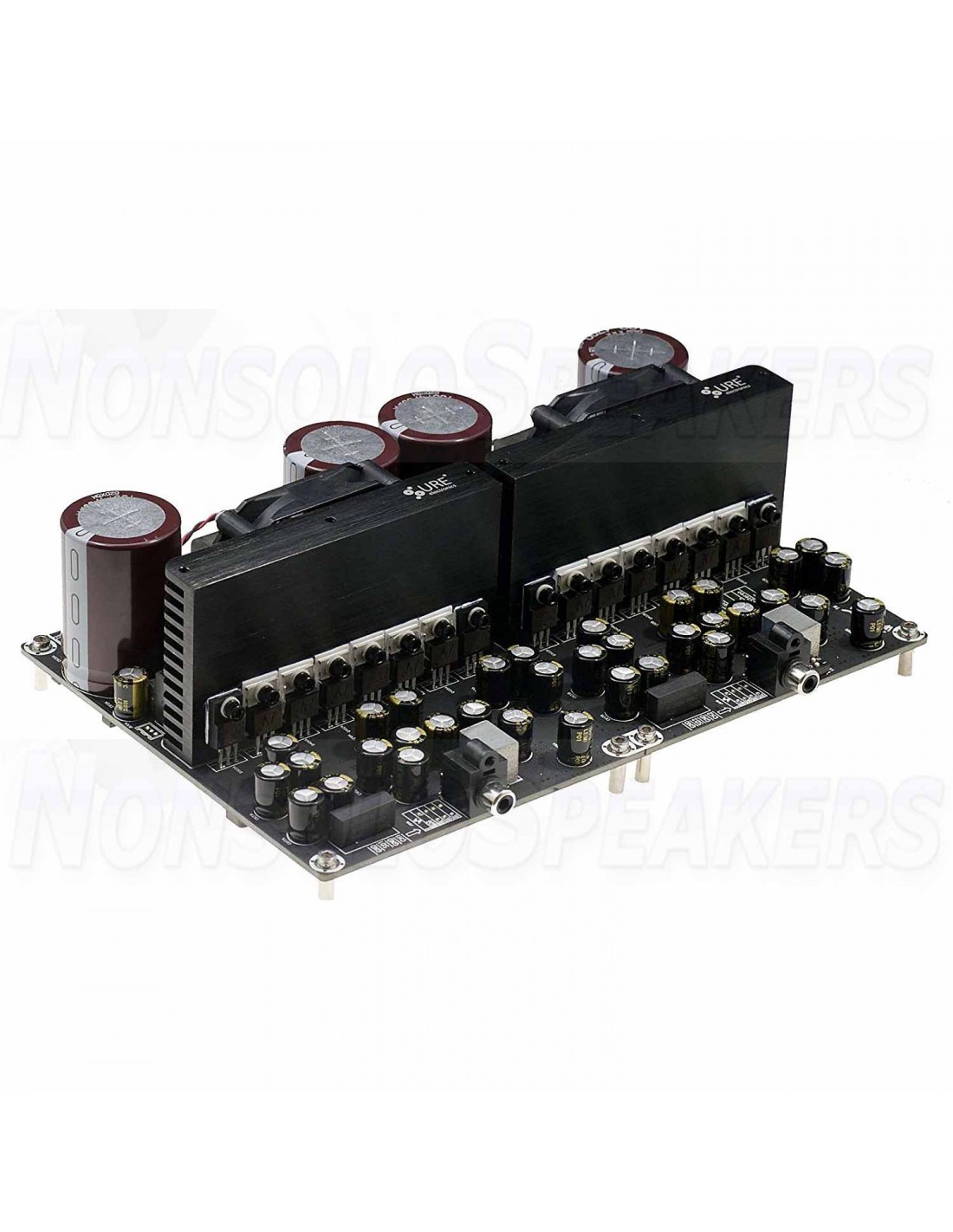

This audio amplifier board employs the high-voltage IR, IRS2092SPBF high-performance class D audio amplifier driver, and 200V single N-channel HFETFET IRFB4227 power MOSFET. This amplifier board supports stereo amplification using two-channel half bridge topology.

Out-of-Stock
€206.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32391 - 2x1000W@2ohm Amplifier in Classe D - IRS2092

Sure Electronics - AA-AB32391

This audio amplifier board employs the high-voltage IR, IRS2092SPBF high-performance class D audio amplifier driver, and 200V single N-channel HFETFET IRFB4227 power MOSFET. This amplifier board supports stereo amplification using two-channel half bridge topology.

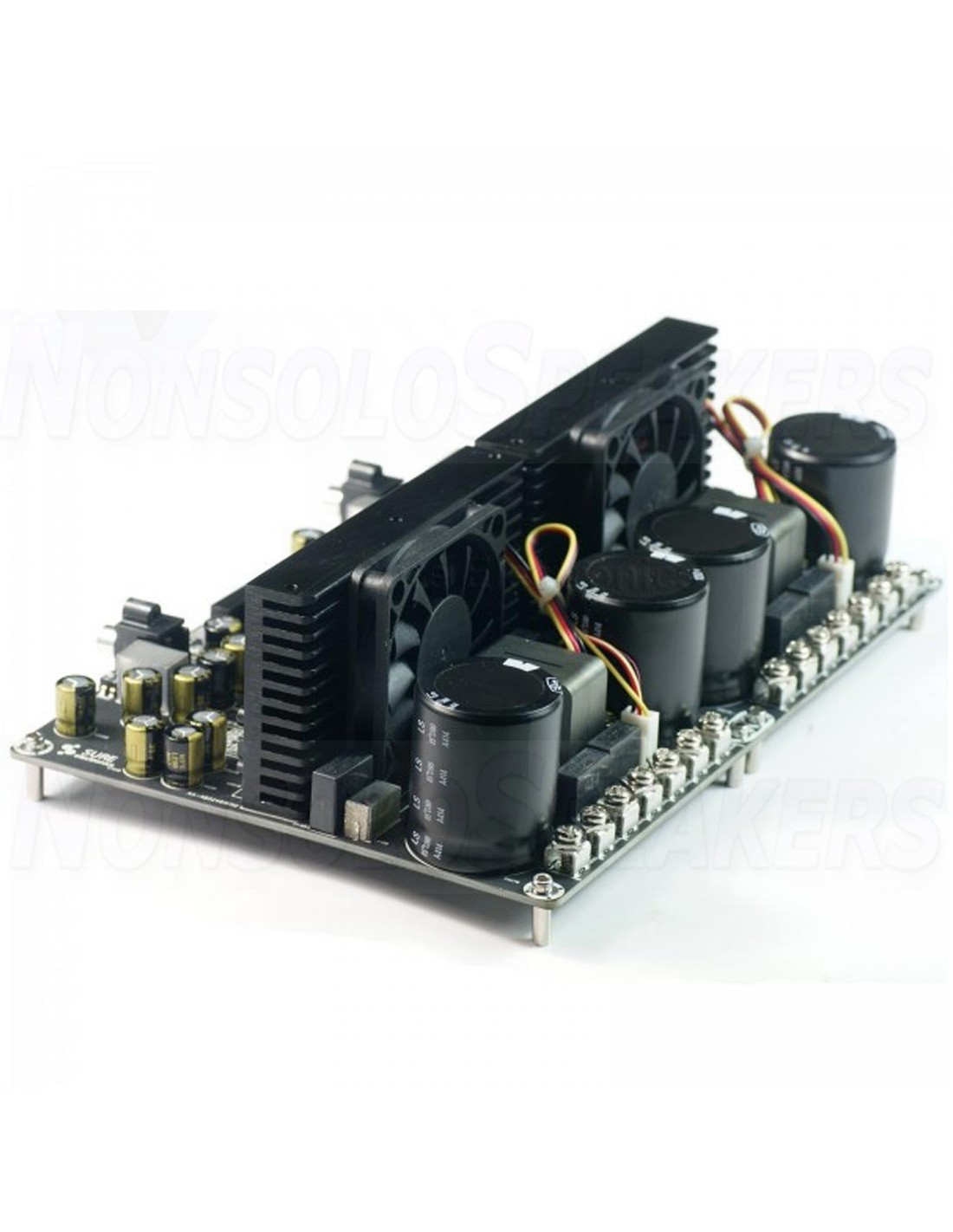

Thanks to the dedicated heatsink design with temperature controlled fan, it is capable of delivering the maximum dual channel power 1000W RMS @ 2ohm simultaneously without using an additional heatsink. In addition to the chip's built-in protection, ESD and discharge protection components used throughout the amplifier board's input and output ensure its robustness and reliability. Recommended power supply: ALC24V6AJ.

Dettaglio di connessione amplificatore in classe D

 Features AA-AB32391

Parametri  Condizioni di Test Valori
Tensioni di Alimentazione  - 55-65 V
Efficienza 2X1000 W @ 2 Ohm 96 %
Corrente di riposo

Standby
Alimentato da + 60 V CC

Standby
Alimentato da -60 V CC

EN Floating
Alimentato da + 60 V DC

EN Galleggiante
Alimentato da -60 V CC

1 mA

16.8 mA

35 mA

100 mA
Frequenza Swhitching SD Floating 650 kHz
Sensibilità  di ingresso (RMS) @ 2 Ω, 400 W, 1 KHz 1.48 V
Impedenza di ingresso - 3.3 KΩ
Guadagno - 30 dB
Impedenza di carico minima - 1 Ω
Potenza in uscita

@ 2 Ω THD + N 1%

@ 2 Ω THD + N 10%

816 W

1000 W
Larghezza di banda @ ± 3dB @ 2 Ω 20-20K Hz
Livello di rumore in uscita Ponderazione, Ingresso collegato a GND 204 mV
Temperature
 - 25-50 °C

Others features AA-AB32391

Parametri Specifiche
Chip IRS2092
Dimensioni 16 x 22,8 x 7,3 cm.
Potenza 2 x 1000W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

WONDOM AA-AB32391
