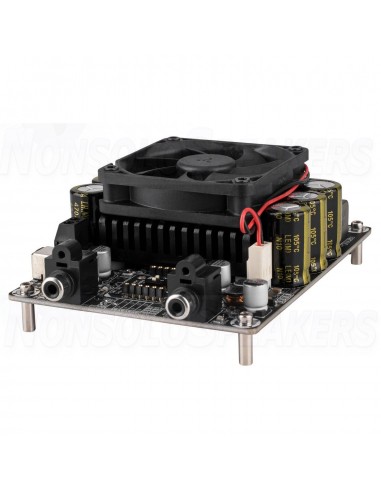

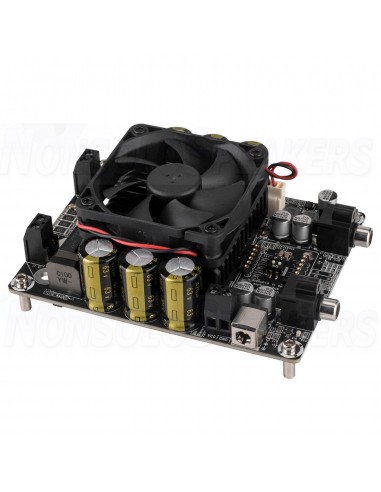

    WONDOM AA-AB32281 Class D Stereo Amplifier Board T-Amp 2x130W 3 Ohm

    SHIPMENT IN 7/10 WORKING DAYS
    €44.83
    rating No review at the moment

    WONDOM AA-AB32281 Class D Stereo Amplifier Board T-Amp 2x130W 3 Ohm

    This medium power stereo amplifier board means serious business! This audio amplifier board generates up to 400 watts of power using Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. For do-it-yourselfers, look for an audio amplifier for your home or vehicle.

    Estimated Shipping Costs
    Shipping Costs
    €59.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    WONDOM AA-AB32281 Class D Stereo Amplifier Board T-Amp 2x130W 3 Ohm

    This medium power stereo amplifier board means serious business! This audio amplifier board generates up to 400 watts of power using Sure Electronics' T-AMP technology, characterized by low distortion and low noise level. For do-it-yourselfers, look for an audio amplifier for your home or vehicle.

    Temperature-controlled cooling fan and over / under-voltage, over-current, short-circuit and over-temperature protection circuits are integrated for years of fun. This amp card has three fixed gain settings or you can use the Sure plug-in volume control option. A 15 to 36 VDC power supply is required. Recommended power supply: ALC24V6AJ.

    Dettaglio di connessione amplificatore in classe D

    Features AA-AB32281

    Parametri Condizioni di TestValori
    Corrente massima400 W @ 3 Ohm12.6 UN
    Tensioni di Alimentazione -15-36 V
    Efficienza200 W @ 3 Ohm86-91 %
    Potenza Inattiva

    SD Floating, FAN ON

    SD Floating, FAN OFF

    8.2-16 W

    6.8-14 W

    Frequenza SwhitchingSD Floating730 kHz
    Potenza in StandbySD collegato a GND, FAN OFF0.7-5 W
    Sensibilità  di ingresso (RMS)@ 3 Ω, 200 W, 1 KHz740 mV
    Impedenza di ingresso-33 KΩ
    Guadagno-24-28 dB
    Impedenza di carico minima-3 Ω
    Potenza in uscita

    @ 3 Ω THD + N 1%

    @ 3 Ω THD + N 10%

    128 W

    200 W

    Larghezza di banda @ ± 3dB@ 3 Ω20-20K Hz
    THD

    @ 3 Ω, 1W, 1KHz

    @ 3 Ω, 10W, 1KHz

    0.004 %

    0.02 %

    Livello di rumore in uscitaPonderazione, Ingresso collegato a GND188 mV
    SNR128 W @ 3 Ω THD + N 1%94 dB
    Temperature
    		-50 °C

    Others Features AA-AB32281

    ParametriSpecifiche
    ChipT-AMP
    Dimensioni12,1 x 9,1 x 3,8 cm.
    Potenza2 x 200W
    Classe AmplificatoreD
    Controllo di volume Opzionale
    Protezione da cortocircuitiSi
    Protezione da sovratemperaturaSi

    Performance

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    Amplificatore Digitale Classe D

    AA-AB32281 - T-AMP
