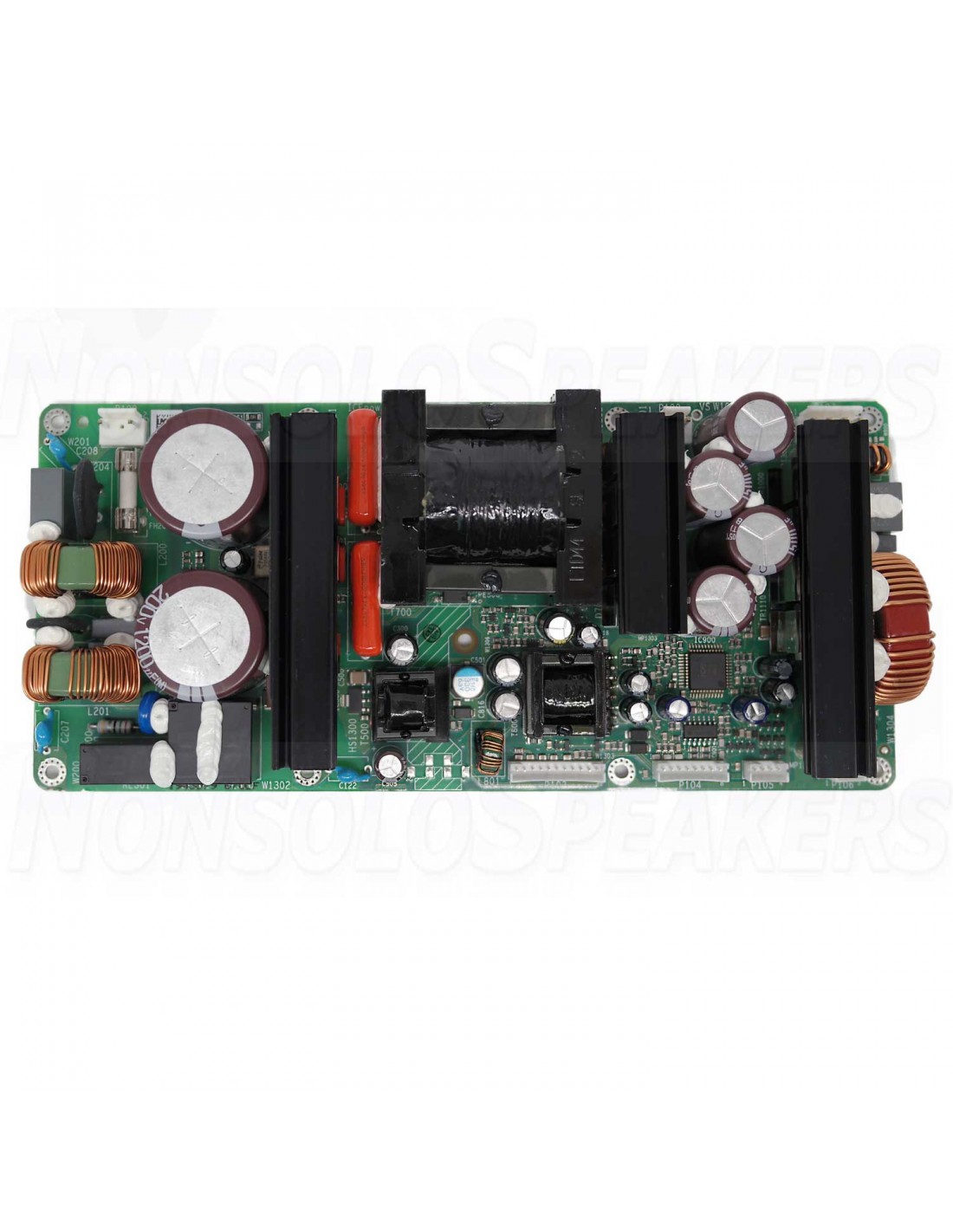

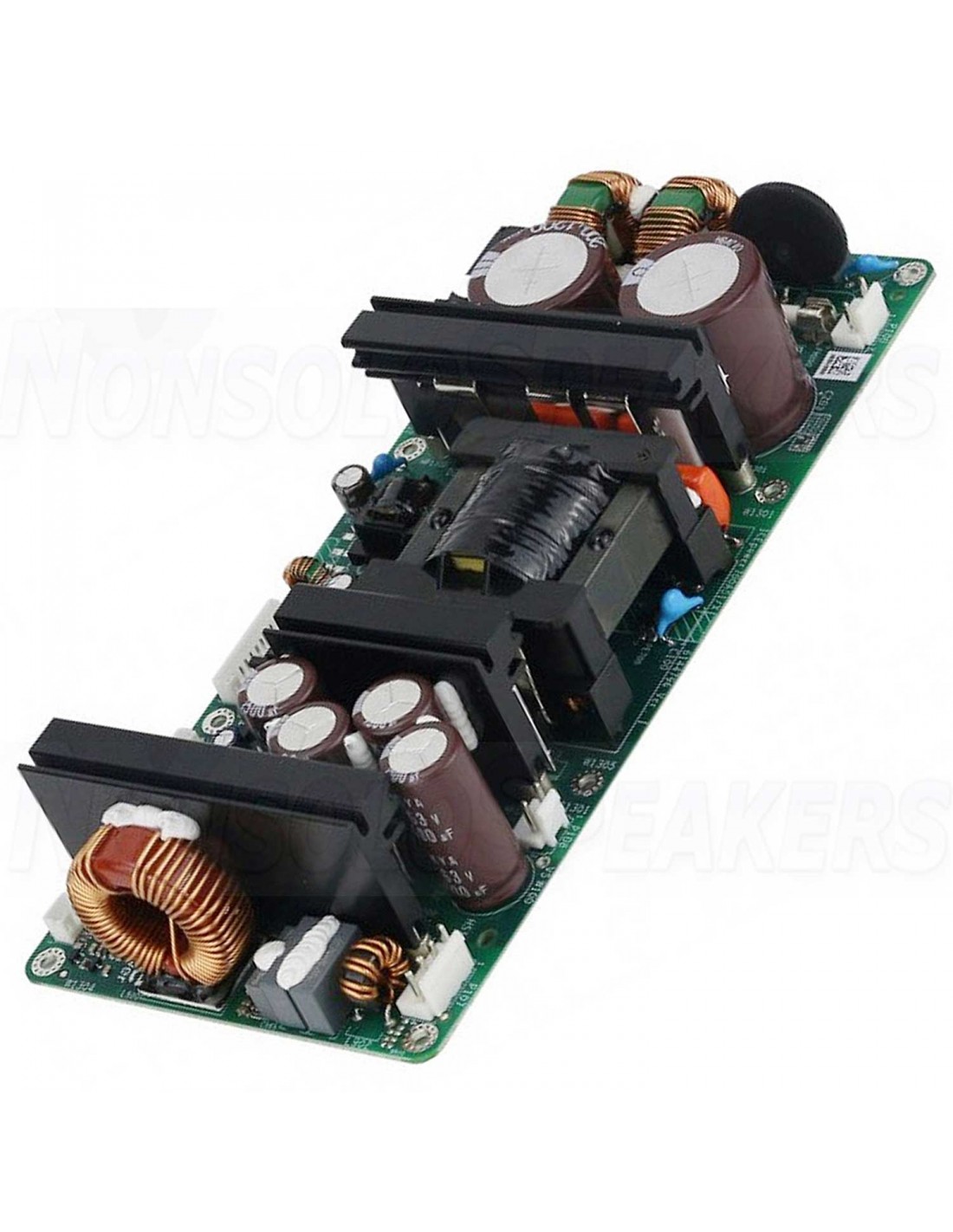

ICEpower 700AS1 Amplifier Module with Integrated Power Supply

ICEpower 700AS1 Amplifier Module with Integrated Power Supply The 700AS1 combines a great sounding single channel ICEpower Class D amplifier with a very capable LLC power supply. This module is one of the most versatile and powerful platforms in our amplifier module category. The ability to handle low impedance means the 700AS1, despite its name, is capable of a solid 1000 watts into 2.7 Ω loads. Perfect for subwoofers and bass amplifiers. The ability to power up the 300A1 hanger amplifier, also makes it great for 2-way or 3-way active HiFi and professional speakers. The capable supply, together with the protection circuits make this module fit for high continuous power demands. On the functionality part, nothing is left out: There are 3V - 5V and 12V trigger and signal sense inputs available. The 5.1 VDC and 15 -/+VDC auxiliary outputs allow you to connect other circuits like DSP’s, pre-amplifiers or streaming modules with ease. The 43 VDC hanger bus can forward the supply rails to a 300A1 modules, allowing you to build your own 2-channel amplification solution. The included cable set gives access to all these cool features. This fully integrated, compact and efficient power amplifier solution supports universal mains operation and complies with ErP and Energy Star® requirements. The ICEpower 700AS1 is designed for highly competitive consumer and professional audio products ranging from subwoofers and active speakers to A/V amplifiers and multi-way systems. This module is EMC and safety pre-approved, including the amplifier hanger options. There is also a 2-channel version available; check out the ICEpower 700AS2.

.

Cable Set

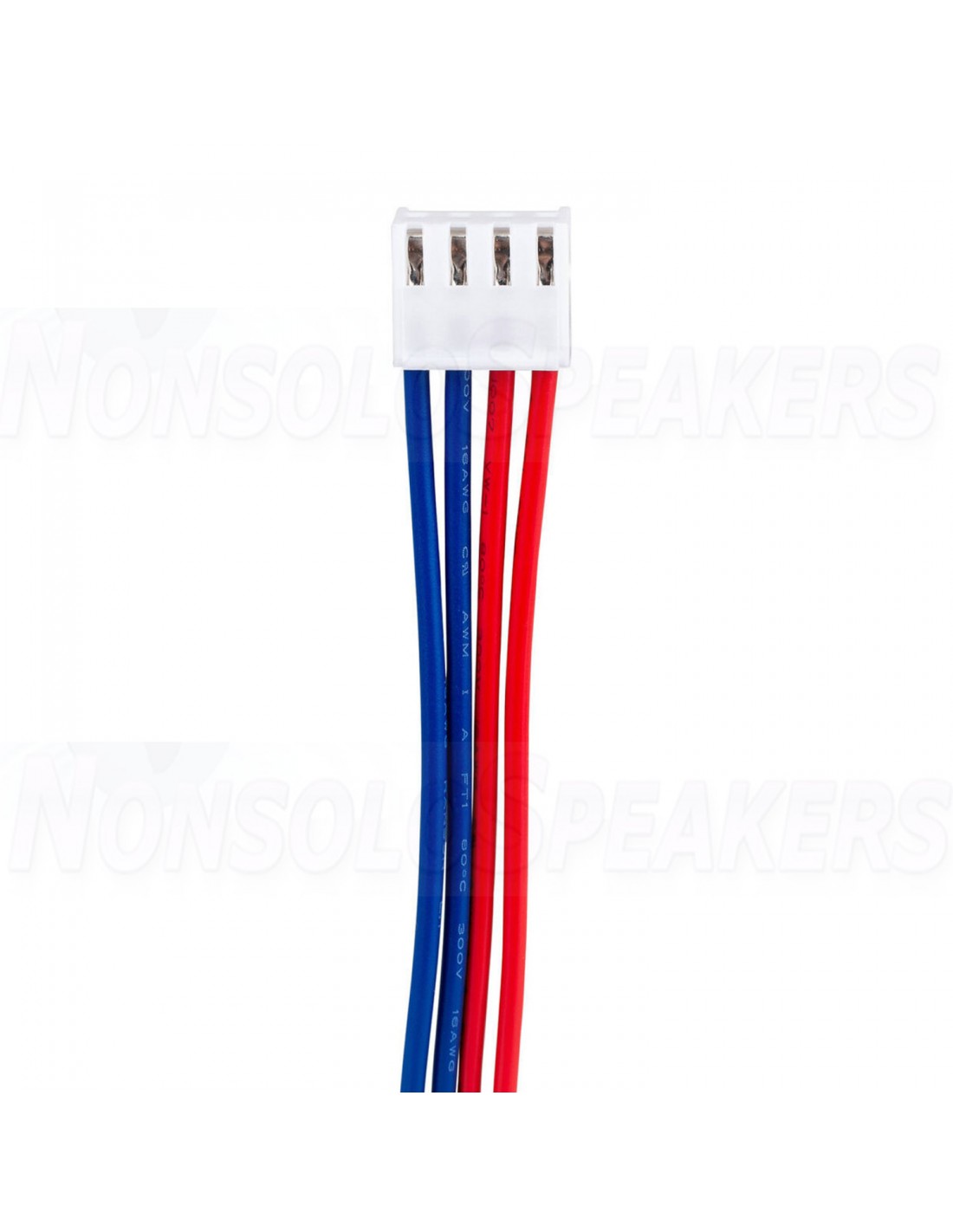

The included cable set gives access to all the functions of the 700AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Highlights

Self-contained module, no need for additional circuits

Up to 1000W into 2.7 Ω

Extended but user-friendly control interface

DC hanger output for 300A1 modules

Universal mains operation (100-240 V, 50-60 Hz)

Standby power consumption 170 mW @ 230 V

ErP and Energy Star®v3.0 compliant.

.

Specifications

Article number 700AS1

Rated power output 700 watts at 4 ohms 350 watts at 8 ohms

Minimum load 2.5 Ohm

Efficiency 84%

Distortion 0.006 %

THD+N Gain 27.4 dB

Input impedance 36 kOhm

Amplifier Classification Class D

Speaker output channels 1

Current limit 30 A

Dimensions (L x W x H) 220 x 100 x 46 mm

Mounting hole diameter 3.5 mm

.

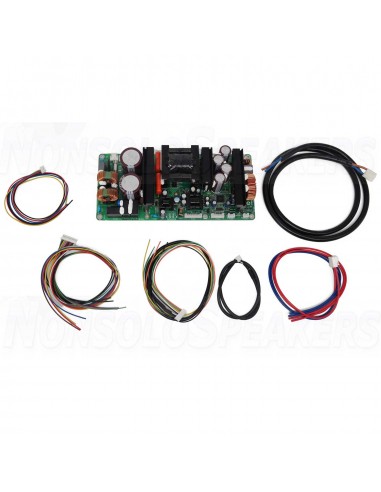

What’s In The Box?

1 x 700AS1 Amplifier Module with Integrated Power Supply

Cable set:

1 x (K) Mains without Earth

1 x (G) Speaker 700AS

1 x (RR) Signal Sense 700AS

1 x (SA) Signal 700AS1

1 x (JA) AUX 700AS1

1 X (YA) 12V Trigger + LED output
