ICEpower 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply

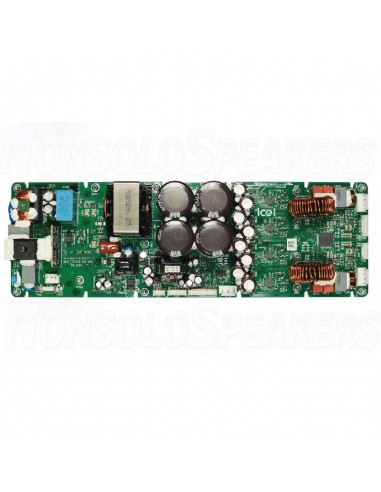

ICEpower 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply The ICEpower 1200AS2 combines two high-performance 1200 watt ICEedge based class D amplifier channels with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for two channels of extreme audio power and performance in the amplifier module category. The DC hanger bus is suitable for powering the 400A2 amplifier modules. Perfect for professional subwoofers, 2-way and 2.1 speakers as well as high-end consumer products such as subwoofers or monoblock power amplifiers. The ICEpower 1200AS family uses a universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All are accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminium base plate on the 1200AS acts as both a cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 1200AS2 is a two-channel module. Check out the ICEpower 1200AS1 for a single-channel module.

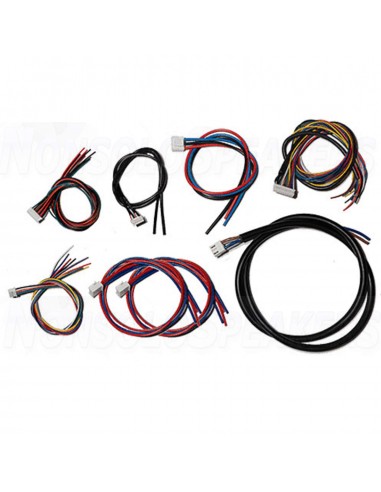

Cable set

The included cable set gives access to all the functions of the 1200AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

Product description

Highlights of the ICEpower 1200as2

Fully integrated, two-channel amplifier and power supply

Minimum load impedance at 2.7 Ohm

Comprehensive monitoring and protection

Real-time voltage and current monitor outputs

Audio signal and logic triggers

Auxiliary power supply output

Standby-mode

Universal mains with active Power Factor Correction

Simple but flexible mechanical mounting

.

Specifications

Article number 1200AS2

Rated power output 2 x 700 watts at 4 ohms 2 x 620 watts at 8 ohms

Minimum load 2.7 Ohm

Efficiency 80%

Distortion 0.005 %

THD+N Gain 25.8 dB

Input impedance 38 kOhm

Amplifier Classification Class D

Speaker output channels 2

Power Requirements 110/220 VAC, 50Hz/60Hz

Current limit 38 A

Dimensions (L x W x H) 300 x 100 x 63 mm

Mounting hole diameter 3.5 mm

.

What’s In The Box of the ICEpower 1200as2?

1 x 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply

Cable set:

1 x (K) Mains without Earth

2 x (G) Speaker 1200AS

1 x (NC) Basic control/features

1 x (ND) Signal

1 x (NE) Voltage and Current Monitor 2 channel

1 X (NA) Audio input 2 channel

1 x (NG) Hanger Rail Supply

1 x (NH) Hanger Small Signal Supply
