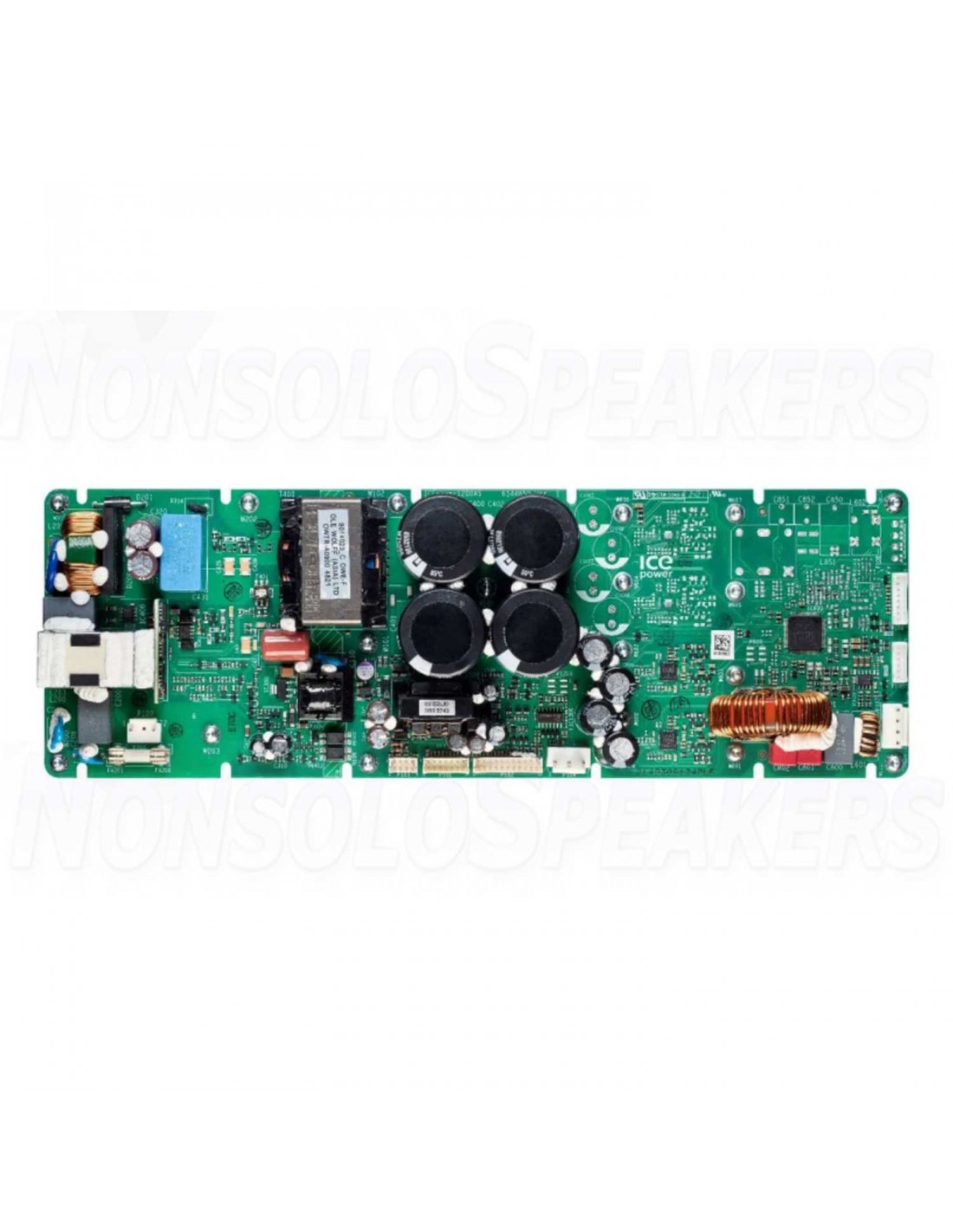

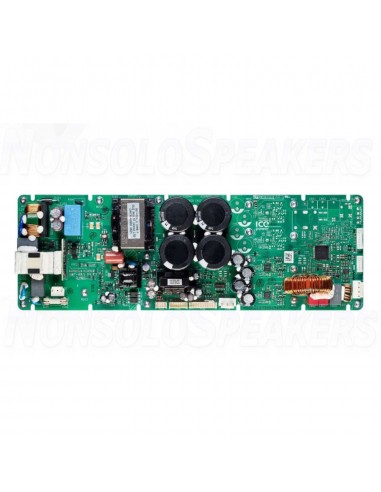

ICEpower 2000AS1 HV Amplifier Module with Power Supply

.

The 2000AS2 HV is perfect for applications that require large voltage swings and high peak power. A perfect building block for high-performance line arrays, subwoofers, and more.

.

Highlights of the ICEpower 2000AS1 HV Amplifier

• Very high speaker output drive voltage
• Fully integrated, high-power amplifier and power supply
• Minimum load impedance at 3 Ohm
• Extensive monitoring and protection
• Real-time clip and thermal monitor outputs
• Audio signal and logic triggers
• Auxiliary power supply output
• Standby-mode
• Universal mains with active Power Factor Correction

.

Product details ICEpower 2000AS1 HV Amplifier

The ICEpower 2000AS1 HV combines one high-performance 2000 watt class D amplifier channels with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for two channels of extreme audio power and performance in the amplifier module category.

Just as all ICEpower products the noise and distortion performance is very good. And with a maximum output voltage of 149 V, this powerhouse gives a dynamic drive for any speaker and has high power capabilities into 8-Ohm loads.

A DC hanger bus with +/- 90 VDC output voltage is suitable for powering additional high power amplifier modules. Perfect for high-end consumer products such as subwoofers.

The ICEpower 2000AS family uses a universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All are accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminium base plate on the 2000AS HV acts as both a cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 2000AS1 HV is a one-channel module. Check out the ICEpower 2000AS2 for a high power two-channel module.

.

Cable set

The included cable set gives access to all the functions of the 2000AS1 HV module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

.

What's included with this product?

1 x 2000AS1 HV Amplifier Module with Integrated Universal Mains Power Supply

Cable set:

• 1 x (K) Mains without Earth
• 1 x (G) Speaker 1200AS
• 1 x (NC) Basic control/features
• 1 x (ND) Signal
• 1 x (NE) Voltage and Current Monitor 2 channel
• 1 X (NA) Audio input 2 channel
• 1 x (NG) Hanger Rail Supply
• 1 x (NH) Hanger Small Signal Supply

 .

FAQ about the ICEpower 2000AS1

What is the minimum speaker impedance it can handle?

The minimum it can handle is 3 ohms,

.

What is the difference between the ICEpower 2000AS1 and the 1200AS1?

The ICEpower 2000AS1 uses higher voltage capacitors and delivers more power than the ICEpower 1200AS2.

.

Key Specifications

• 2000 w / 4 Ohm per channel ≤ 1 % THD+N, 1 kHz
• ICEpower2000AS HV
• One and Two Channel 2000W ICEpower Amplifiers with Integrated Universal Mains Power Supply Version 1.1
• 5/46
• 1400 w / 8 Ohm per channel ≤ 1 % THD+N, 1 kHz
• 0.001 % THD+N @ 1 kHz, 10 W / 4 Ohm
• 40 kHz audio bandwidth
• 38 uV A-weighted output noise
• Minimum load impedance at 3 Ohm
• Maximum output voltage / current 149 Vp / 38Ap
• +5 VDC and +/-15 VDC auxiliary supply outputs
• Universal mains including Power Factor Correction (100 – 240 V, 50 – 60 Hz)
• Size (L x W x H): 300 mm x 100 mm x 64 mm, 11.8 inch x 3.94 inch x 2.5 inch
• Safety conforms to: 62368-1
