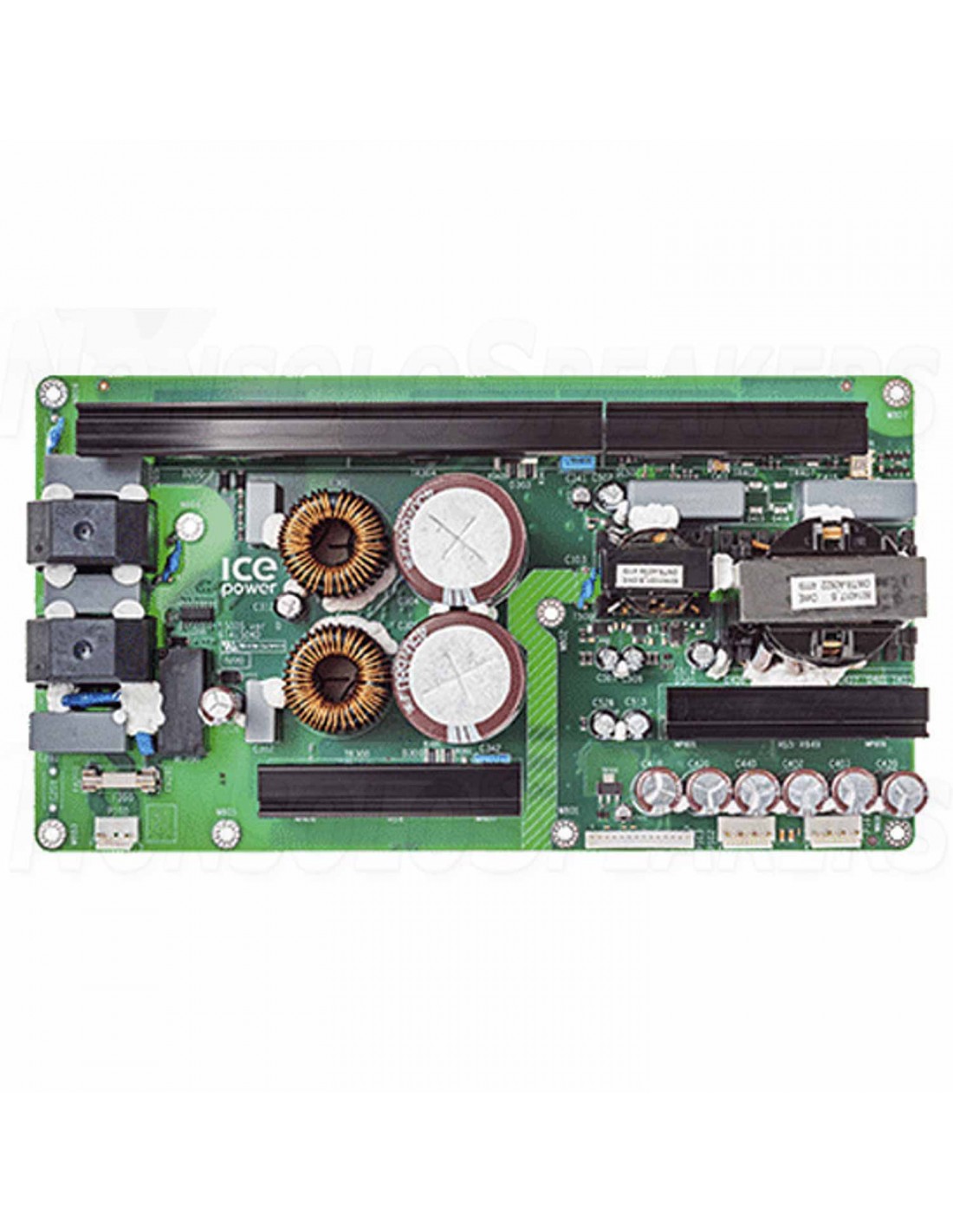

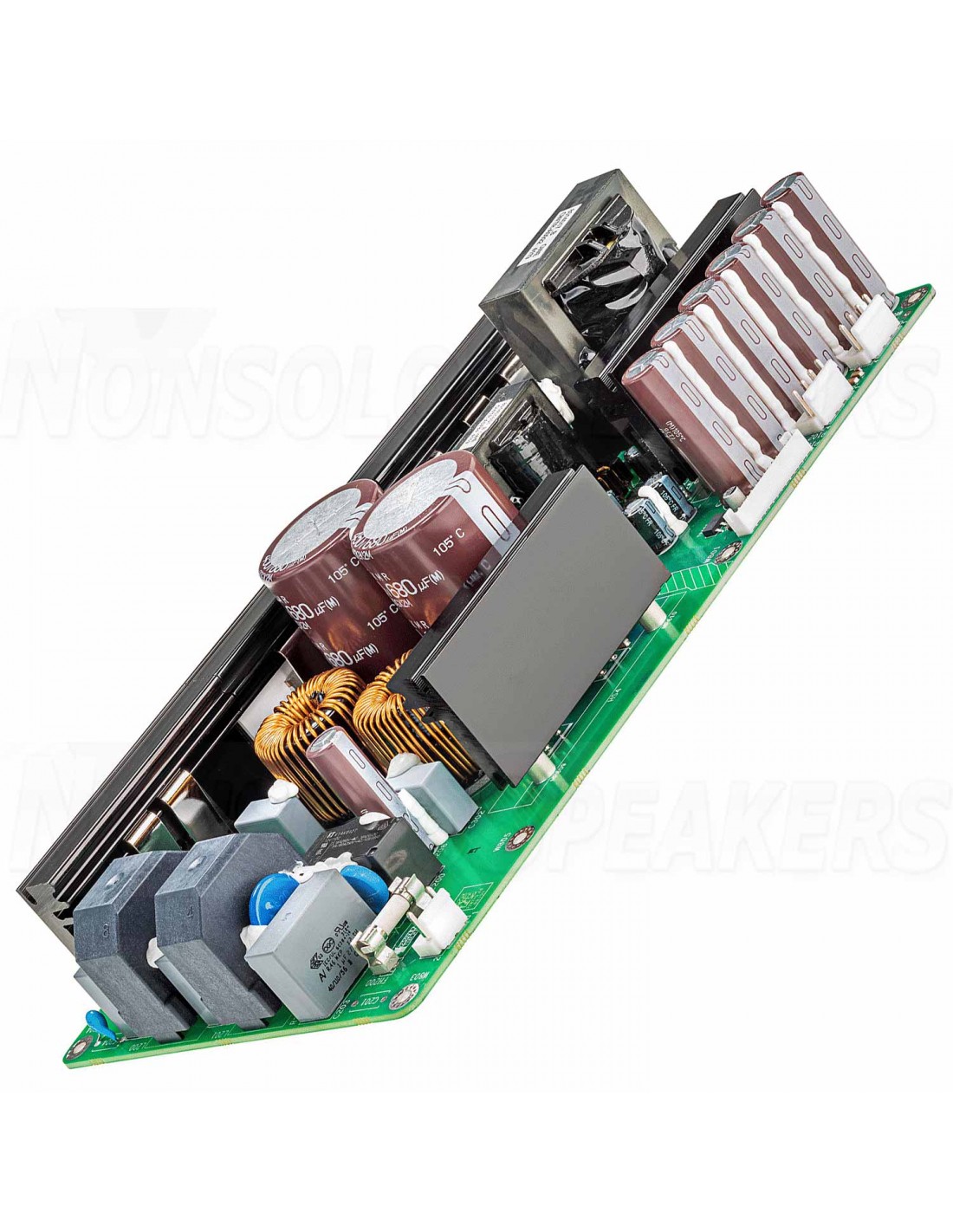

ICEpower 1500S-69V 69VDC 1500 Watt Switch Mode Power Supply

The 1500S-69V is a universal main power supply for audio applications with 69 VDC symmetrical output rails. It features unity PFC (power factor correction) for optimal usage of available AC-power. Along the 69 VDC main rails, the AUX-converter supplies ±7 VDC aux supply, 9 VDC digital aux supply and ±12 VDC driver supply. This unit is carefully designed and based on years of ICEpower’s advanced research and experience in Switch Mode Power Supply. It uses brand name components and is well tested during mass production. Every single module goes through a comprehensive functional test before it leaves the factory. Furthermore, the 1500S-69V incorporates comprehensive protection features, such as thermal monitoring, over current protection and over/under voltage protection to protect against failure in use. ICEpower 1500S-69V is safety pre-approved and verified to comply with EMC standards enabling fast design-in and minimum time to implement in your design. The 1500S is available in three different versions with rail voltages of either ±47 V, ±57 V or ±69V. This 1500S-69V is perfect for powering an amplifier circuit of your own design or a compatible module. Check out the 1500S-47V and 1500S-57V for the other versions.

.

Highlights

Universal Mains 1500 Watt

Output power, 2400 Watt peak.

Power Factor Corrected 60W auxiliary Converter.

.

What’s In The Box?

1 x 1500S-69V 69VDC 1500 Watt Switch Mode Power Supply

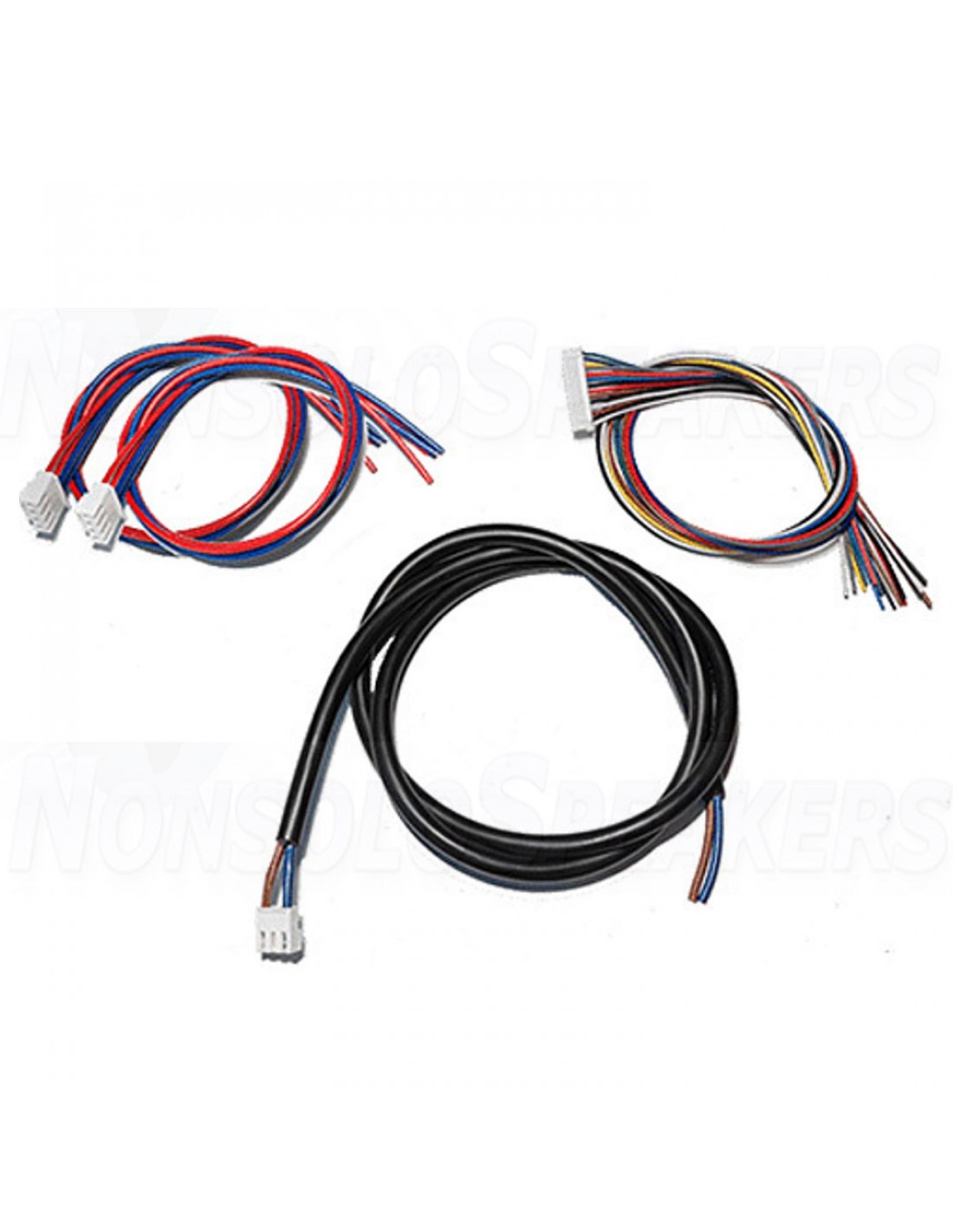

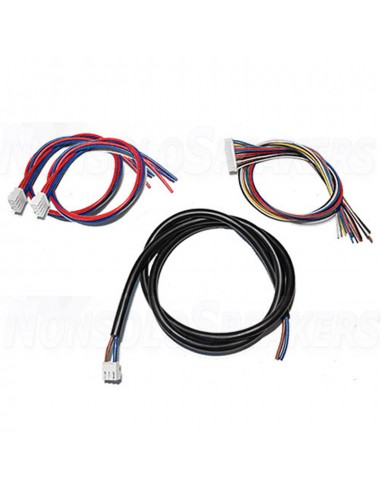

Cable set:

1 x (K) Mains without Earth

1 x (JAA) AUX

1 x (G) Rails
