WONDOM PS-SP12115 -Switching regulator from 24V to 2.5V-12V 0.5A

SURE PS-SP12115 -Switching regulator from 24V to 2.5V-12V 0.5A

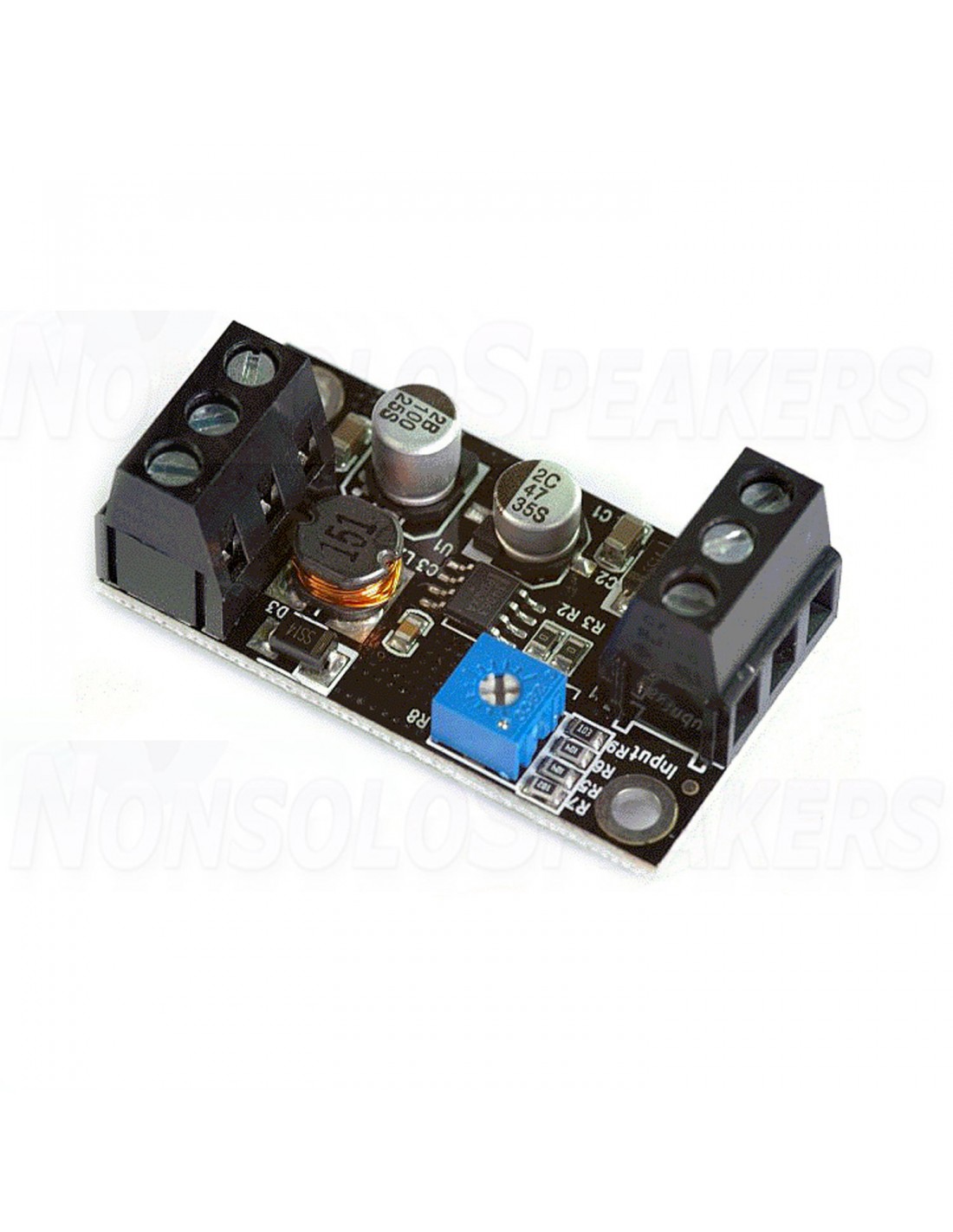

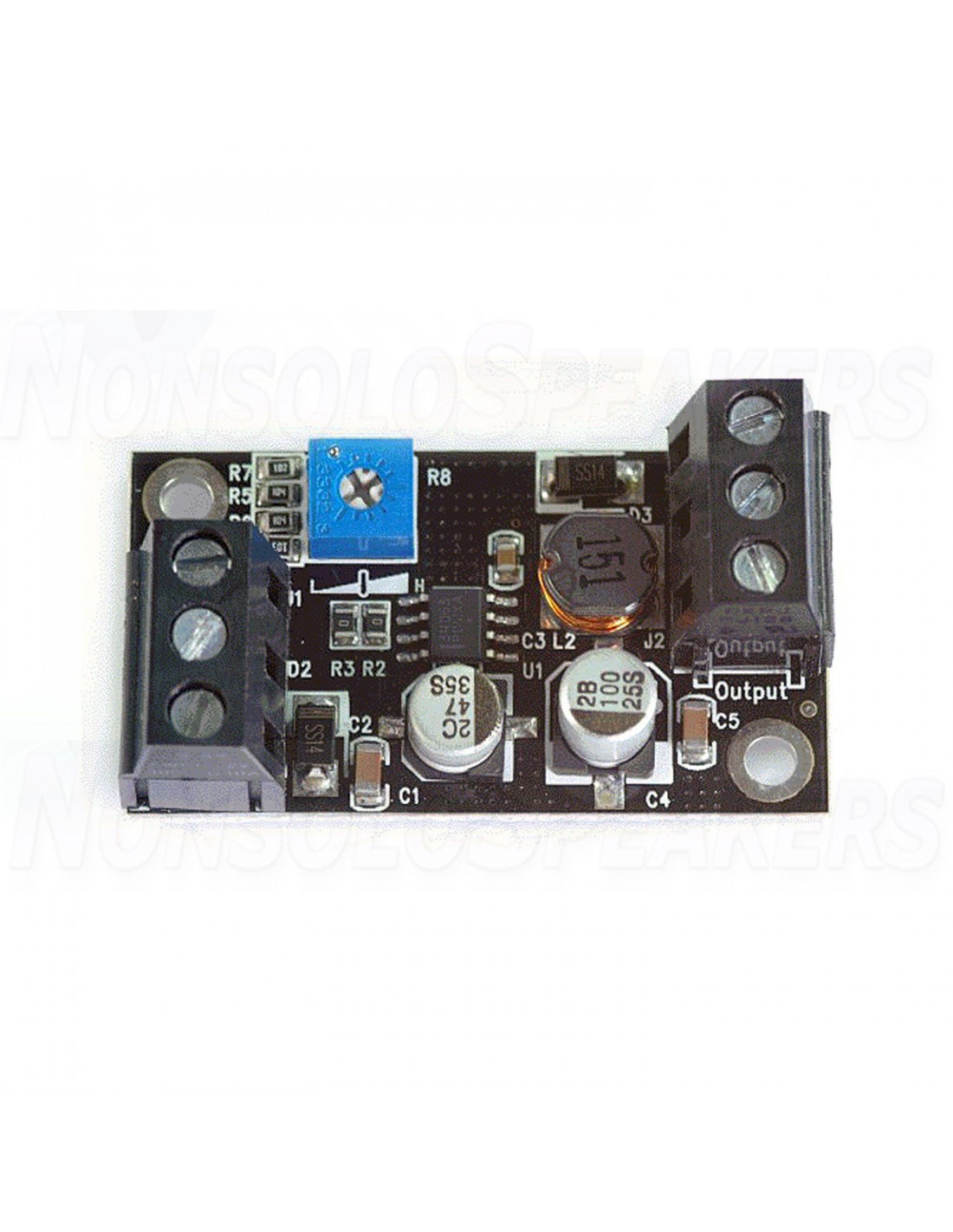

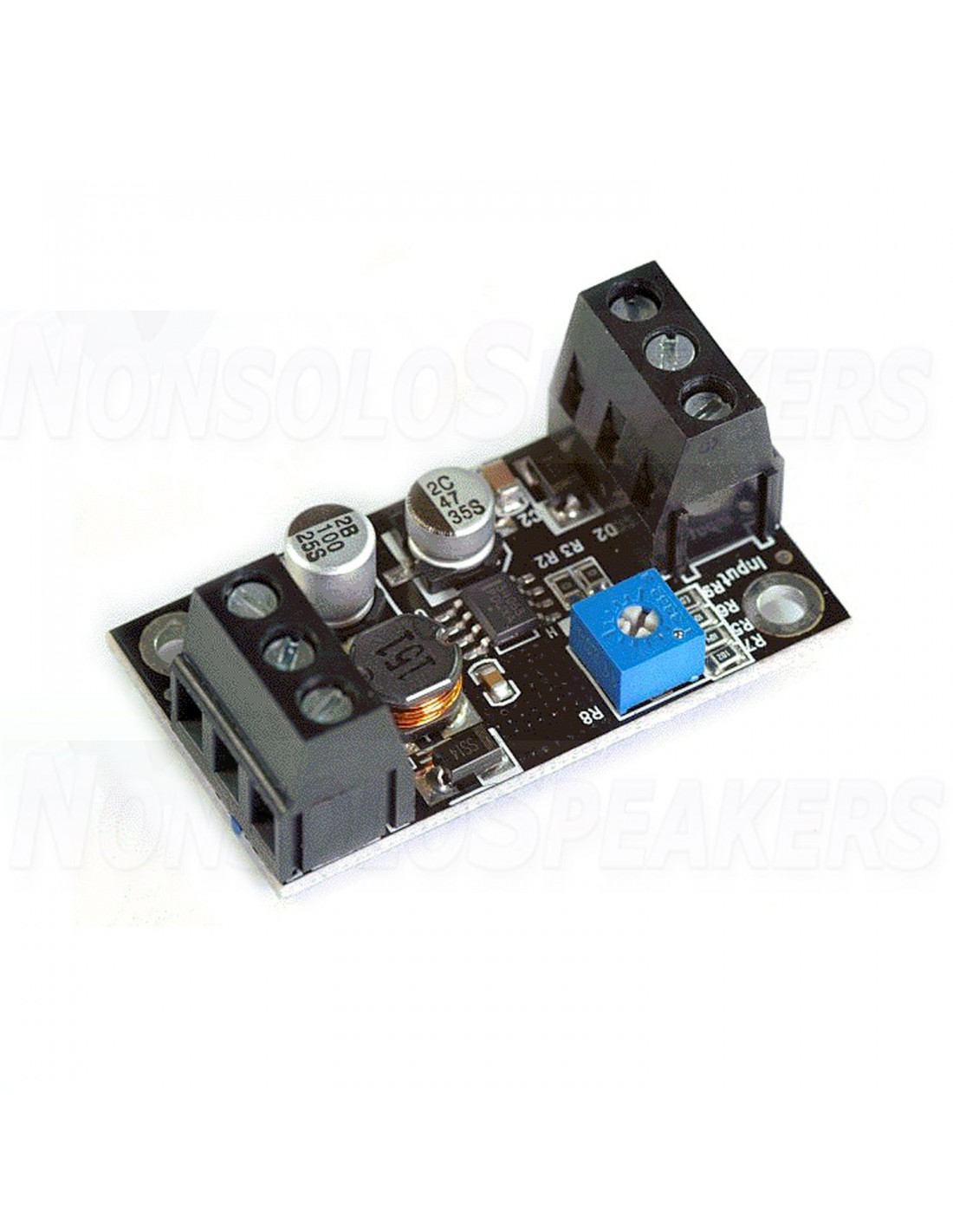

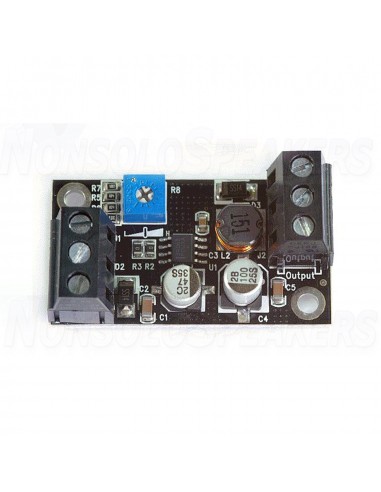

Switching regulator adapter based on MC34063, Step-Down. The output current is not less than 500mA. Output ripple and noise: maximum RMS 100mV, @ 3V, output 0.5A. Maximum input voltage: 24V.

Out-of-Stock

€6.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

.

Want to check another country or courier?

WONDOM PS-SP12115 -Switching regulator from 24V to 2.5V-12V 0.5A

Switching regulator adapter based on MC34063, Step-Down. The output current is not less than 500mA. Output ripple and noise: maximum RMS 100mV, @ 3V, output 0.5A. Maximum input voltage: 24V.

scheda e aggancio elettrico

Note:

• GND should be connected to GND or your instrument housing.

• The input voltage must be 3V or higher than the output voltage.

• If the load is too heavy, the output voltage may be lower than the expected voltage.

Features

Parametri	Valori
Produttore	Sure Electronics
Corrente in uscita (mA)	500
Ripple e rumore in uscita (RMS)	100mV, @ 3V, uscita 0,5A
Tensione di ingresso massima	24V
Tensione di ingresso suggerita	+ 5 ~ + 24V DC
Uscita regolabile	+ 2.5V ~ + 12V
Intervallo di temperatura dell'ambiente di operazione	< 0 ~ + 55 °C
Intervallo di temperatura dell'ambiente di stoccaggio	- 25 ~ + 85 °C

Others features

Parametri	Specifiche
Chip	MC34063
Convertitore Step Down	DC-DC
Peso (gr.)	20

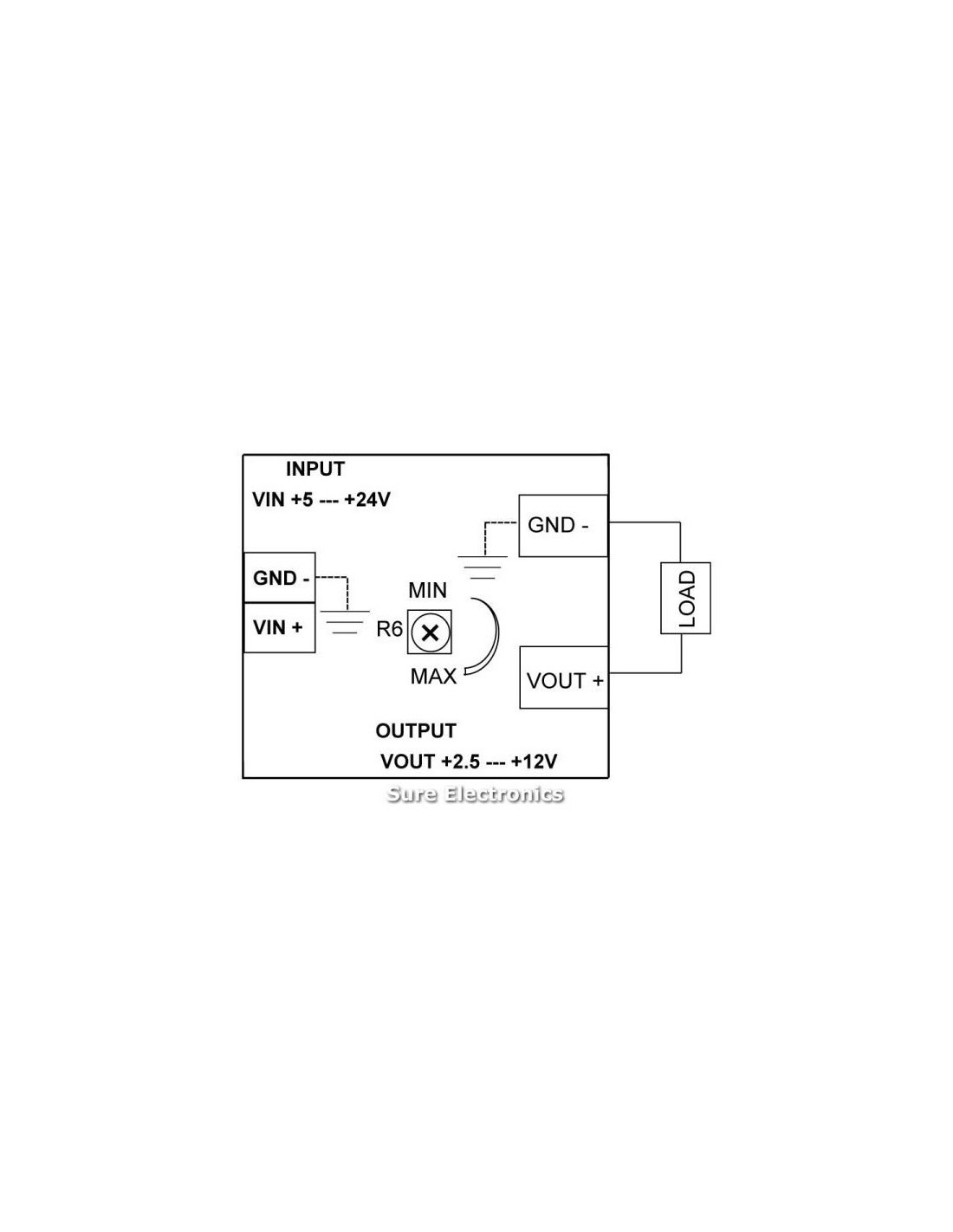

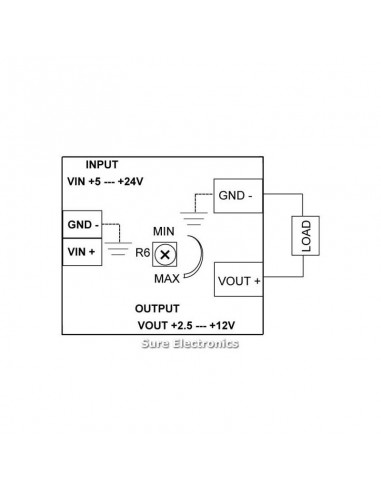

Connessione suggerita:

Schema di connessione

Reference PS-SP12115
