WONDOM AA-AB32167 - 2x25W@4ohm amplifier class D TPA3123

WONDOM AA-AB32167 - 2x25W@4ohm amplifier class D TPA3123

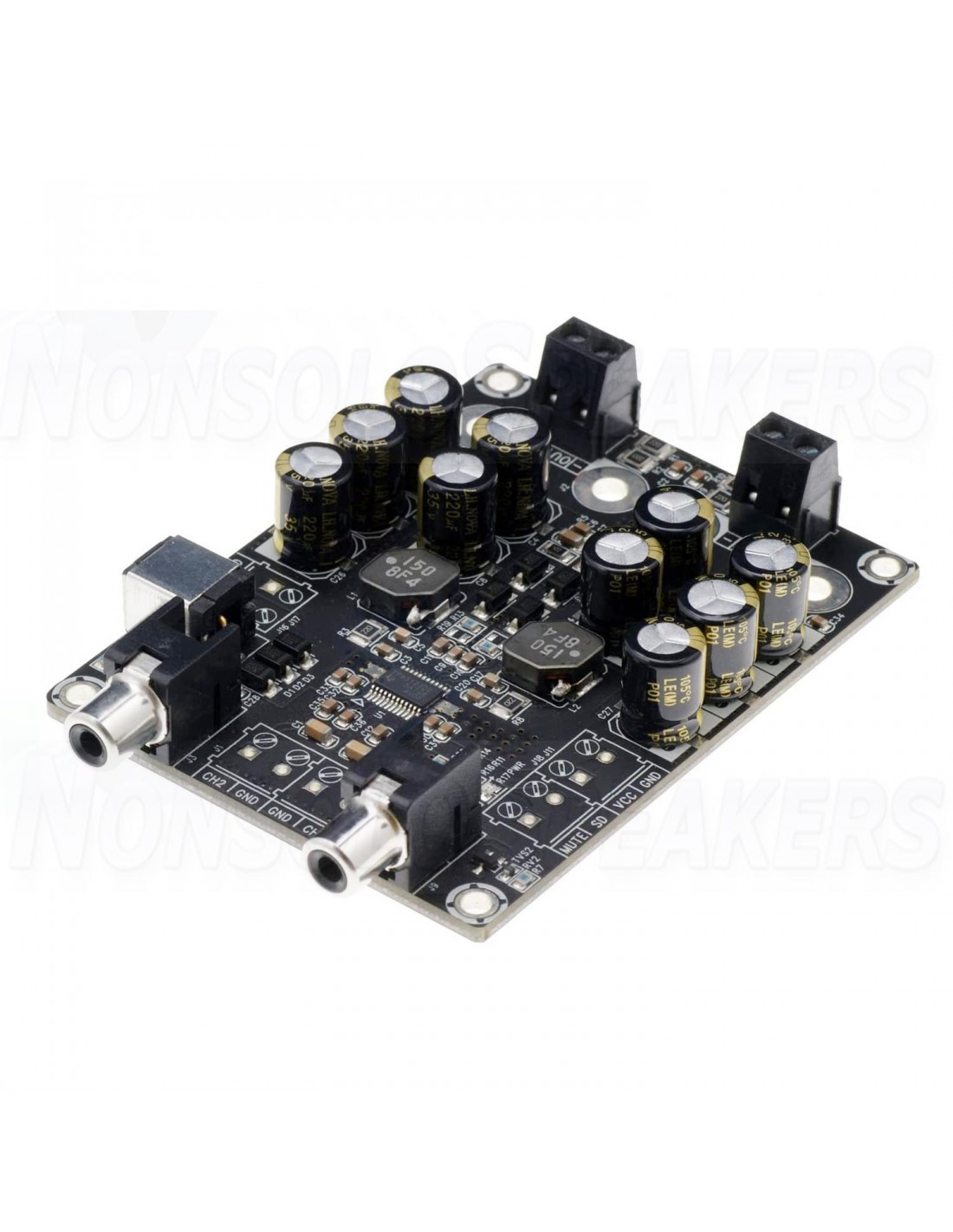

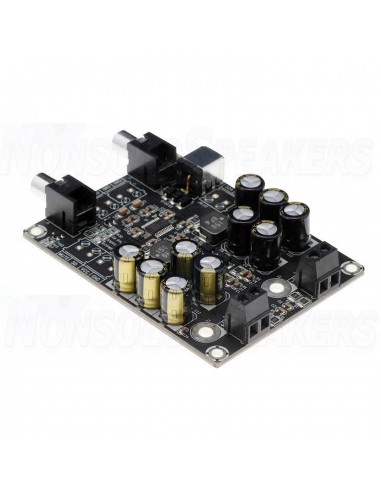

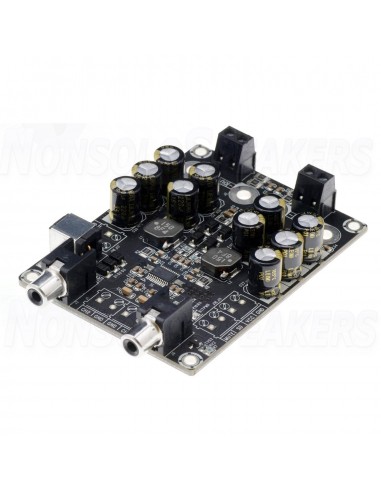

This audio amplifier board uses a TPA3123 chip integrated with class D architecture, perfect for obtaining the single channel 25-channel power output. With high efficiency, it is particularly available for outdoor locations where power is always taken into consideration.

Out-of-Stock
€22.70

Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB32167 - 2x25W@4ohm amplifier class D TPA3123

This audio amplifier board uses a TPA3123 chip integrated with class D architecture, perfect for obtaining the single channel 25-channel power output. With high efficiency, it is particularly available for outdoor locations where power is always taken into consideration.

Made with high quality low ESR resistors and capacitors. Power: 2x25W @ 4ohm. Recommended power supply: ALC24V6AJ.

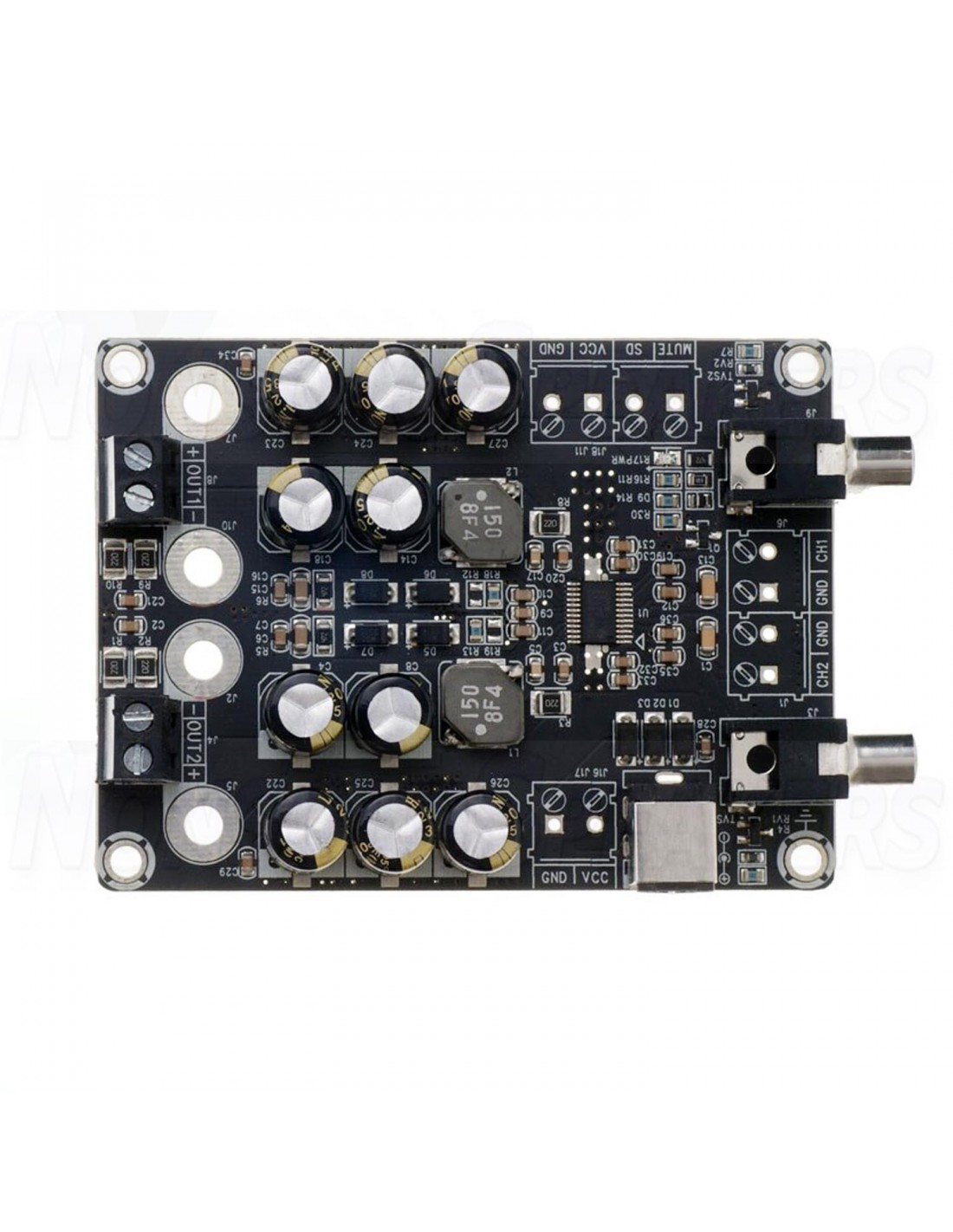

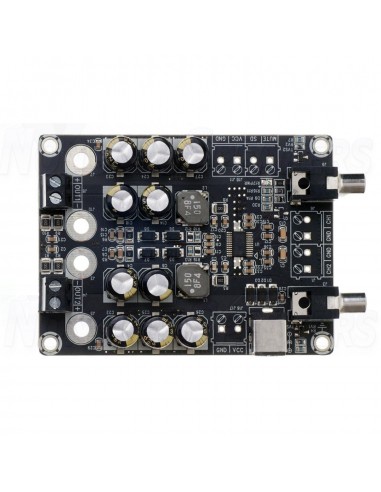

Dettaglio di connessione amplificatore in classe D

 Features AA-AB32167

Parametri  Condizioni di Test Valori
Corrente massima 2x25 W @ 4 Ohm 24 V
Tensioni di Alimentazione  - 10-30 V
Potenza in uscita

RL = 4Ω, Vin = 27V

25 W

Potenza in uscita

(Media / canale continuo)

THD + N = 0,08% RL = 4Ω

RL = 8Ω

THD + N = 10% RL = 4Ω

RL = 8Ω

10 W

5 W

20 W

10 W
Corrente di alimentazione muta

MUTE = GND

23-37 mA
Corrente di alimentazione del sonno SLEEP = GND 0.39-1 mA
Distorsione armonica totale più rumore PO = 10W / canale 0,08%
Rapporto segnale-rumore A-ponderato, RL = 4 Ω 99 dB

Others features AA-AB32167

Parametri Specifiche
Chip TPA3123
Dimensioni 9,2 x 6,6 x 2,3 cm.
Potenza 2 x 25W
Classe Amplificatore D
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

OPTIONAL

Support Alluminio - L

To improve connection and measurement efficiency and save on installation costs, use an L-type aluminum bracket for audio amplification boards. The aluminum bracket supports the vertical and horizontal installation modes to meet different installation needs. With 4 M3 screw spacers and 2 pre-punched M3 mounting holes, you can easily install the audio amplifier boards on the bracket.

Amplificatore Digitale Classe D

WONDOM AA-AB32167
