WONDOM AA-AB33182 - 4x100W@4ohm Amplifier in classe D - STA508

WONDOM AA-AB33182 - 4x100W@4ohm Amplifier in classe D - STA508

SHIPMENT IN 7/10 WORKING DAYS
€64.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB33182 - 4x100W@4ohm Amplifier in classe D - STA508

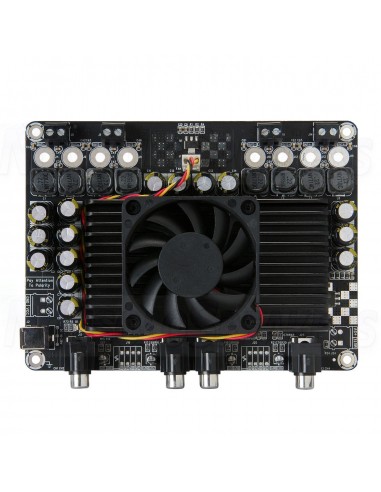

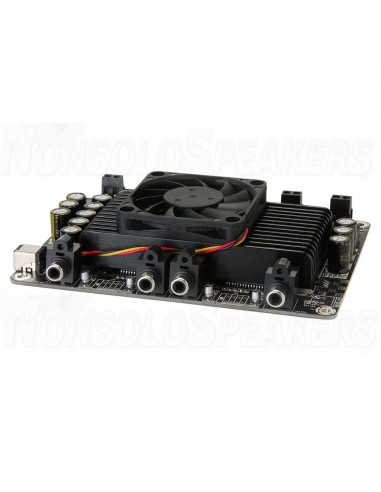

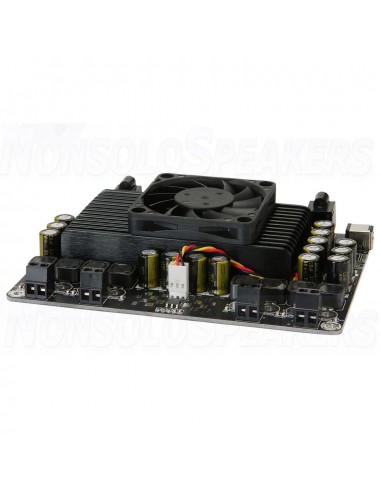

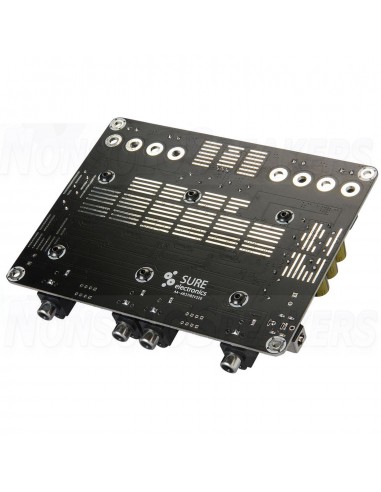

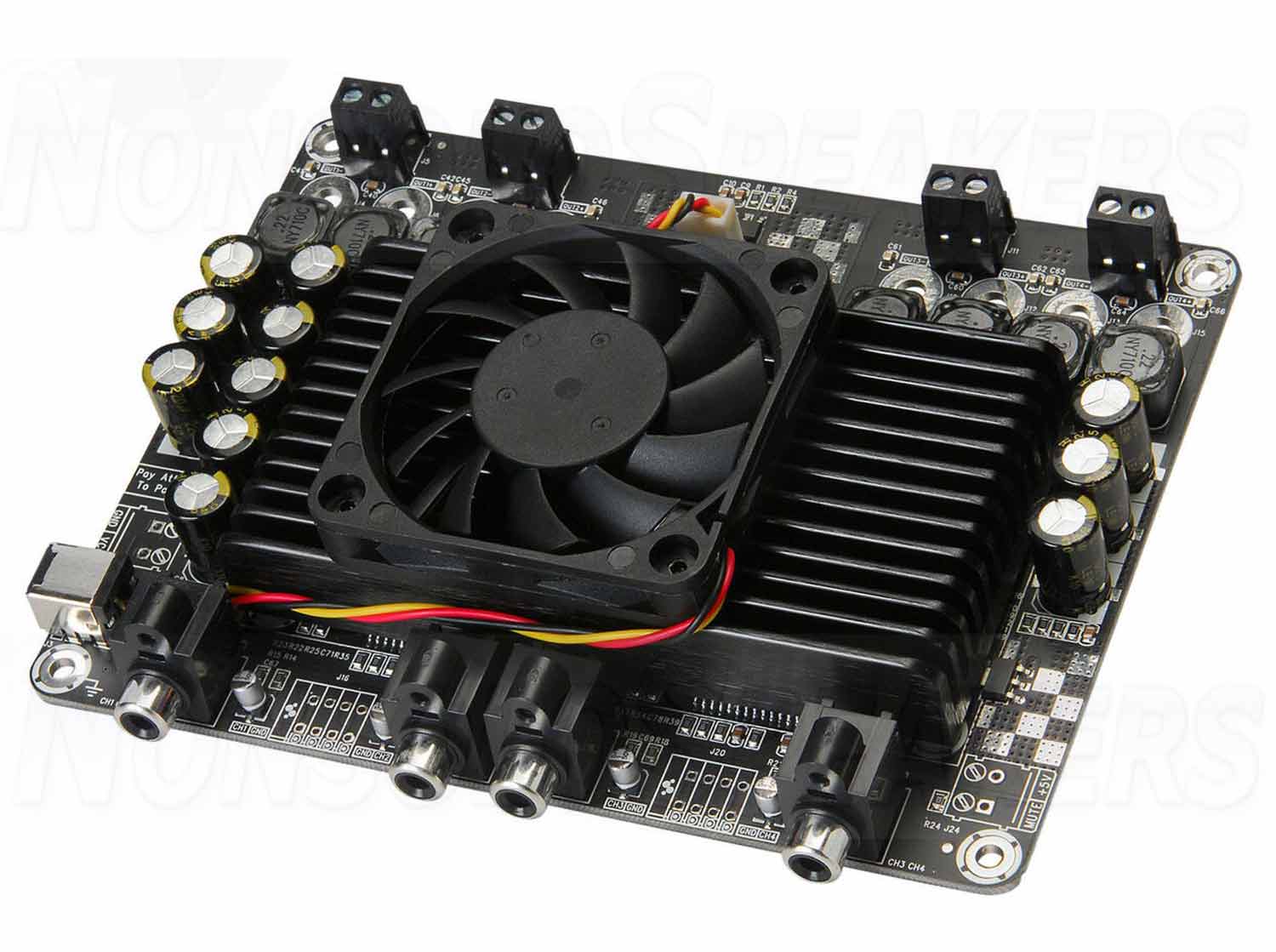

This 4 x 100W self-made audio amplifier board which has perfect and integrated class T architecture with high performance STA508 chip which supports dual channel audio amplification. Powered by any DC voltage from 10V to 30V, this high efficiency amplifier board is capable of outputting up to 100W per channel. It can be used to drive 4 or 8Ω passive speakers.

High quality resistive and capacitance components are used to get the perfect lumber, finally realize high S / N ratio, low THD + N, wide frequency response range, etc. The four channel amplifier makes it a perfect choice for car audio and home theater applications. Recommended power supply: ALC24V6AJ.


Parametri  Condizioni di Test Valori
Tensioni di Alimentazione  - 10-30 V
Efficienza PO = 100W 90.3 %
Potenza Inattiva

Vmute = 0V

VCC = 30V

12.6 W
Sensibilità  di ingresso PO = 100W 520 mV
Impedenza di ingresso - 10 KΩ
Guadagno - 32 dB
Impedenza di carico minima - 3.2-4 Ω
Potenza in uscita

RL = 4ohm, VCC = 30V, 1% THD + N

RL = 4ohm, VCC = 30V, 10% THD + N

64 W rms

108 W rms
Risposta in frequenza VCC = 30V -3-3 dB
Temperature
 - 50 °C

OTHER FEATURES AA-AB33182

Parametri Specifiche
Chip STA508
Dimensioni 15,2 x 11,4 x 3,5 cm.
Potenza 4 x 100W
Classe Amplificatore T
Controllo di volume  Opzionale
Protezione da cortocircuiti Si
Protezione da sovratemperatura Si

AA-AB33182
