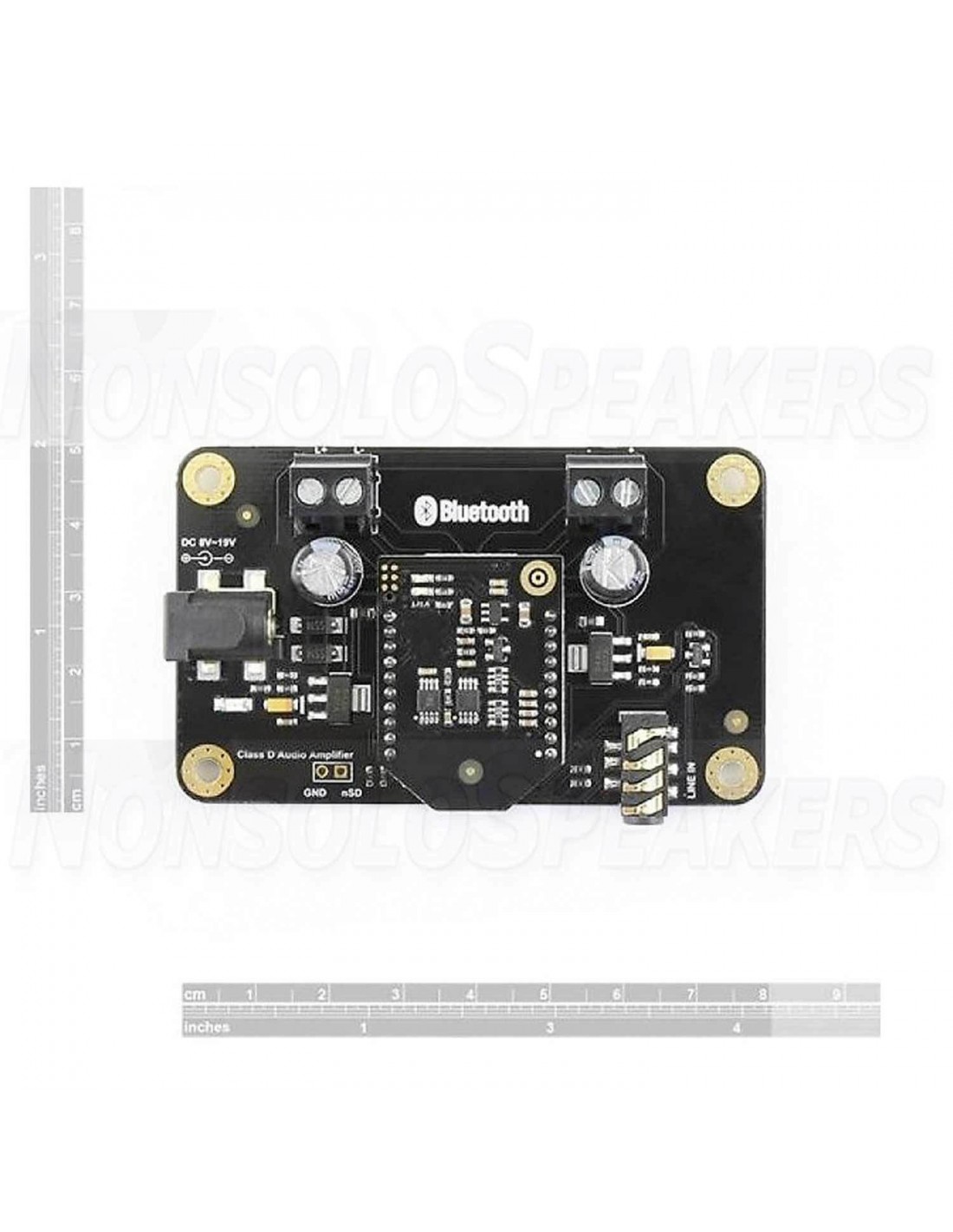

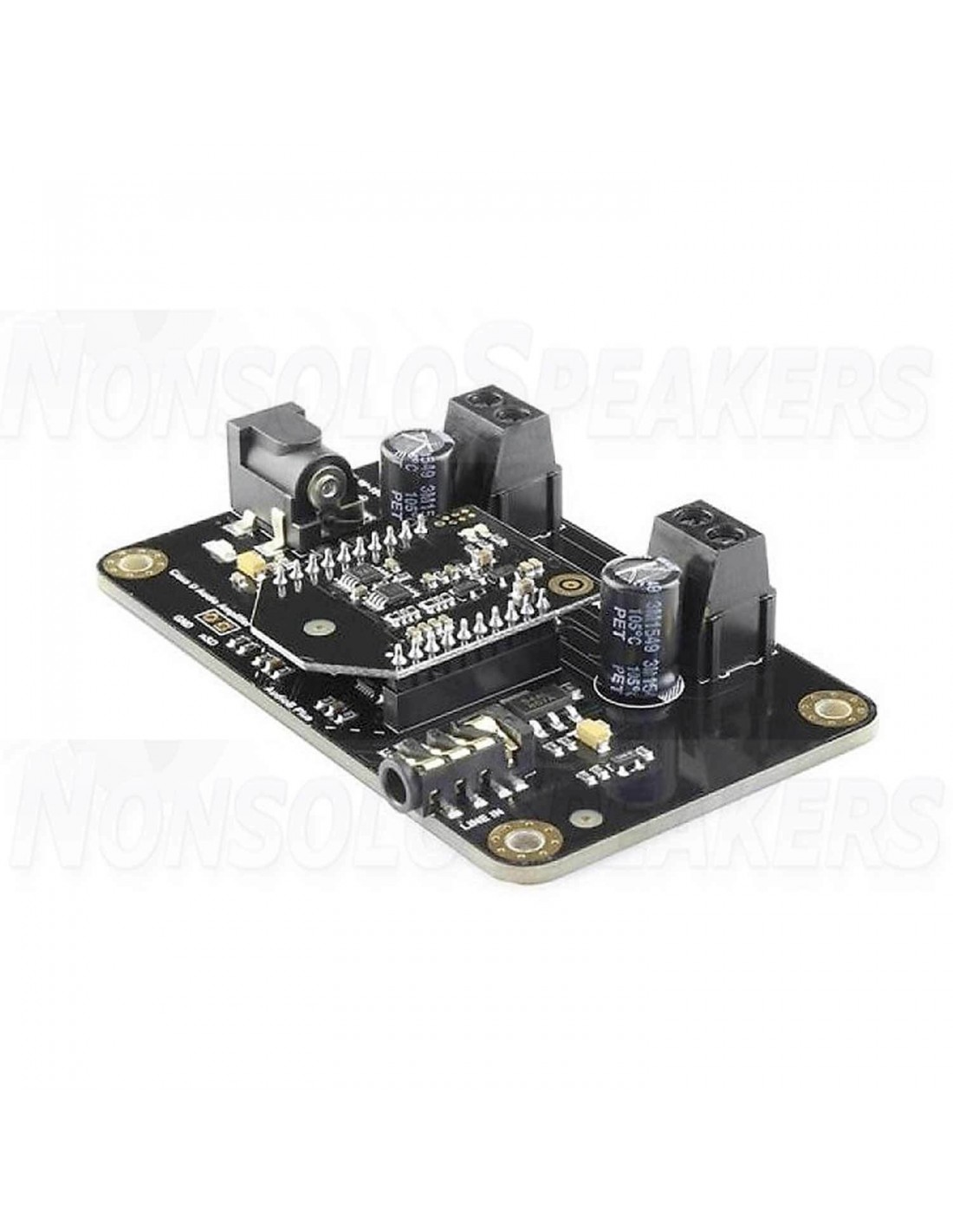

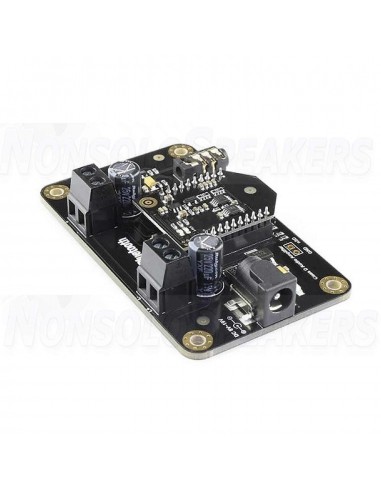

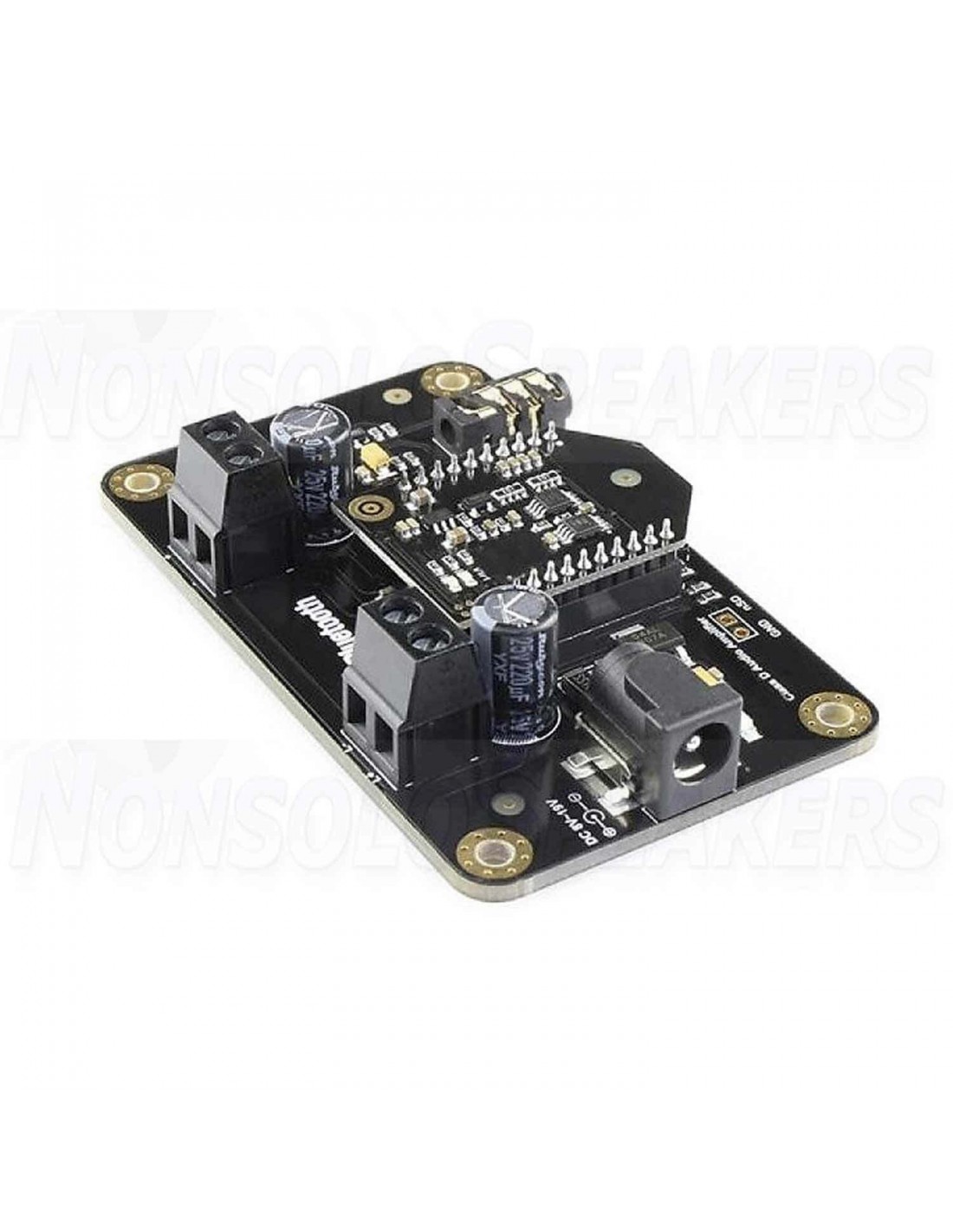

Luxus Audio AMB2015NJ - 2x15W Bluetooth Class D amplifier with Jack

Data sheet

Brand Luxus Audio
Output Power [Watt] 15
Channel 2
Power Supply (Volt) 12

AMB2015NJ is a class D architecture amplifier based on TPA3110D2. Each of the two channels has an output power of 15 watts. The amplifier can be powered via a 12 to 16 volt power supply and is capable of handling 4 and 8 ohm passive speakers.

The source can be connected via 3.5mm jack cable or bluetooth connection, which allows you to immediately associate the card to your smartphone or PC.

.

Features

     Measurements: 4.8 x 8 cm
     Bluetooth 4.0
     Class D amplifier
     15 watts of output power per channel
     Short circuit protection
     Overheating protection
     Weight 0.025 kg

.

Possible Applications

     PC
     Desktop amplifier
     Microphone preamplifier
     Homemade DIY
     Vending machines
     Elevators
     Interactive kiosks

.

Documentation

     Guide to change the name of the bluetooth
     Guide to enable the Bluetooth connection password
     Guide to manage the bluetooth audio tones
     Guide to configure auto-connection and automatic Bluetooth disconnection
