AMB2050NR KIT1 - Class D 2x50W amplifier with Bluetooth + power supply
LUXUS AUDIO - AMB2050NR KIT1

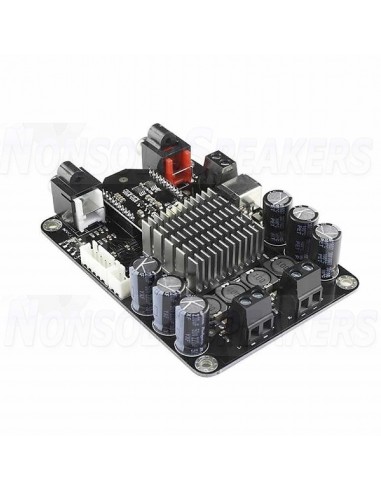

The AMB2050NR KIT1 kit consists of a Class D AMB2050NR Amplifier based on the TPA3116D2 chip with integrated bluetooth module, a 24V 6A ALC24V6AJ switching power supply and a CVAIT307515 power cable.
The output power of the class D amplifier is 50W with a supply voltage of 24V. The supported voltage range varies from a minimum of 10V to 24V. Passive loudspeaker drivers varying from a nominal impedance of 4 to 8 ohms.
The sources used, in order to send musical signal to the class D amplifier, can be connected via cable (RCA) or by means of Bluetooth 4.0 protocol, selectable via micro-switch on the board.
Finally, the AMB2050NR amplifier has a VCB (Volume Control Board) port that allows communication and connection (plug & play) between an external digital volume control (not present in the kit) and the class D amplifier.
The output power of the class D amplifier is 50W with a supply voltage of 24V. The supported voltage range varies from a minimum of 10V to 24V. Passive loudspeaker drivers varying from a nominal impedance of 4 to 8 ohms.
The sources used, in order to send musical signal to the class D amplifier, can be connected via cable (RCA) or by means of Bluetooth 4.0 protocol, selectable via micro-switch on the board.
Finally, the AMB2050NR amplifier has a VCB (Volume Control Board) port that allows communication and connection (plug & play) between an external digital volume control (not present in the kit) and the class D amplifier.
Features AMB2050NR
Parameter | Condition of Test | |
Tensioni di Alimentazione | - | 10-24V |
Corrente Massima | 5.29A | 5.29A |
Efficienza | 50W @ 4Ohm | 87% - 92% |
Carico Min. Supportato | 3.2Ω | |
Frequenza Swhitching | 394kHz | |
Guadagno | 24-26dB | |
Sensibilità di ingresso (RMS) | @4ohm, 50W, 1kHz | 808mV |
Impedenza di ingresso | 22kΩ | |
Potenza di Uscita THD+N 1% | @4ohm | 36W |
Potenza di Uscita THD+N 10% | @4ohm | 50W |
Banda Passante ±3dB | @4ohm | 20Hz - 20kHz |
THD (1W) | @4ohm, 1kHz | 0.0299% |
THD (10W) | @4ohm, 1kHz | 0.073% |
Otehrs features AMB2050NR
Parameter | Specifications |
Chip | TPA3116D2 |

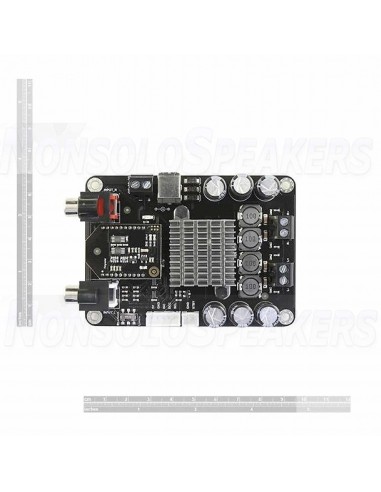

Dimensioni | 6.9 x 9.5cm |
Bluetooth | 4.0 |
Potenza | 2 x 50W |
Classe Amplificatore | D |

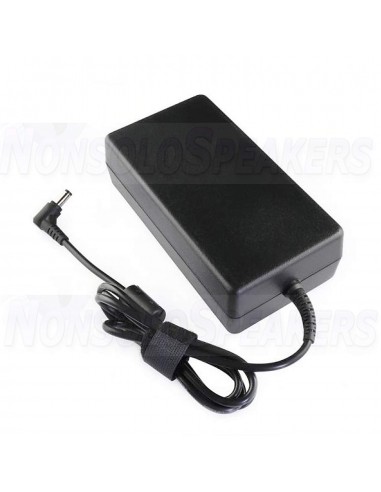

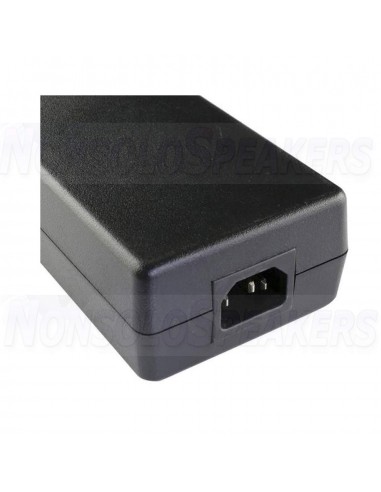

Power Supply Technical Features ALC24V6AJ
Parameter | |
Produttore | Epson |
Potenza di uscita (W) | 144 |
Tensione di uscita (V) | 24 |
Corrente di uscita (A) | 6 |
Tensione di ingresso (V) | Universal Input 110/230 |
Classificazione IP | No IP |
Tecnologia | AC/DC |
Oscuramento | No Dimming |
Formato | DESKTOP |
Applicazione | ITE EN/UL/IEC 60950 |
Certificazione | CE/GS/UL/CB/CCC/TUV |
Larghezza (mm) | 67 |
Altezza (mm) | 35 |
Profondità (mm) | 167 |
Peso (gr.) | 630 |
AMB2050NR KIT1
