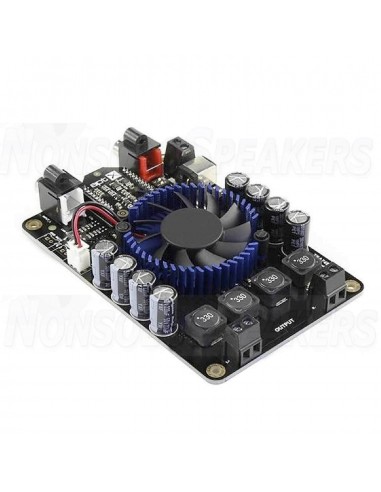

Luxus Audio AMB2100AR - 2x100W Class D Amplifier - Bluetooth APT-X

Data sheet

Brand Luxus Audio
Output Power [Watt] 100
Channel 2
Power Supply (Volt) 19

AMB2100AR is a class D amplifier with integrated APT-X bluetooth module. Each of the two channels has an output power of 100 watts. The amplifier can be powered via a 14 to 39 volt power supply and can be used to manage 4 and 8 ohm passive speakers. The sound source can be RCA or Bluetooth, selectable through a special switch placed on the board. The fan located on the upper part of the board allows to control possible overheating and it is activated only when the chip temperature exceeds 65 degrees centigrade, so as to reduce the background noise.

-

Features

     Measurements: 12x8cm
     Bluetooth 4.0 APT-X
     Class D amplifier
     100 watts of output power per channel
     Short circuit protection
     Overheating protection

.

Possible Applications

     PC
     Amplifier for musical instruments
     Homemade DIY
     Car Audio

.

Documentation

     Guide to change the name of the bluetooth
     Guide to enable the Bluetooth connection password
     Guide to manage the bluetooth audio tones
     Guide to configure auto-connection and automatic Bluetooth disconnection
