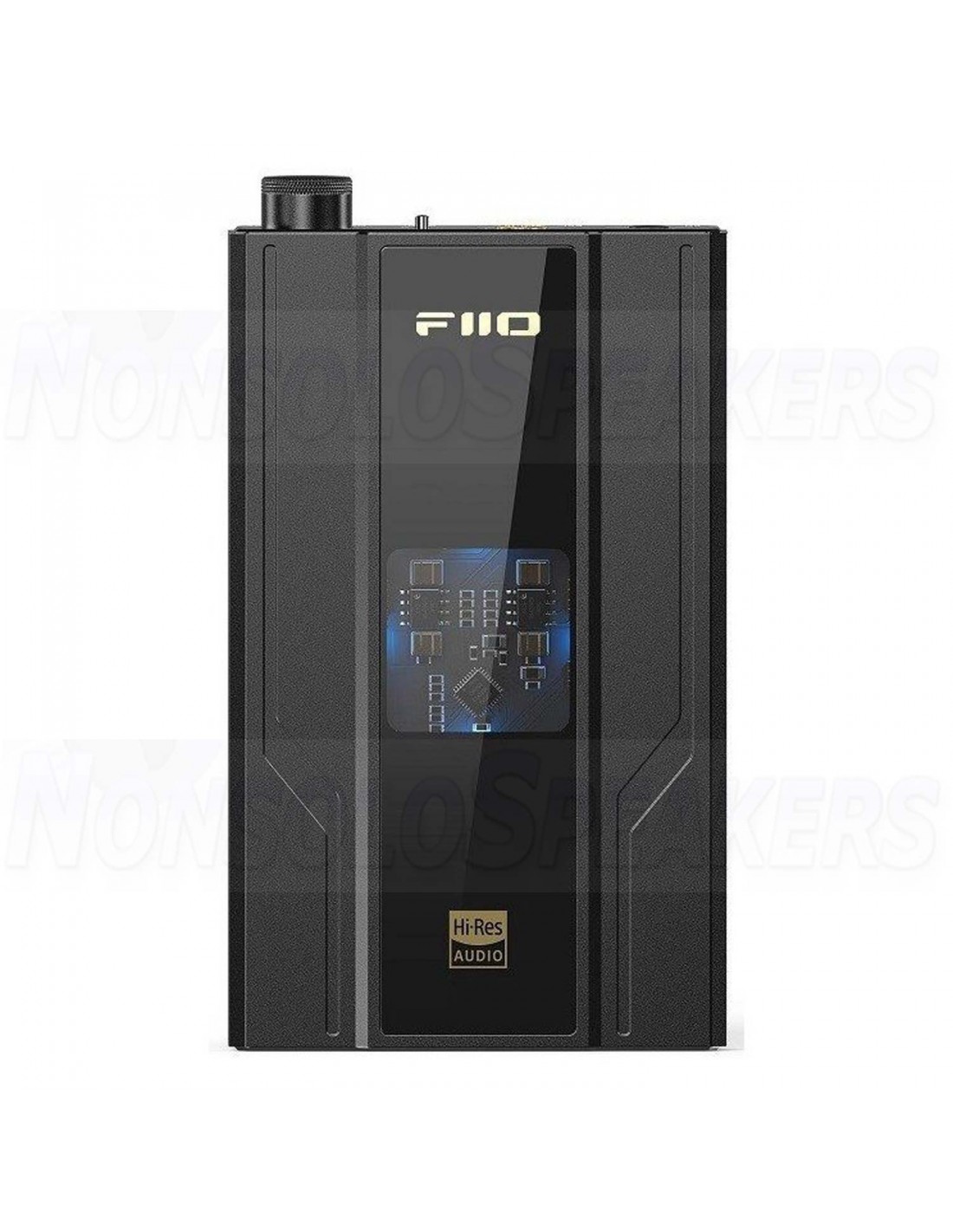

FiiO Q11 Portable DAC & Headphone Amplifier

Highlights:

• Powerful CS43198 digital analog converter
• PCM 384kHz/32bit / DSD256
• 650mW output power
• Ambient light window, color varies with sampling rate
• 2600mAh large battery
• 3.5mm and 4.4mm outputs
• Low gain / high gain.

.

Real HiFi sound from your smartphone thanks to FiiO Q11

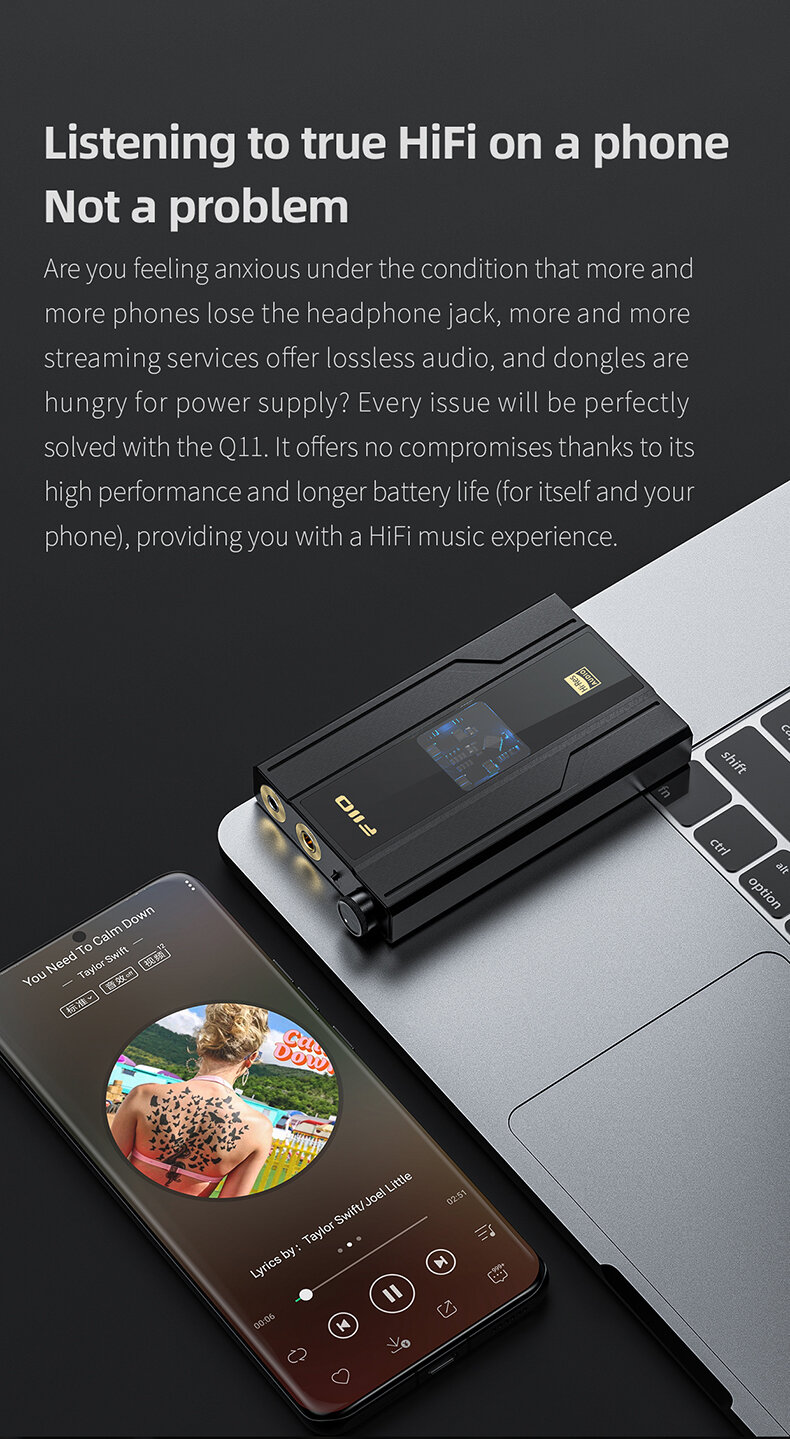

No problem - Are you worried because more and more phones no longer have a headphone jack, more and more streaming services offer lossless sound and dongles consume more and more power? With the FiiO Q11, every problem is perfectly solved. Thanks to its high performance and longer battery life (for itself and your phone), it makes no compromises and offers you a HiFi music experience.

.

Truly moving sound

The FiiO Q11 is truly "Born For Music" - thanks to the carefully selected components integrated into a thoughtful design, in a carefully coordinated package.

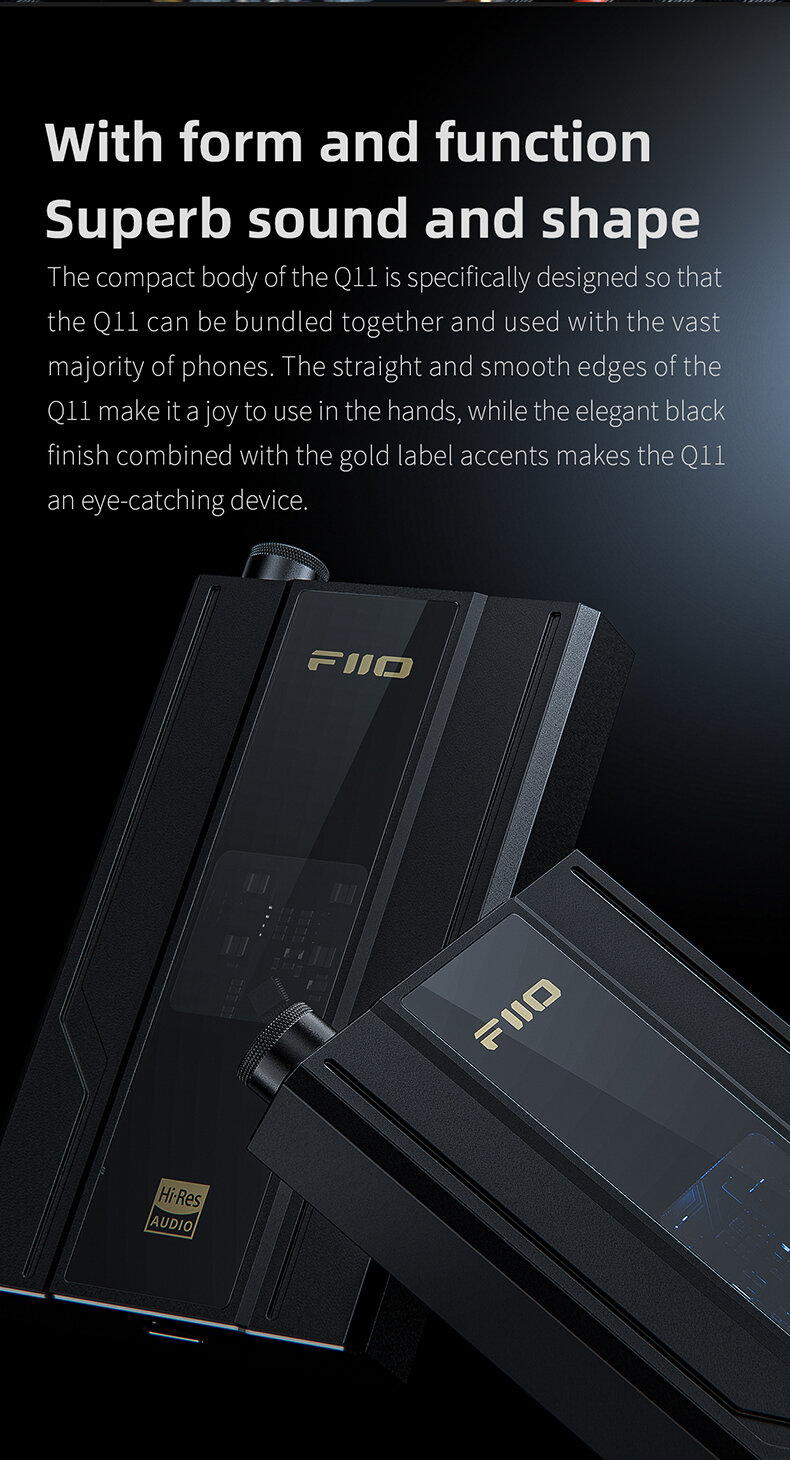

With form and function - Excellent sound and form

The compact body of the FiiO Q11 is specially designed to allow the Q11 to be assembled and used with most phones. Thanks to the straight and smooth edges, the Q11 fits comfortably in the hand, while the elegant black finish combined with the gold accents of the label makes the Q11 a real eye-catcher.

.

Powerful portable sound with personality

Great components and great sound

Thanks to the powerful CS43198 DAC, two operational amplifiers, high-precision quartz and low-noise power supply, the Q11 offers high resolution and dynamics for a more intense listening experience.

.

Long battery life for long enjoyment

Whether you're on your way to work or on a weekend trip, the large battery means you can be sure that you can listen all day long with the FiiO Q11. Battery capacity: 2600mAh; Battery life depends on volume, converted format and headphones, up to 13h

.

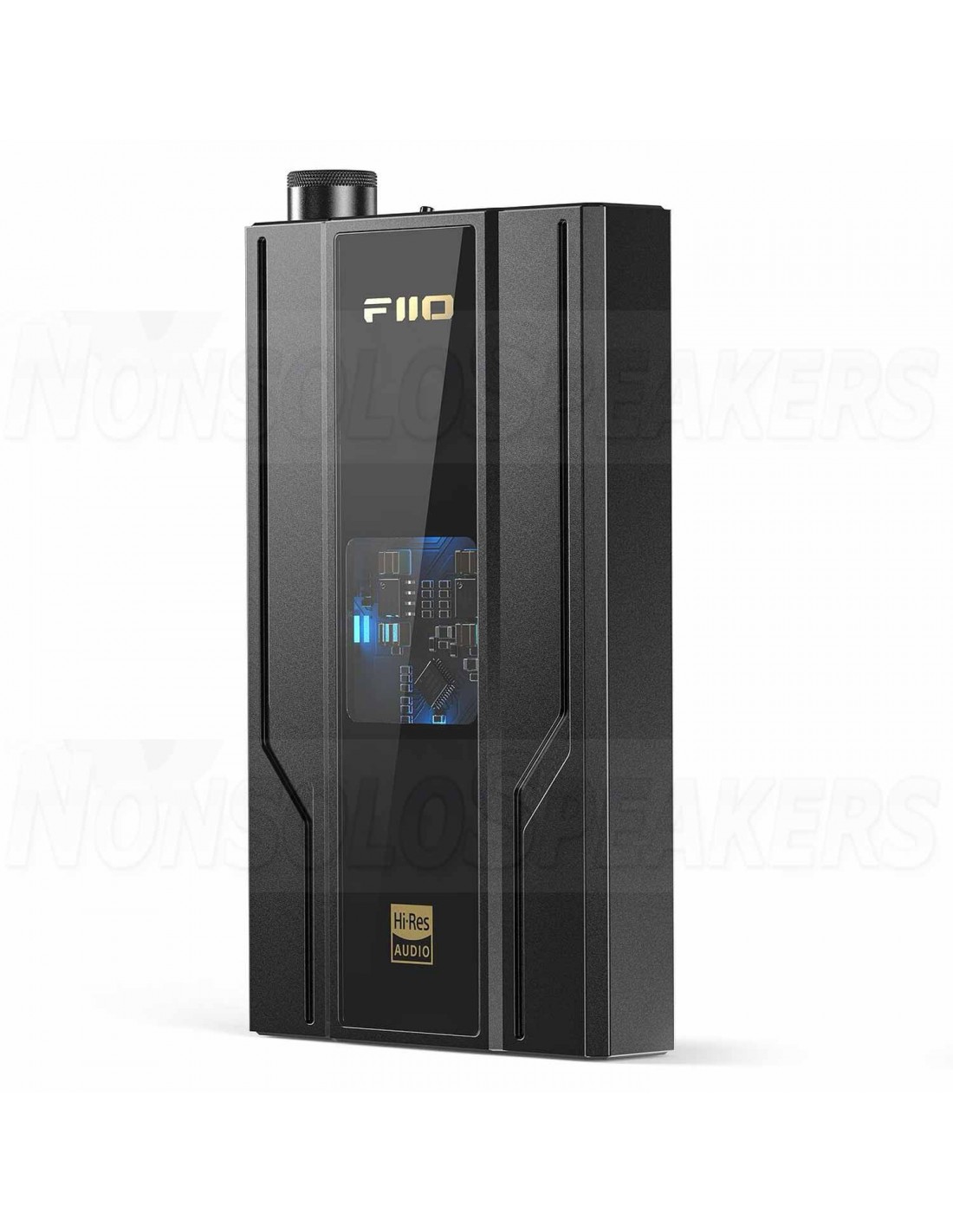

Window with ambient light - your ticket to the HiFi world

The Ambient Light window shows you the current sampling rate or DSD format in the form of the backlight color. PCM sampling rate 48kHz or below: light blue PCM sampling rate above 48kHz: yellow DSD: green

The Q11 can be controlled via the FiiO Control app, with settings for ambient light on/off, filter selection, etc.

.

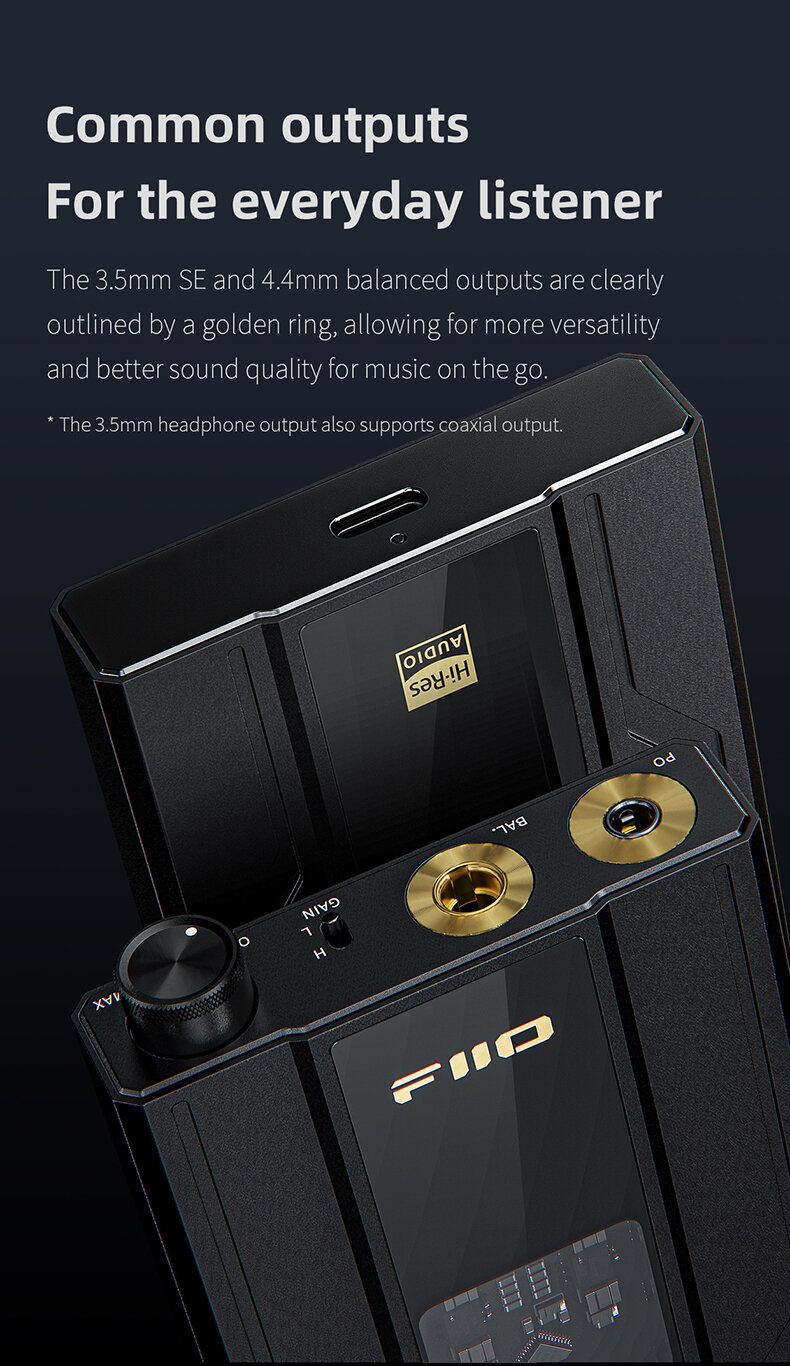

Connections

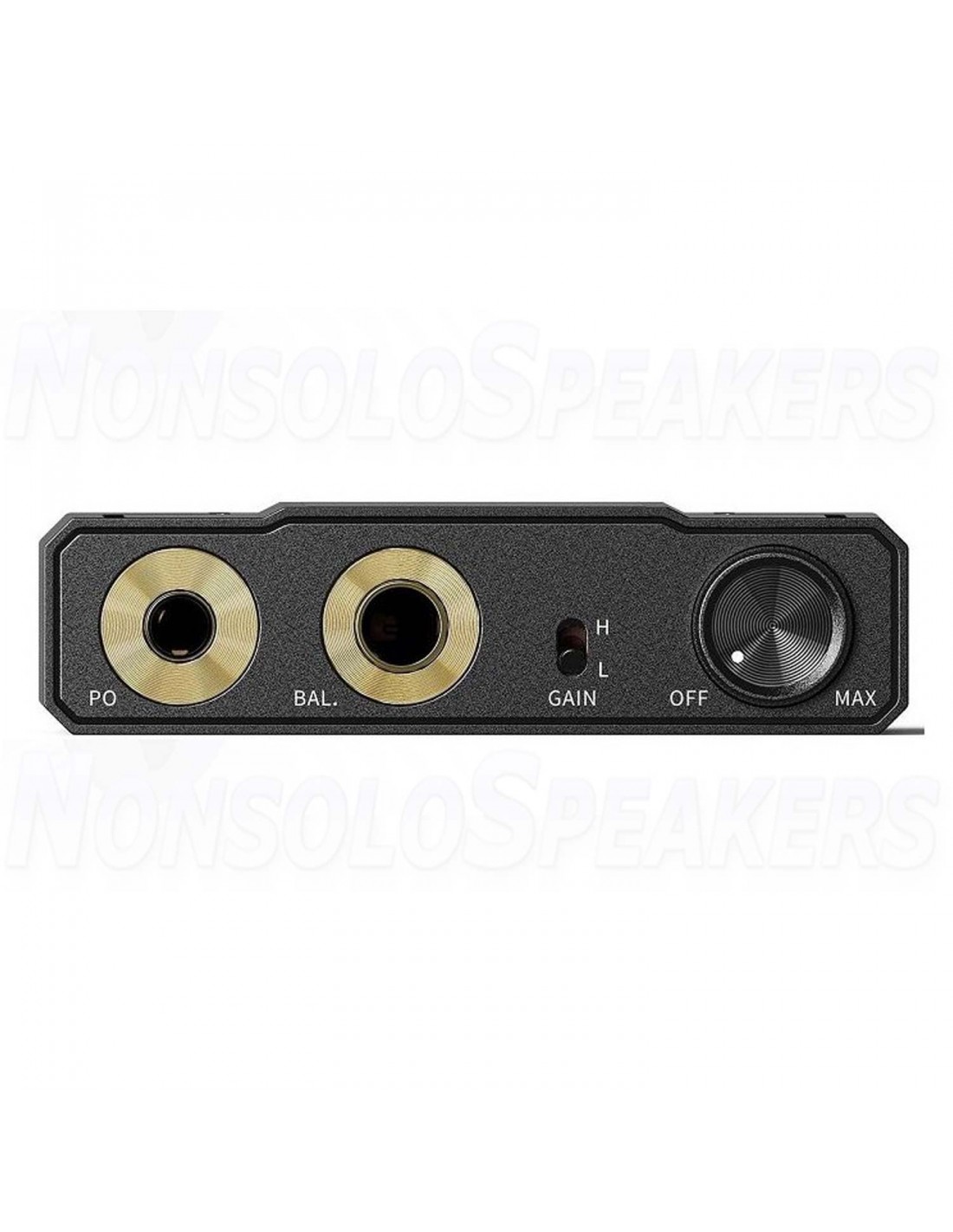

The 3.5mm and 4.4mm balanced output are clearly marked with a gold ring, offering more versatility and better sound quality for music playback on the go.

The 3.5mm headphone output also supports digital coaxial output.

.

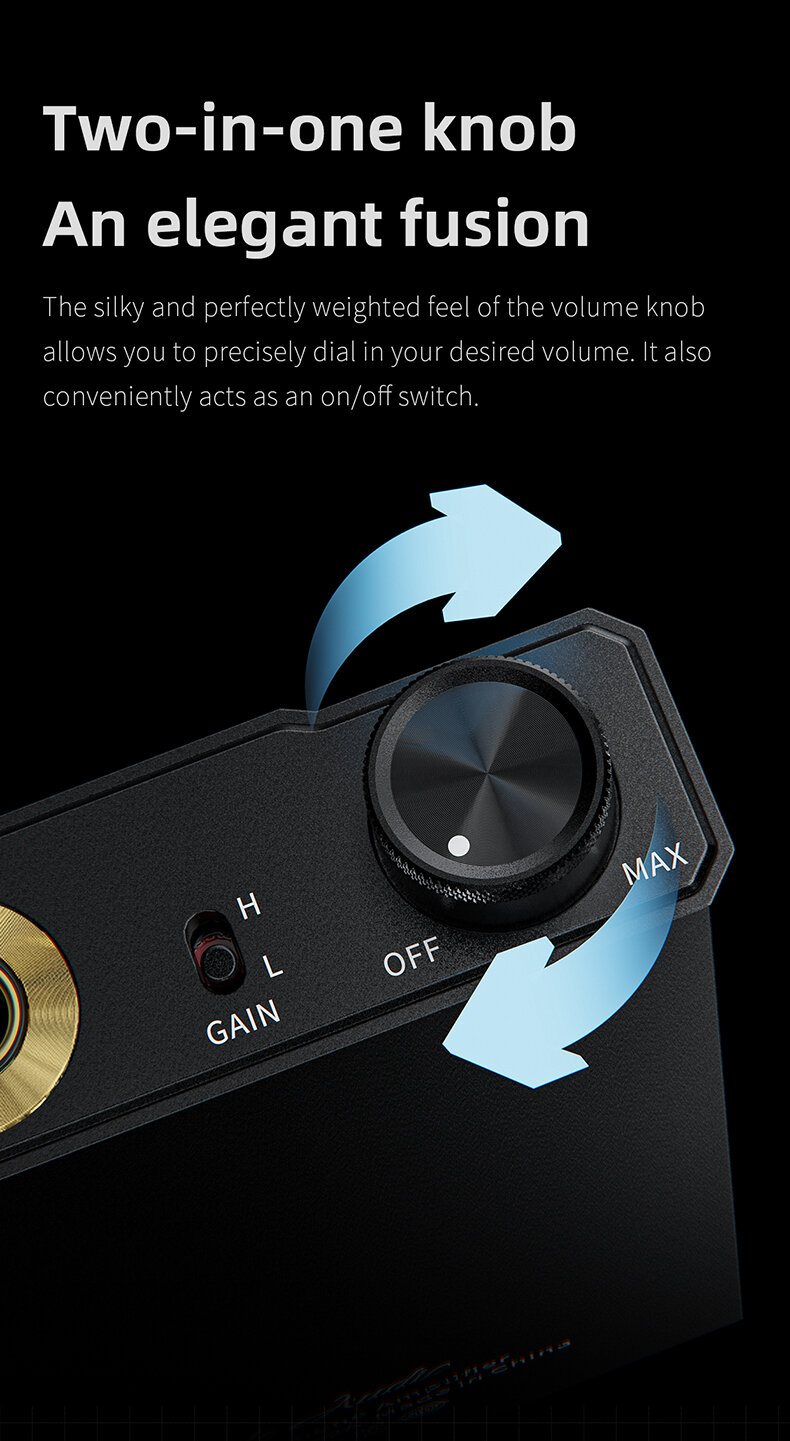

Two-in-one button - An elegant fusion

The volume control allows you to precisely adjust the desired volume. It also serves as an on/off switch.

.

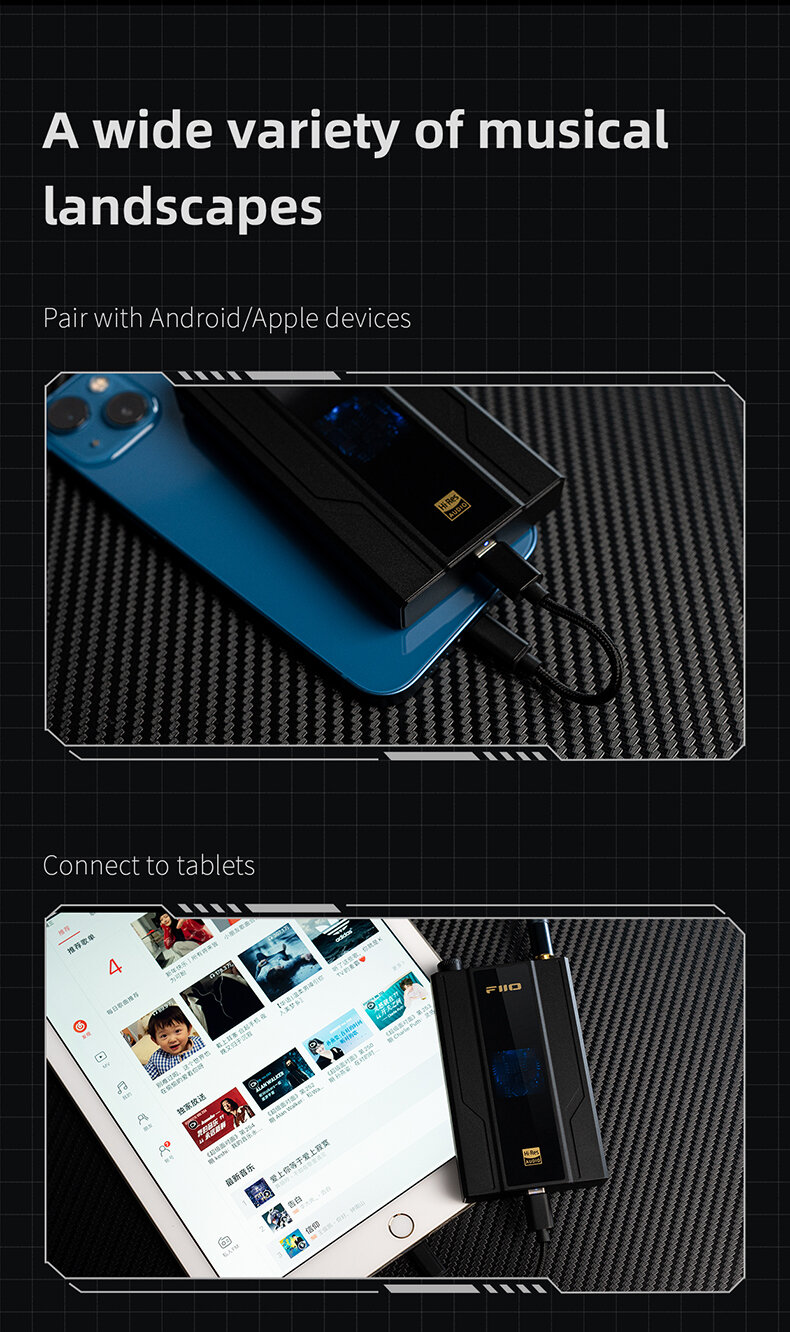

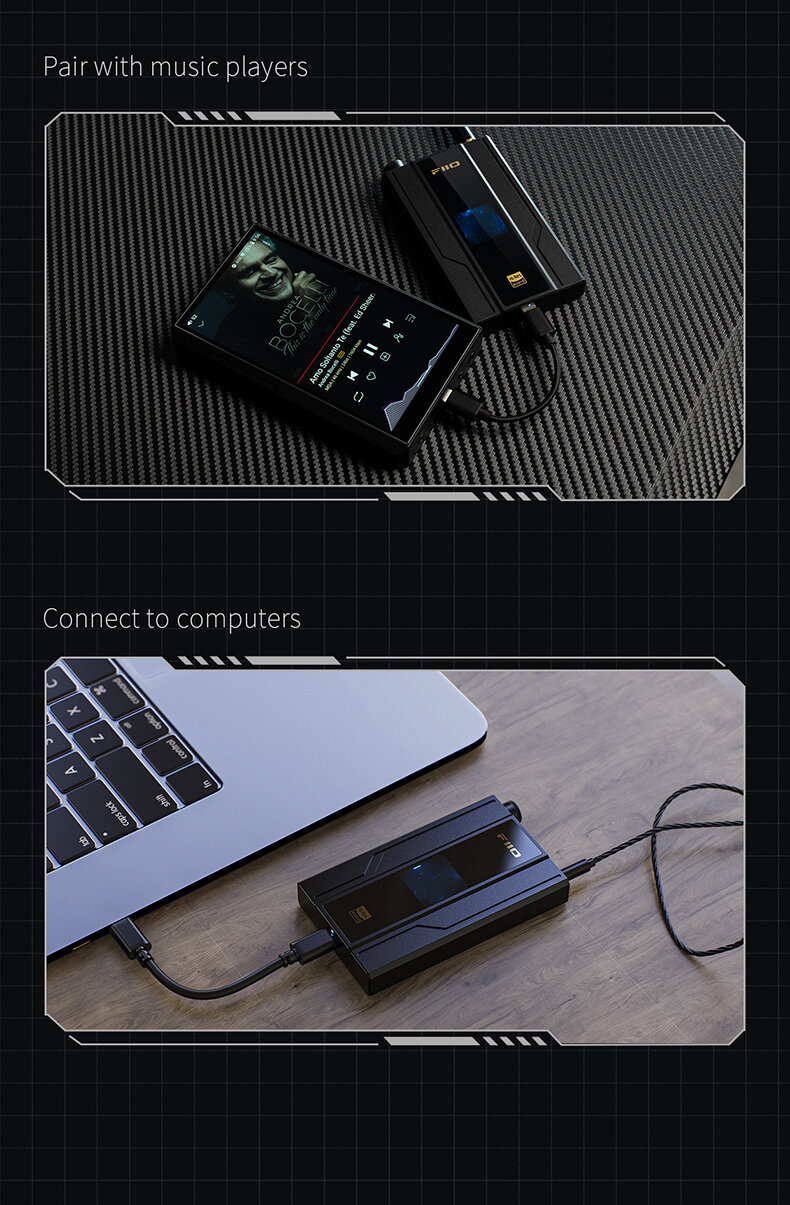

A wide variety of musical landscapes

• Pairing with Android/Apple devices Connecting to tablets
• Pairing with music players
• Connecting to computers

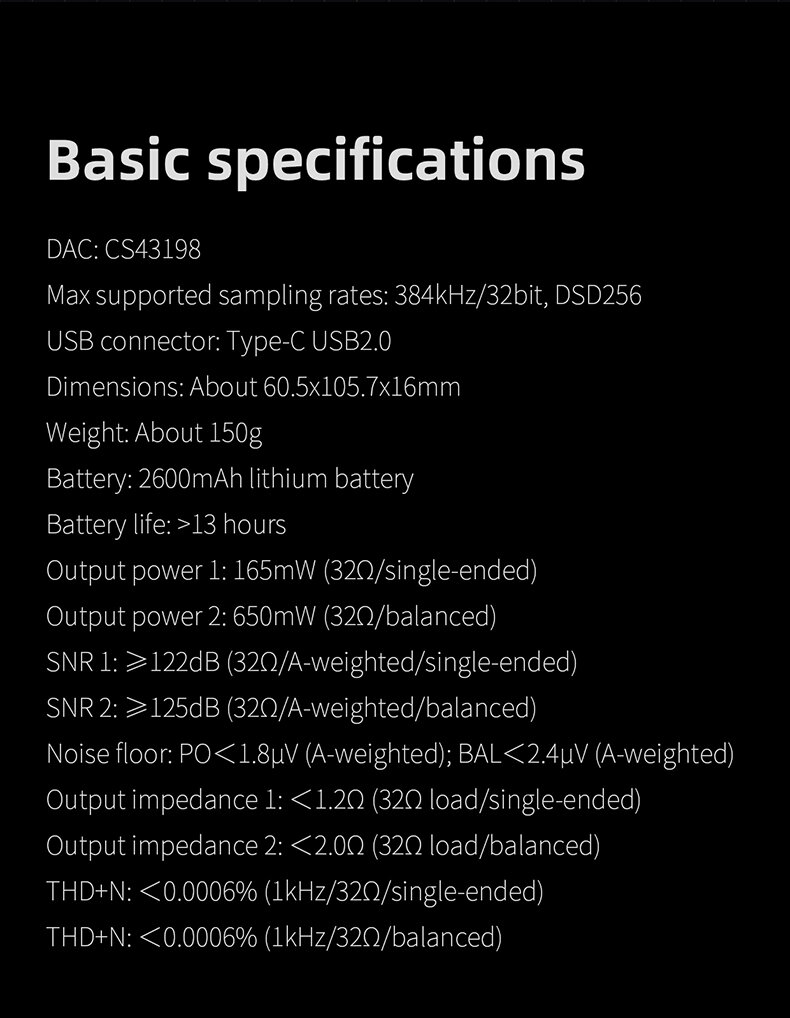

Technical data

• DAC: CS43198
• Maximum supported sampling rates: 384kHz/32bit, DSD256

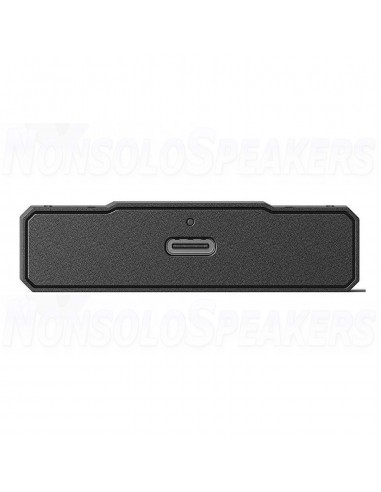

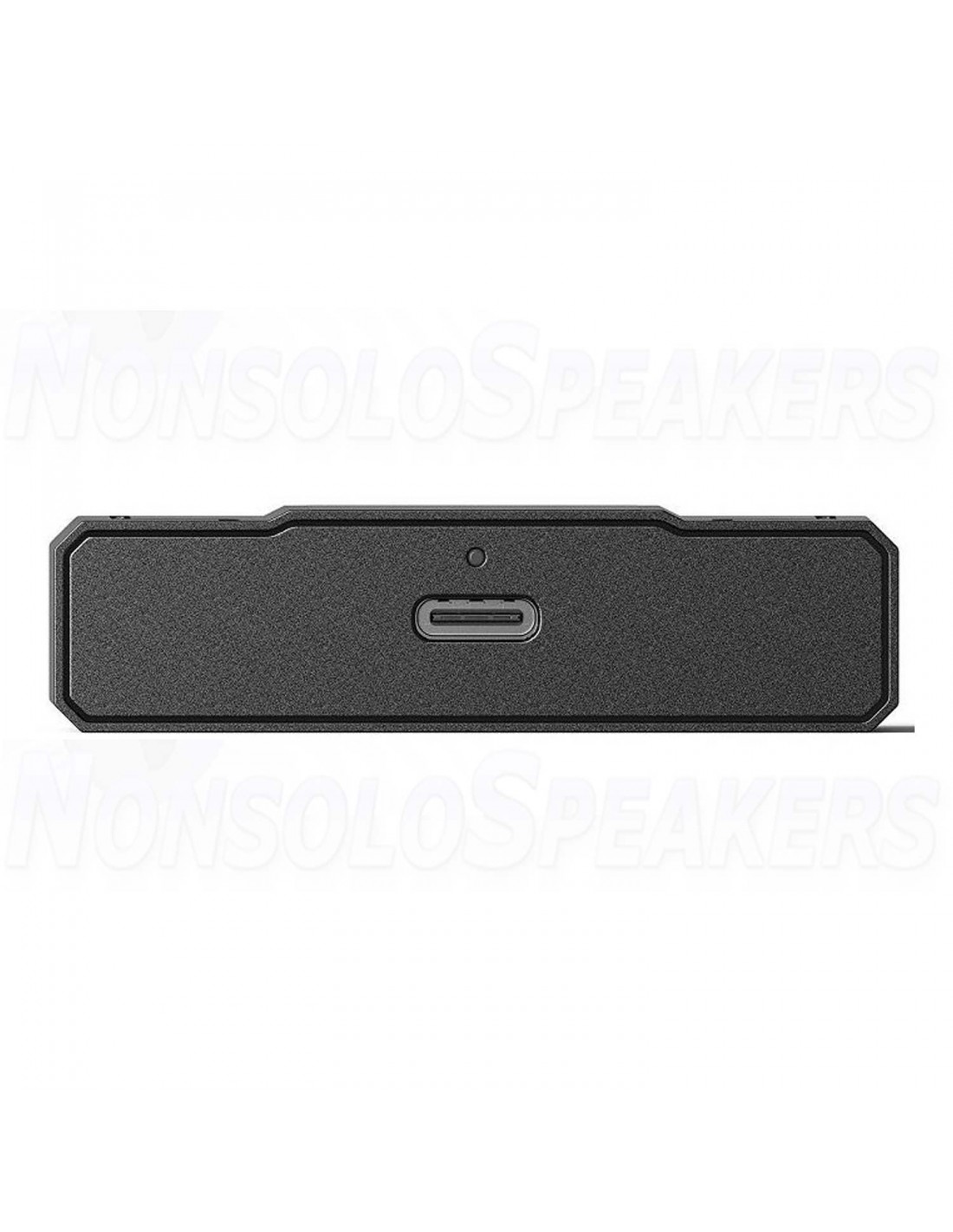

• USB port: Type-C USB 2.0
• Dimensions: Approx. 60.5x105.7x16mm
• Weight: Approx. 150g
• Battery: 2600mAh lithium battery
• Output power 1: 165mW (32Ω/single-ended)
• Output power 2: 650mW (32Ω/balanced)
• SNR 1: ≥122dB (32Ω/A-weighted/single-ended)
• SNR 2: ≥125dB (32Ω/A-weighted/balanced)
• Noise floor: PO＜1.8μV (A-weighted); BAL＜2.4μV (A-weighted)
• Output Impedance 1: ＜1.2Ω (32Ω load/single-sided)
• Output Impedance 2: ＜2.0Ω (32Ω load/balanced)
• Total Harmonic Distortion+N: ＜0.0006% (1kHz/32Ω/single-sided) THD+N: ＜0.0006% (1kHz/32Ω/balanced)
