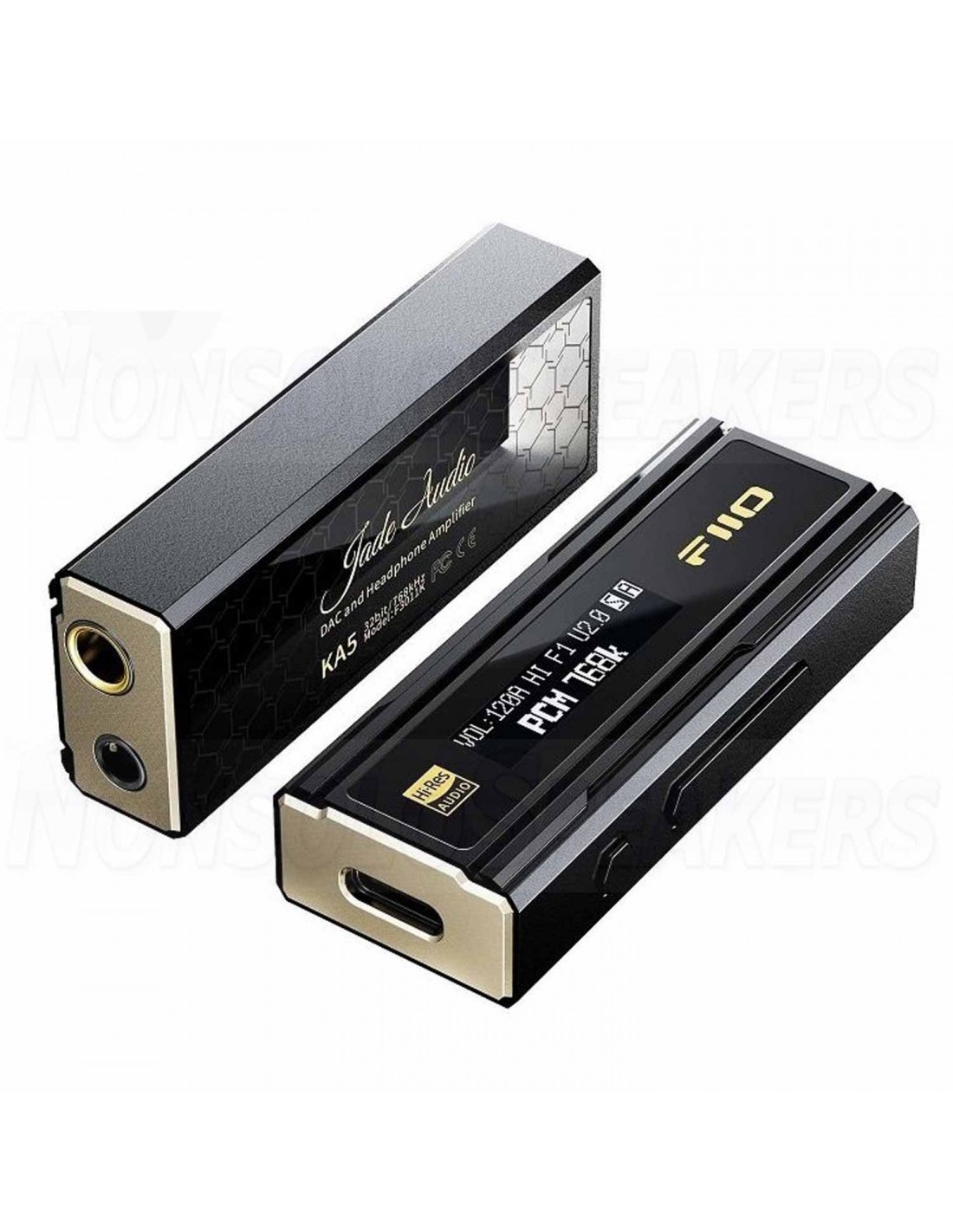

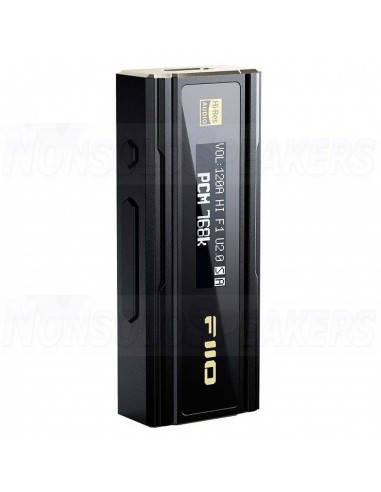

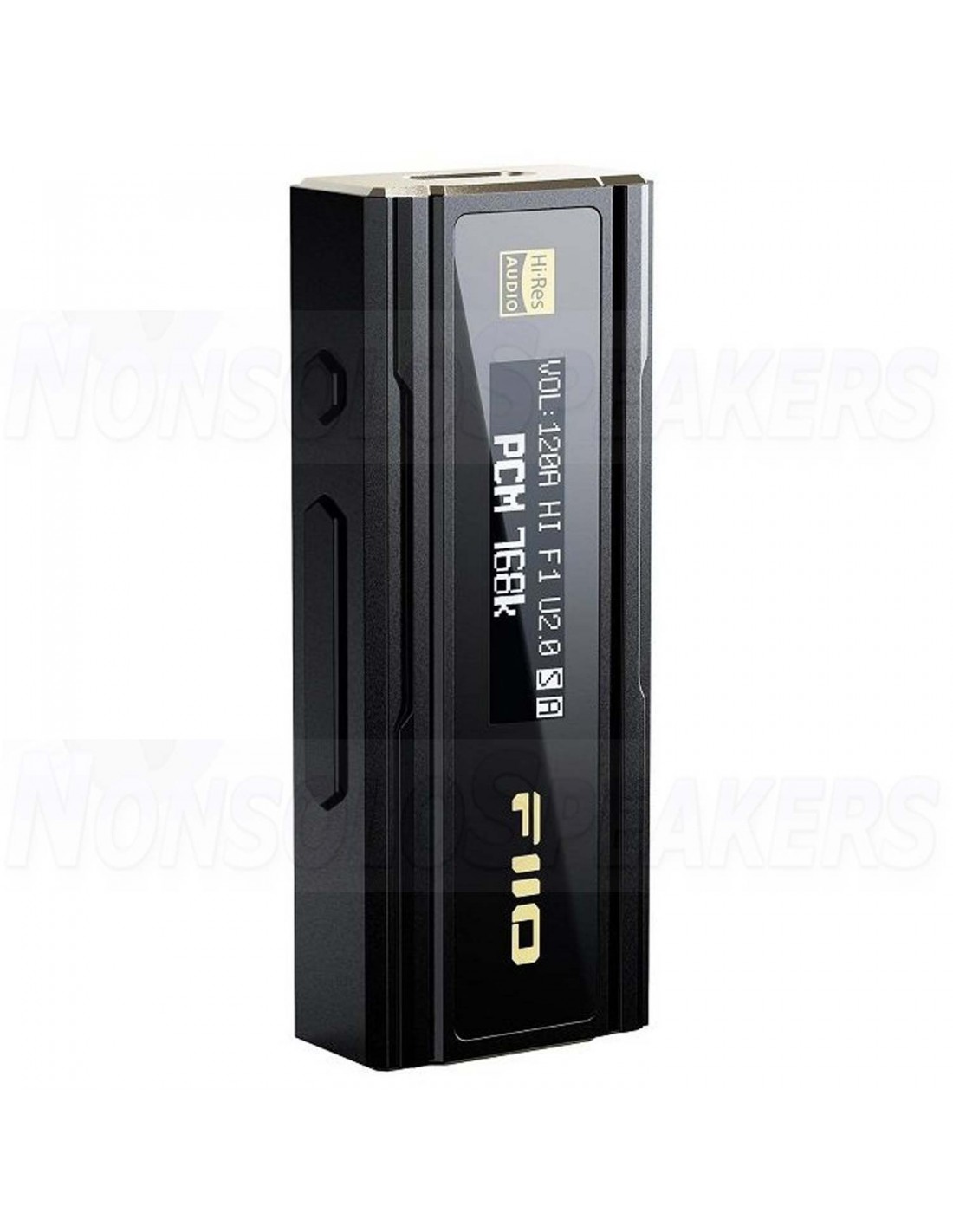

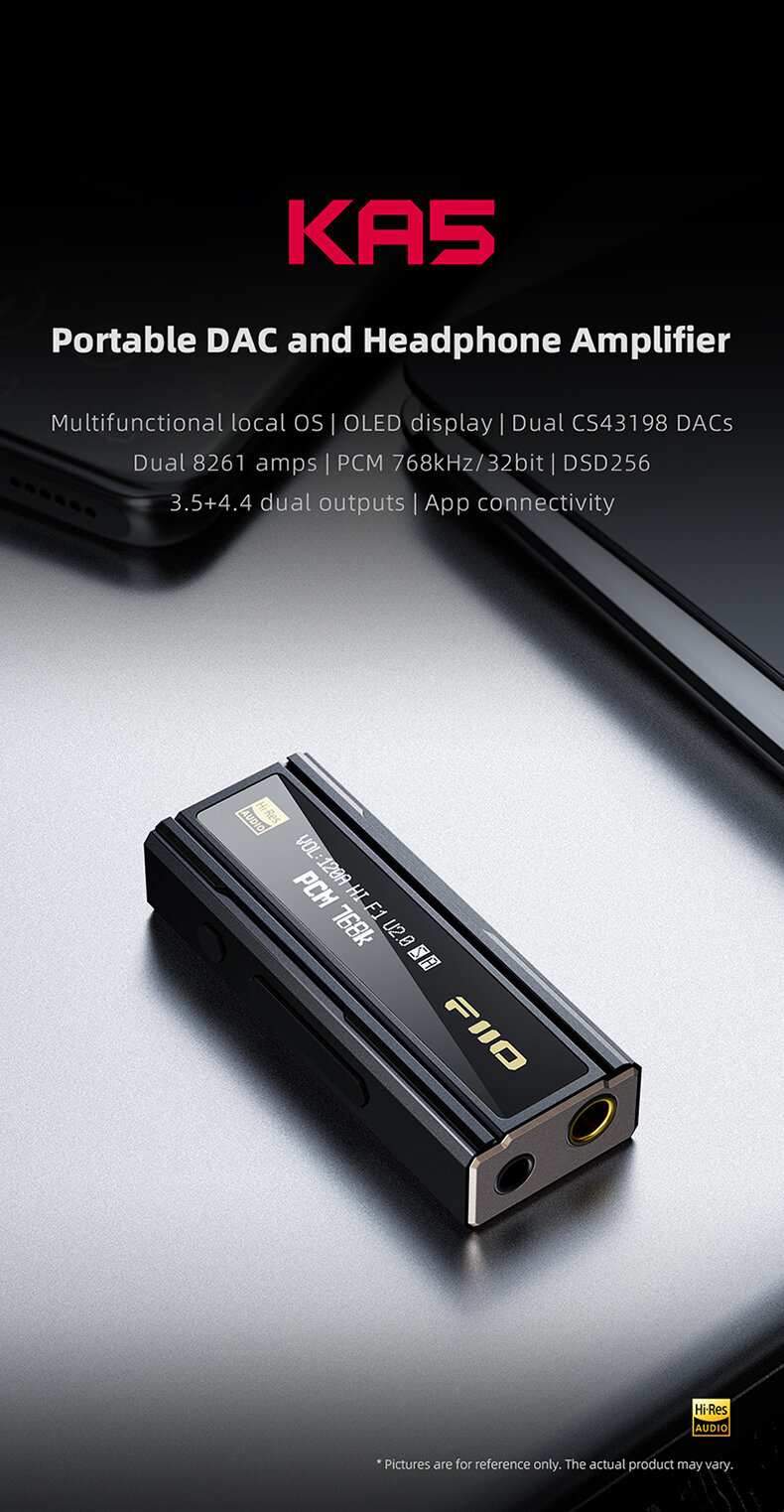

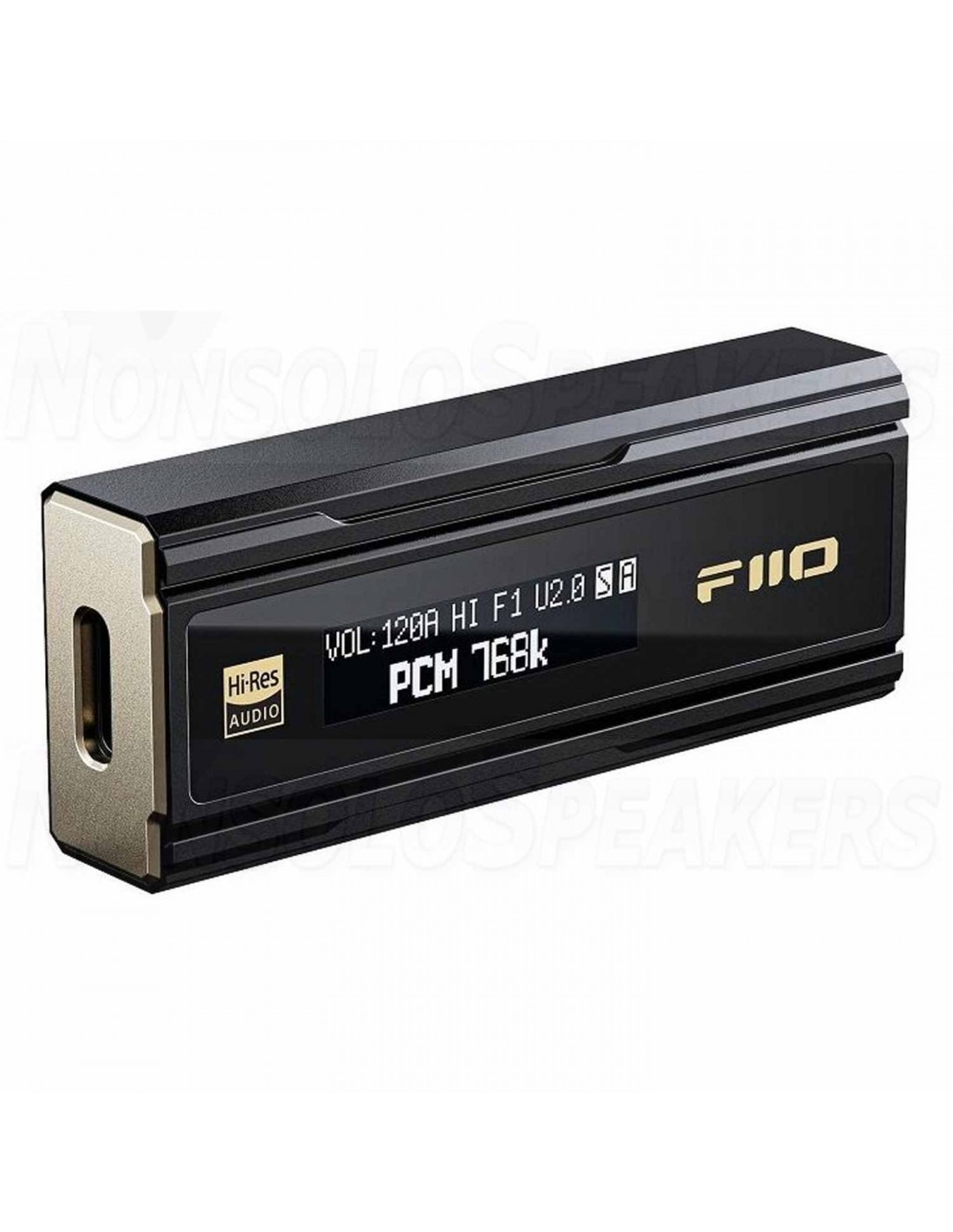

FiiO KA5 Portable DAC & Headphone Amplifier

Highlights:

• with extremely low noise

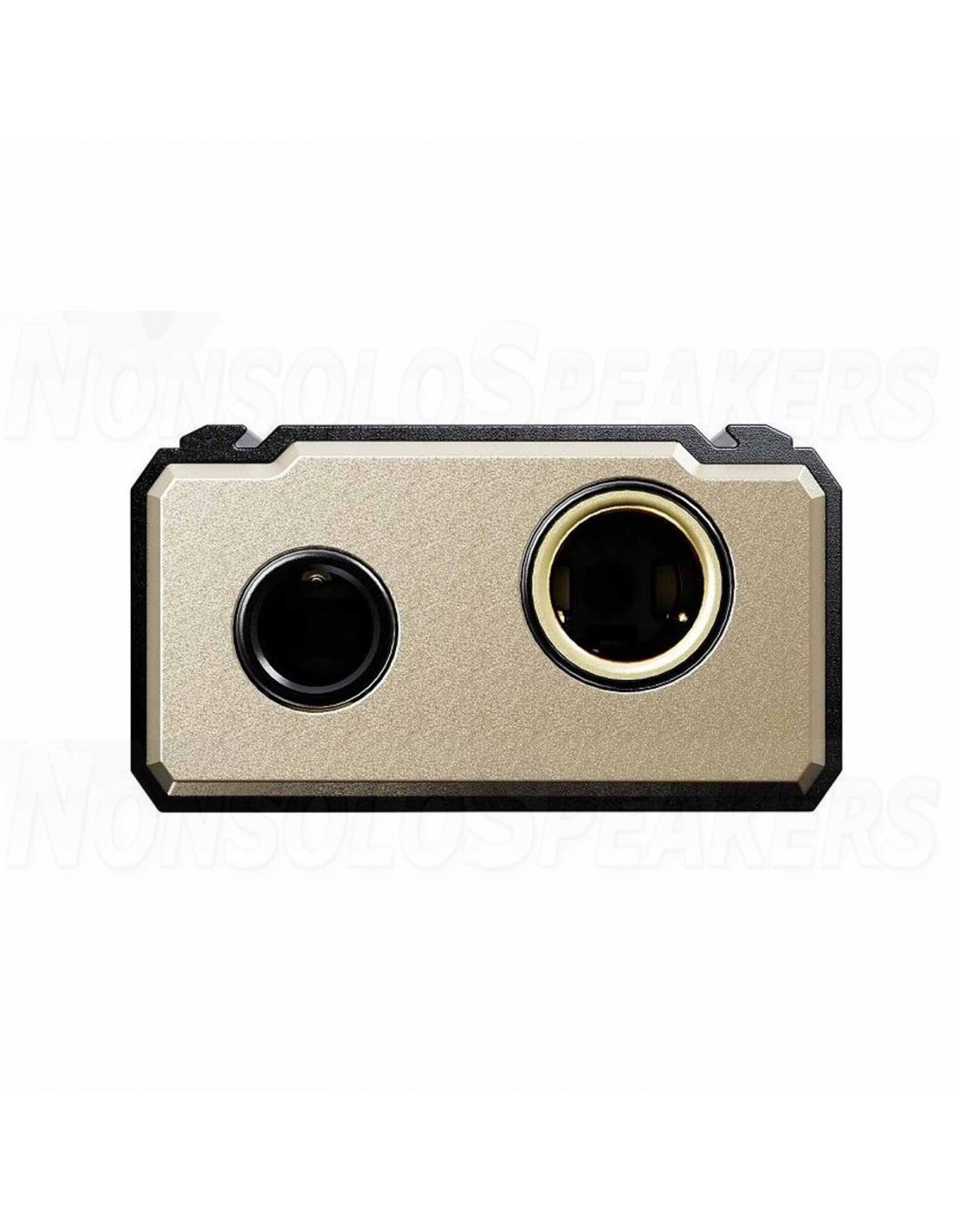

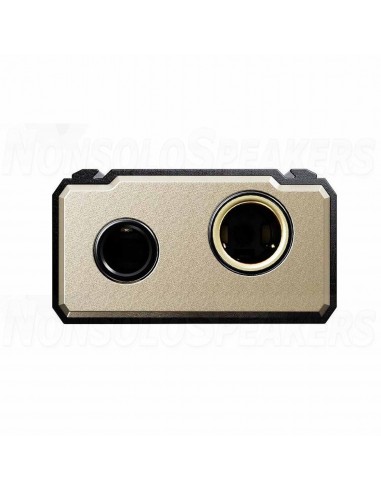

• 3.5mm and 4.4mm connection for balanced headphones
• Lightning and USB-C cables included
• Flagship dual DACs for excellent sound
• Supports up to 32bit/768kHz PCM and DSD256 decoding
• Customizable OLED screen & multifunction button
• Connect to various devices Compatible with various platforms
• App control

Flagship dual DACs

The FiiO KA5 is equipped with two Cirrus Logic CS43198 DACs, which are known for their efficiency and sonic capabilities and sound great with a variety of music genres.

.

High-res decoding

The FiiO KA5 supports PCM decoding up to 32 bit/768 kHz and DSD256, so you can really enjoy your music to the fullest, no matter what device you have the FiiO KA5 connected to.

Ultra-low noise operational amplifiers

For better audio performance, the KA5 uses a 6-layer circuit board and high-performance operational amplifiers with extremely low noise for powerful and robust sound.

.

Connection to a top-class external decoder

Simple and intuitive operation

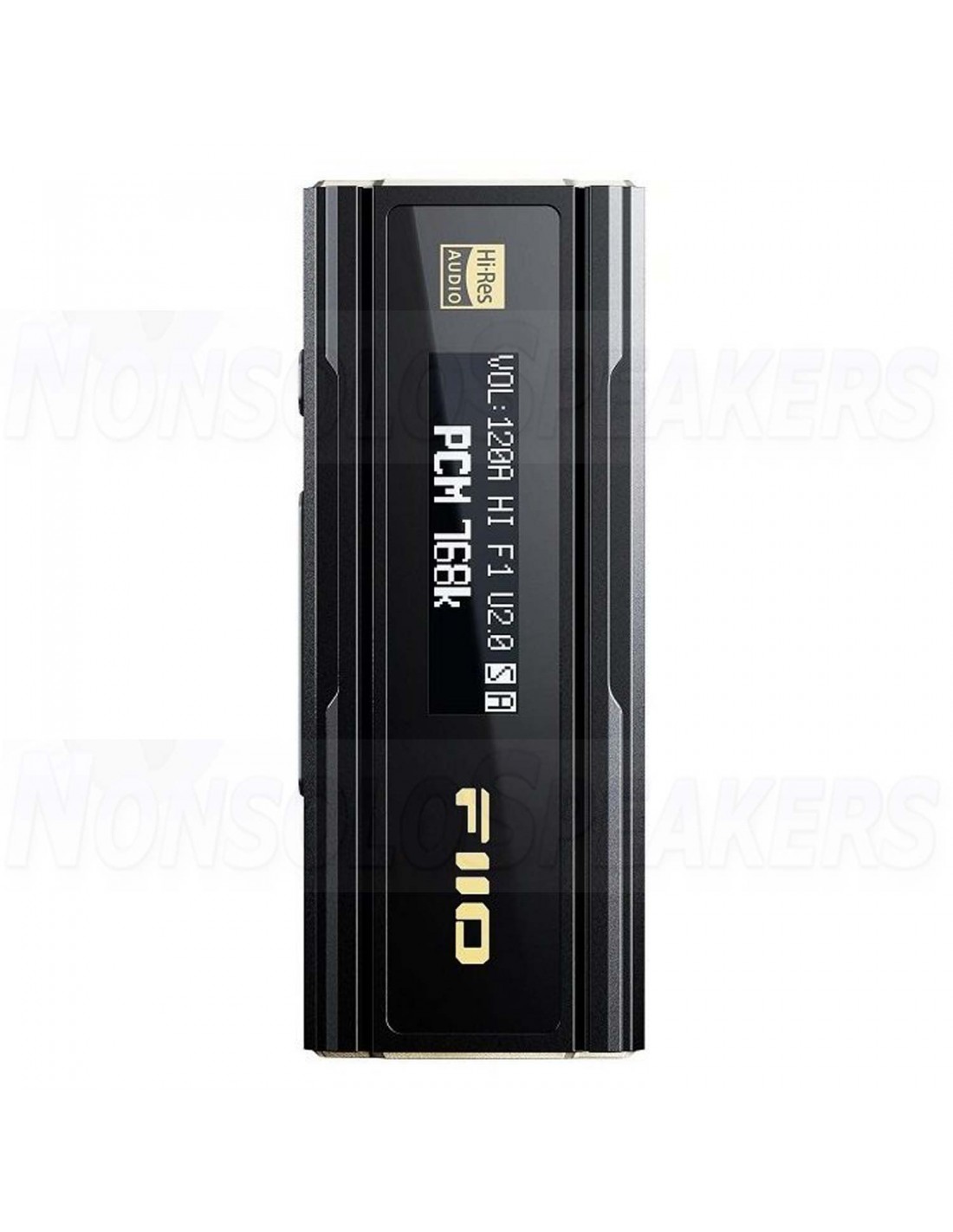

The OLED display and physical buttons make navigating the settings menu and playback screen easy and intuitive. The MCU processor built into the KA5 handles even complex operations with ease, making the KA5 even more enjoyable to use.

.

Portable but powerful

Despite its compact size, the KA5 offers a wealth of features such as: high and low gain 5 selectable filters L/R channel balance Screen switching. The KA5 lets you redefine what a small audio dongle can do for you.

.

FiiO-App

In addition to the local KA5 operating system, you can also use the FiiO Control app to control the KA5. Use either method to set up the KA5 exactly the way you want.

.

UAC 1.0 support

With UAC 1.0 mode, you can connect the KA5 to the Switch and other devices to experience rich and detailed sound effects that make your gaming sessions even more immersive.

.

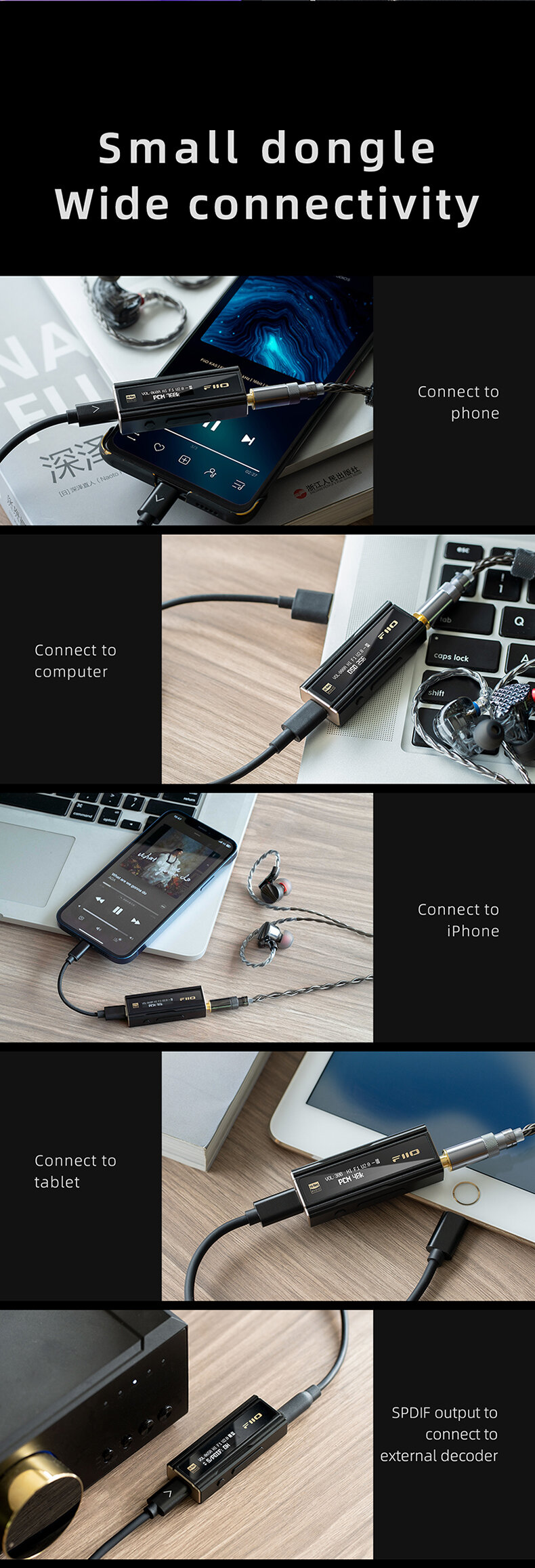

Compatible with various platforms

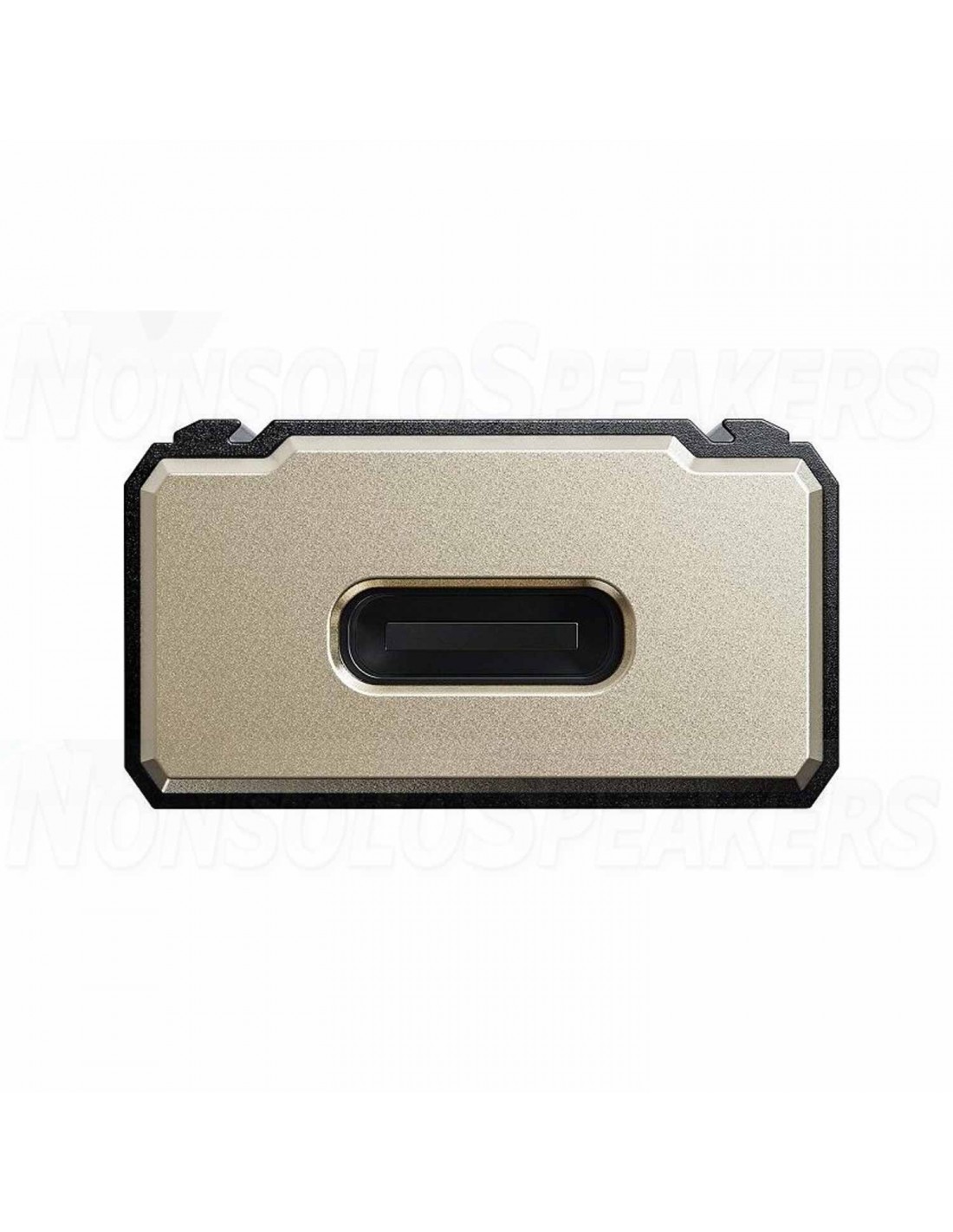

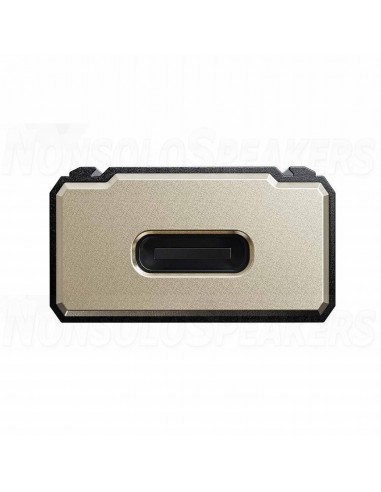

The KA5 features a detachable cable design that allows you to switch between the included custom Type-C and Lightning OTG adapter cables.

.

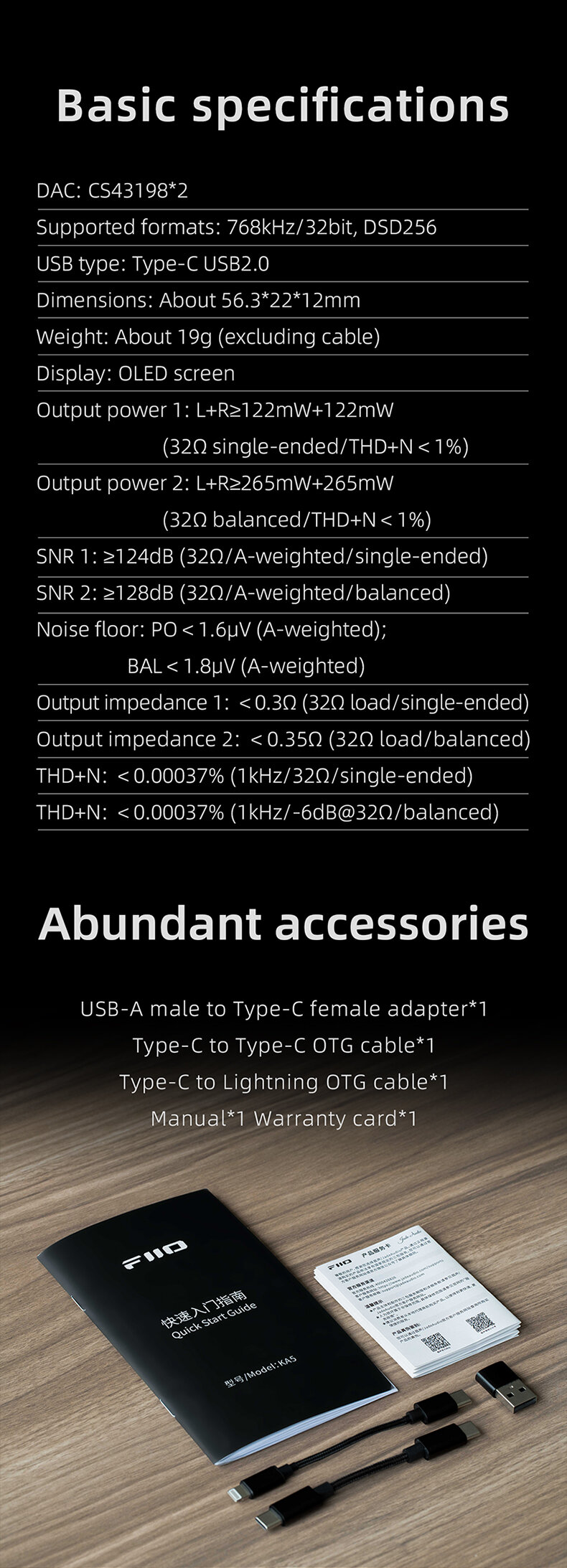

Technical data

• Output power: L+R≥122mW+122mW (32Ω single-ended/THD+N＜1%)
• Output power 10mm beryllium diaphragm dynamic driver
• SNR 1 ≥124dB (32Ω/A-weighted/single-ended)
• ≥SNR2 ≥128dB (32Ω/A-weighted/balanced)
• Noise floor PO＜1.6μV (A-weighted); BAL＜1.8μV (A-weighted)
• Output impedance 1 ＜0.3Ω (32Ω load/single-ended)
• Output impedance 2 ＜0.35Ω (32Ω load/balanced)
• THD+N ＜0.00037% (1kHz/32Ω/single-ended)
• THD+N＜0.00037% (1kHz/-6dB@32Ω/balanced)
