To exceed the typical sound in its class, special attention was paid to optimizing and tuning the JH5's dynamic driver during development. The JH5's dynamic driver features a unique dual-layer cavity that allows damping systems in both the inner and outer chambers to precisely control airflow.

Estimated Shipping Costs
Shipping Costs
€69.00
Shipping Time
.
Want to check another country or courier?



FiiO JH5 Dynamic 4 BA Hybrid IEMs Black In-Ear Headphones

.

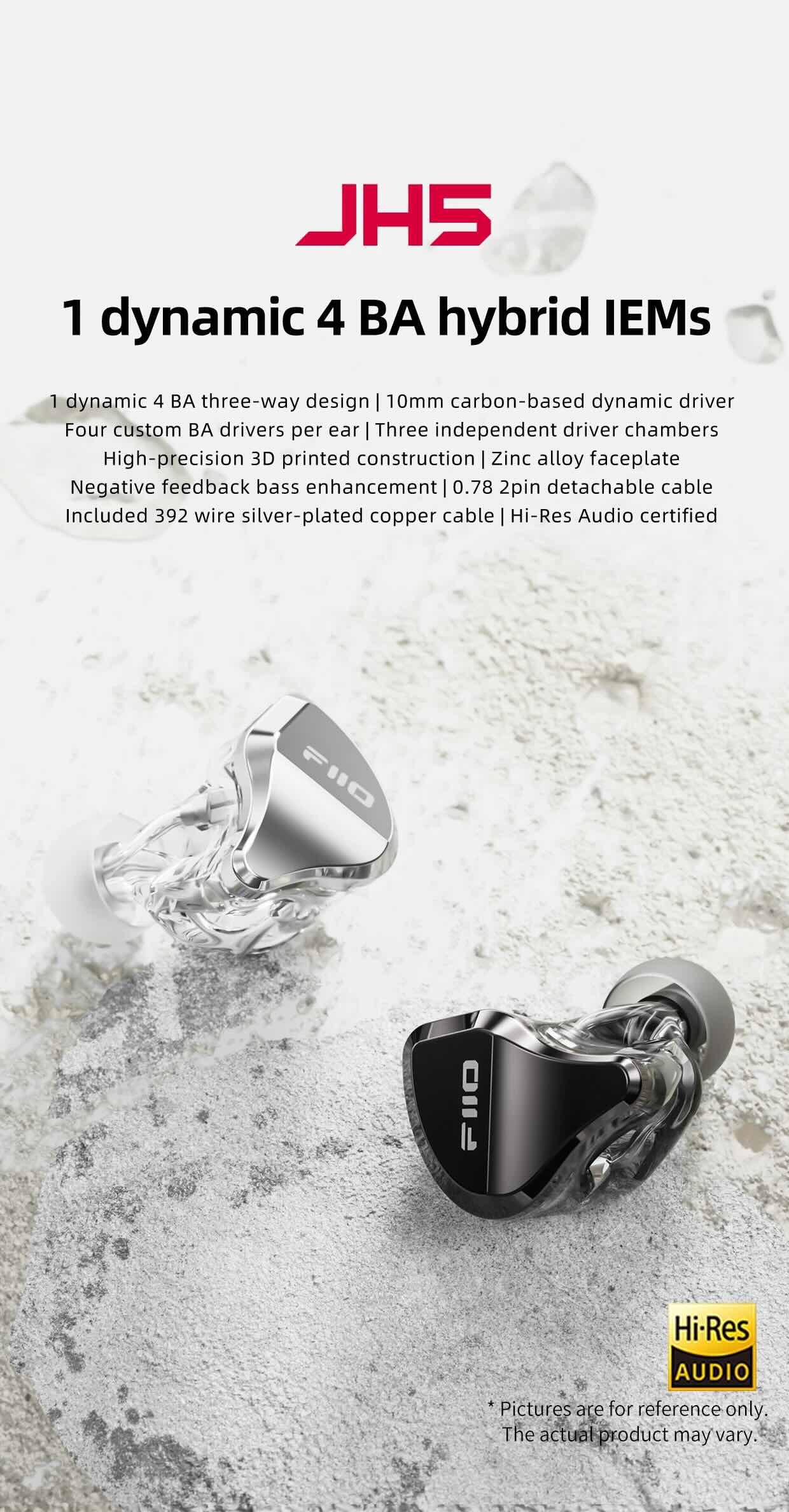

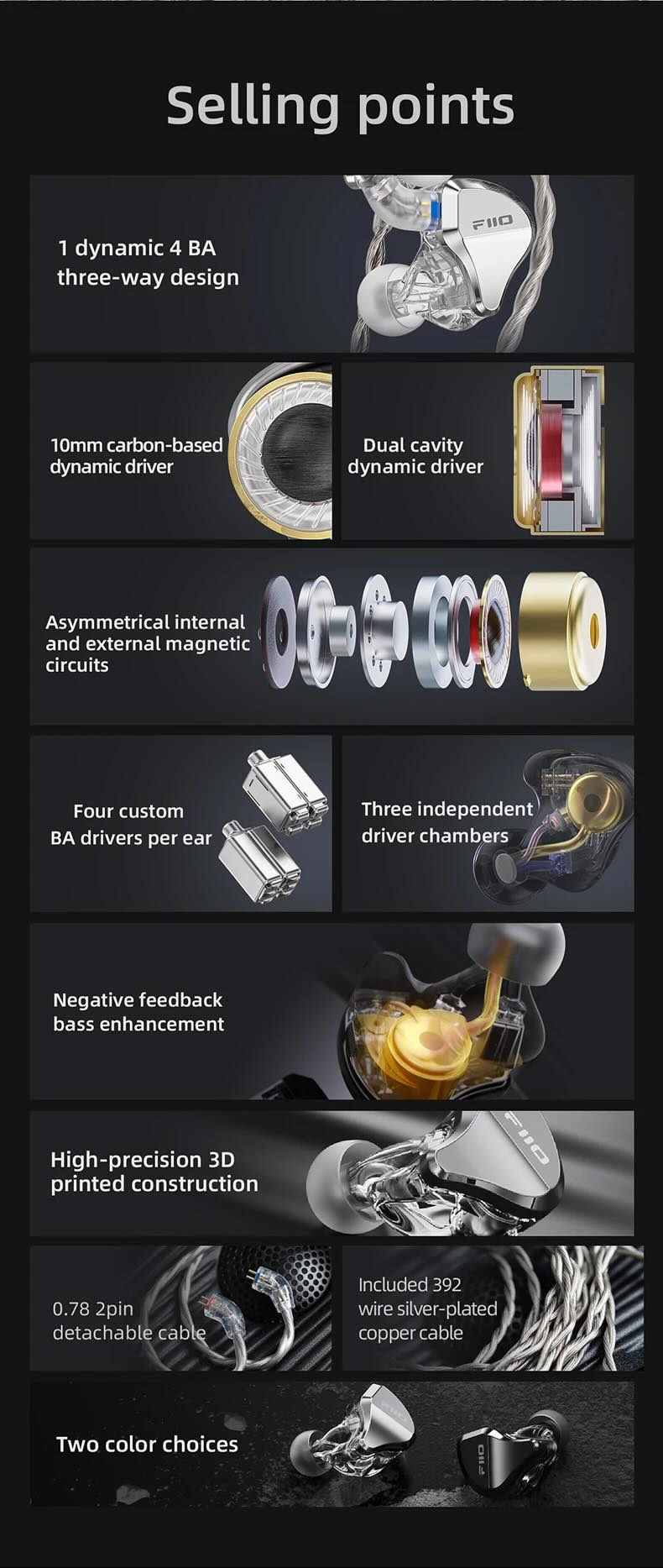

Highlights:

  • 4 BA dynamic hybrid IEMs
  • 1 dynamic and 4 BA driver
  • 10mm carbon-based driver
  • Four custom BA drivers per ear
  • Three independent driver chambers
  • High-precision 3D printed construction
  • Zinc alloy front panel
  • Bass boost with negative feedback
  • 0.78 2-pole
  • detachable cable / Included 392-core silver-plated copper cable
  • Hi-Res Audio certified

.

High performance at lower entry costs

The FIIO x Jade Audio series products have always been known for their value for money and high build quality, providing audiophiles with affordable yet high-quality devices.
The all-new FiiO JH5 is the latest result of FIIO and Jade Audio's years of experience in the audio field. The high-precision 3D printed construction and exquisite zinc alloy front panel are a testament to the high-quality craftsmanship that went into the JH5. The acoustic design of the JH5 borrows from the design of high-end IEMs such as the FH9 and FH7, with the aim of presenting music from genres as diverse as classical and pop in high fidelity quality. At the heart of the FiiO JH5 is a 10mm carbon-based dynamic driver that is seamlessly connected to the special balanced armature drivers that cover mid to ultra-high frequencies as the drivers are divided into three independent chambers.
The FIIO JH5 is a truly affordable IEM with a highly accurate sound that lets you experience how good dynamic BA hybrids can be.

.

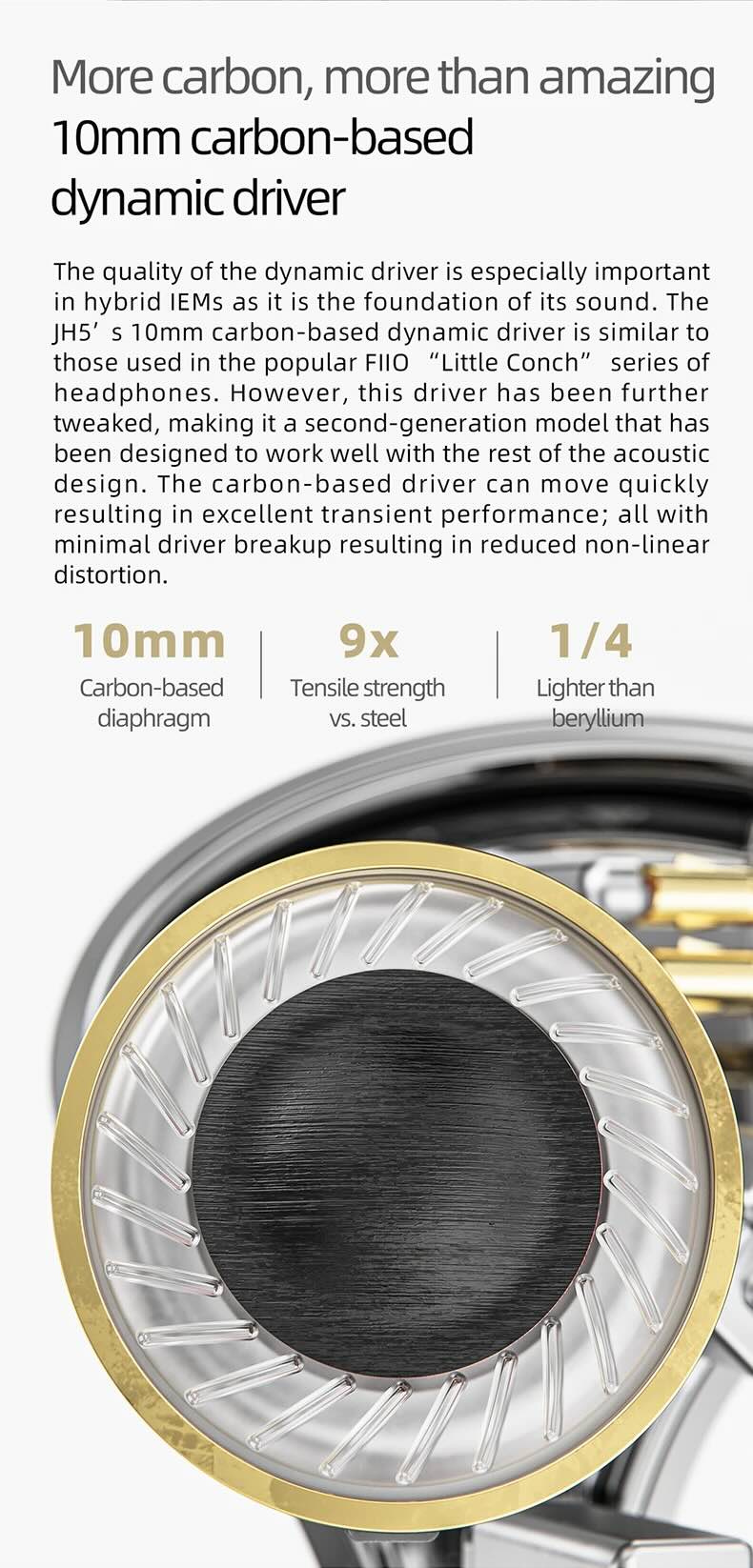

More carbon, more amazing - 10 mm dynamic carbon-based driver

The quality of the dynamic driver is particularly important in hybrid IEMs, as it forms the foundation of the sound. The FiiO JH5's carbon-based 10mm dynamic driver is similar to those used in the popular FIIO "Little Conch" series headphones.

However, this driver has been optimized even further, making it a second-generation model that has been designed to work well with the rest of the acoustic design.

The carbon-based driver can move quickly, resulting in excellent transient performance; all while minimizing driver movement, resulting in less non-linear distortion..

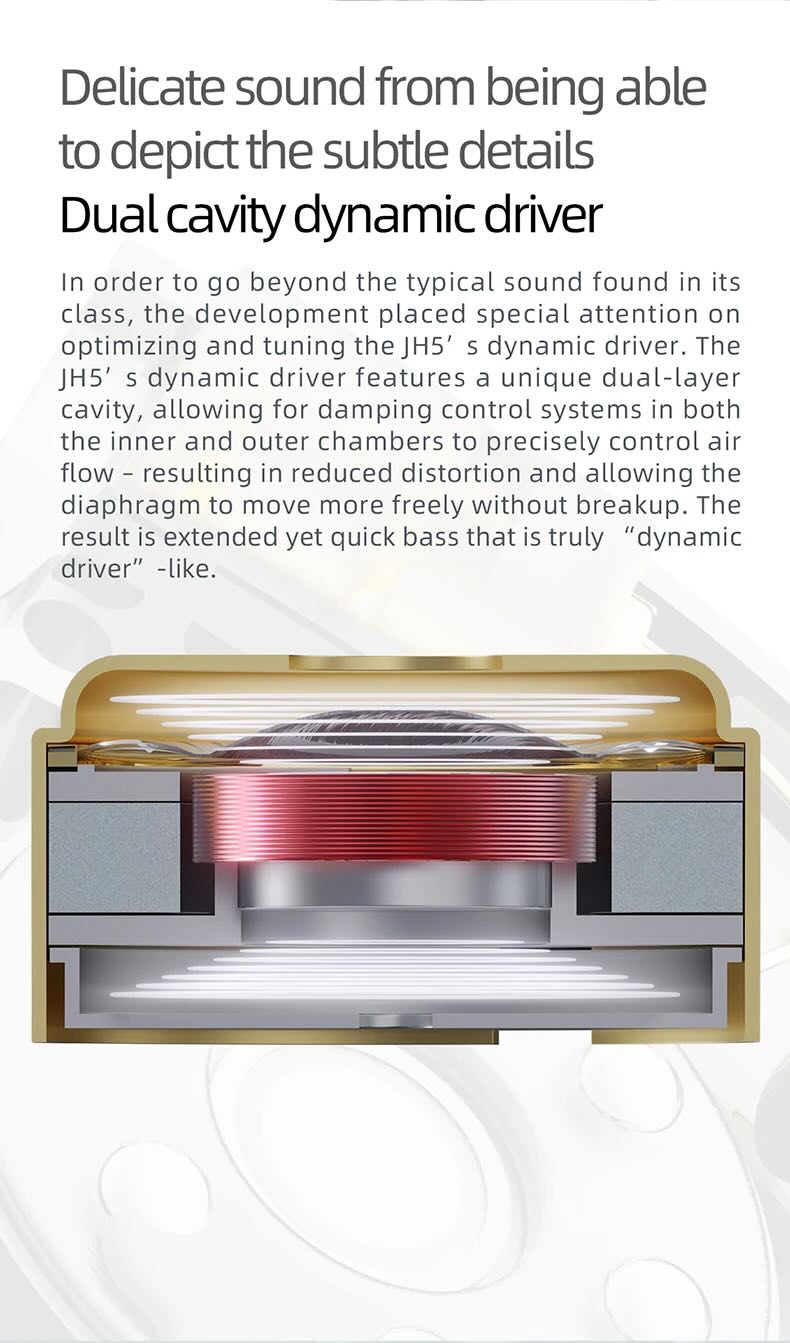

Delicate sound that captures even the finest details - Dynamic dual-cavity driver

To exceed the typical sound in its class, special attention was paid to optimizing and tuning the JH5's dynamic driver during development. The JH5's dynamic driver features a unique dual-layer cavity that allows damping systems in both the inner and outer chambers to precisely control airflow.

The result is an extended yet fast bass similar to that of a dynamic speaker."

.

Four custom BA drivers per ear - Tuned and adjusted BA drivers - For mid and high frequencies

To ensure that the dynamic driver works well with the balanced armature drivers, the development team borrowed design ideas from high-end hybrid IEMs such as the FH9 and FH7.

Two dedicated BA drivers handle the mid and high frequencies. These two BA drivers, along with the dynamic driver, are specifically designed to have a resonance peak at 2.8kHz, which is also a resonance frequency formed by the shape of the human ear.

The result is not only a smooth transition between the dynamic and balanced armature drivers, but also ensures that the transition between the different drivers is well adapted to the shape of the human ear - resulting in a more natural soundstage and overall smoother sound.

.

Feel every plucked instrument string - Special ultra-high frequency BA driver

To achieve the sound quality they were aiming for, the development team thought it appropriate to equip the JH5 with two custom-made ultra-high frequency (UHF) drivers.
These two UHF drivers were placed closer to the sound nozzle, which in turn has a thicker interior, a shorter length and a slight curvature.
The result of this design is that the FIIO JH5 is very wide in the treble and is capable of producing ultra-high frequencies. It lets you feel every pluck of the instrument's strings, bringing you much closer to the musical performance.

.

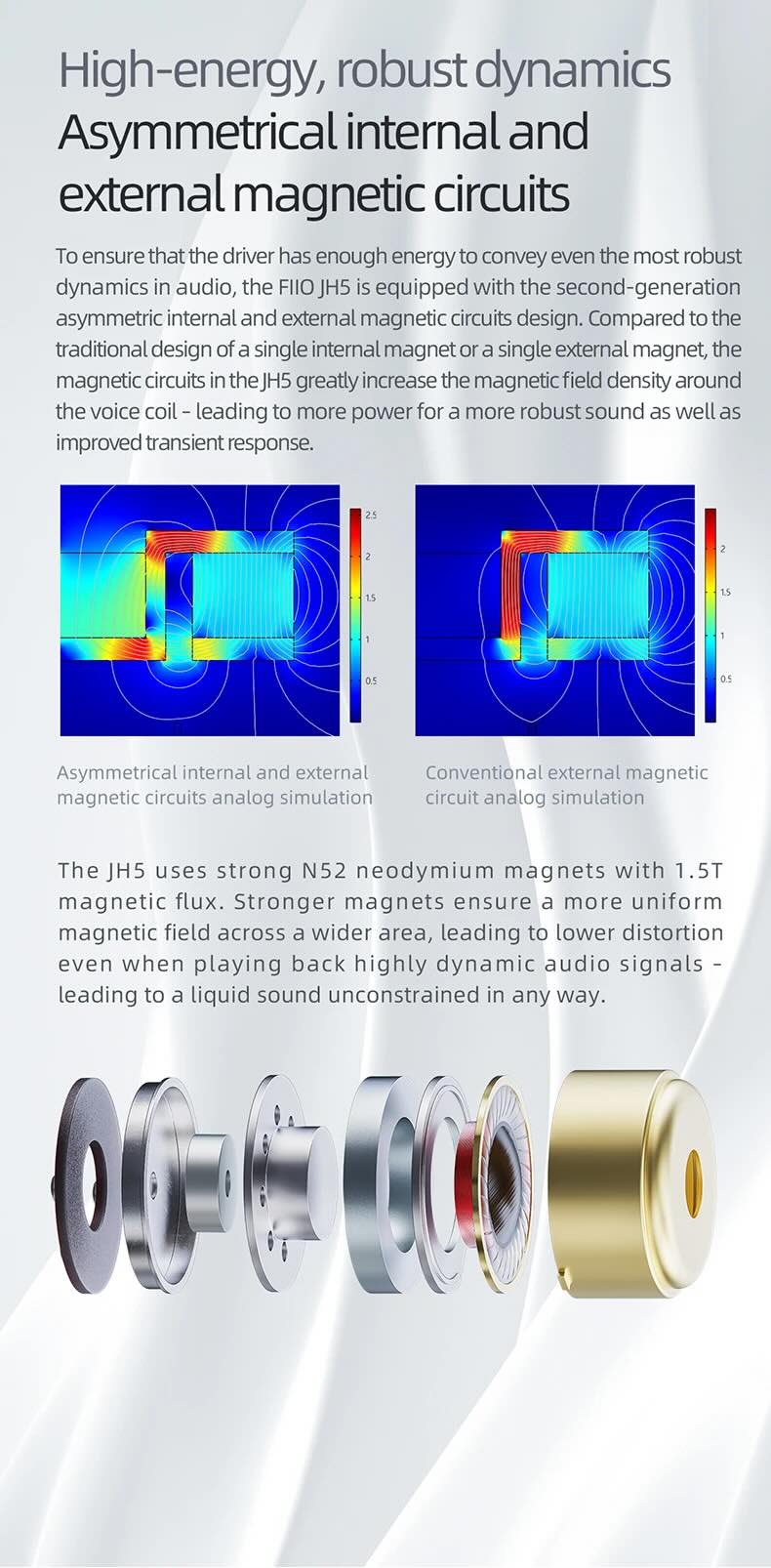

High-energy, robust dynamics - Asymmetric internal and external magnetic circuits

The FIIO JH5 is equipped with a second-generation asymmetric internal and external magnetic circuit to ensure that the driver has enough energy to transmit even the strongest dynamics in the audio range.

Compared to the traditional design with a single internal or external magnet, the magnetic circuits in the JH5 significantly increase the magnetic field density around the voice coil - resulting in more energy for a more robust sound as well as improved transient response.

The JH5 uses strong N52 neodymium magnets with 1.5T magnetic flux. Stronger magnets provide a more uniform magnetic field over a larger area, resulting in lower distortion even when playing highly dynamic audio signals - and thus a smooth sound that is not restricted in any way.

.

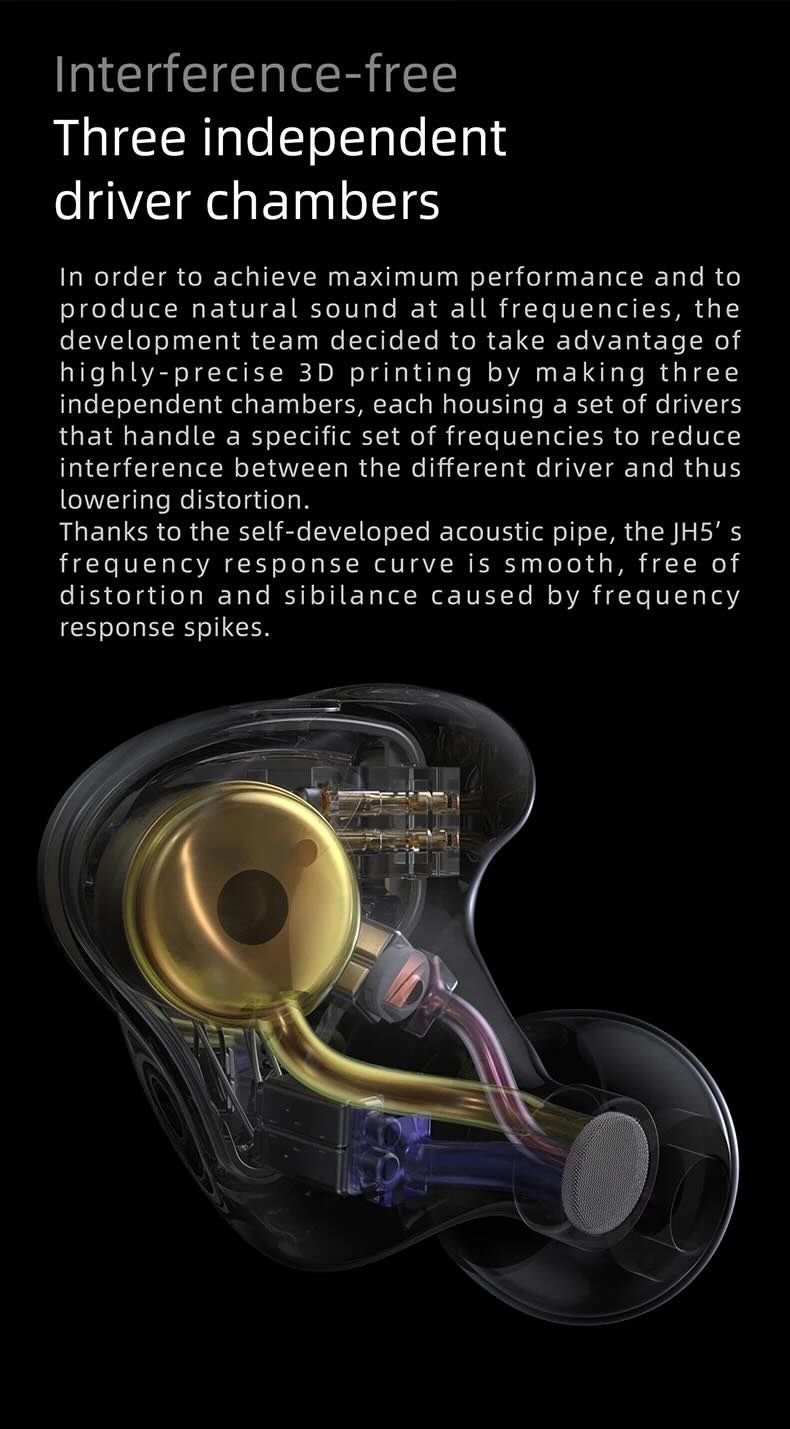

Interference-free - Three independent driver chambers

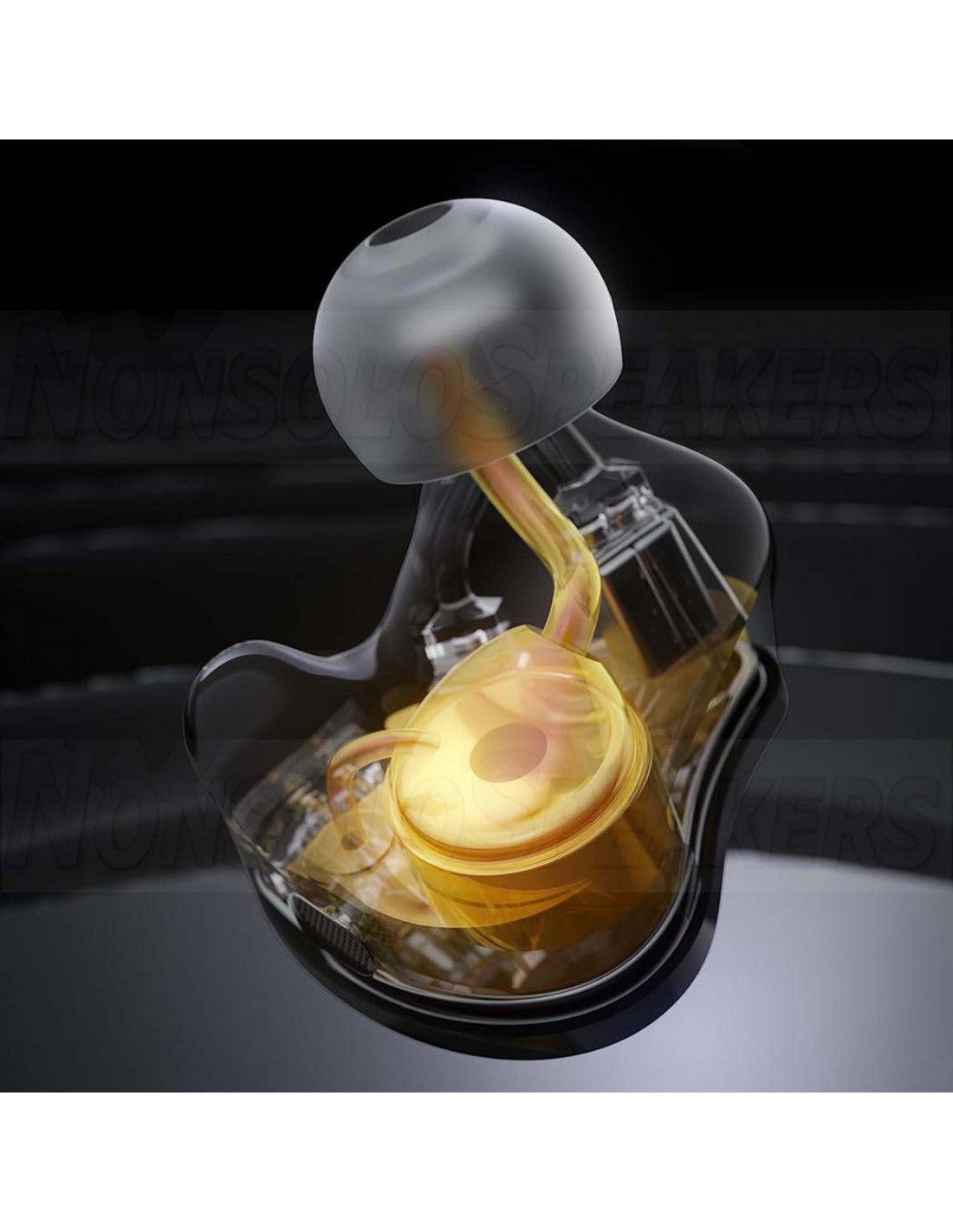

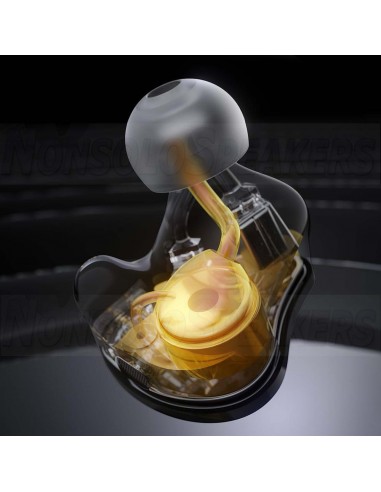

To achieve maximum performance and produce natural sound at all frequencies, the development team decided to take advantage of high-precision 3D printing and create three independent chambers, each housing a set of drivers that handle a specific set of frequencies to reduce interference between the different drivers and thus reduce distortion.

Thanks to the self-developed acoustic tube, the frequency response curve of the JH5 is smooth and free of distortion and sibilance caused by frequency response peaks.

.

Soft as jade, comfortable and skin-friendly - High-precision 3D printed construction

To achieve better sound and superior comfort, the shell is made of medical-grade resin that has undergone a high-precision DLP 3D printing process:

- The high-precision 3D printing process with an accuracy of up to 0.05 mm ensures that even complex acoustic designs are consistent across all devices.

- The medical-grade resin helps ensure that the JH5 are robust, shock-resistant and have a long service life.

.

Luxurious feel that can be felt at first touch

Die-cast zinc alloy front panel The JH5 was designed to be a relatively affordable IEM that not only sounds great but also has excellent build quality. The sturdy yet lightweight magnesium alloy cover that undergoes multiple processes such as liquid die-casting, mirror electroplating and hand polishing results in an IEM that simply oozes quality.

Your fingers will know it immediately when they touch the JH5..

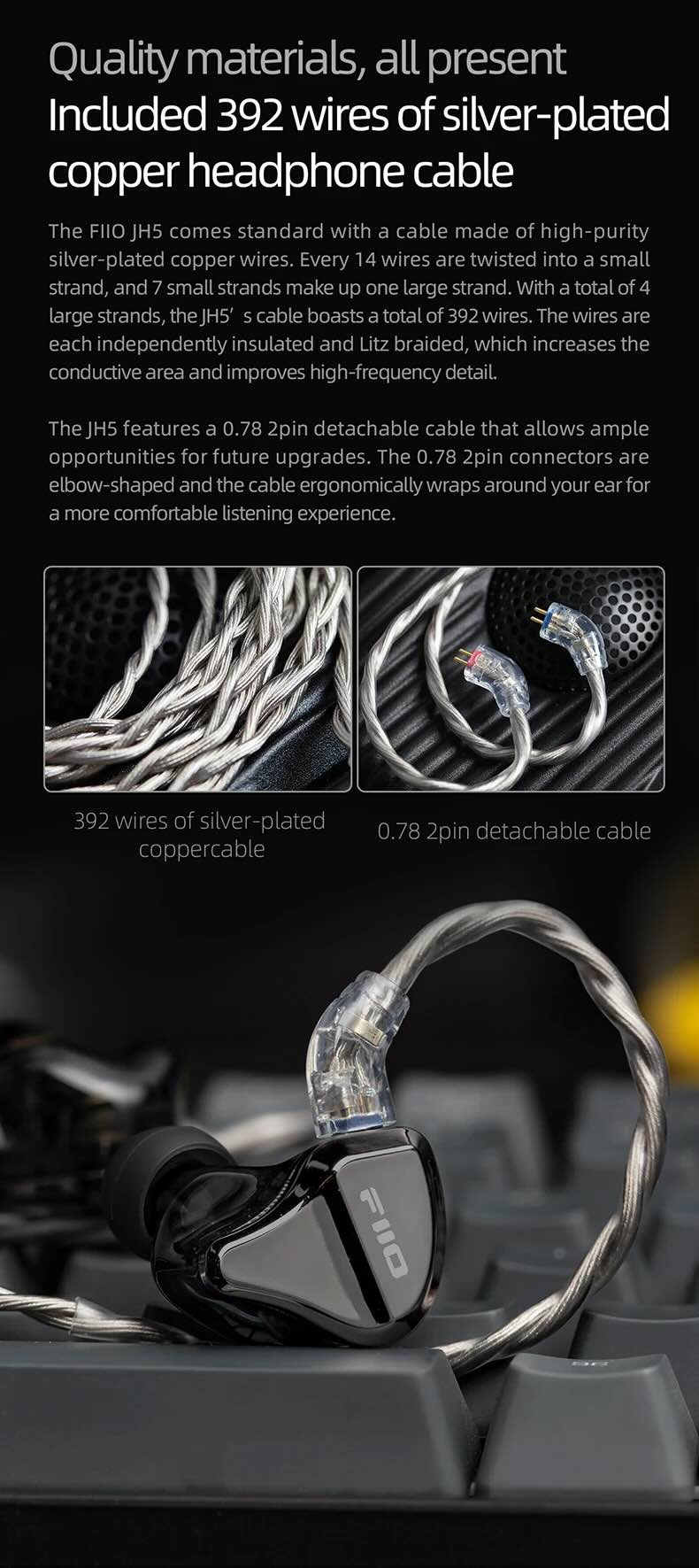

High-quality materials - including 392-core cable

The FIIO JH5 comes standard with a cable made of high-purity silver-plated copper wire. All 14 wires are twisted into a small strand, and 7 small strands form a large strand.

With a total of 4 large strands, the JH5's cable has a total of 392 cores. The wires are each independently insulated and braided with a strand, increasing the conductive area and improving high frequency details.

The JH5 features a detachable 0.78mm 2-pin cable, providing numerous options for future upgrades. The 0.78 2-pin connector housings are angled, and the cable ergonomically hugs your ear for a comfortable listening experience.


Technical data

  • Driver: 10mm carbon-based dynamic driver*1
  • Custom balanced armature driver for mid and high frequencies*2 S
  • pecial balanced armature for ultra-high frequencies*2
  • Frequency response: 20Hz-40kHz
  • Impedance: 13Ω@1kHz
  • Sensitivity: 111dB/mW@1kHz
  • Cable material: 4 strands with a total of 392 wires made of silver-plated copper
  • Cable length: Approx. 1.2m
  • Weight: Approx. 7.6g (without cable)
  • Headphone jack: 0.78 2pin detachable cable
  • Audio plug: High quality gold-plated copper 3.5mm

.

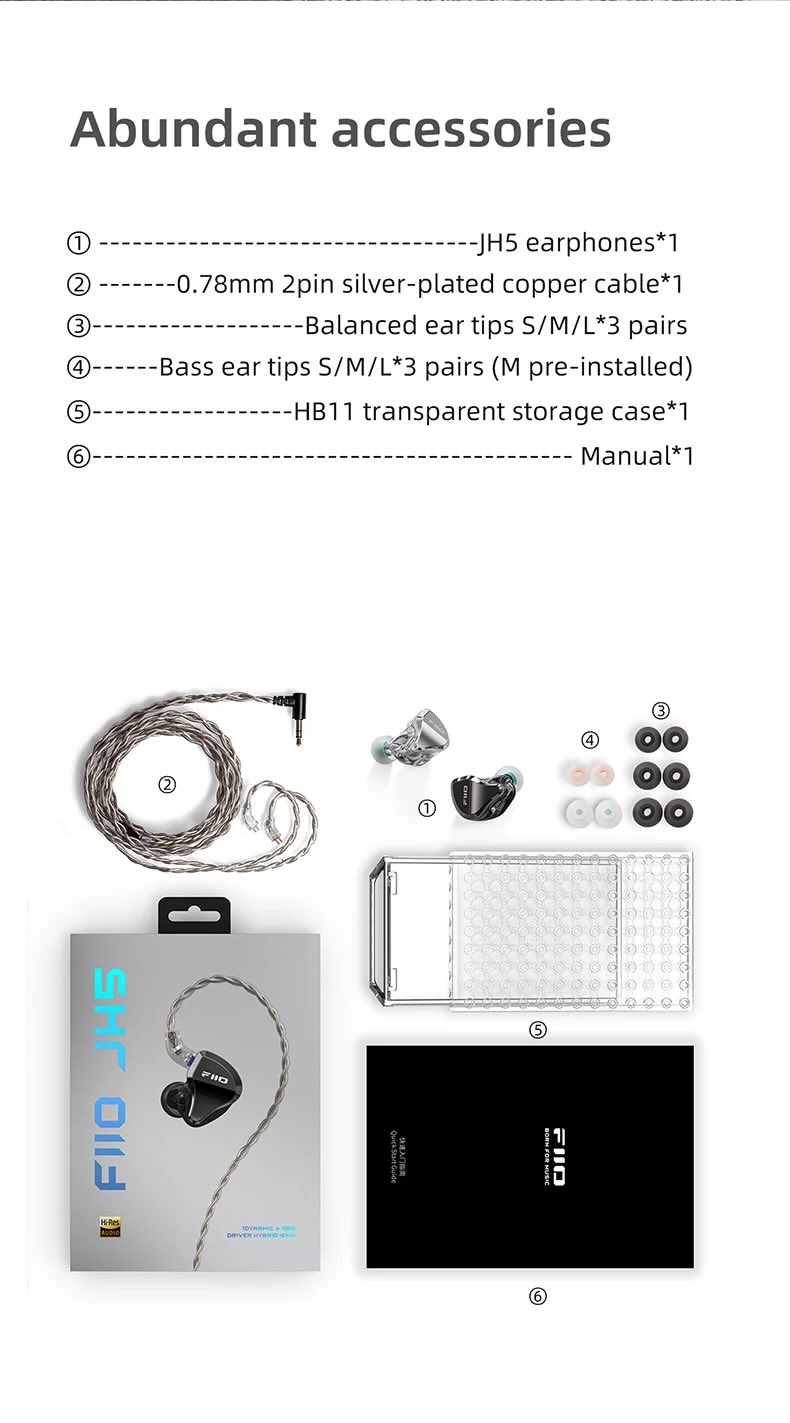

Scope of delivery

JH5 earphone*1 0.78mm

2-pole silver-plated copper cable*1

Balanced eartips S/M/L*3 pairs

Bass eartips S/M/L*3 pairs (M pre-installed)

HB11 transparent storage case*1

User manual*1
