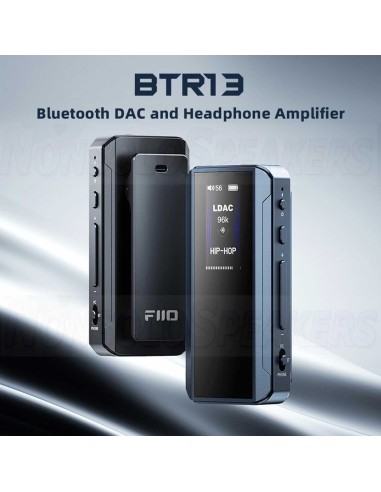

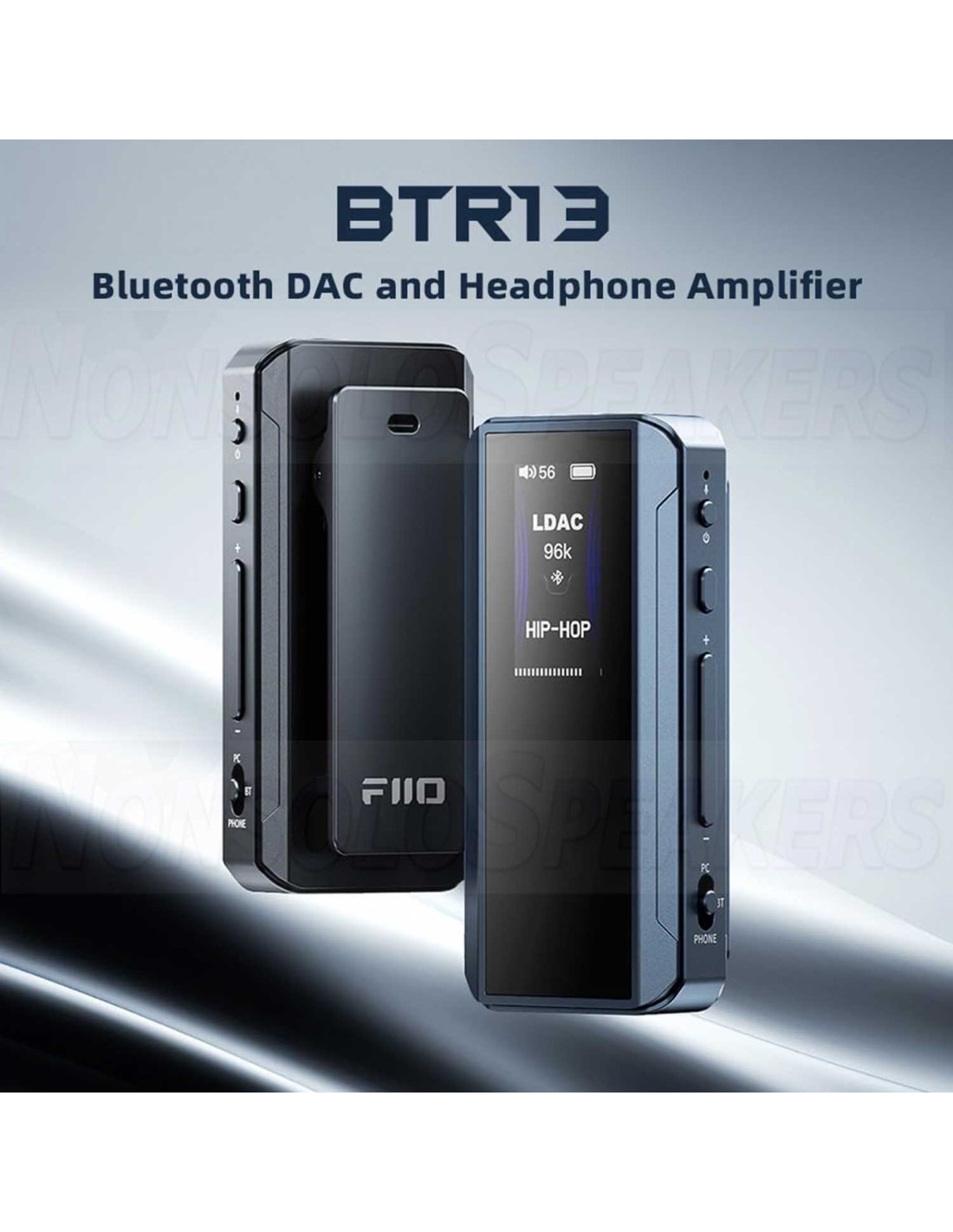

Fiio BTR13 Portable Bluetooth DAC and Amplifier

Fiio BTR13 Portable Bluetooth DAC and Amplifier

The FiiO BTR13 is a compact, high-performance Bluetooth DAC and headphone amplifier designed to significantly improve the audio quality of smartphones, computers, and other digital devices. Thanks to its versatility, it can function both as a USB sound card for PCs and Macs, as well as an advanced Bluetooth decoder or sound dongle for phones, delivering clean, powerful, and detailed sound in any usage scenario.

At the heart of the BTR13 is a fully balanced CS43131 dual DAC configuration, which ensures audiophile-grade digital-to-analog conversion with extremely low noise and high dynamic range. Support for high-definition Bluetooth codecs, including LDAC, enables stable, superior-quality wireless transmission, bringing wireless listening closer to wired listening. Output power of up to 220 mW easily drives a wide range of headphones, even the most demanding models, while maintaining control and precision across the entire frequency range.

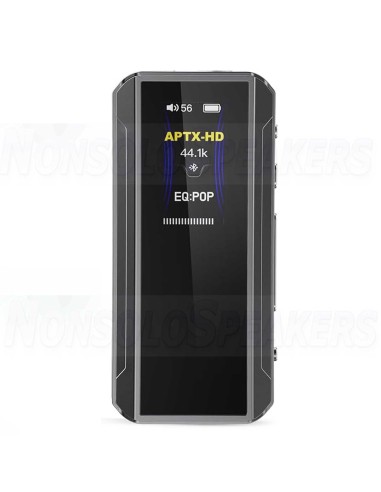

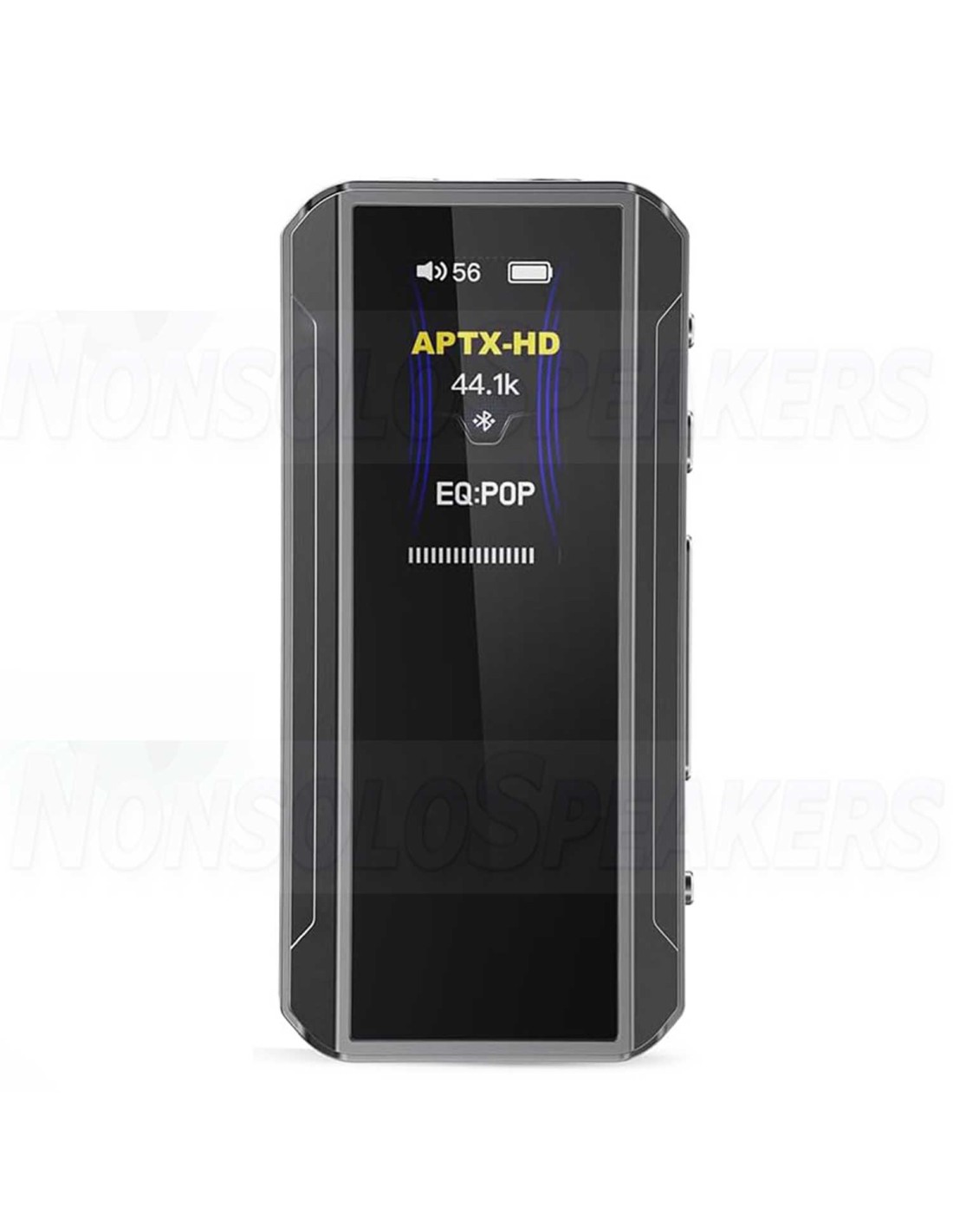

The FiiO BTR13 features dual 3.5mm and 4.4mm balanced headphone outputs, offering maximum compatibility and flexibility for any type of portable setup. The user experience is further enhanced by the large and easy-to-read 0.96-inch IPS color display, which allows you to easily monitor codec, volume, and settings. The presence of global PEQ allows for advanced sound customization, adapting it to your preferences or the characteristics of the headphones used.

.

One device, multiple uses

The FiiO BTR13 is an extremely versatile portable DAC/amplifier. Thanks to its three-position selector, it can operate in PC, Bluetooth, or Phone mode, perfectly adapting to any usage scenario.

.

Total Sound Control

The BTR13 features an advanced PEQ (Parametric Equalizer), developed in-house by FiiO and easily configured via a dedicated app or web interface.

• Complete sound customization based on your preferences

• Ready-to-use FiiO presets or custom profiles uploadable online

• Quickly import optimized headphone profiles from leading brands

The integrated Qualcomm QCC5125 DSP enables PEQ processing up to 96 kHz, in both Bluetooth and USB DAC modes, while maintaining compatibility with high-resolution codecs such as LDAC.

.

Bluetooth e DAC USB Hi-Res

Equipped with the Qualcomm QCC5125 chipset, the FiiO BTR13 supports Hi-Res audio transmission up to 96 kHz, both in Bluetooth mode and as a USB DAC.

Compatibility with advanced codecs like LDAC ensures detailed, natural, and faithful reproduction of the source on computers, smartphones, and portable devices.

.

Maximum compatibility and performance

The BTR13 offers dual headphone outputs to suit any setup:

• 3.5 mm single-ended Power: 100 mW @ 32 Ω

• 4.4 mm balanced Power: 220 mW @ 32 Ω

The 4.4 mm balanced connector, more robust and reliable than the 2.5 mm, ensures cleaner signal transmission and greater output power.

.

Superior audio quality, even in the car

Car Mode allows the BTR13 to automatically turn on and off with your car, while also improving the sound quality of your vehicle's audio system.

A practical and intelligent solution to transform every journey into a high-fidelity listening experience.

.

Package Contents

BTR13 x 1

Screen Protector (pre-installed) x 1

Dual Type-C Data Cable x 1

Long Lanyard x 1

Quick Start Guide x 1

Warranty Card x 1
