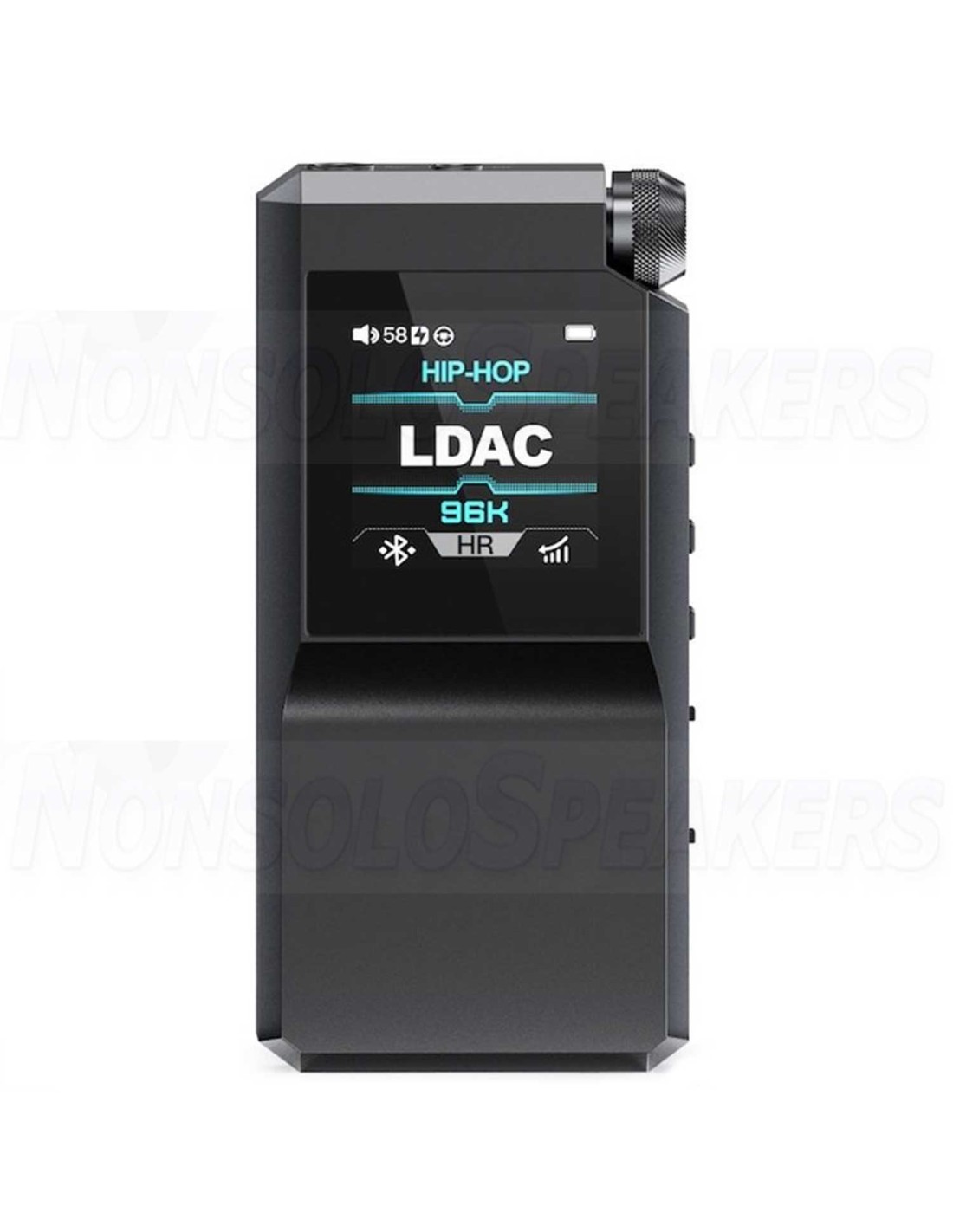

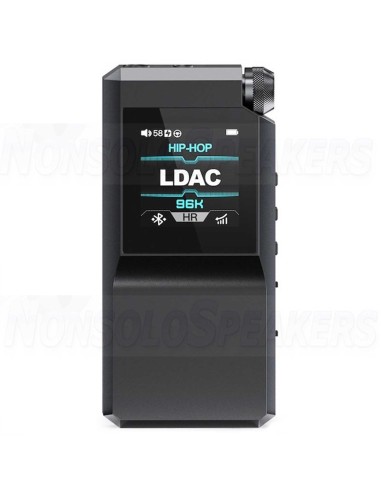

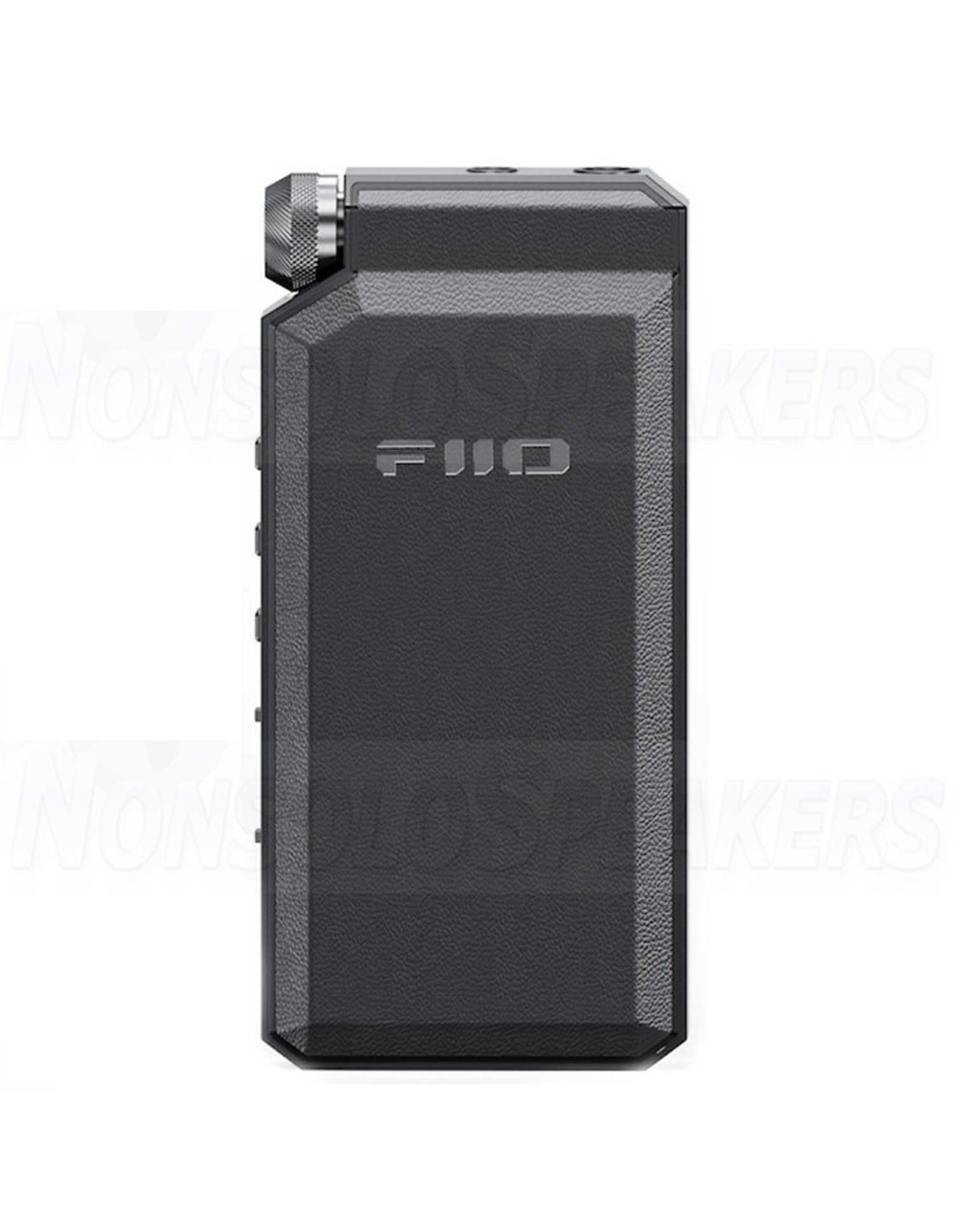

FiiO BTR17 - BLACK Portable Bluetooth Amplifier

.

The FiiO BTR17 is an advanced portable DAC and headphone amplifier combination, designed for those who demand near-desktop-level audio performance on the go. At the heart of the system is the flagship Qualcomm QCC5181 Bluetooth platform with support for version 5.4, ensuring stability, efficiency, and compatibility with advanced codecs such as LDAC and aptX Lossless for ultra-high-fidelity wireless transmission.

The dedicated knob control adds an immediate and professionally refined user experience. In desktop mode, this device delivers an output power of over 650 mW per channel (on two channels), thanks to the presence of two top-of-the-line ES9069Q DACs in a dual configuration.

The multi-stage audio architecture, including four-way balanced amplifier stages with THX AAA 78+ technology, ensures wide dynamic range, ultra-low distortion, and impeccable signal control. To ensure a customizable sound experience, the BTR17 integrates a high-precision 10-band parametric equalizer (PEQ) and a 16-core XMOS XU316 chip, which together enable complex audio processing and sound refinement according to the user's taste or the particularities of the headphones.

.

A true all-rounder

The FiiO BTR17 represents the evolution of FiiO's expertise in developing DACs and headphone amplifiers. In a compact and refined design, it integrates features typically found only in high-end devices: multi-stage audio architecture, precision-balanced power supply, and sound quality comparable to the best desktop players and DACs/amps. The BTR17 is a true master of versatility, ready to redefine the standards for portable Bluetooth amplifiers.

.

A New Era of Bluetooth

With the new flagship Qualcomm QCC5181 Bluetooth chip, the BTR17 ushers in a new generation of lossless audio transmission. This chip supports the Bluetooth LE Audio standard, a bandwidth of up to 2.1 Mbps, and lossless audio playback via aptX Adaptive, for CD-quality sound even when wireless.

Support for the LDAC and aptX Adaptive 96 kHz/24-bit codecs, combined with Snapdragon Sound technology, ensures a crystal-clear, high-resolution Bluetooth listening experience.

.

Patented Desktop Mode

The BTR17 includes a convenient D.Mode (Desktop Mode) switch and a dedicated port for connecting an external power supply. In this mode, when you connect the device to your PC or smartphone as a USB DAC/amplifier, you can power it via the dedicated power port. This prevents overcharging or over-discharging the internal battery and maximizes audio output without draining the battery of the connected device.

.

Three operating modes in a single switch

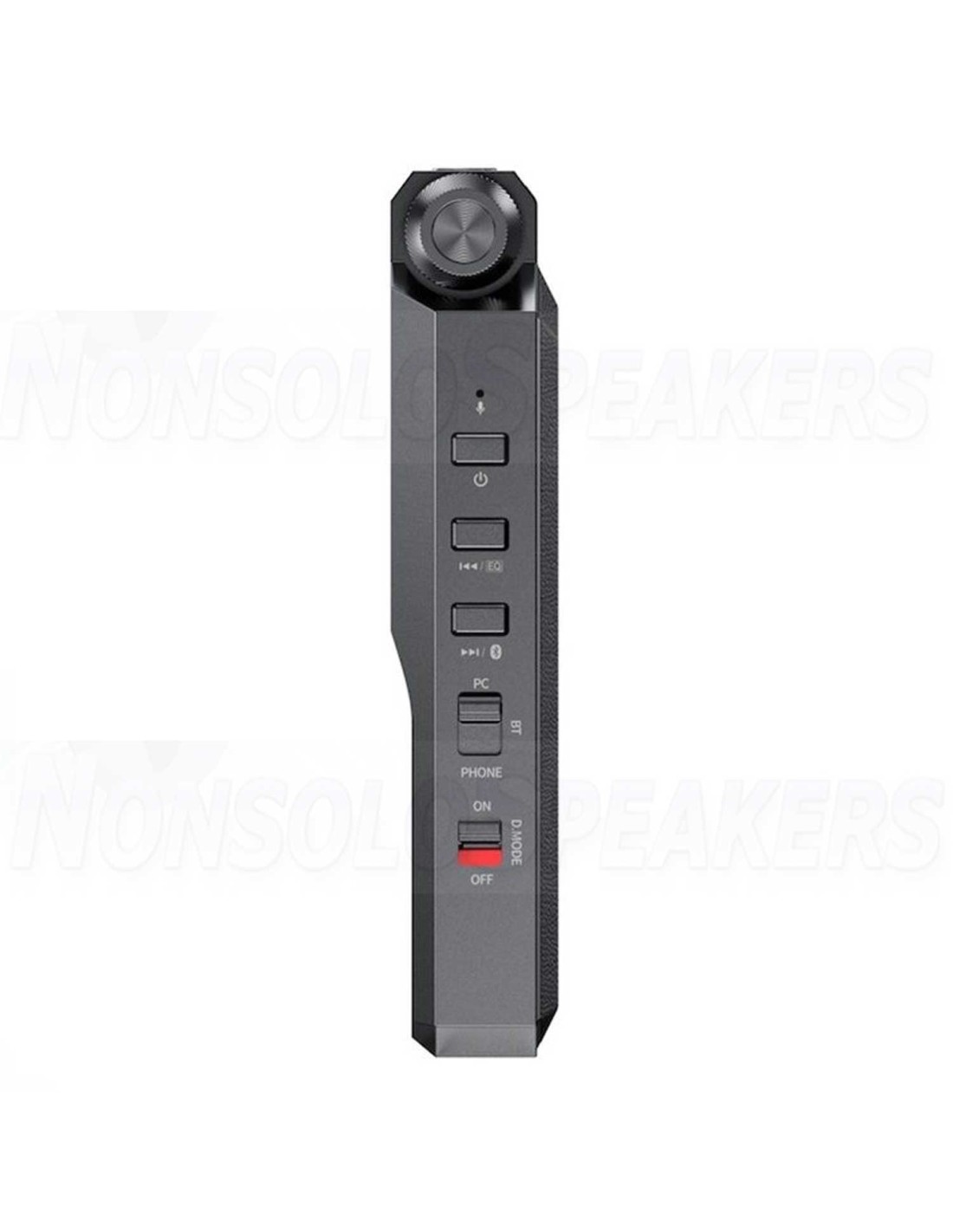

Thanks to the three-position PC/BT/PHONE switch, the FiiO BTR17 instantly adapts to any use:

• PC (sound card): Powered directly from the computer.

• BT (Bluetooth DAC and amplifier): Powered by the internal battery, with USB charging.

• PHONE (smartphone connection): The internal battery provides power, reducing phone consumption. An intelligent system to optimize power consumption and performance in every scenario.

.

Powerful Amplification

In Desktop mode and with USB power connected, the integrated THX module uses four op-amps in parallel for high-performance current signal amplification. The result is an output power of up to 650 mW + 650 mW (balanced), a 203% increase over the BTR7, comparable to that of high-end desktop amplifiers

.

Premium Style

3D-Engraved Push-Pull Volume Knob

The FiiO BTR17 also stands out for its premium volume knob design, embellished with 3D engraving on both sides. Every press and rotation feels solid and precise, a testament to the craftsmanship with which it was crafted.

Reliability and Durability

The knob is designed to withstand over 50,000 presses and 40,000 rotation cycles, ensuring smooth, stable, and long-lasting control even after years of intensive use.

.

New Intuitive Interface and 1.3" Color Display

The FiiO BTR17 introduces a completely redesigned user interface, made possible by the 1.3-inch IPS color display. The screen supports English and Chinese language display and changes font color based on the audio format being played, offering a dynamic and informative visual experience. The entire design has been carefully considered for simple and immediate use, allowing you to easily monitor the device's status at all times.

.

Package Contents

1 BTR17 x 1

2 Leatherette Case x 1

3 Custom-designed Short Type-C Dual OTG Data Cable x 1

4 Quick Start Guide x 1

5 Warranty Card x 1

6 PET Screen Protector (Pre-installed) x 1
