SMSL C200 ES9038Q2M DAC Headphone Amp

S.M.S.L presents you its advanced Desktop DAC, the C200 with mini size design, very suitable for desktop use. The device is loaded with a ESS Technology high-end D/A chip ES9038Q2M and Qualcomm latest Bluetooth chip.

-

Highlights

• Mini size design, very suitable for desktop use;
• CNC integrated milling process, simple and stylish;
• ESS Technology high-end D/A chip ES9038Q2M;
• Audio clock processing circuit, greatly reducing the clock jitter;
• Built-in specially designed low-noise switching power supply;
• High-quality gold-plated input and output connection terminals;
• Japan Audio Association (JAS) Hi-Res certification;
• Equipped with full-function remote control.

.

Product Details

• Article number C200
• Product type DAC | BT | Headphone Amp
• Wireless Connectivity Bluetooth 5.0 (LDAC, APTX/HD, SBC, AAC)
• DAC Chipset ES9038Q2M

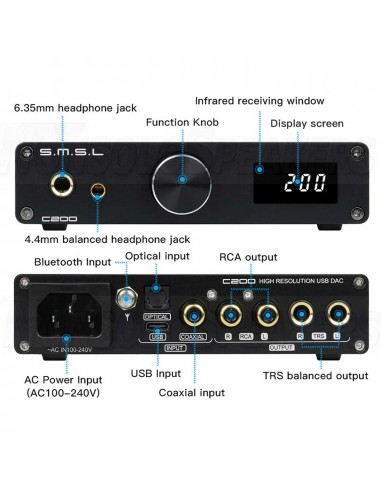

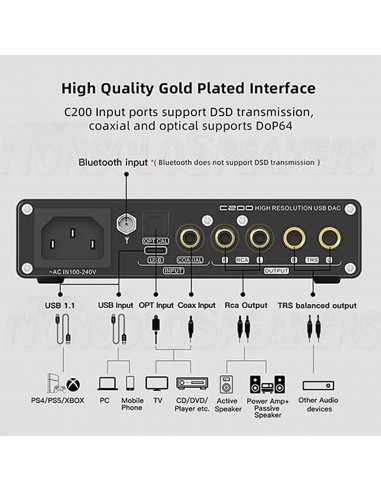

• Inputs USB / Optical / Coaxial / Bluetooth
• Outputs 6.35mm headphone / 4.4mm headphone / TRS / RCA
• THD(+N) Line out 0.0001% (-120dB) | HP out 0.00013% (-117dB)
• Dynamic Range TRS: 126dB | RCA: 125dB | HP out: 123dB
• SNR TRS: 126dB | RCA: 124dB | HP out: 123dB
• USB Compatibility Windows 7/8/8.1/10/11(Needs Driver), Mac OSX10.6 or Later, Linux(Driverless)
• Processing resolution & sample rate USB: 44.1~768kHz | Optical / Coaxial: 44.1~192kHz
• Headphone amplifier output power 16Ω 2.6Wx2
• Power consumption 5W
• Standby power consumption <0.5W
• Dimensions 139x32x147.5mm (WxHxD)
• Weight 510g

.
