SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit DSD512 MQA

S.M.S.L presents you its advanced Desktop DAC, the DO200 with full MQA decoding support. The device is loaded with a top-quality ES9068AS*2 Dual DAC chipset that delivers astounding performance with ultra-low distortion ratings. DO200 is designed with ultimate components to ensure high-quality performance. It is among the only few DAC’s in the market that supports MQA decoding in all input interfaces.

-

Highlights

• High-Quality ES9068AS ESS Sabre DAC chip
• Full MQA decoding support
• Premium audio components including high-end OPA1612 OPAMPs
• Latest XMOS XU216 16-core USB Processor
• High-resolution audio signal decoding including PCM 32-Bit/768kHz and native DSD512
• Qualcomm’s latest Bluetooth chip
• High-quality gold-plated input and output ports
• 1.9” TFT LCD display
• Ultra-low clock jitter
• MQA support across all input interfaces
• DSD decoding across all inputs, coaxial and optical supports DoP64

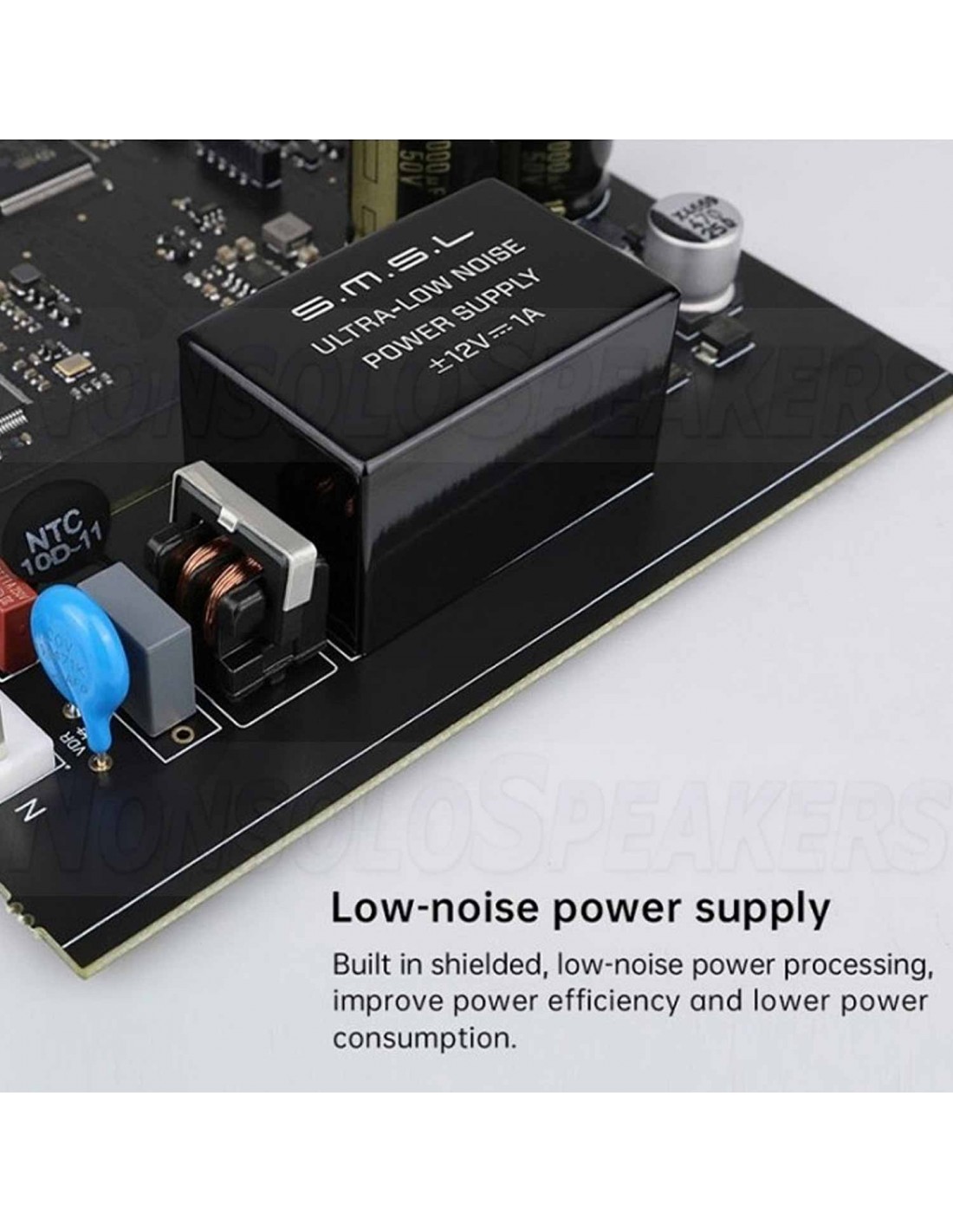

• Improved power efficiency with built-in shielded low-noise power supply
• Specially designed discrete component linear regulated power supply
• Fully-functional remote control
• JAS Hi-Res certification
• Version: mk1/mki

.

Product Details

SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA

SMSL offers with its DO200 a small, powerful and complete DAC. Its digital/analog conversion stage is equipped with a 2x ESS9068AS DAC chip, able to offer a transparent, rich, and precise sound reproduction. Added to this DAC is an excellent XMOS XU216 USB interface. The association of these two components allows the support of high sampling rates, up to PCM 32bit 768kHz, DSD512 as well as the decoding of MQA files.

.

MQA Decoding

MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers, or rights holders. These files are light enough to stream or download. The DO200 incorporates an MQA decoder to read these files in order to provide the best possible audio quality.

.

Bluetooth 5.0 - QCC5125

Particularly practical, the DO200, in addition to its connectivity, is equipped with a Bluetooth 5.0 receiver from Qualcomm. This one supports the classic codecs SBC and AAC, as well as the high-quality codecs aptX, aptX-HD, and LDAC, allowing to reach restitution close to that of the CD, in wireless.

.

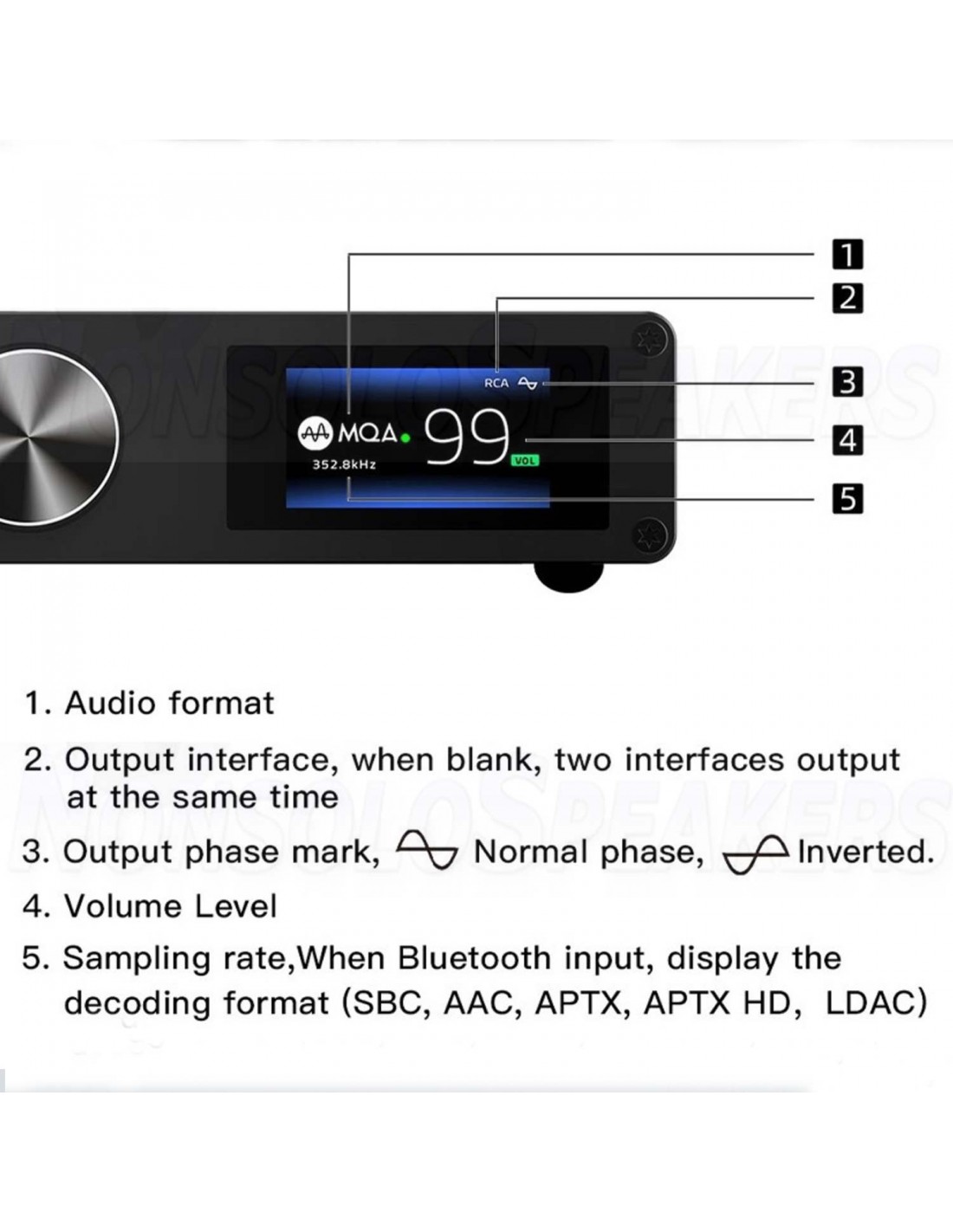

A readable and practical screen

The DO200 is equipped with a beautiful, bright, and readable display, protected by a tempered glass window. It clearly displays all the essential information for the comfortable use of the device.

.

Flexible connectivity

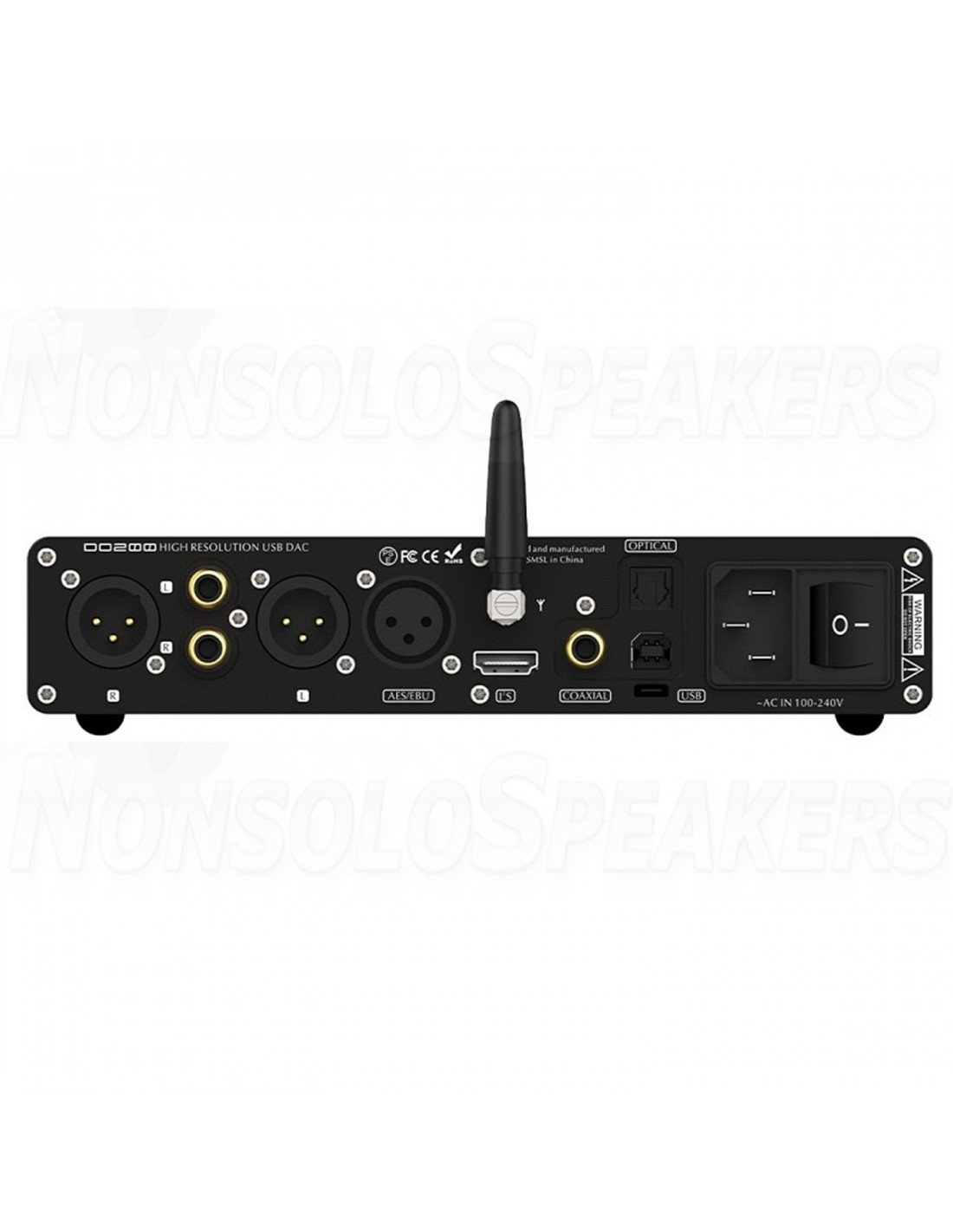

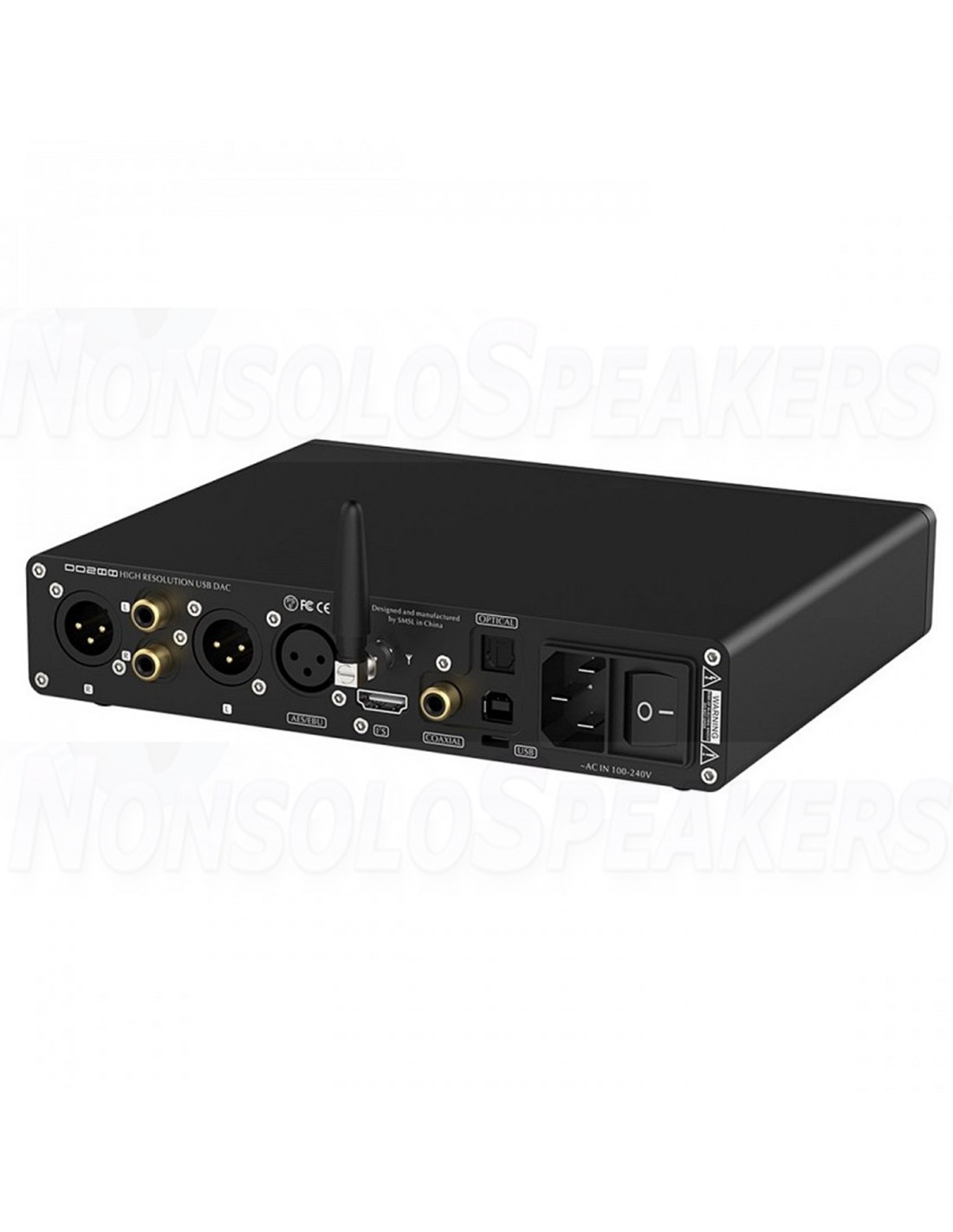

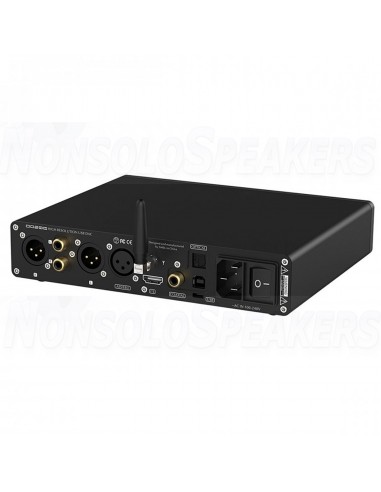

The back of DO200 reveals a particularly complete connection, allowing the DAC to adapt to the great majority of audio systems. On the input side, we find USB-B, I2S via HDMI, AES/EBU, Optical, Coaxial, and of course Bluetooth. On the output side, the DO200 provides single-ended stereo RCA and balanced stereo XLR.

.

Specifications

Product type: DAC

DAC Chip: 2x ES9068AS

Inputs: Bluetooth 5.0, 1x AES/EBU, 1x I2S via HDMI,1x Coaxial,1x USB-B, 1x Optical Toslink

Outputs: 1x Single-ended stereo RCA, 1x Balanced stereo XLR

THD+N: 0.00008% (-122dB)

Dynamic range: XLR : 129dB, RCA : 125dB

SNR: 129dB

Output impedance: < 10Ω

USB transmission mode: Asynchronous

Supported sampling rates: USB, I2S : PCM up to 32bit 768kHz, DSD up to DSD512; Optical, Coaxial, AES/EBU : PCM up to 24bit 192kHz, DSD DoP up to DSD64

Supply voltage: 100-240VAC (Power cable included)

Consumption: 5W

Standby consumption: < 0.5W

Remote: Yes

Housing material: Aluminum

Color: Black

Article number DO200

Wireless Connectivity Bluetooth 5.0 (APTX/HD, SBC, AAC)

Codec support MQA DSD512 PCM

USB Compatibility Windows 7+ Mac OSX Linux

Processing resolution & sample rate > 32-bit / 768 kHz (USB, I2S) > 24-bit / 192 kHz (TOSLINK, COAX, AES/EBU) DSD64

Dimensions 210 x 40 x 170 mm

Weight 1200 gr.

.

What’s In The Box

1x SMSL DO200

1x Remote control

1x Antenna

1x USB Cable 1x Power cable
