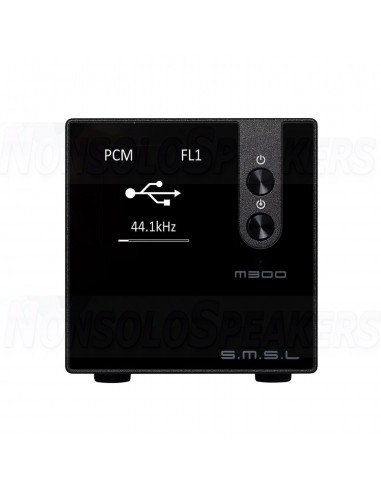

SMSL M300 MKII Bluetooth Audio DAC

The M300 MKII is a high-end DAC that falls on the new generation of SMSL balanced audio DAC. Contains the AKM's flagship audio DAC AK4497, Ultra-high SNR, ultra-low distortion, supports DSD and using Bluetooth 5.0 apt-X for faster transmission speed and better sound quality.

-

Highlights

• Full Balanced output
• Bluetooth 5.0
• Full-featured remote control
• DSD512, Native DSD

.

Product Details

SMSL Sanskrit 10th MKII Small desktop AK4493 Audio DAC

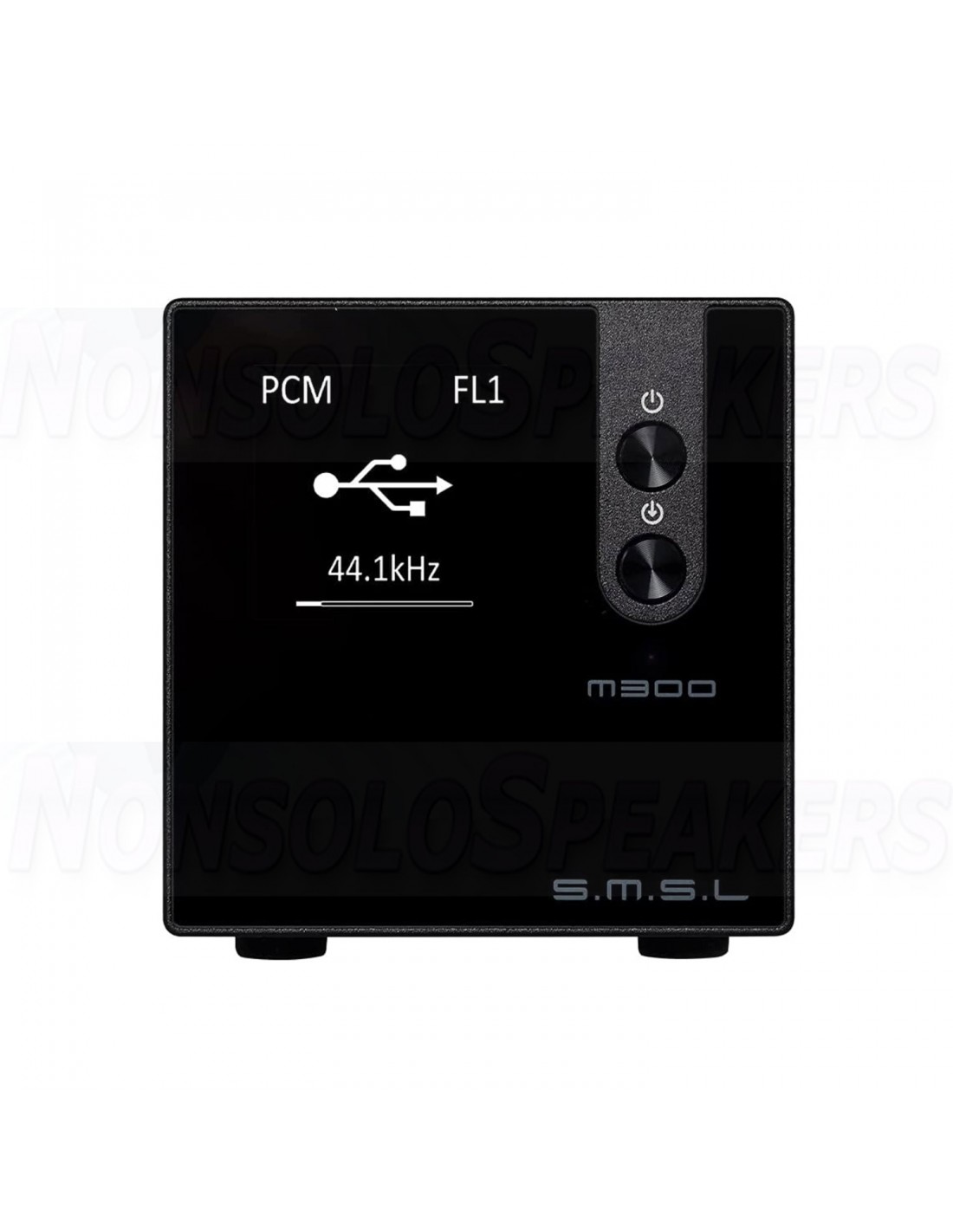

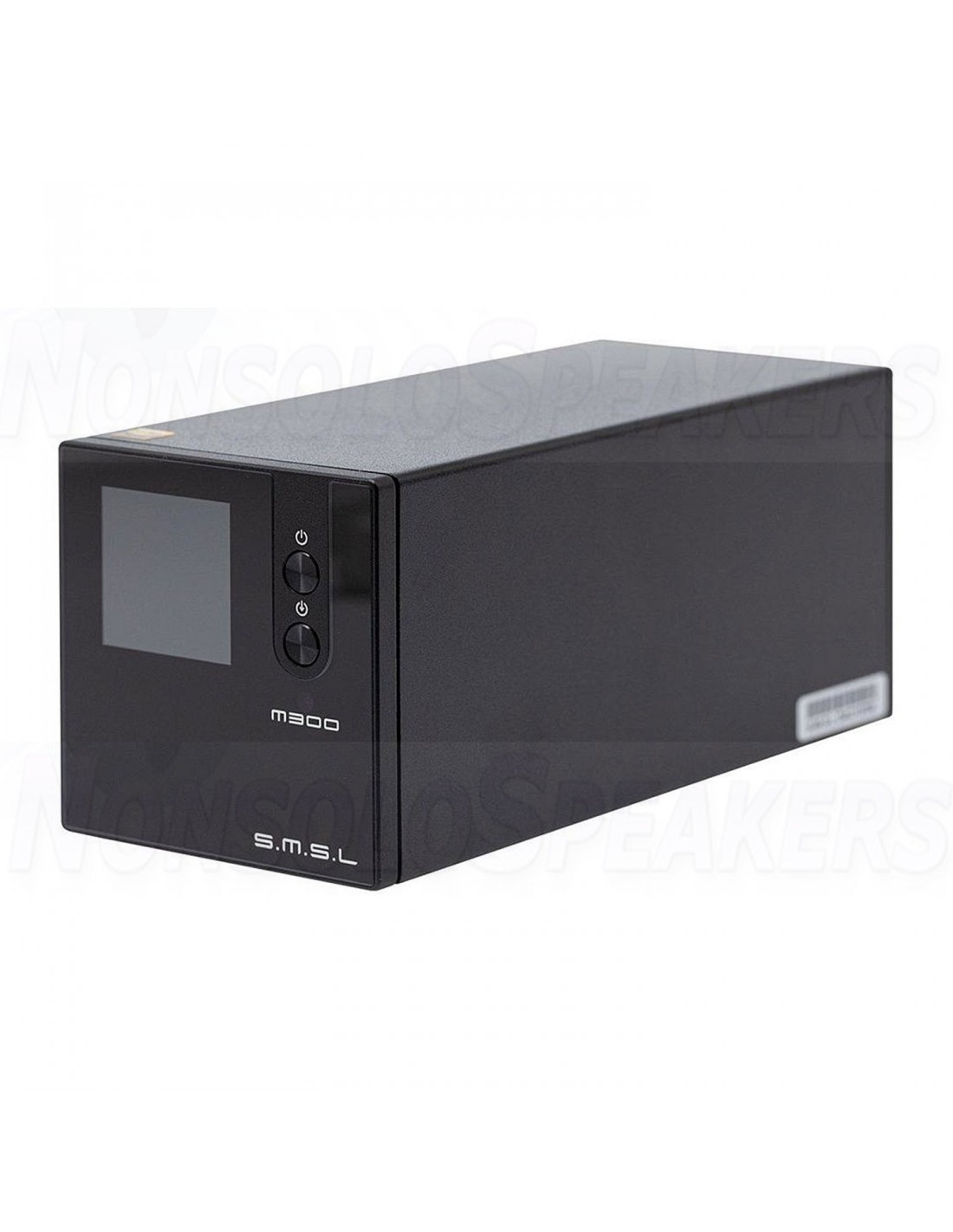

New series ID design, with glass panel, stylish and long life.

AKM's flagship audio DAC AK4497, Ultra-high SNR, ultra-low distortion, support DSD. The 2nd XMOS solution, PCM supports up to 32bit/768kHz, and DSD supports up to DSD512, a custom driver for Native DSD . Two ultra-low phase noise crystal for 44.1/48kHz multiple frequencies. Built-in high-efficiency power module and lots of low-noise LDOs provide pure power for the analog circuits. Lots of audio grade components, include MELF resistors, NP0 capacitor, Gold-plated jacks. Use a 1.9inch high-resolution full-view color IPS display, and the user can choose the color of fonts. True balanced output and high-quality XLR connector. 6 digital filters for different music listening. Full aluminum CNC milling chassis.

.

Specifications

Article number M300 MKII

Product type Audio DAC

Wireless Connectivity Bluetooth 5.0

DAC Chipset AK4497

Codec support DSD512

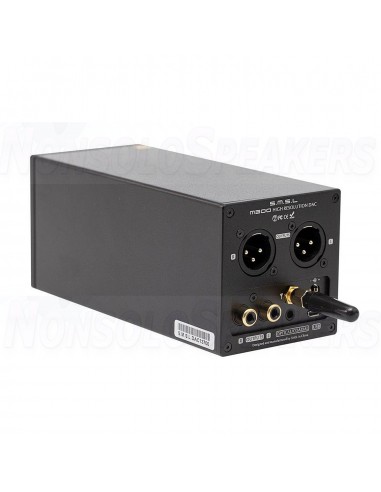

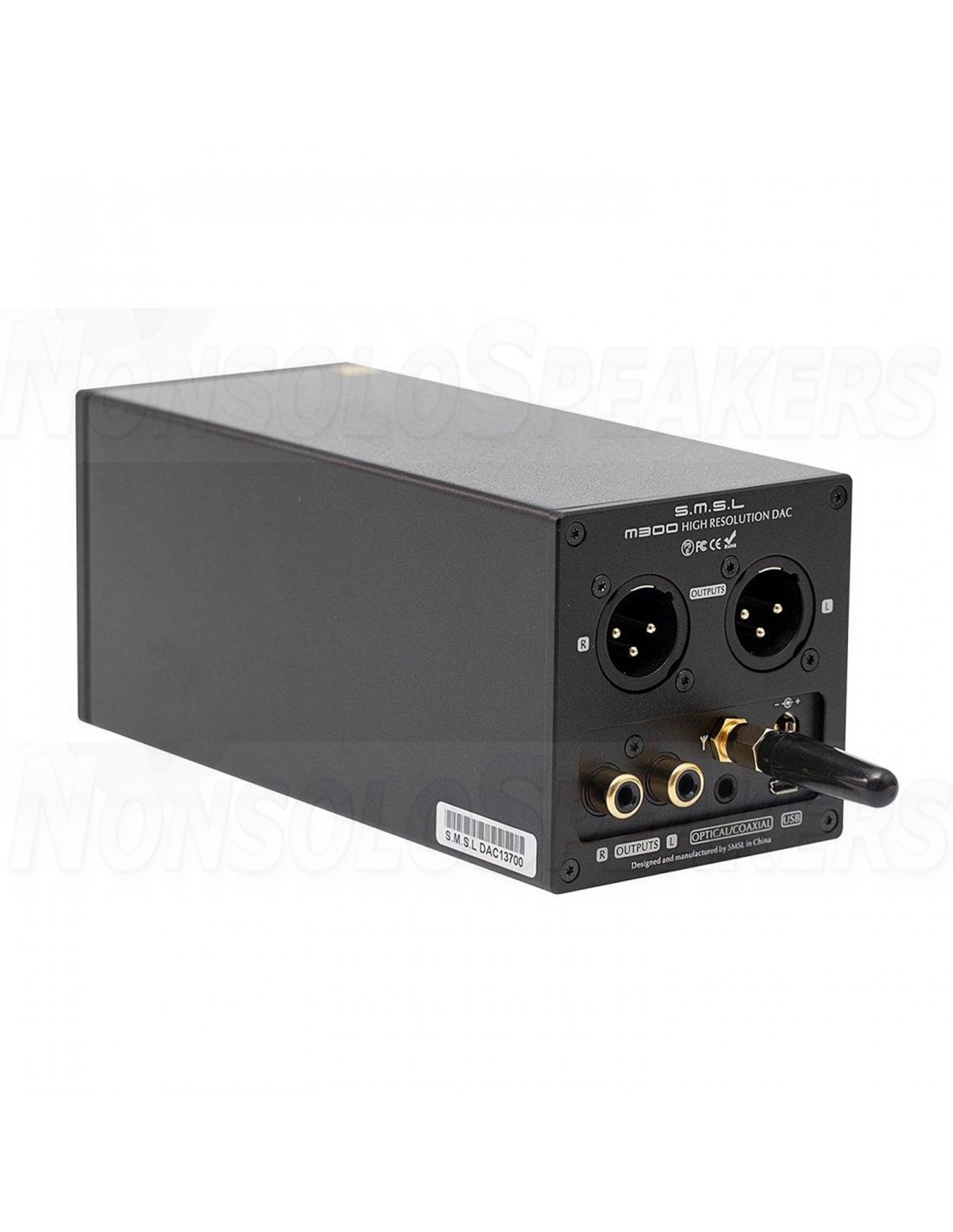

Inputs 1 x USB 1 x Optical 1 x Coaxial

Outputs 1 x RCA 2Vrms 1 x XLR 4Vrms

THD(+N) 0.0004%

Dynamic Range XLR : 123dB RCA : 120dB

SNR 116dB

USB Compatibility Windows 7+ Mac OSX Linux

Processing resolution & sample rate > 32-bit / 768 kHz (USB) > 24-bit / 192 kHz (TOSLINK, COAX) DSD512

Power requirements USB powered

Power consumption 1,8 watts

Standby power consumption < 0.1 watts

Remote control Yes

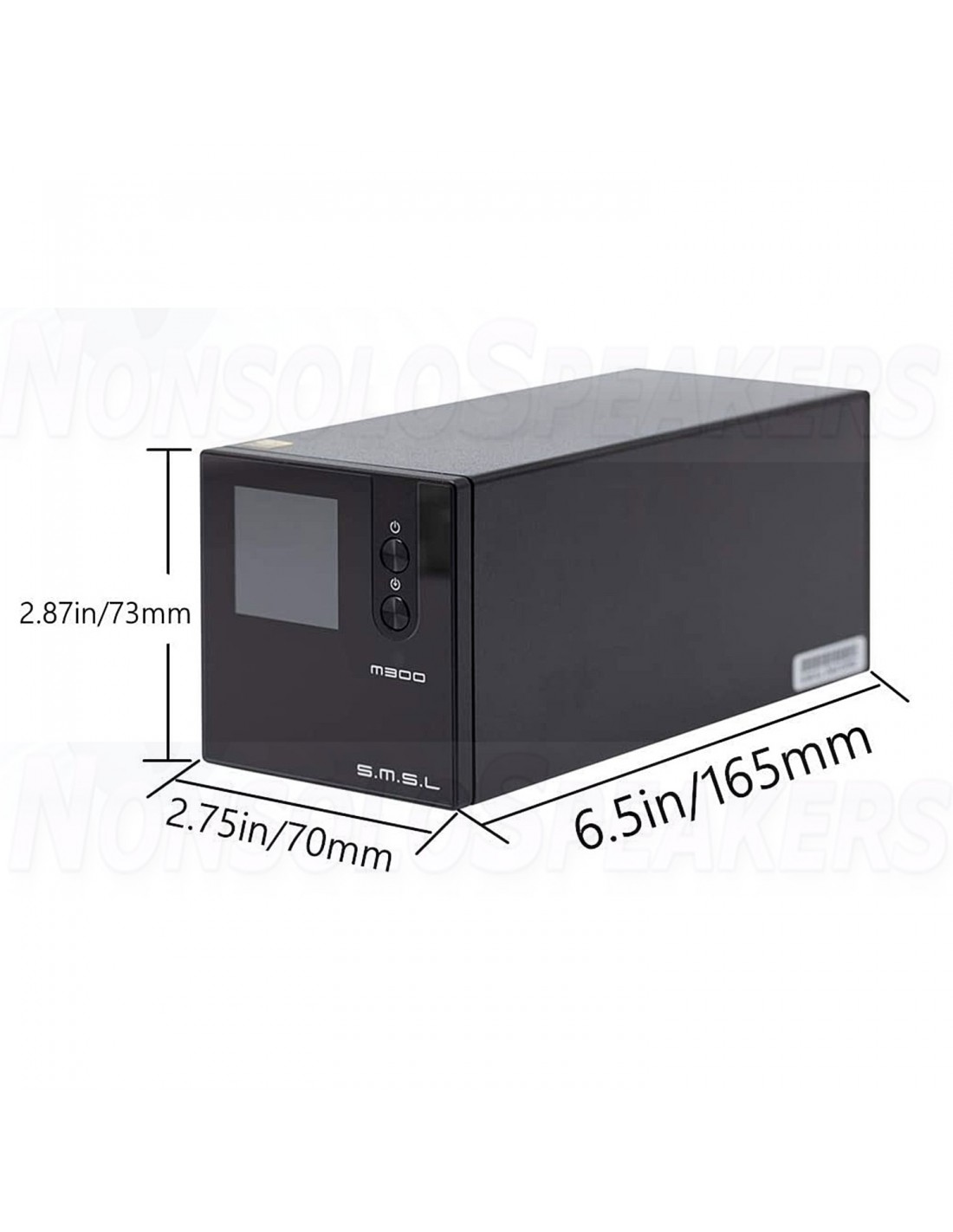

Dimensions 70 x 70 x 160 mm

Weight 500 gr.

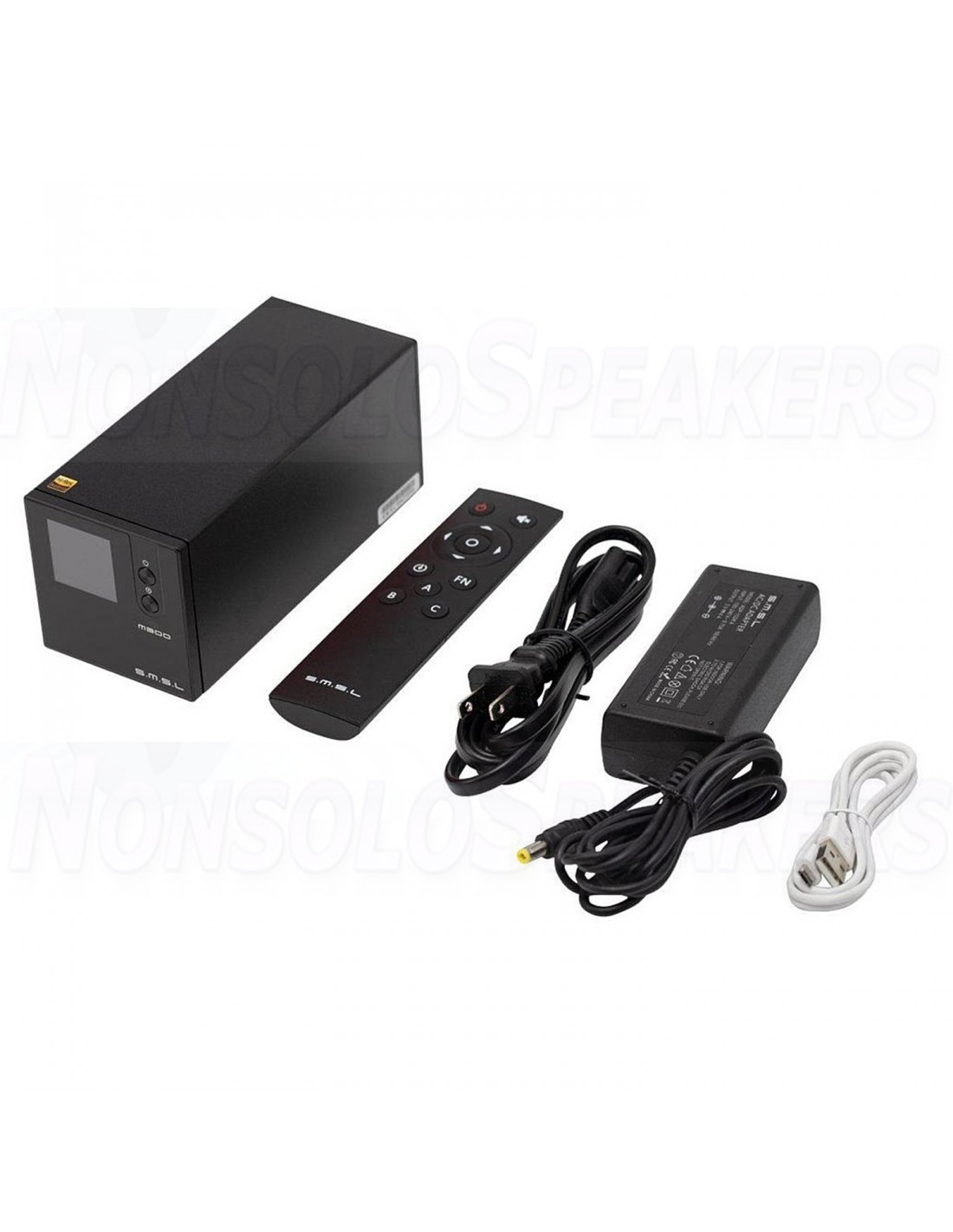

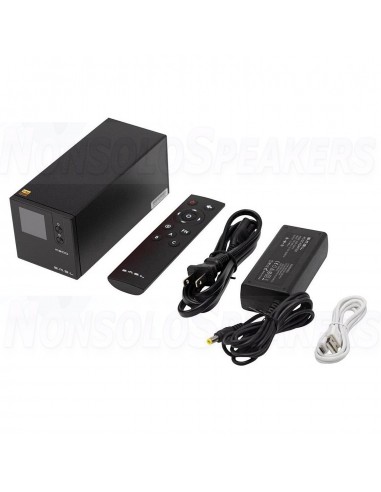

What’s in the Box?

1x SMSL M300 MKII

1x Power supply

1x Remote Control

1x Antenna

1x Optical cable

1x Jack 3.5mm to RCA cable

1x Micro USB to USB-A cable
