miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP

All digital floating point room correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy aluminum enclosure.

.

Highlights:

  • Room correction with FIR filtering
  • Convolution engine for advanced/Custom filters
  • 2 way advanced filter engine
  • System equalization
  • Coupon for one free Plug-in download

.

Product details:

miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP
Introducing the OpenDRC platform, a new range of digital audio processor with floating point capabilities for an Open Digital Room Correction (DRC) community. Powered by Analog Devices ADSP21369 Sharc DSP, the OpenDRC engine easily handles complex audio filtering processing such as room correction, FIR crossover filtering, reverb engines... Flexibility, high performance and low cost are the obvious hallmarks of the OpenDRC series.

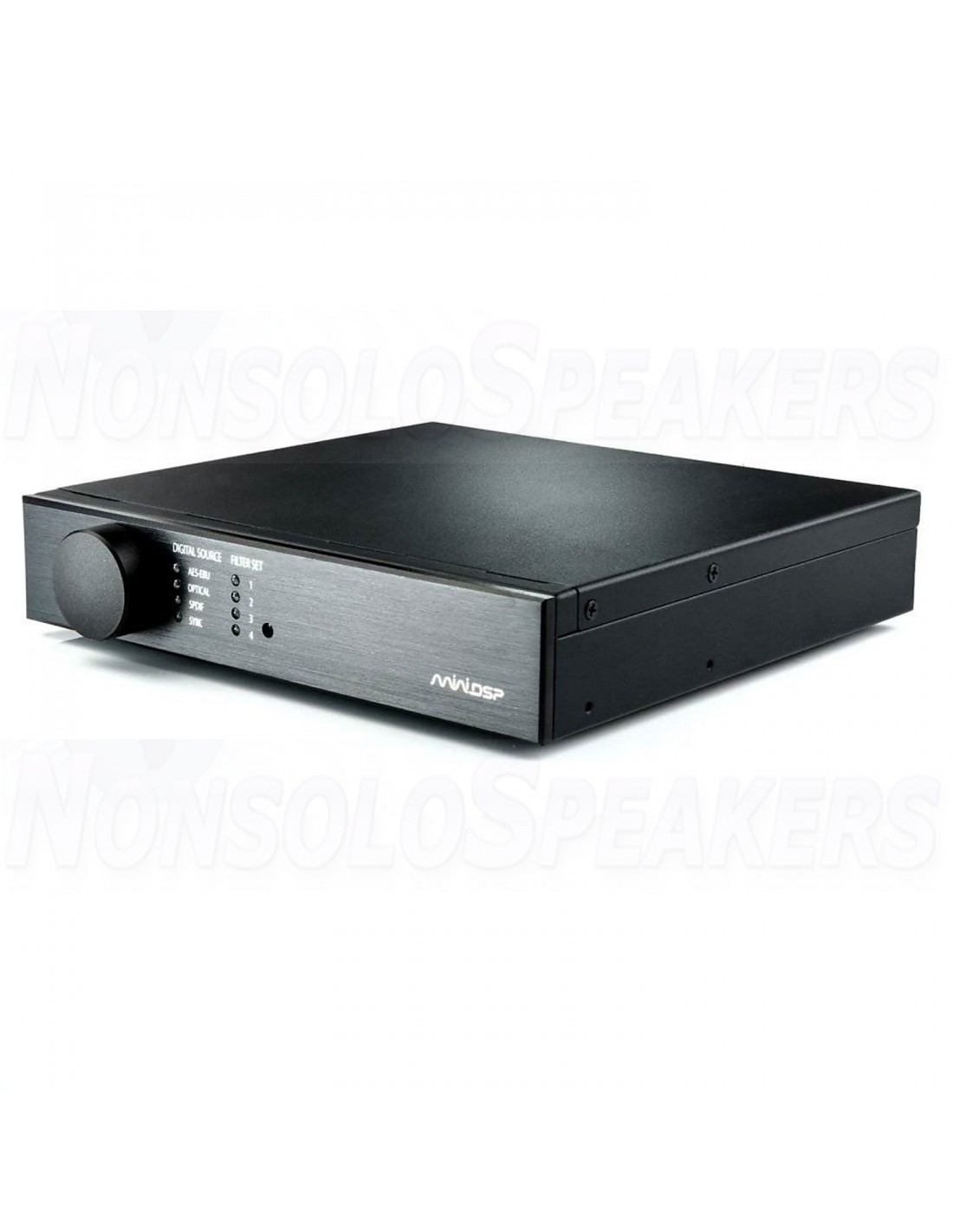

As an all-digital solution, the OpenDRC-DI (DI for Digital) carries the most common stereo digital audio formats (AES-EBU, SPDIF and Toslink) to match your existing equipment. Combined with an high quality Asynchronous Sample Rate Converter, the processor also easily adapts to any sample rate. The IR learning remote feature and/or rotary encoder will allow control of your source, active preset or master volume without the need of any PC once the unit configured.
Last but not least, the OpenDRC-DI follows the footstep of our proven miniDSP concept: "One hardware, many plug-ins". An easy to use platform that received praised for its simplicity of use. By setting some strategic partnership with 3rd party software developers, the OpenDRC takes it one step further. From advanced room correction to full featured linear phase crossover, miniDSP products provide an exciting range of audio processing solutions. A convolution engine without a PC in your system.
Looking for an Analog IN, Analog OUT solution? You may want to consult the OpenDRC-AN version instead.

.

Specifications:

  • Article number OpenDRC-DI
  • Device type Boxed
  • Device serie OpenDRC Series
  • DSP chip Analog Devices ADSP21369
  • Processing resolution & sample rate 32 bit / 48 - 96 kHz
  • Input / ouput configuration 2 / 2

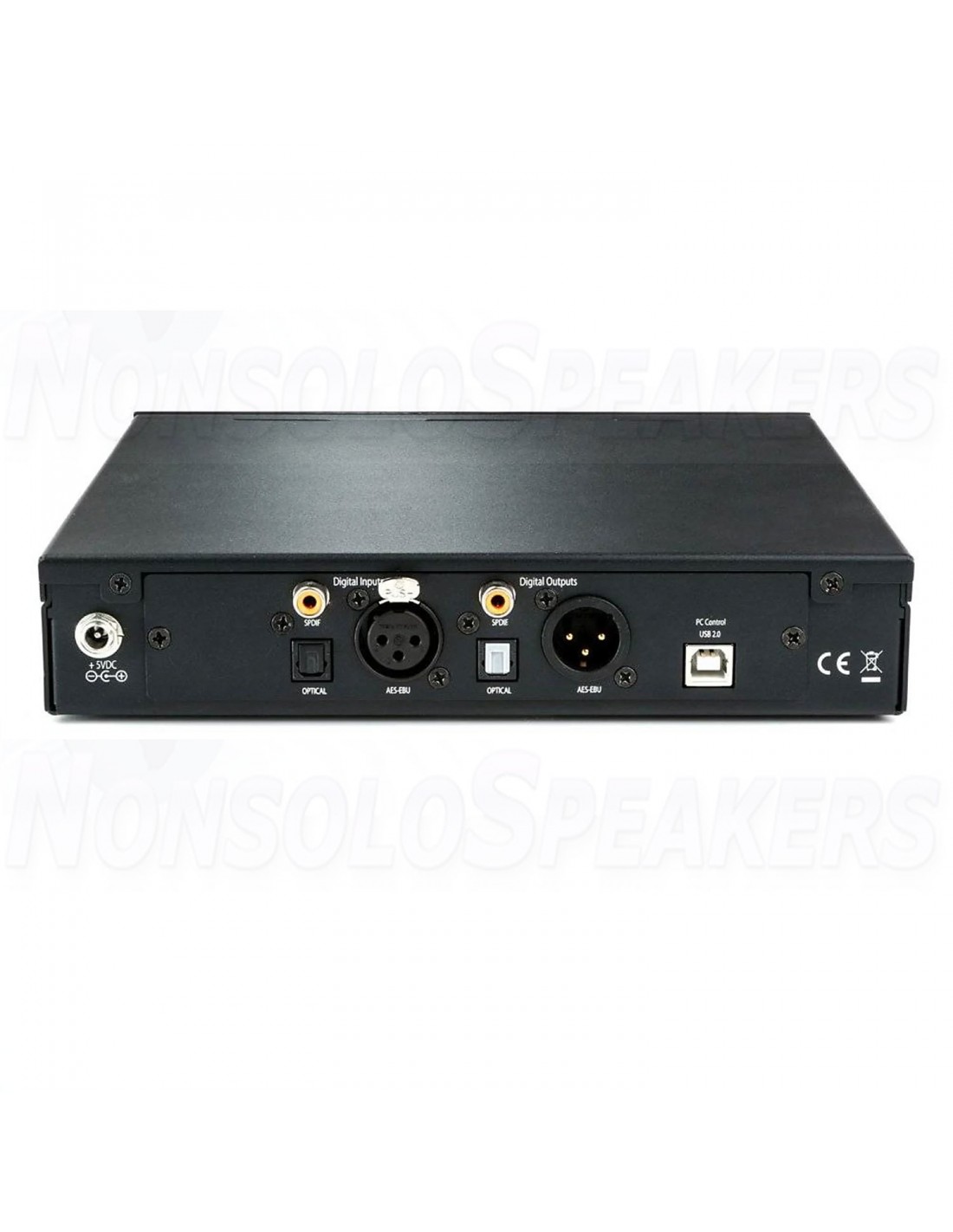

  • Audio input connectivity AES/EBU, SPDIF, TOSLINK
  • Audio output connectivity AES/EBU, SPDIF, TOSLINK
  • Max input level -
  • Max output level -
  • Input impedance -
  • Output impedance -
  • Calibration software miniDSP OpenDRC plug-in
  • IIR
  • FIR
  • Dirac Live® -
  • DSP presets 4
  • Impulse response correction
  • Infrared remote learning
  • Windows / Mac compatible /
  • UMIK-1 included No
  • Room EQ wizard support
  • Dimensions 200 x 180 x 52 mm
  • Power 5 VDC

.

What's included in the box?

  • 1 x OpenDRC-DI boxed in aluminum enclosure
  • 1 x USB cable Type B
  • 2 x Optical cables
  • 1 x Universal 5VDC power supply with interchangeable plugs for UK/EU/US/AU
  • 1 x Coupon code for miniDSP plugin download.

miniDSP OpenDRC-DI
New
848791005329
