SMSL M500 MKIII Balanced MQA Audio DAC Headphone Amplifier

The M500 MQA is the result of ten years of ingenuity, professional technoglogy with the attitude of presenting high quality hearing feast. The top performance D/A chip ES9038PRO from ESS Technology in combination with the high-performance power supply chip ES9311 gives you excellent performance while enjoying many features.

Estimated Shipping Costs
Shipping Costs
€18.00
Shipping Time
.
Want to check another country or courier?



SMSL M500 MKIII Balanced MQA Audio DAC Headphone Amplifier

The M500 MQA is the result of ten years of ingenuity, professional technoglogy with the attitude of presenting high quality hearing feast. The top performance D/A chip ES9038PRO from ESS Technology in combination with the high-performance power supply chip ES9311 gives you excellent performance while enjoying many features.

-

Highlights

  • More than 2W output power and less than 0.0001% distortion under 16 Ω load
  • 3 high-end dual op-amps OPA1612 and a lot of audio grade components are used

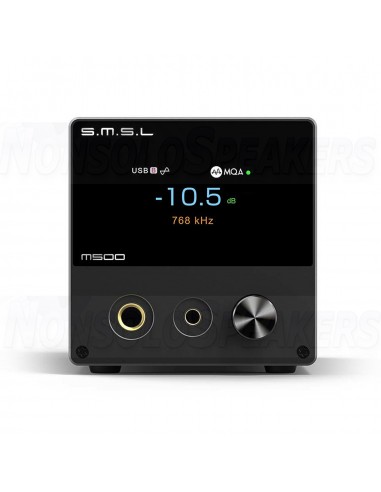

  • 1.9 inch TFT LCD display
  • JAS Hi-Res certification
  • Equipped with full-function remote control
  • D/A chip ES9038PRO from ESS Technology

.

Product details

SMSL M500 MKIII Balanced MQA Audio DAC Headphone Amplifier

Supports MQA decoding; The top performance D/A chip ES9038PRO from ESS Technology; The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms, to push ES9038PRO to the limit; XMOS XU-316, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512; Ultra-low phase noise and optimized clock processing circuit are used to achieve ultra-low clock jitter; All inputs support DSD streaming, including coaxial and optical (DoP64); Independent headphone volume design, does not interfere with the preamp volume; Special design of discrete components high current headphones amplifier for higher damping factor; Used tempered glass display panel for higher light transmission and longer service life; Built-in shielded, low noise power supply processing while improving power efficiency, lower power consumption.

.

Product Details

  • Article number M500
  • Product type Audio DAC + Headphone Amplifier
  • Wireless Connectivity Bluetooth 5.0 (LDAC, APTX/HD, SBC, AAC)
  • DAC Chipset ES9038PRO
  • Codec support MQA PCM DSD512

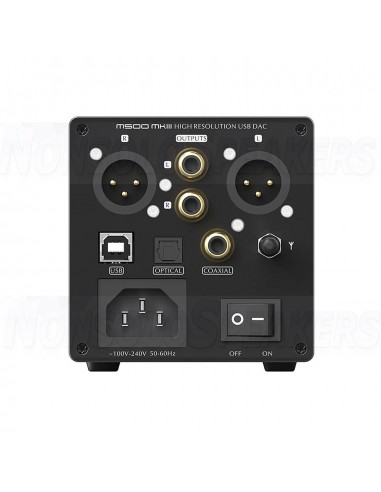

  • Inputs 1 x USB 2 x Optical 1 x Coaxial 1 x Bluetooth
  • Outputs 1 x RCA Headphone Amplifier 1 x RCA 1 x XLR
  • THD(+N) 0.00006%
  • Dynamic Range 133dB(XLR),126dB(RCA)
  • SNR 133dB(XLR),126dB(RCA)
  • USB Compatibility Windows 7+ Mac OSX Linux
  • Processing resolution & sample rate > 32-bit / 768 kHz (USB) > 24-bit / 192 kHz (TOSLINK, COAX) DSD512
  • Power requirements 100 - 240 VAC
  • Headphone amplifier output power 570mW(32Ω) 290mW(64Ω) 125mW(150Ω) 65mW(300Ω)
  • Power consumption 5 watts
  • Standby power consumption < 0.5 watts
  • Remote control Yes
  • Dimensions 85 x 88 x 197 mm
  • Weight 910 gr.

.

What’s in the Box?

  • 1x SMSL M500 MKIII
  • 1x Remote control
  • 1x Power cable
  • 1x USB Cable

.

.

.

.

.

.

.
