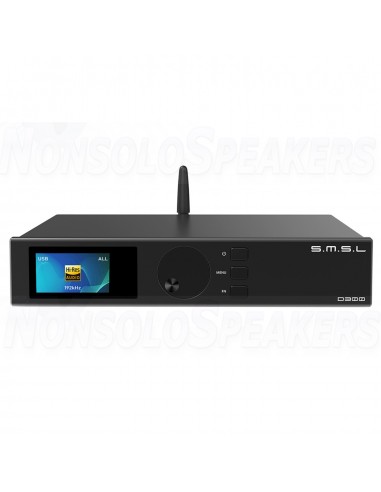

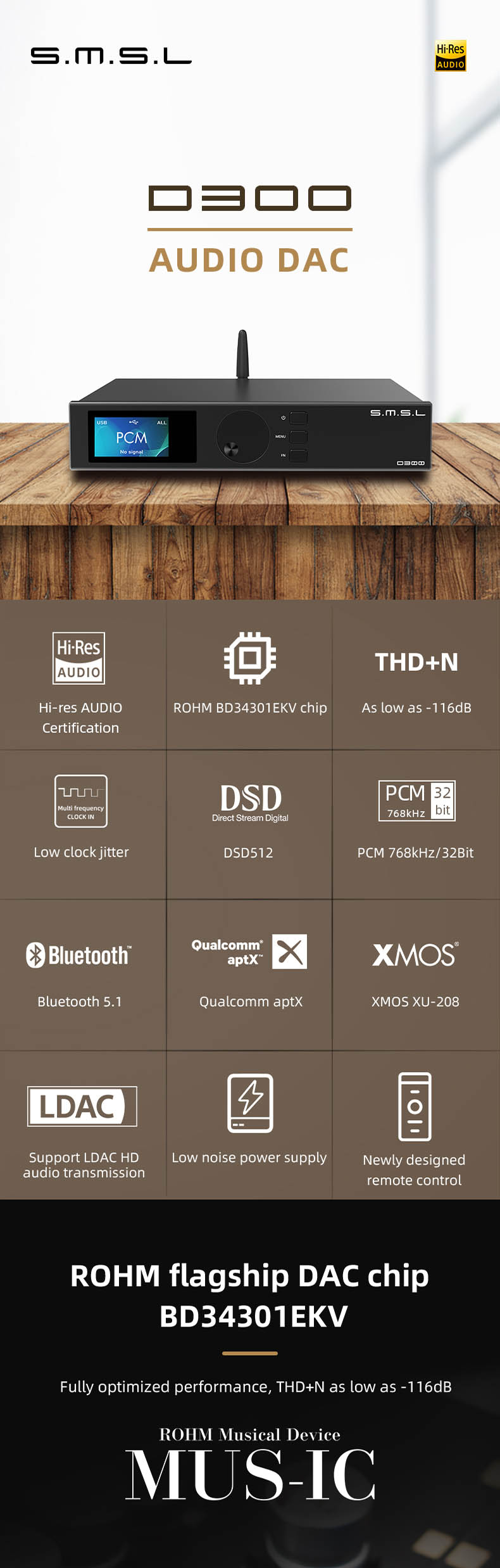

SMSL D300 LDAC audio DAC

Introducing the all-new HiFi audio decoder from S.M.S.L., the D300. Featuring the BD34301EKV premium DAC chip from ROHM technologies. It' s been completely optimized to make the fullest possible use of the premium audio chipset that decodes high-resolution audio signals with ultimate precision and very low distortion values.

-

Highlights

• Flagship Rohm’s Flagship BD34301EKV DAC chip
• XMOS XU-208 USB processor
• Supports 32-Bit/768kHz PCM decoding
• Newly designed CK-03 clock processing unit
• LDAC, AptX HD, AptX, AAC, SBC wireless transmission support
• Low-noise power supply

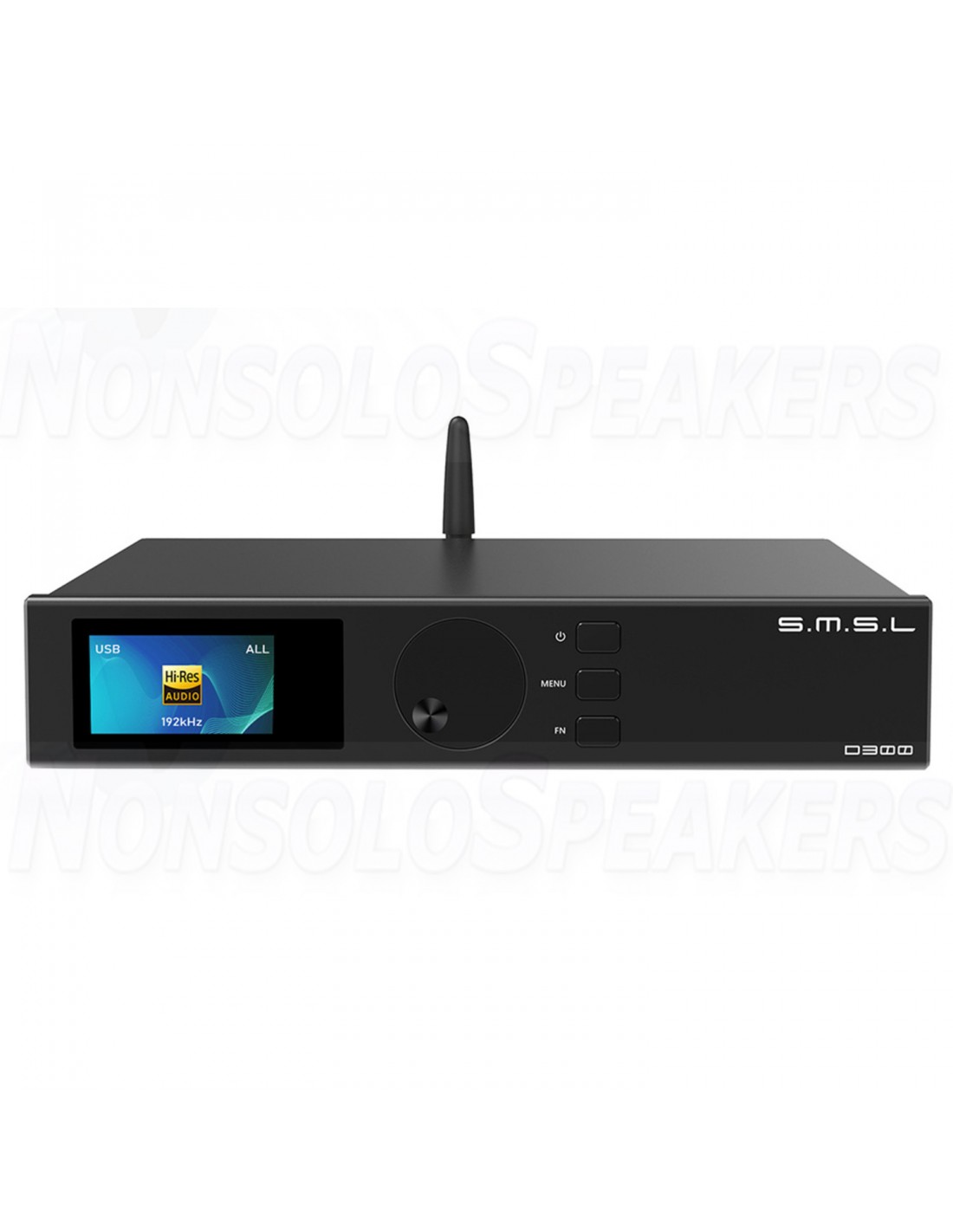

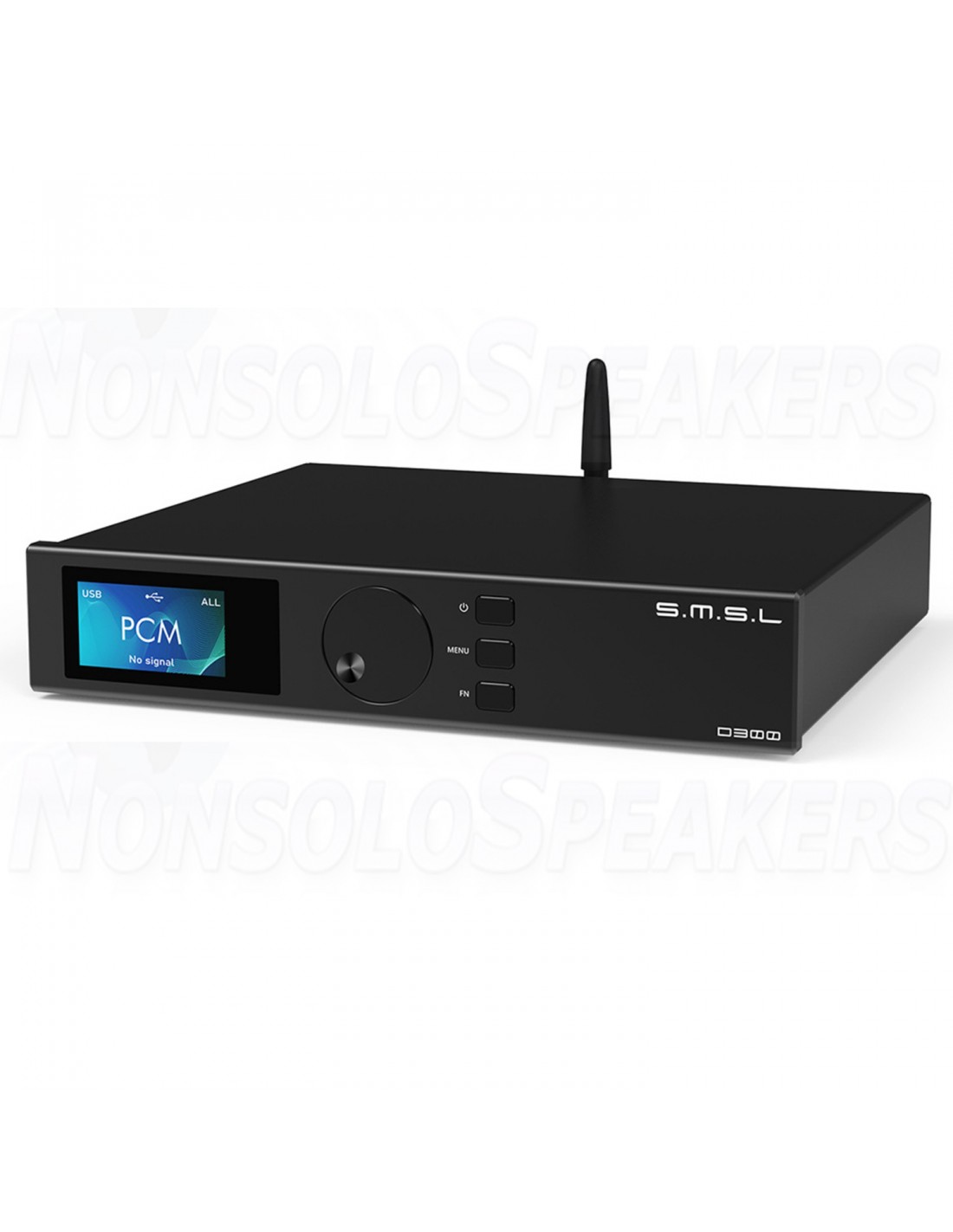

• High-resolution colorful display
• Hi-Res Audio certified

.

Product details

SMSL D300 LDAC audio DAC

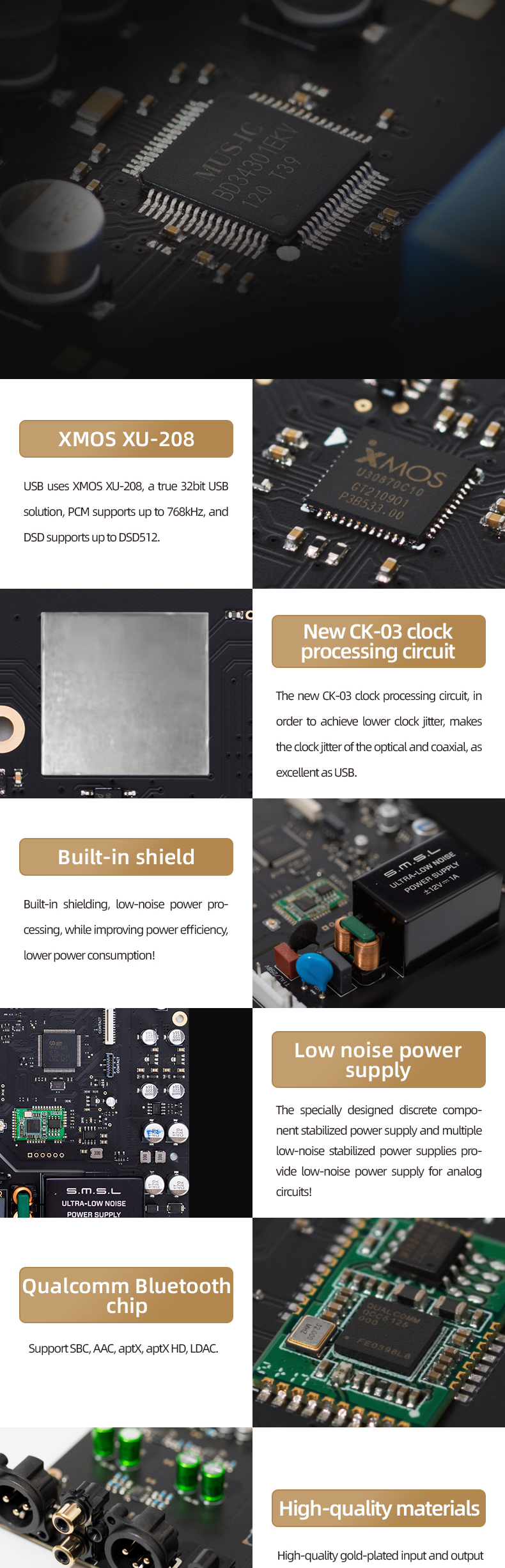

ROHM's flagship Audio Decoding Chip S.M.S.L has made significant achievements with the D300 by putting ROHM's flagship BD34301EKV audio decoding chip at its core. They made some professional adjustments to the DAC tuning to benefit its full capabilities in providing high-quality performances. It offers full support for high-resolution 32-bit/768 kHz PCM and native DSD512 decoding using an XMOS XU208 high-performance 8-core USB processor.

Bluetooth support for high-resolution The SMSL D300 easily receives high-resolution audio signals via wireless Bluetooth connection. The D300 is equipped with the latestBluetooth processor chip from Qualcomm. It supported high-resolution wireless transmission codecs including LDAC, AptX HD, SBC and AAC.

Equipped with Ultra-Low Jitter Clock System S.M.S.L. has equipped the D300 with its new CK-03 ultra-low jitter clock system. This allows ultra-low jitter for the output signal over all available inputs of the D300, including USB, coaxial, optical and Bluetooth. Featuring ultra-low jitter in the output, the output quality is simply outstanding.

Specially designed low-noise discrete component power supply S.M.S.L. has developed a special low-noise and discreet component regulated power supply for the D300. This power supply is low-noise and makes sure that each component in the analogue and digital circuits receives the correct current. It has been optimised for better efficiency with a reduced power usage. To protect the power supply from external interference, S.M.S.L. has equipped it with a well-shielded structure.

.

Product Details

• Article number SMSL D300
• Product type LDAC

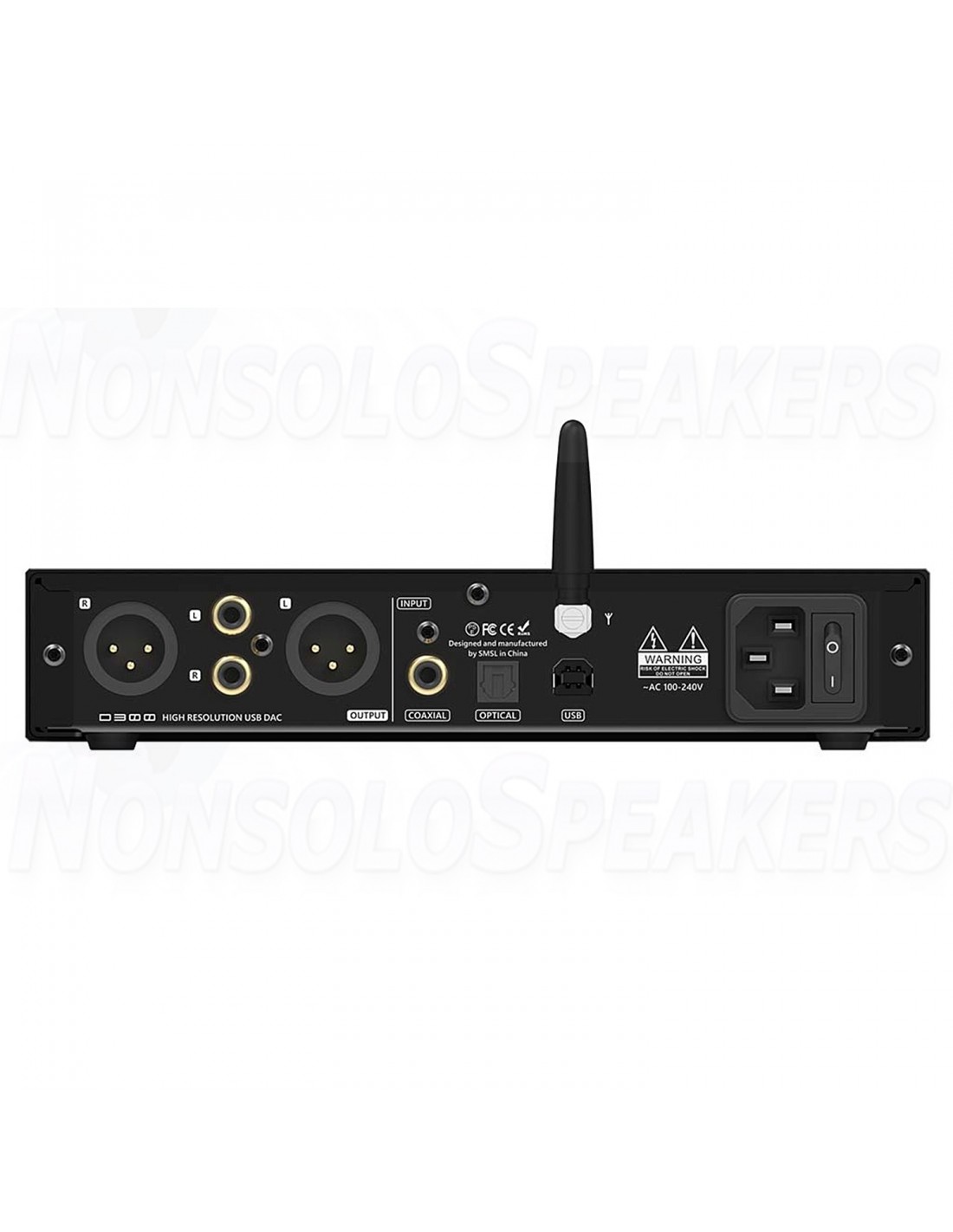

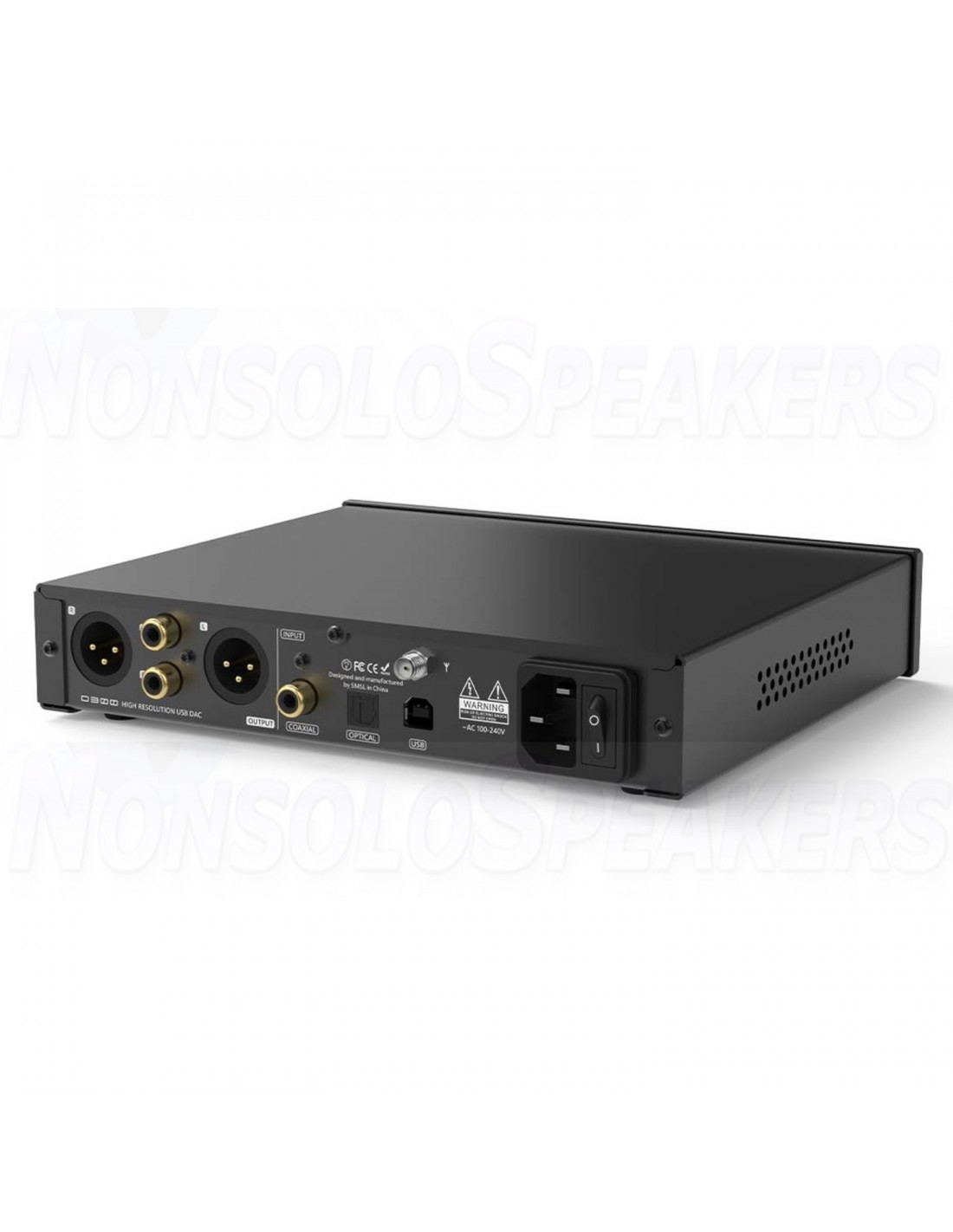

• Inputs USB / Optical / Coaxial / Bluetooth
• Outputs RCA /XLR
• THD(+N) 0.00015%(-116dB)
• Dynamic Range XLR 127dB / RCA 125dB
• SNR XLR 127dB / RCA 124dB
• USB Compatibility Windows 7 / 8 / 8.1 / 10 / 11, Mac OSX、Linux
• Processing resolution & sample rate 44.1 ~ 768kHz
• Power consumption 5W
• Standby power consumption <0.5W

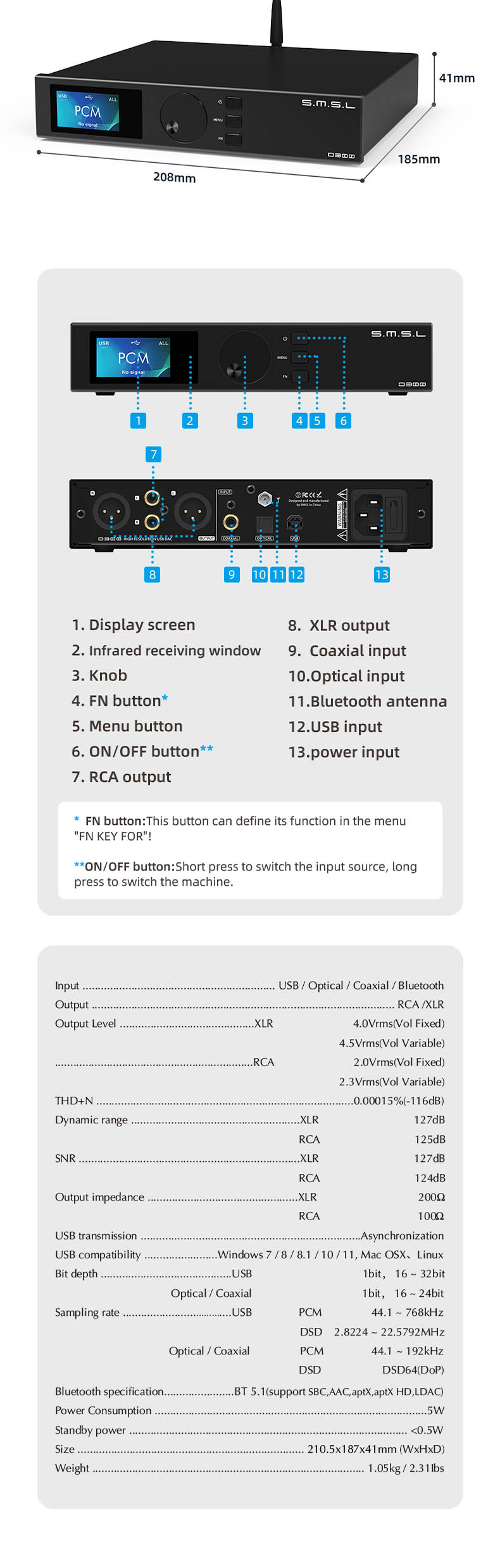

• Dimensions 208x185x41mm
• Weight 1.05kg

.

.

.

.
