SMSL Sanskrit 10th MKII AK4493 Audio DAC
SMSL Sanskrit 10th anniversary edition, high-end DAC within a professional shape design that uses an anodized CNC aluminum alloy housing. This DAC is designed to take up minimal desktop space without compromising on performance. It supports the 'three display mode' through the built-in digital accelerometer so it automatically switches the orientation of the display.
-
Highlights
- Anodized CNC aluminum alloy housing
- Japan Electronics Association Hi-Res Audio certification
- Full-featured remote control
- Built-in digital accelerometer
.
Product Details
SMSL Sanskrit 10th MKII Small desktop AK4493 Audio DAC
Ultra-tiny shape design and supports a variety of placement ways. The second-generation XMOS solution supports the sampling rate up to 32bit/384KHz and DSD256. The two pieces of Japanese ultra-low phase noise clocks, greatly reducing the system JITTER and the AKM's new AK4493 chip, and carefully adjusted it to an unprecedented 0.0002%. The built-in gravity sensor automatically switches the screen. Built-in high-performance power filtering system, so that it can achieve the best performance using only one USB interface for power supply.
.
Technical Specifications
Article number Sanskrit 10th
Product type Audio DAC
DAC Chipset AKM AK4493
Codec support PCM DSD512

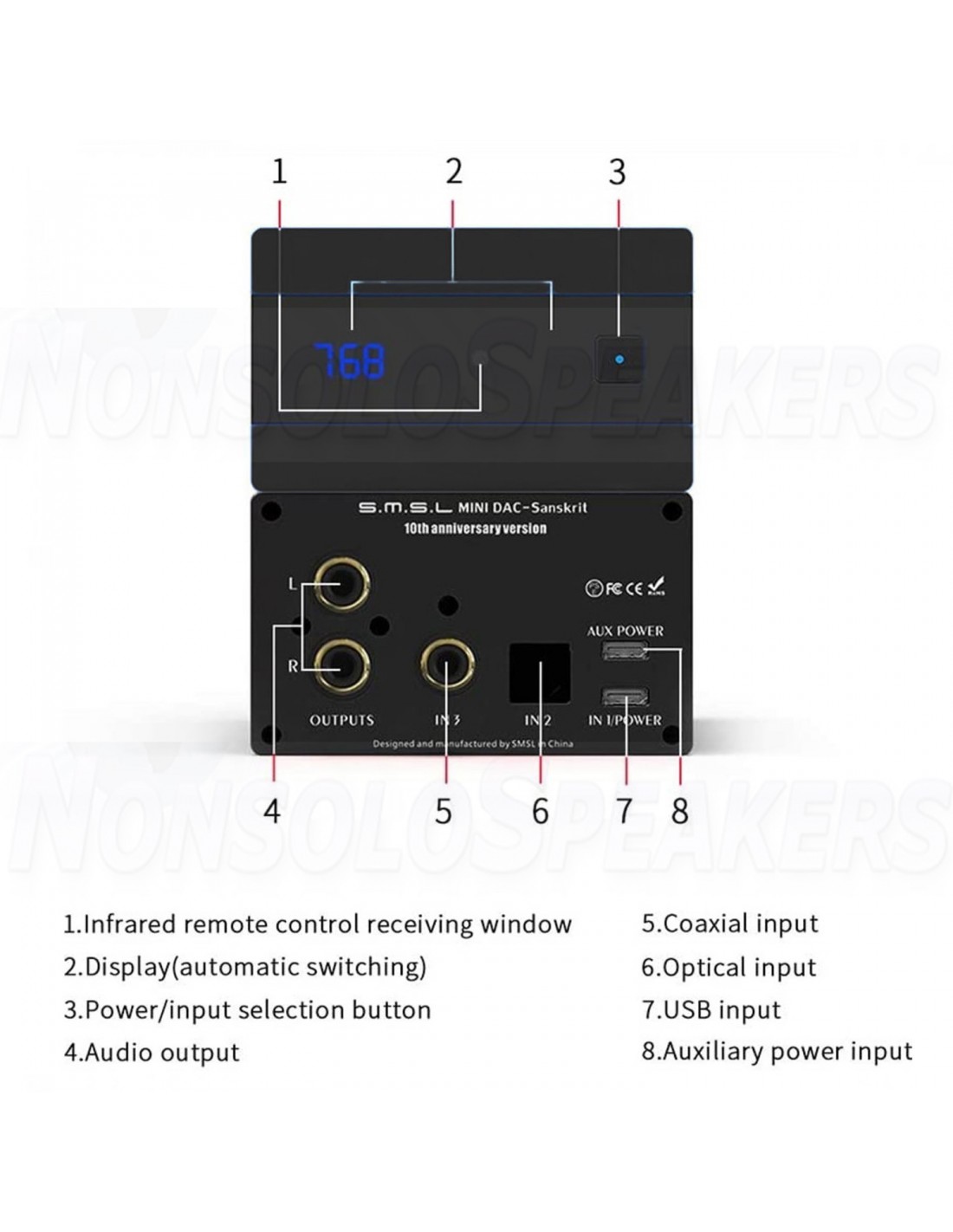

Inputs 1 x USB 1 x Optical 1 x Coaxial
Outputs 1 x RCA
THD(+N) Unbalanced: 0.0002%
Dynamic Range 118dB
SNR 120dB
USB Compatibility Windows 7+ Mac OSX Linux
Processing resolution & sample rate > 32-bit / 768 kHz (USB) > 24-bit / 192 kHz (TOSLINK, COAX) DSD512
Power requirements USB powered
Power consumption 2 watts
Standby power consumption < 0.1 watts
Remote control Yes
Dimensions 75 x 45 x 144 mm
Weight 320 gr.
.

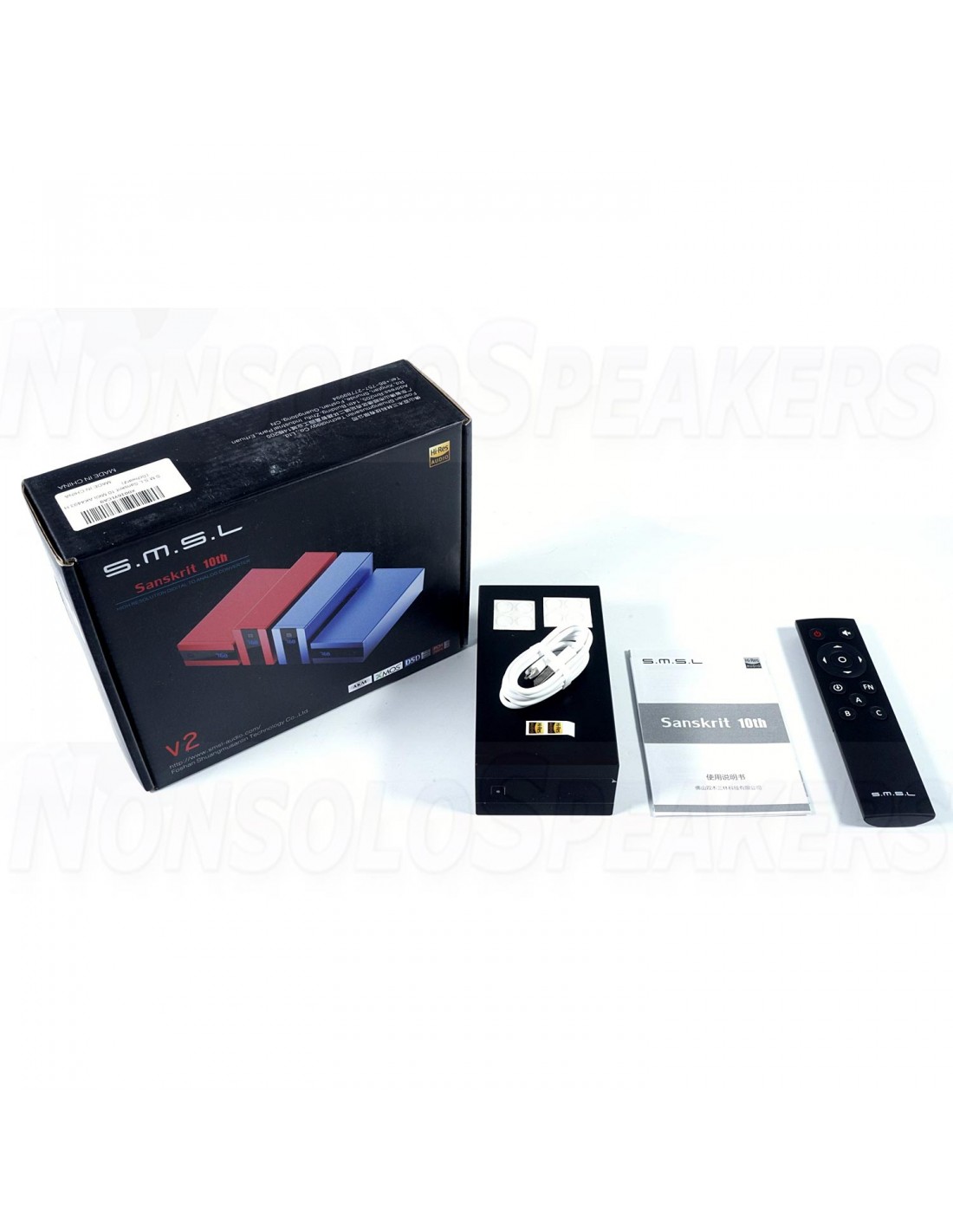

Package Contents
1 x DAC Sanskrit 10th
1 x Remote control
1 x USB-A to Micro-USB cable 1.1 m
8 x Silicone feet
