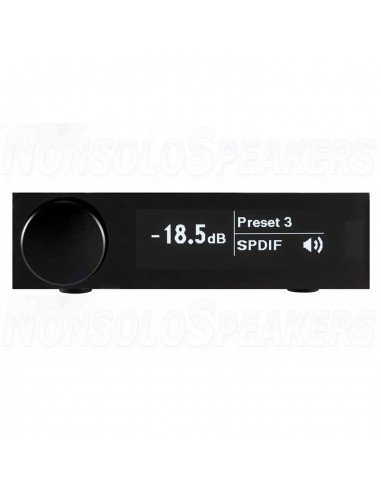

miniDSP 2x4 FLEX digital signal processor | Unbalanced (RCA)

miniDSP Flex, 400MHz Sharc DSP audio processor, toolbox for subwoofer or multiway speaker tuning, Optional Dirac Live license for room correction (available via miniDSP), Bluetooth LDAC/APTX/AAC streaming, Flexible I/O versions for unbalanced/balanced/digital connectivity Array.

.

Highlights:

• Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
• Multi-Core USB Audio processor (XMOS)
• Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
• Optional upgrade to Dirac Live® 3.x Digital Room Correction, Full Range Room Correction (20~20kHz)
• Audiophile performance: SNR@120dB(A), THD+N @ -110dB (0.0003%)
• Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth), stereo analog (Unbalanced RCA)
• Unbalanced (RCA) USB audio recording feature (4xCH processed output via
• USB audio to record inputs, e.g. Vinyl)

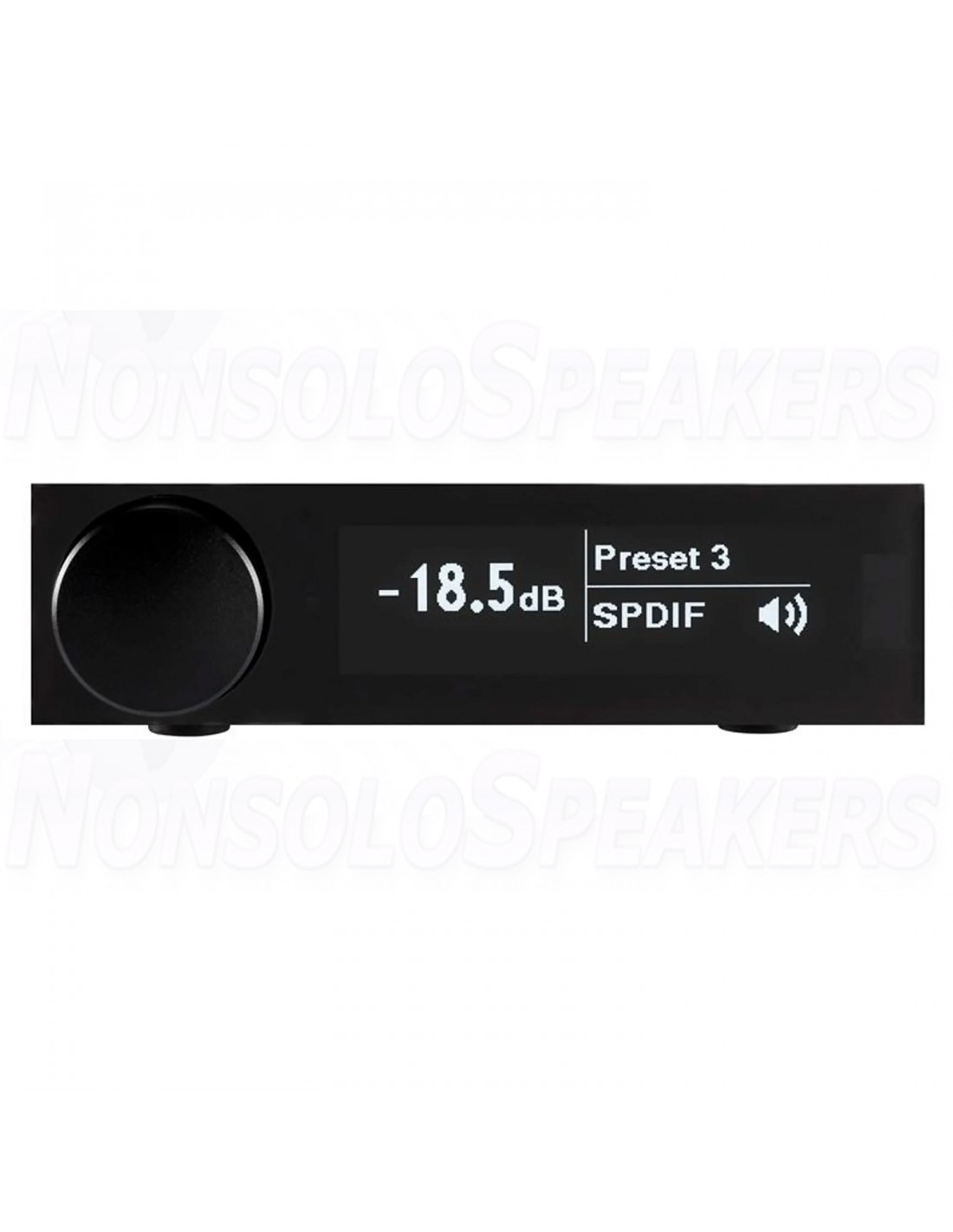

• White/Black OLED front panel controller with IR control

.

Product details:

2x4 FLEX DSP audio processor | Unbalanced (RCA)

The miniDSP Flex is the 3rd generation of our popular line of compact 2-in, 4-out audio processors. It retains the powerful floating point processor but rethinks the I/O architecture so we can provide our customers with different input-output versions in this compact chassis. The initial versions are single-ended analog I/O (RCA), balanced analog I/O (TRS) and digital out with superb audiophile specification for your enjoyment.

All versions include a set of digital inputs: USB audio, S/PDIF (RCA/optical) and Bluetooth (LDAC/aptX). An OLED front panel display and volume control/encoder knob provides easy control. As always, the Flex series is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible parametric EQ, IIR & FIR filters, crossovers, advanced biquad programming and delay on each output channel. Last but not least, all platforms are easily software-upgradable with Dirac Live®, the world’s premiere room correction system for full range (20~20kHz) tuning.ssor is needed.

.

Specifications:

• Article number 2x4 Flex (RCA)
• DSP chip DSP SHARC ADSP21489 @ 400MHZ
• Processing resolution & sample rate 32 bit/96 kHz (32bit/48 kHz with Dirac Live® license)
• Input / ouput configuration 2 channels in / 4 channels out

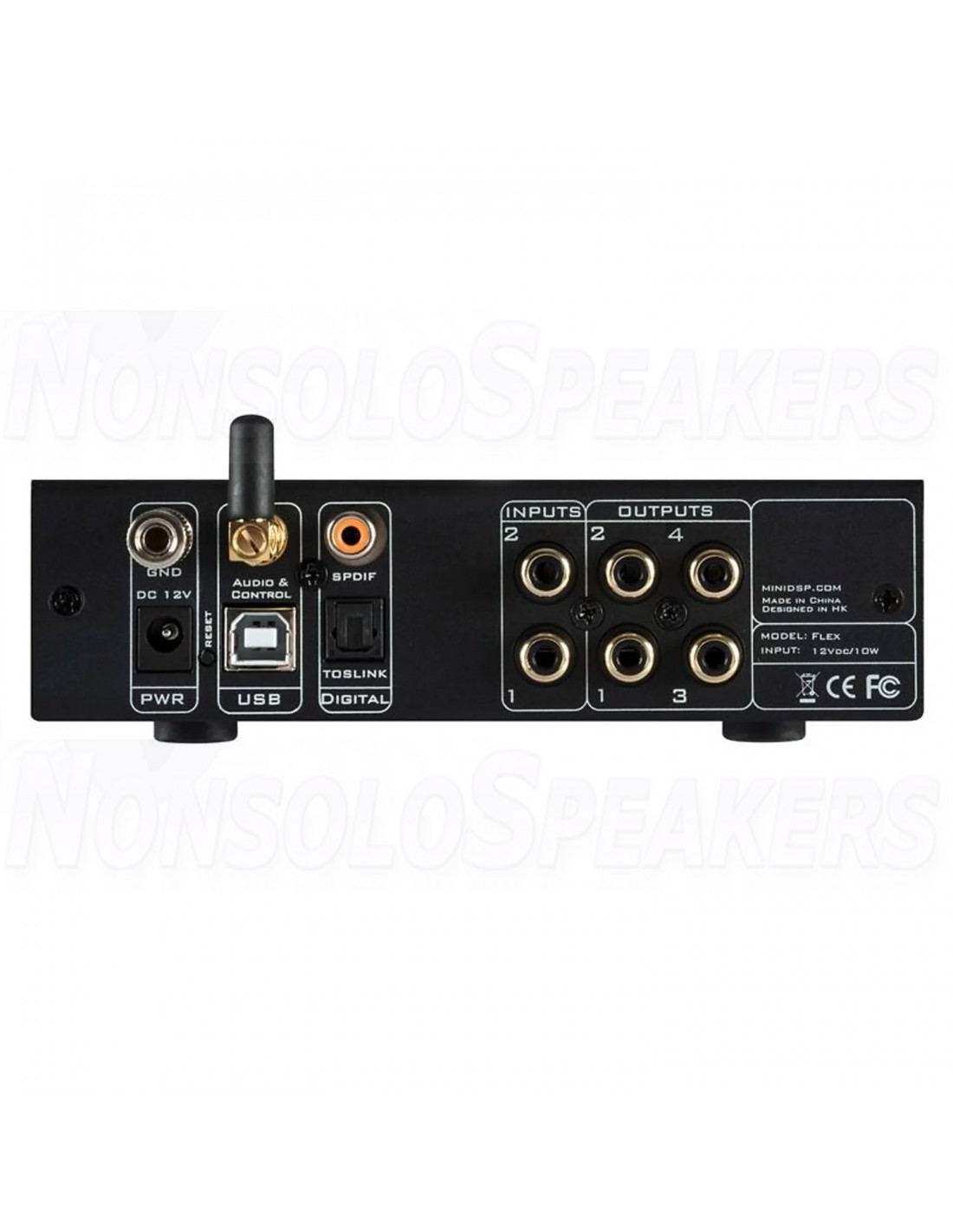

• Audio input connectivity 2 x Unbalanced RCA
• Audio output connectivity 4 x Unbalanced RCA
• Max input level 2 V RMS
• Max output level 2 V RMS
• Input impedance 100 kΩ
• Output impedance 200 Ω
• IIR
• FIR
• Dirac Live® Not included
• DSP presets Up to 4 presets
• Infrared remote learning
• UMIK-1 included No
• Dimensions 150x180x41 mm

.

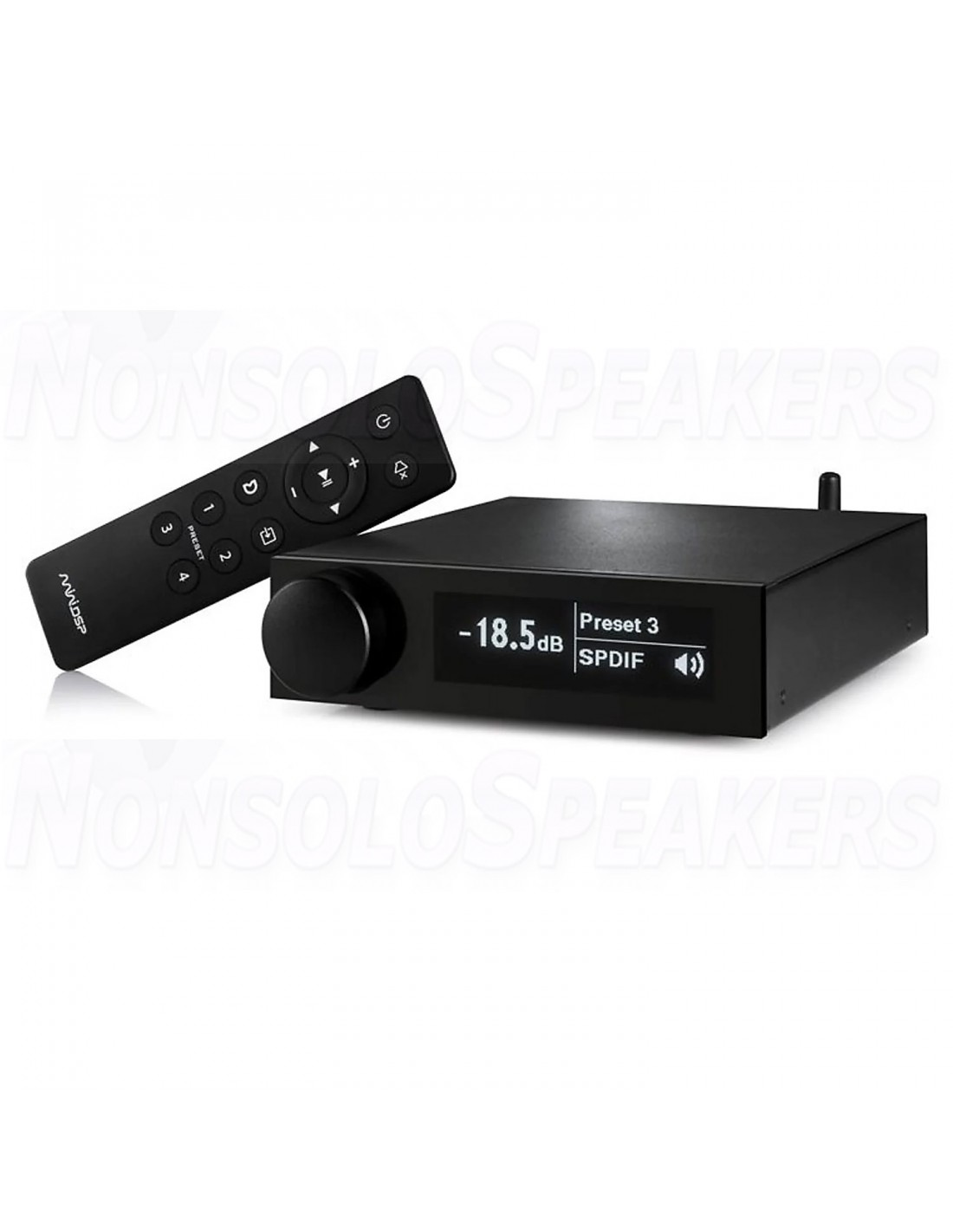

What's included in the box?

• Digital Audio Processor — Flex based on the I/O configuration selected. No Dirac Live license for default configuration
• IR remote v2
• 12V univeral power supply (UK/EU/US/AU plugs)
• USB cable
