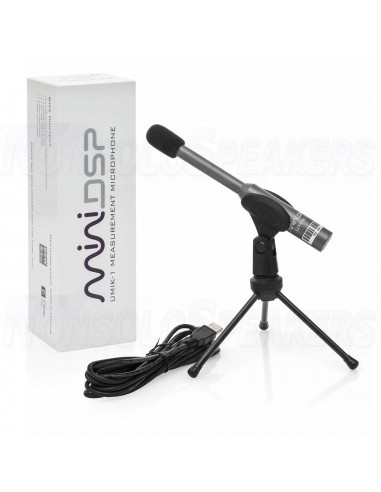

miniDSP UMIK-1 acoustic USB measurement microphone

The UMIK-1 is a highly regarded omni-directional measurement microphone designed for accurate audio measurements in various applications. Manufactured by miniDSP, the microphone is specifically engineered to provide precise and reliable measurements for acoustic analysis, room correction, speaker calibration, and other audio-related tasks. The UMIK-1 offers a combination of affordability and performance, making it an indispensable tool for anyone seeking to achieve optimal sound quality and accurate audio measurements.

.

Highlights:

• Easy USB connectivity
• Driverless support on Windows, OS X & Linux
• Calibrated SPL measurement enabled under free Room EQ Wizard (REW) software
• Compatible with all measurement software
• Flat response from 20 Hz to 20 kHz (+/-1dB)

.

Product details:

miniDSP UMIK-1 plug & play microphone

The miniDSP UMIK-1 is a plug & play measurement microphone for both testing and measurment from our test and measurement category. This product is developed by miniDSP, a company that is specialized in consumer friendly DSP solutions. The UMIK-1 is perfect for acquiring frequency response data for designing speakers, measuring in room response for room correction or home theatre calibration and many more acoustic measurement applications. Next to its measurement skills, the UMIK-1 can also be used for recording. The miniDSP UMIK-1 is recommended by Dirac Live to acquire the right data for their Dirac Live Room Correction software. Its compact and user-friendly design, along with its compatibility with various measurement software and platforms, has made it a popular choice among audio enthusiasts, professionals, and researchers.

Great compatibility

The microphone is powered through USB and features an intergraded 24-bit ADC. This eliminates the need for a preamplifier or soundcard. Thanks to the USB Audio class 1 interface, there is driverless support for all major operating systems, such as Windows and Mac, and acoustic measurement software. Each microphone is supplied with a unique calibration file that ensures a flat frequency response from 20 Hz to 20 kHz.

Unique Calibration File Download

All UMIK-1 are calibrated with a unique calibration file. In addition, a unique auto-generated 90-degree calibration file for use with surround system applications. To download the calibration files, look for the 7 digit Serial Number found on the body of the microphone.

.

Specifications:

• Article number UMIK-1
• Measurement Domain Acoustic

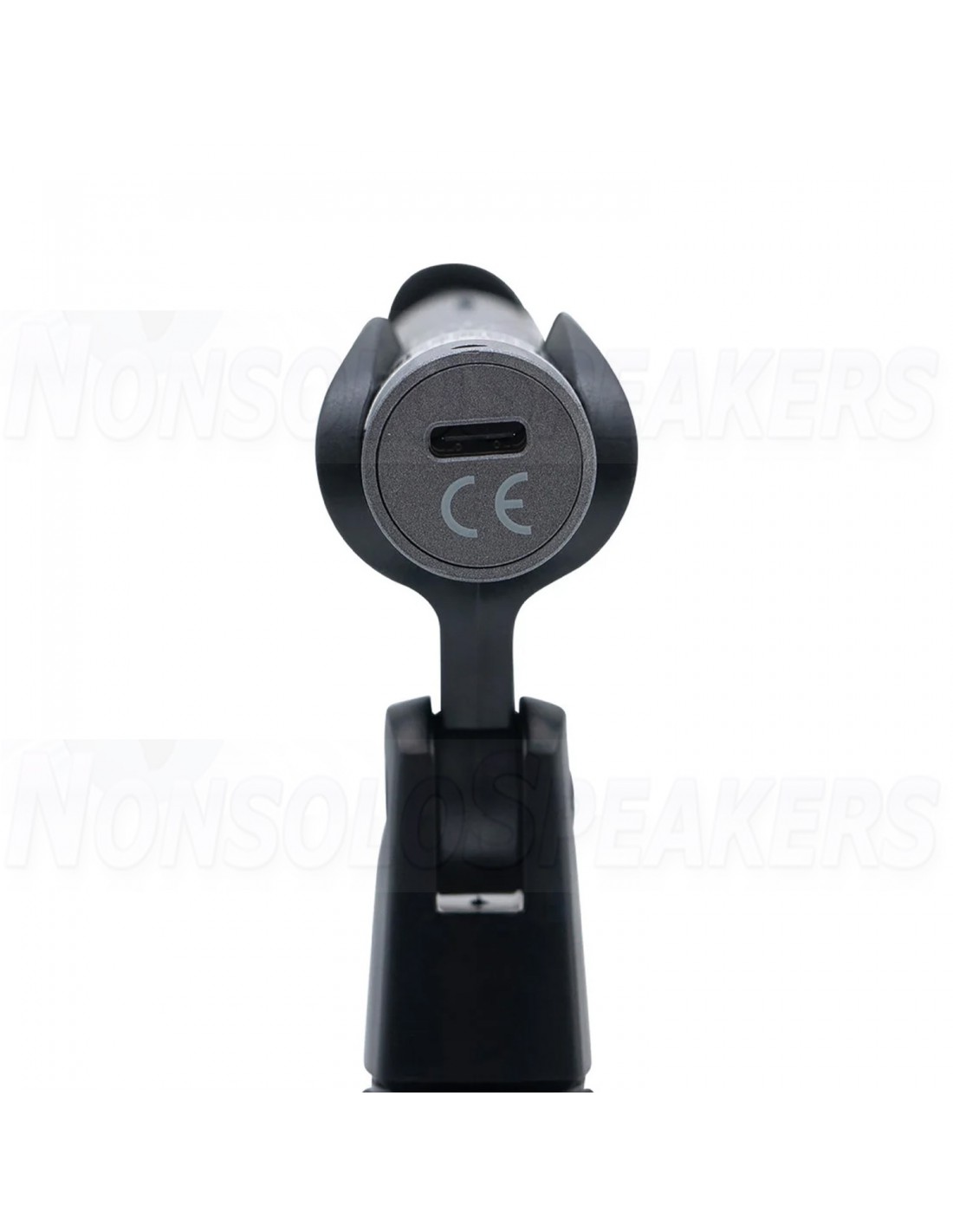

• Connector USB-C
• Resolution & Sample rate 24bit ADC at 48kHz
• Calibration file Unique on-axis and 90-deg for: Frequency, Amplitude and Sensitivity drift
• Power USB-Powered
• Max SPL 133dB
• Polar pattern Omnidirectional
• Capsule Type 6 mm electret
• Frequency response 20 Hz - 20kHz +/-1dB (Calibrated)
• USB-Audio USB Audio class 1.0 Body
• Material Die cast aluminum

.

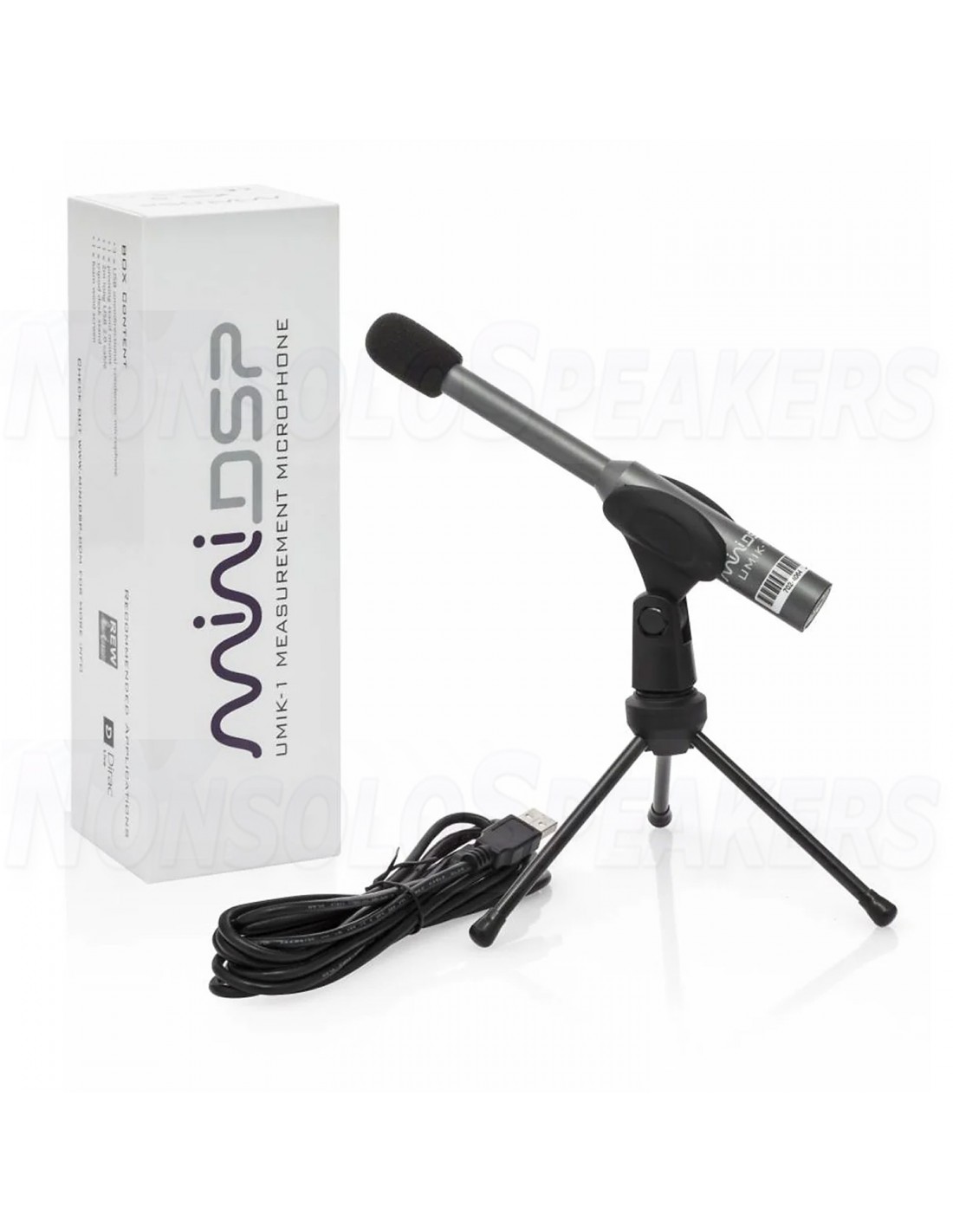

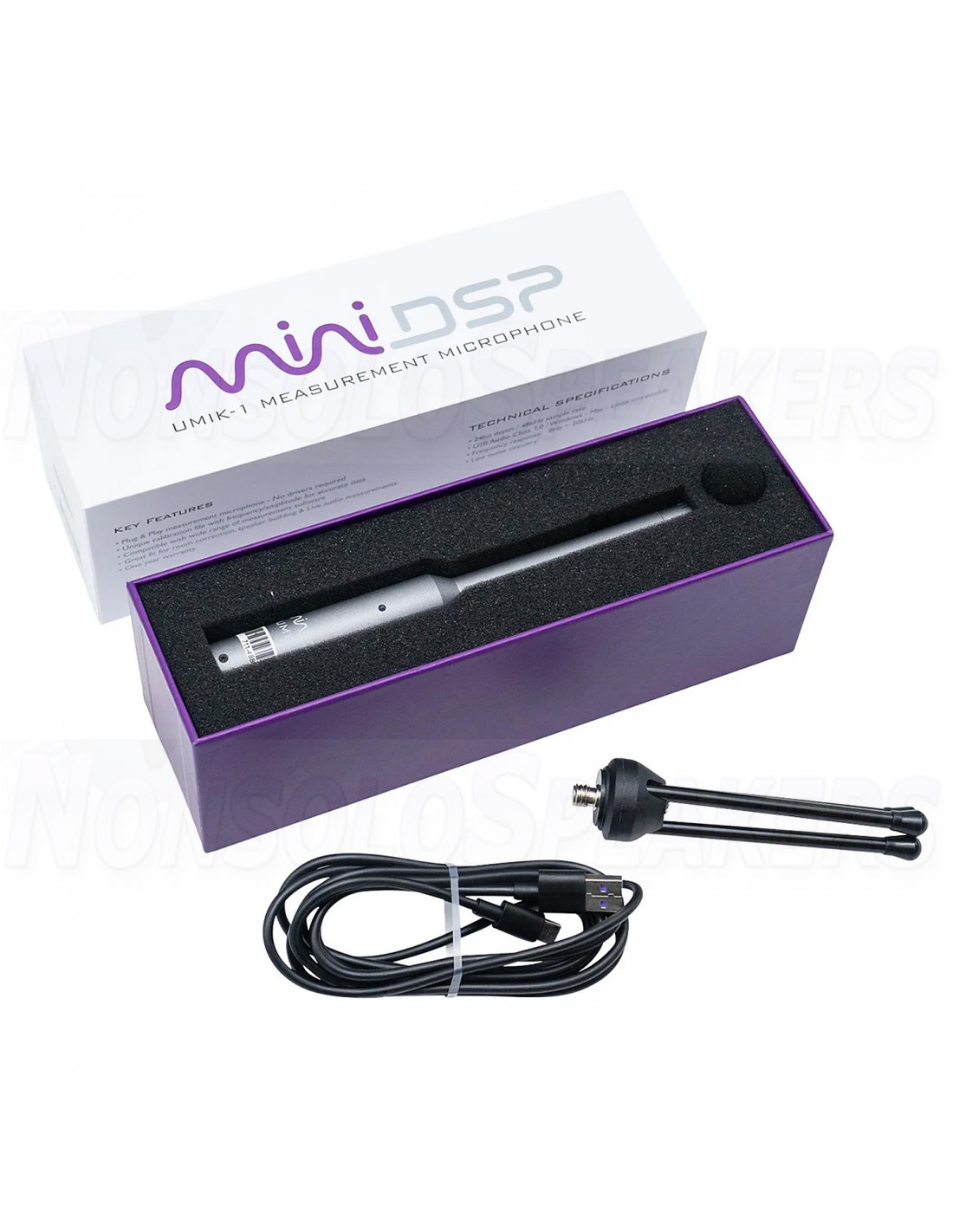

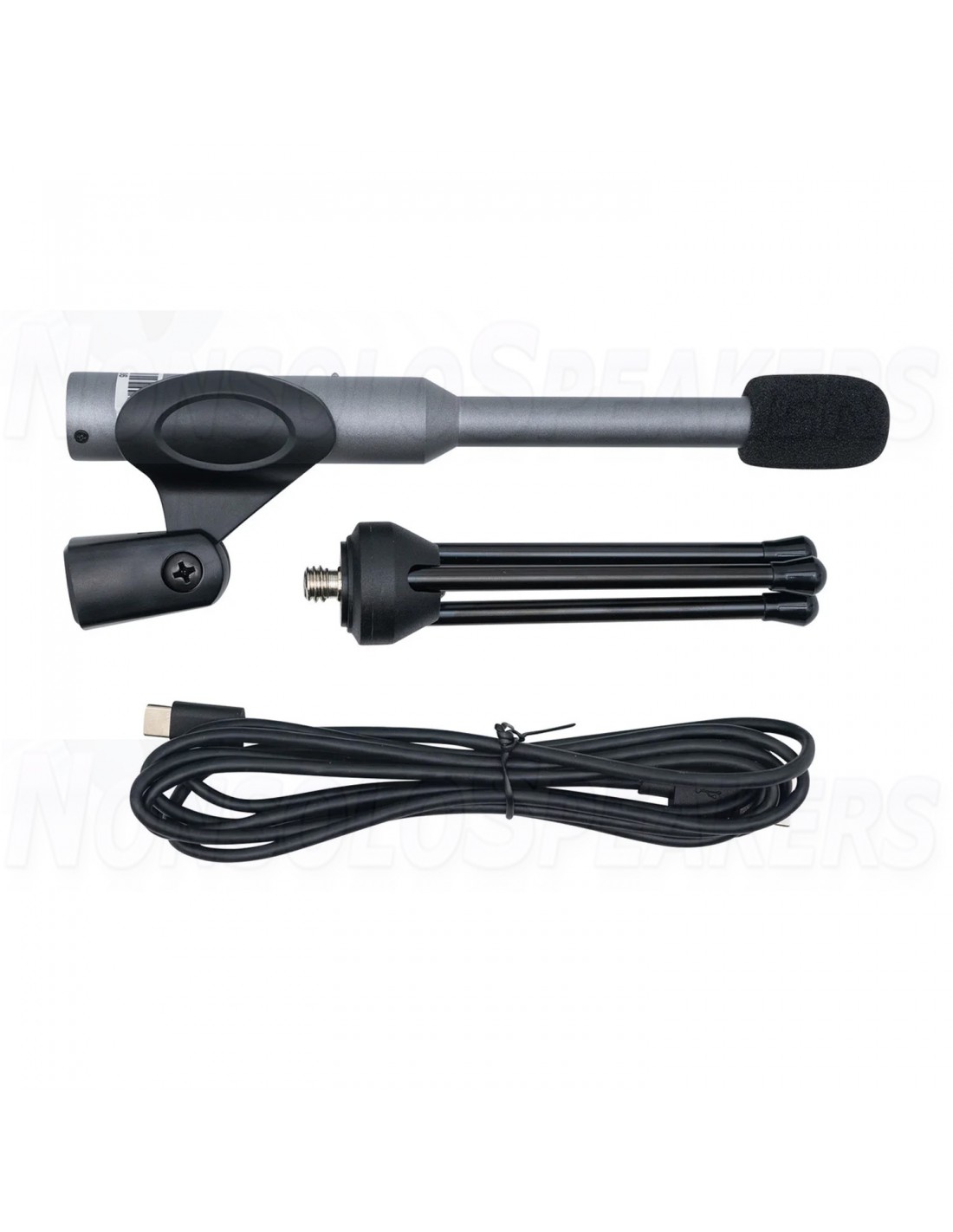

What's included in the box?

• 1 x UMIK-1 microphone
• 1 x shielded USB cable (1.5m)
• 1 x mini Tripod
• 1 x foam windscreen
