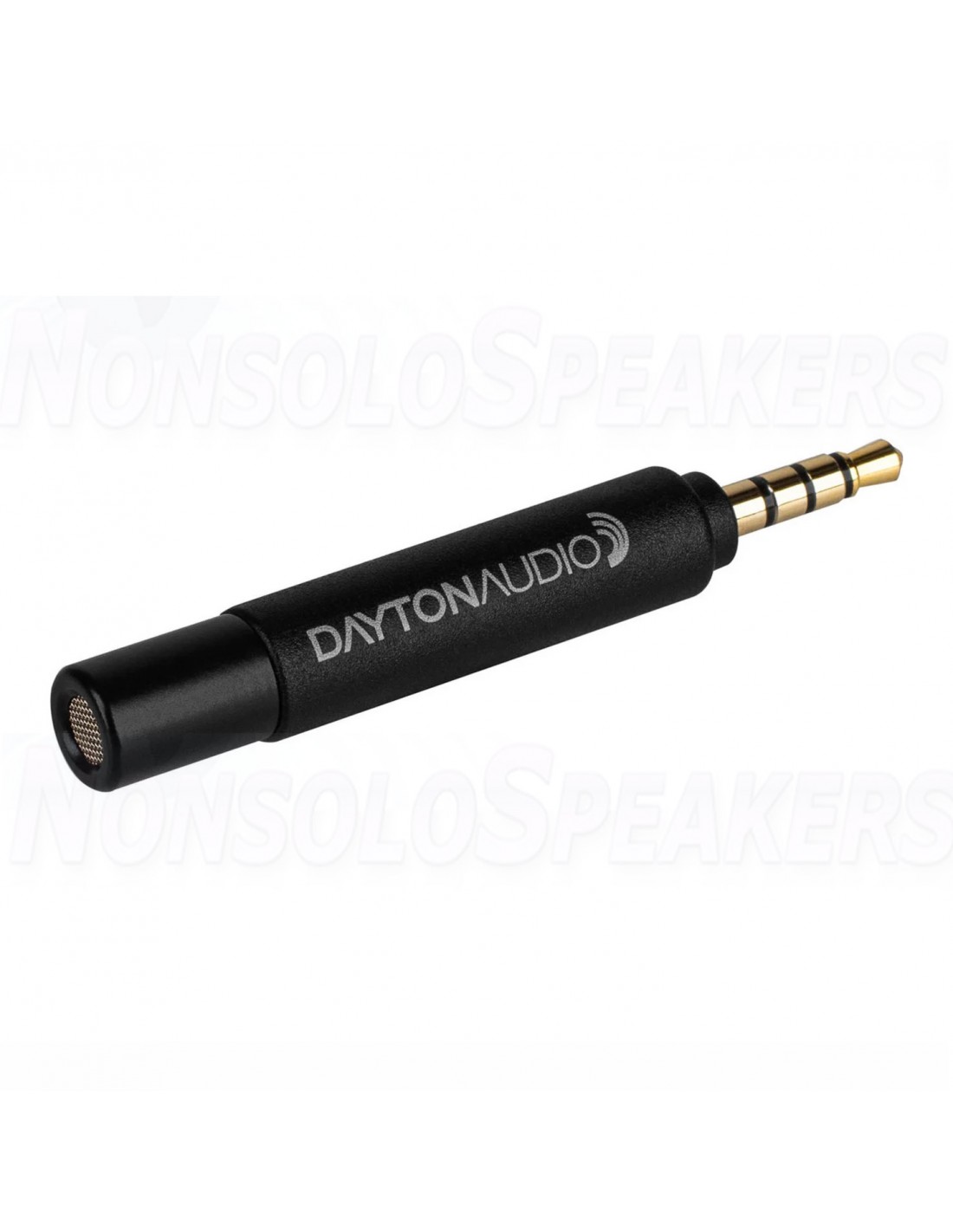

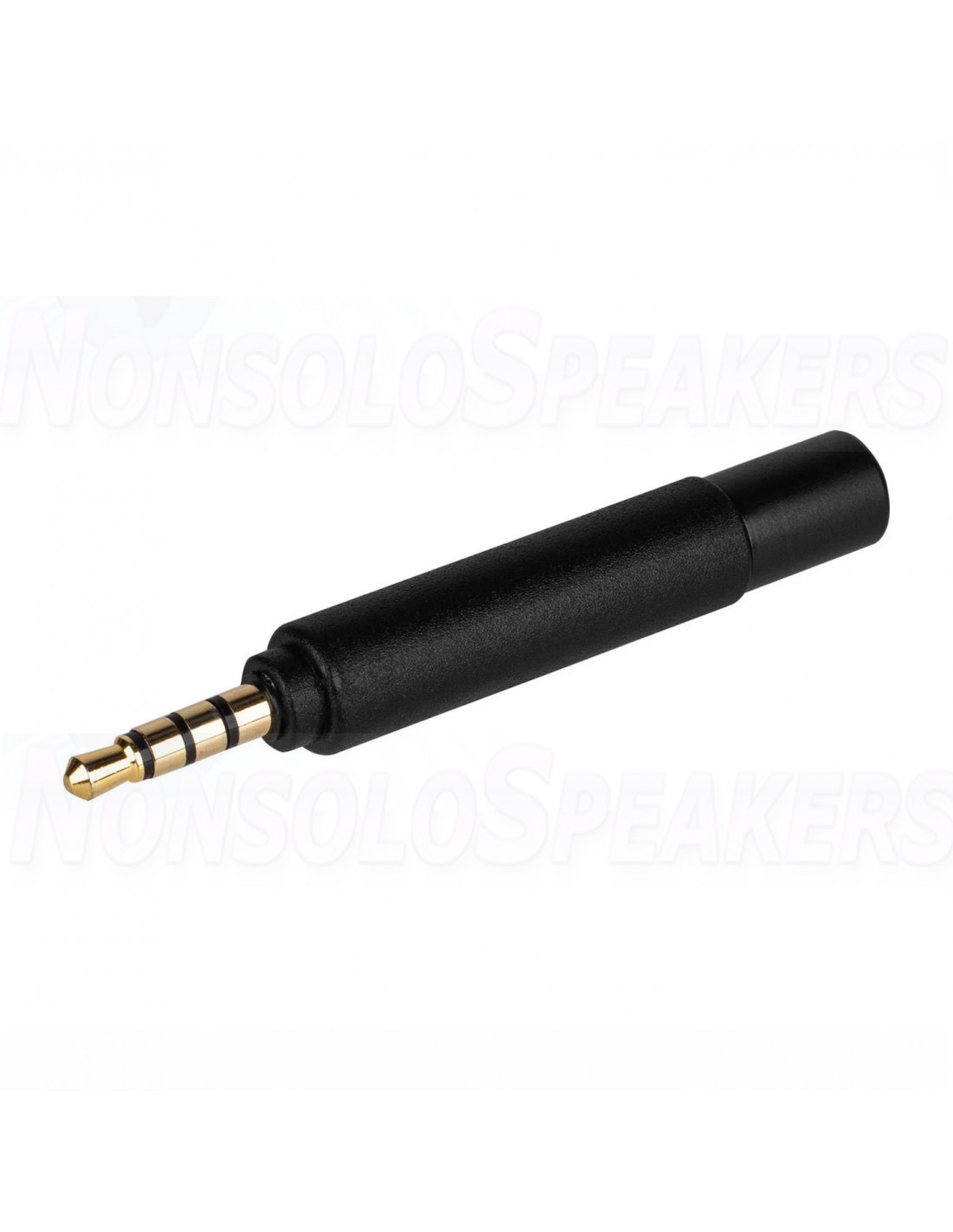

Dayton Audio iMM-6S iDevice calibrated measurement microphone straight

Product description

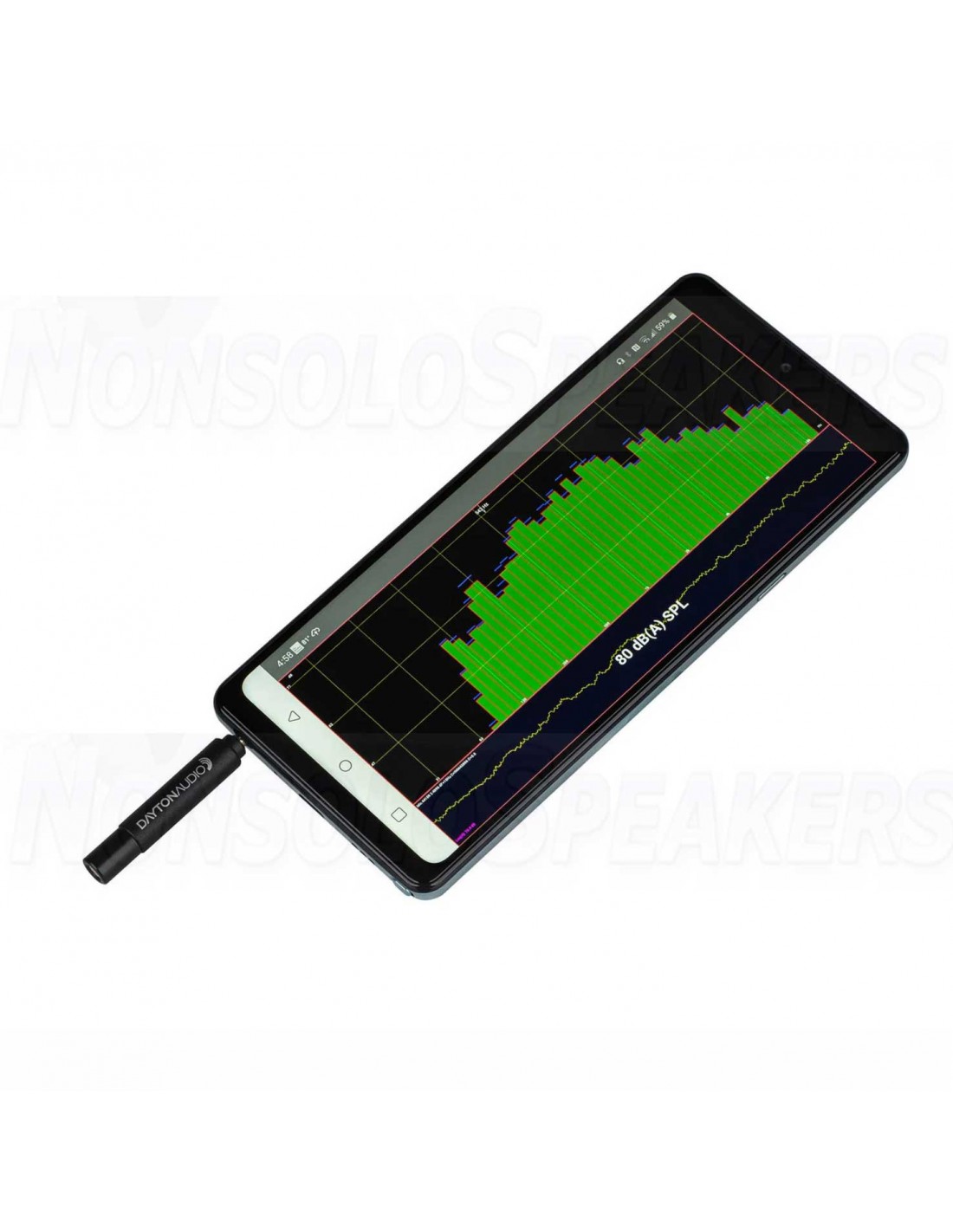

Turn your iPad, iPhone or iPod touch into a lab quality audio meter with Dayton Audio's iMM-6 iDevice Calibrated Measurement Microphone.

.

Product details

Dayton Audio iiMM-6S iDevice calibrated measurement microphone straight for iPhone iPad Tablet and Android

.

highlights

• Precision condenser microphone for critical measurements
• For use with Apple iPad, iPhone, iPod Touch via 3.5mm TRRS headphone jack
• Compatible with Android and Windows Phone devices with TRRS socket
• The kickstand function elevates and tilts the device and microphone capsule
• Proper omnidirectional pattern with calibrated flat frequency response
• Robust construction with high-quality components

.

Product Description

The Dayton Audio iMM-6S is a professional quality measurement and recording microphone designed for use with the entire suite of Apple "iDevices" - iPad, iPhone and iPod. The robust construction and compact size make it the perfect companion for audio professionals who need to perform acoustic analysis, monitor audio levels or record on site. Each iMM-6S is individually hand-calibrated using a lab-standard measurement microphone to provide consistent, repeatable measurements that match the level of precision previously only offered by expensive stand-alone microphones.

Dayton Audio's iMM-6S is compatible with any Android and Microsoft device that uses a 3.5mm TRRS jack. Each iMM-6S is built tough with quality components. A sturdy carrying bag with foam insert is included in the scope of delivery.

A unique serialized calibration file is available for the iMM-6S. This calibration file can be used by most audio analysis apps for iPad, iPhone and iPod Touch (see compatibility list for recommendations). Visit the Dayton Audio Calibration Download Tool where you will be prompted to enter the serial number found on the casing of your iMM-6S. After entering the serial number your download will start.

.

Technical data

• Capsule type: Precision electret condenser 6 mm
• Polar pattern: True omnidirectional
• Frequency response: 18-20,000 Hz, ± 0.5 dB (calibrated)
• Impedance: 200 ohms • Sensitivity at 1 kHz into 1 kohm: 10 mV /Pa (-40dBV, re. 0dB = 1V/Pa)
• Maximum SPL for 1% THD @ 1000Hz: 127dB
• S/N Ratio: 70dB (A-weighted, varies by host device )
• Connector: Gold plated 3.5mm TRRS
• Weight: Ultra light 7.6 grams.

.

Technical Specifications

• Item number: iMM-6S
• measurement domain Acoustic
• connectors 3.5 mm gold-plated TRRS
• Max SPL127dB
• Polar patterns Omnidirectional
• Capsule Type 6mm electret c ondenser
• Frequency response 18Hz - 20kHz +/- 0.5dB (calibrated)
• SNR 70 dB (A weighted)
• impedance 200 ohms
