Dayton Audio iMM-6 Calibrated Measurement Microphone

Dayton Audio iMM-6 Calibrated Measurement Microphone

Name: Dayton Audio iMM-6 Calibrated Measurement Microphone
Brand: Dayton Audio
SKU: iMM-6
Price: 20.7 EUR
Availability: InStock

Dayton Audio iMM-6 Calibrated Measurement Microphone for Tablets iPhone iPad and Android

Turn any phone or tablet with a 3.5 mm jack into a laboratory grade audio measurement device with Dayton Audio's iMM-6 iDevice calibrated measurement microphone.

Key Features

Precision condenser microphone for critical measurement
For use with any smartphone or tablet with a 3.5 mm TRRS headset jack
True omnidirectional pattern with calibrated flat frequency response
Headphone/Line Out pass-through jack for test signals or listening
Kickstand feature elevates and angles device and microphone capsule
Rugged construction with high-quality components

SHIPMENT IN 7-10 WORKING DAYS

€20.70 €23.00 -10%

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

Dayton Audio iMM-6 Calibrated Measurement Microphone for Tablets iPhone iPad and Android

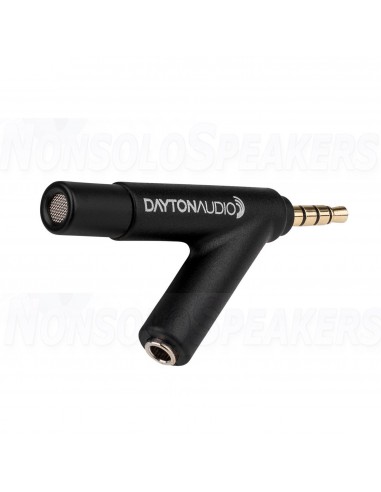

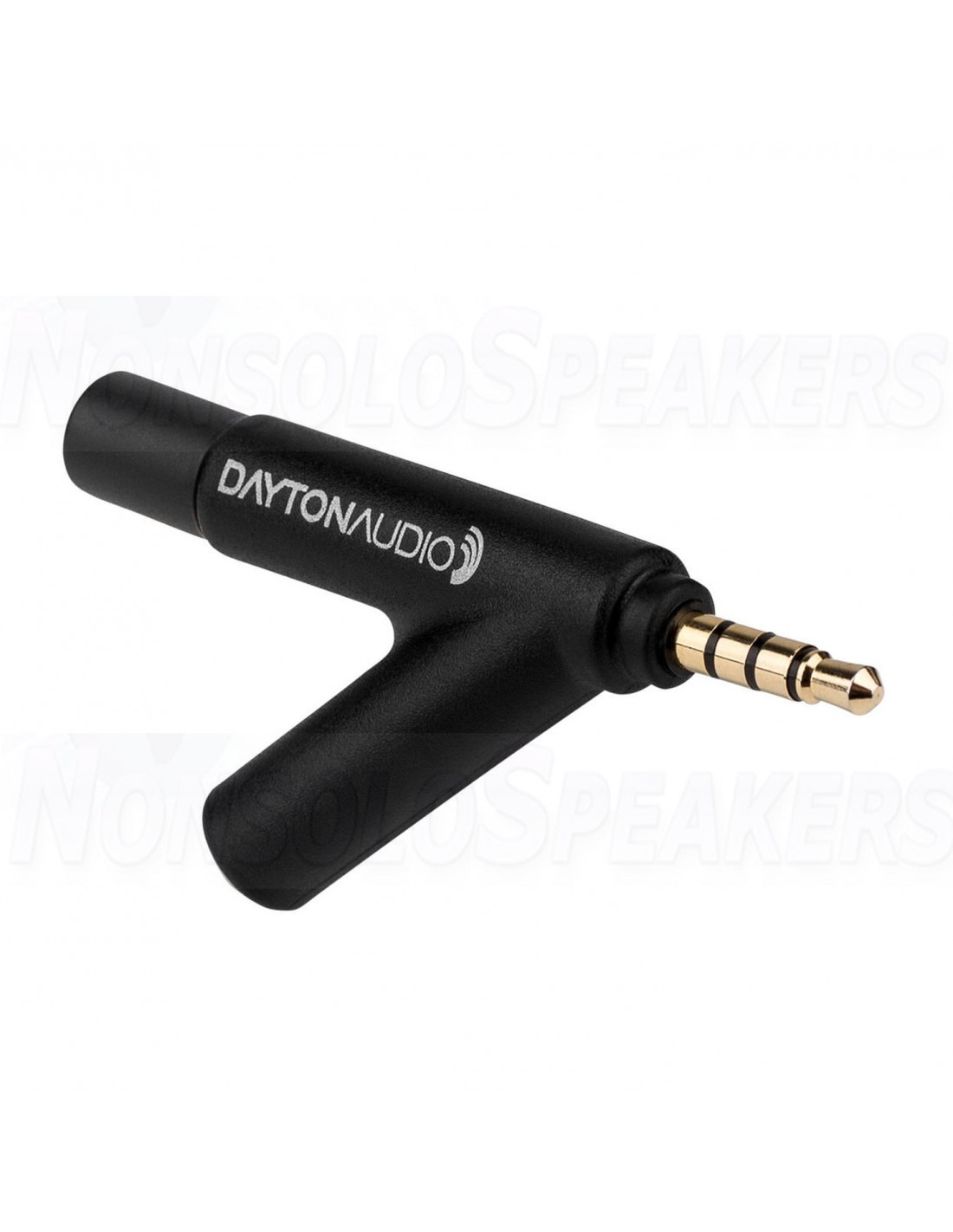

The Dayton Audio iMM-6 is a professional-quality measurement and recording microphone that is designed to work with the entire suite of Apple "iDevices" – iPad, iPhone, and iPod (with 3.5 mm jack). The rugged construction and compact size make it the perfect companion for audio professionals who must work on-location performing acoustic analysis, monitoring audio levels, or recording. Each iMM-6 is individually hand-calibrated using a laboratory-standard measurement microphone, for consistent, repeatable measurements that match the level of precision previously offered only by expensive stand-alone microphones.

Dayton Audio's iMM-6 is also compatible with Android and Microsoft devices that use a 3.5 mm TRRS jack. A headphone/line-out is built in for monitoring the recorded signal, and a kickstand elevates and angles the measurement capsule for more direct measurements. Each iMM-6 is ruggedly built with high-quality components. A sturdy carrying case with foam insert is included.

A unique serialized calibration file is available for the iMM-6. This calibration file can be used by most audio-analysis apps for the iPad, iPhone, and iPod Touch (see compatibility list for recommendations)

Specifications:

• Capsule type: Precision 6 mm electret condenser

• Polar response: True omnidirectional

• Frequency response: 18-20,000 Hz, ± 0.5 dB (calibrated)

• Impedance: 200 ohms

• Sensitivity at 1 kHz into 1K ohm: 10 mV/Pa (-40 dBV, re. 0dB = 1V/Pa)

• Maximum SPL for 1% THD @ 1,000 Hz: 127 dB

• S/N ratio: 70 dB (A-weighted, varies depending on host device)

• Connector: Gold-plated 3.5 mm TRRS

• Weight: Ultra-light 7.6 grams.

iPhone:

Here is the procedure for loading the iMM-6 calibration file into AudioTools by Studio Six Digital on an iPhone:

1) Visit the Dayton Audio Calibration File Download Tool on your iOS device: Dayton Audio calibration download tool.

2) Find your IMM-6 serial number as pictured (on the back of your IMM-6 Case).

3) Enter the serial number and press search. Download the calibration file by clicking on it. Save the file.

4) Open the "Sound Tools - Studio Six Digital" App.

5) Open the "Microphone Setup" Menu.

6) Make sure your IMM-6 is now connected to your device. It will say "Headset Mic 1" when connected. If it says "Internal Mic 1", your IMM-6 is not connected.

7) Press the ( i ) button to the right of your screen.

8) Press the "Calibration File" button labeled in blue.

9) Press "Import" at the bottom of this screen. You will then see the file you just downloaded. Click on it.

10) It will now show up in your list of calibration files. Click on it, and then press import at the bottom of the screen.

11) The calibration is now installed in the "Sound Tools" app!

Android:

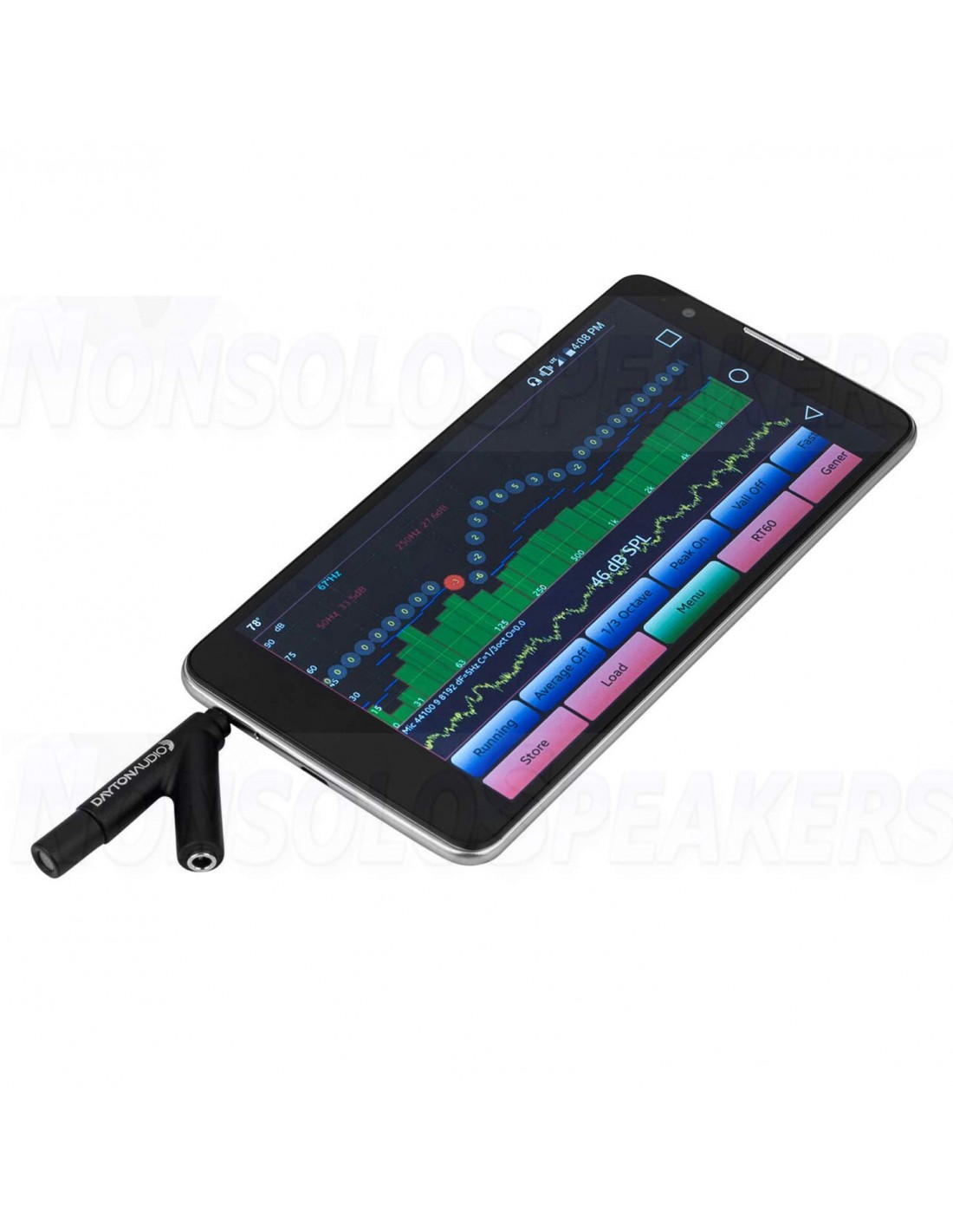

Here is the procedure for loading the iMM-6 calibration file into AudioTool on an Android device:

1) Visit the Dayton Audio Calibration File Download Tool on your web browser: Dayton Audio calibration download tool .

2) Find your IMM-6 serial number on the back of your IMM-6 Case.

3) Enter the serial number and press search. Download and save the calibration file by clicking on it.

4) Open your file editor app (for example "File Manager") and rename the file type from ".txt" to ".cal". For example: 99-0101.cal

5) Move the file to the AudioTool folder on your device.

6) Open the AudioTool app on your device. Open the Menu at the bottom of the screen and select "Use 1/3 Octave Calibration" to ensure you have the 1/3 octave calibration method selected (if "Use 1/3 Octave Calibration" is not shown in the menu then it is already selected, skip to step 7) .

7) Open the Menu at the bottom of the screen and select "Load Cal".

8) Select your calibration file (for example: 99-0101.cal).

9) The calibration data will be loaded and summed to the 1/3 octave bins used by AudioTool, and saved in your Preferences - there is no further need to load the file whenever you start AudioTool, unless you change the calibration method or microphone.
