Dayton Audio 15" Reference Passive subwoofer kit

Product description

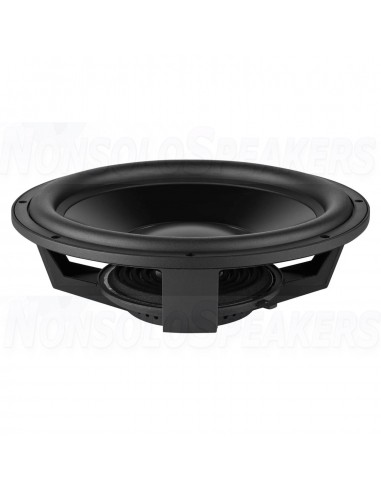

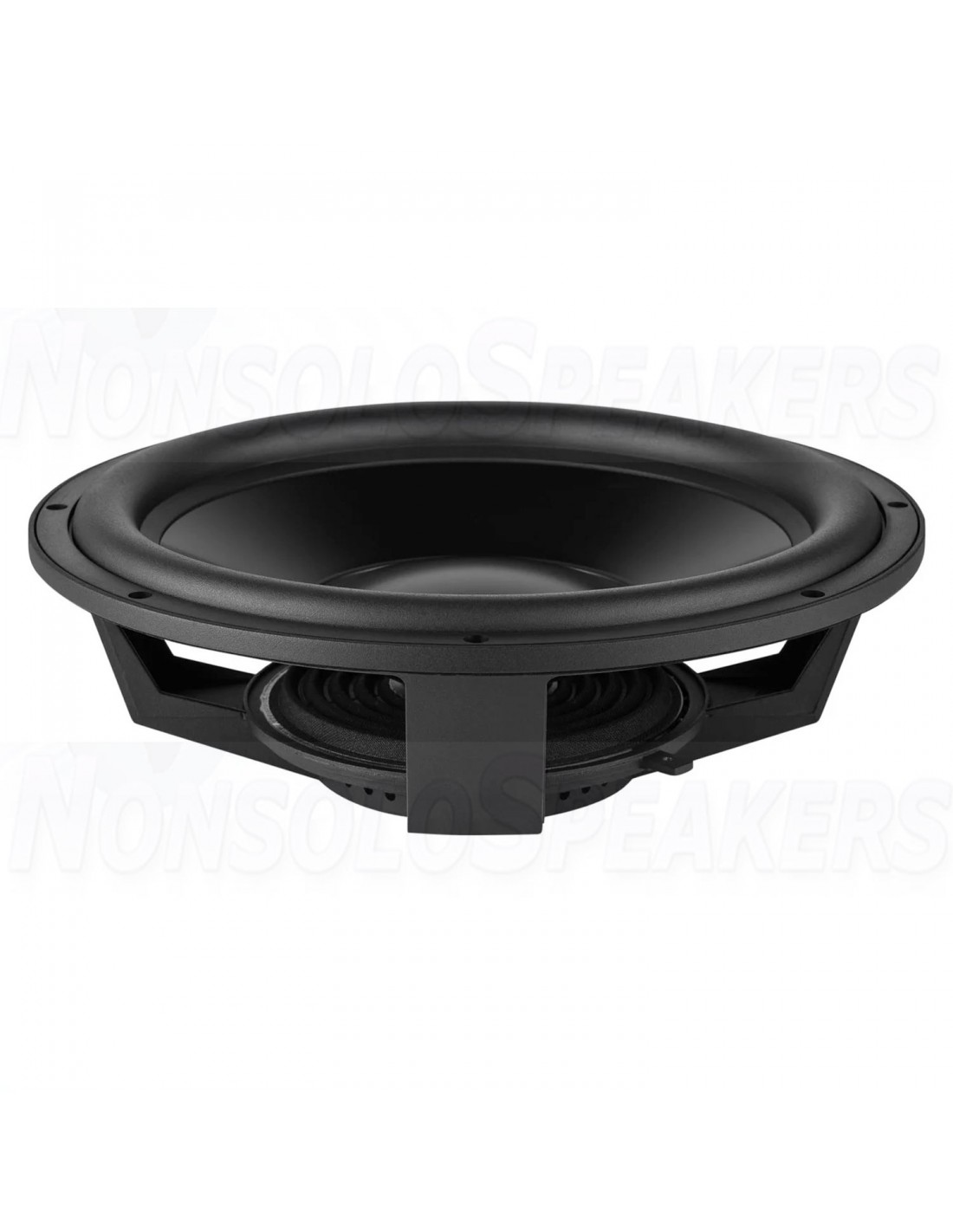

With unassisted response down to 20 Hz and incredible output capability, this 15" passive radiator assisted subwoofer kit is an excellent addition to large music and home theater systems. Using Dayton Audio's RSS390HO-4 driver teamed up with a pair of the matching RSS390-PR passive radiators, this kit will not only deliver high output but distortion is remarkably low too.

.

highlights

High excursion RSS390HO-4 driver delivers powerful bass response with low distortion

Passive radiator assisted design extends bass response and keeps enclosure small

Perfect for use with high power music and home theater systems

Customize the precision CNC-cut MDF enclosure to fit in any decor

.

Product details

Dayton Audio Reference 15" With Dual Passive Radiator Subwoofer Kit

For ultra-low frequency reproduction, powerful output capability, and incredibly low distortion, this passive 15" subwoofer kit is an obvious choice. Using the popular Dayton Audio Reference Series RSS390HO-4 15" aluminum cone driver and two of the matching RSS390-PR 15" passive radiators, this subwoofer kit is an incredibly potent combination. With an unassisted response down to 24 Hz and capable of over 112 dB of output, you can expect earth shaking bass response without the high distortion that can result from applying massive amounts of bass boost which is all too common on many high output subwoofer systems.The included CNC-cut knock-down enclosure is constructed of thoroughly braced 18 mm MDF with a double thickness 36 mm front baffle.

-

Dayton Audio RSS390HO-4 15" Subwoofer Specifications:

Power handling: 800 watts RMS/1,600 watts max • Le: 1.79 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency range: 21 to 600 Hz • Fs: 21.5 Hz • SPL : 92.8 dB 2.83V/1m • Vas 5.93 cu.ft • Qms: 3.69 • Qes: 0.35 • Qts: 0.32 • Xmax: 12 mm • Holes (# and size in mm): 8 x 6.5 mm dia.

Enclosure Specifications: Panel thickness: 18 mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 90.6 L • External dimensions: 488 x 488 x 508 mm • Completed subwoofer weight: 32.6 Kg.

.

Note: Here is a list of what you need to build this subwoofer-cabinet bundle that's not included and where to find it on our webshop:

.

Passive: When building passive, the kit requires a low pass filtered signal.

External amps: Dayton Audio SA1000 / Dayton Audio APA1200DSP

speaker wire

Binding posts

.

Active:

Plate amps: Dayton Audio SPA500 / Dayton Audio SPA1000

Scribing for cutout: No

Braces have to be cut out too

.

Needed for both:

Screws: 8x081-425

Feet (optional)

coating (optional)

Damping material (optional for tuning the response): Visaton VIS 5070
