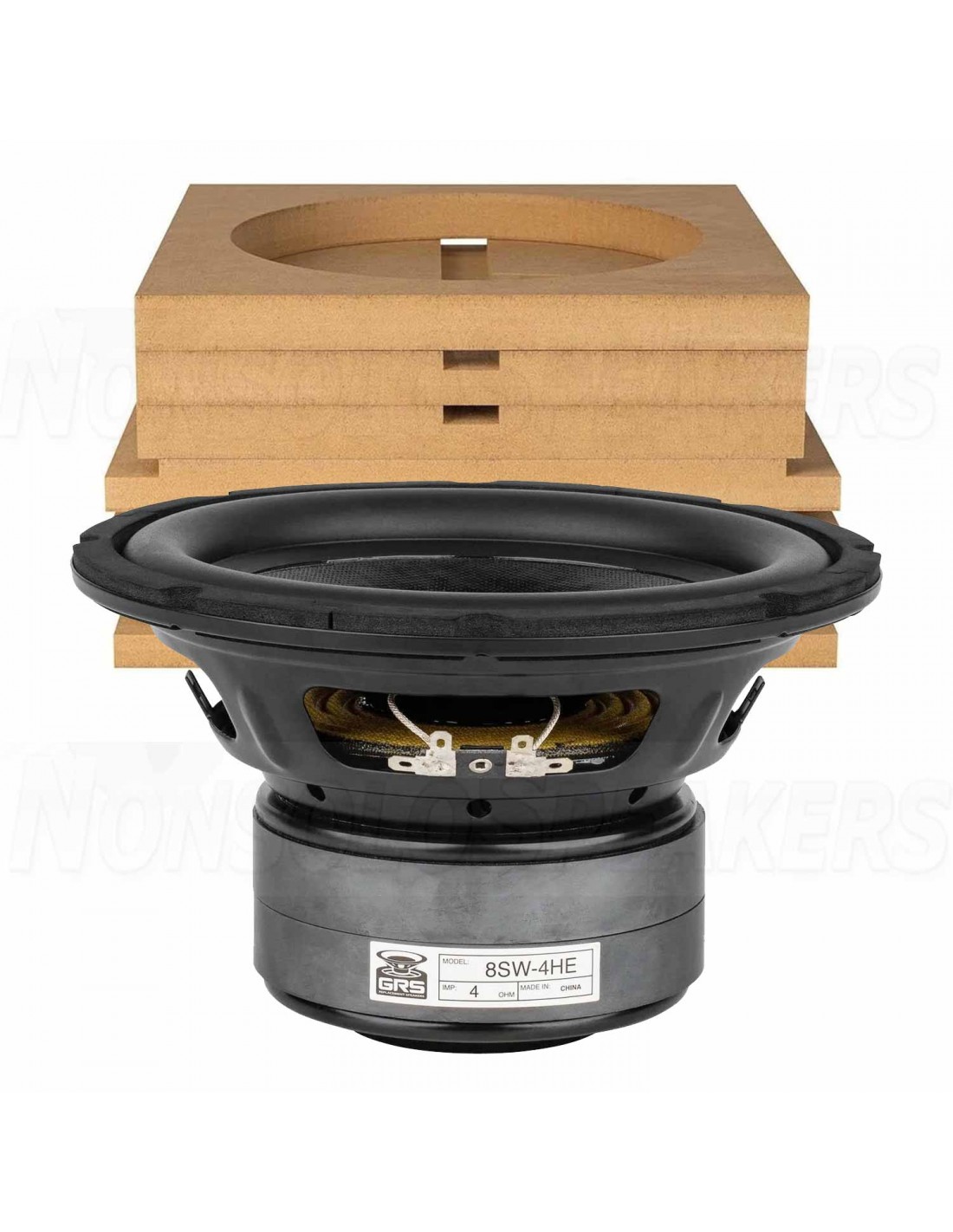

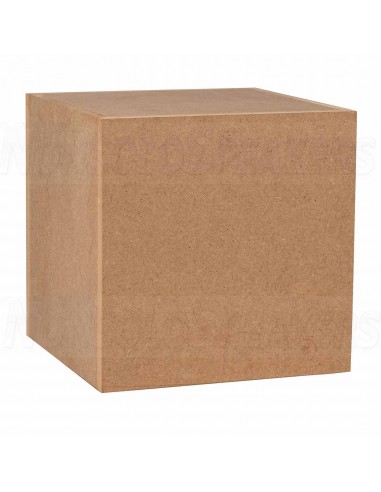

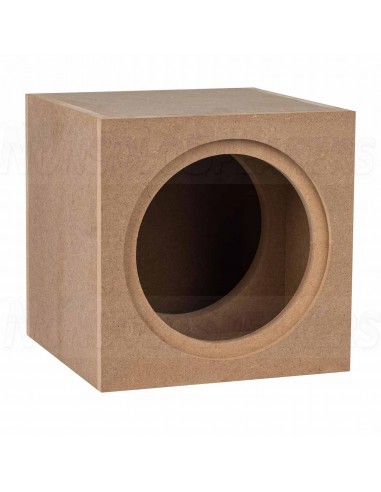

Passive GRS 8" Mini Subwoofer Kit

Product description

Occupying only 9.9L, this Workhorse passive mini 8" subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the brand new GRS 8SW-4HE 8" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.

.

Highlights

Extremely compact design will fit almost anywhere

Use multiples to help minimize room modes for more even, room-filling low end

High excursion GRS 8SW-4HE 8" driver provides powerful output capability

CNC-cut 3/4" MDF panels for precise fit, easy assembly, and smooth finish

.

Product Details

Passive GRS 8" Mini Subwoofer Kit

Housed in just a 2,54cm cube, the Workhorse GRS 8SW-4HE 20,32cm (8") Passive Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With the high excursion GRS 8SW-4HE 8" subwoofer driver you can expect incredibly accurate response with low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

The GRS Workhorse is ideal for adding bass wherever you need it; the garage, a basement, a bedroom, etc. It will excel at it's job and not complain, all while not emptying your wallet.

.

Simulated Performance Specifications:

• Maximum output: 106.5 dB • F3: 46 Hz • F10: 29 Hz

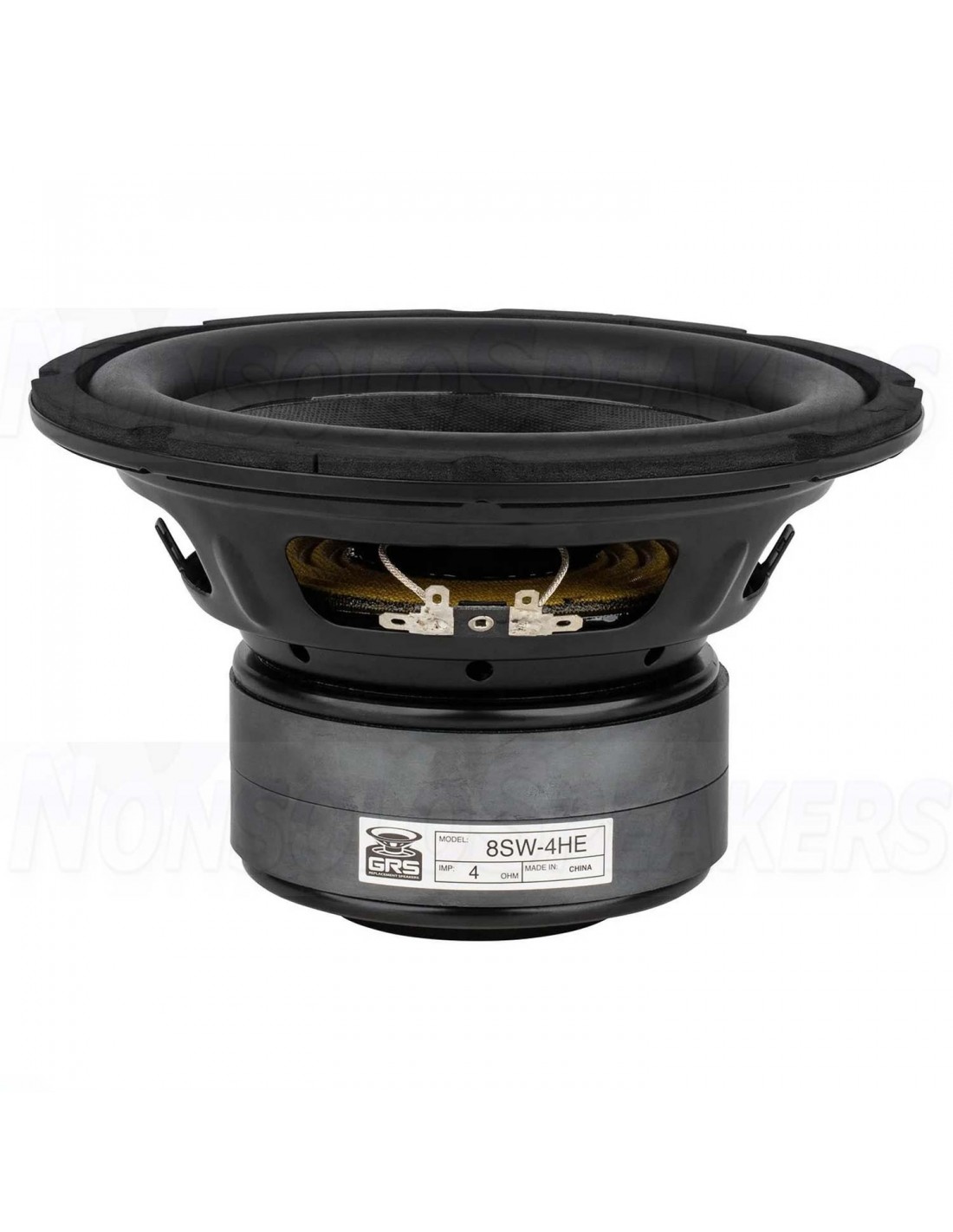

GRS 8SW-4HE 8" Subwoofer Specifications: • Power handling: 150 watts RMS/300 watts max • Le: 2.7 mH • Impedance: 4 ohms • Re: 3.8 ohms • Frequency range: 30 to 700  Hz • Fs: 24.9 Hz • SPL: 85 dB 2.83V/1m • Vas 31.7L. • Qms: 4.42 • Qes: .51 • Qts: .45 • Xmax: 10.8 mm.

.

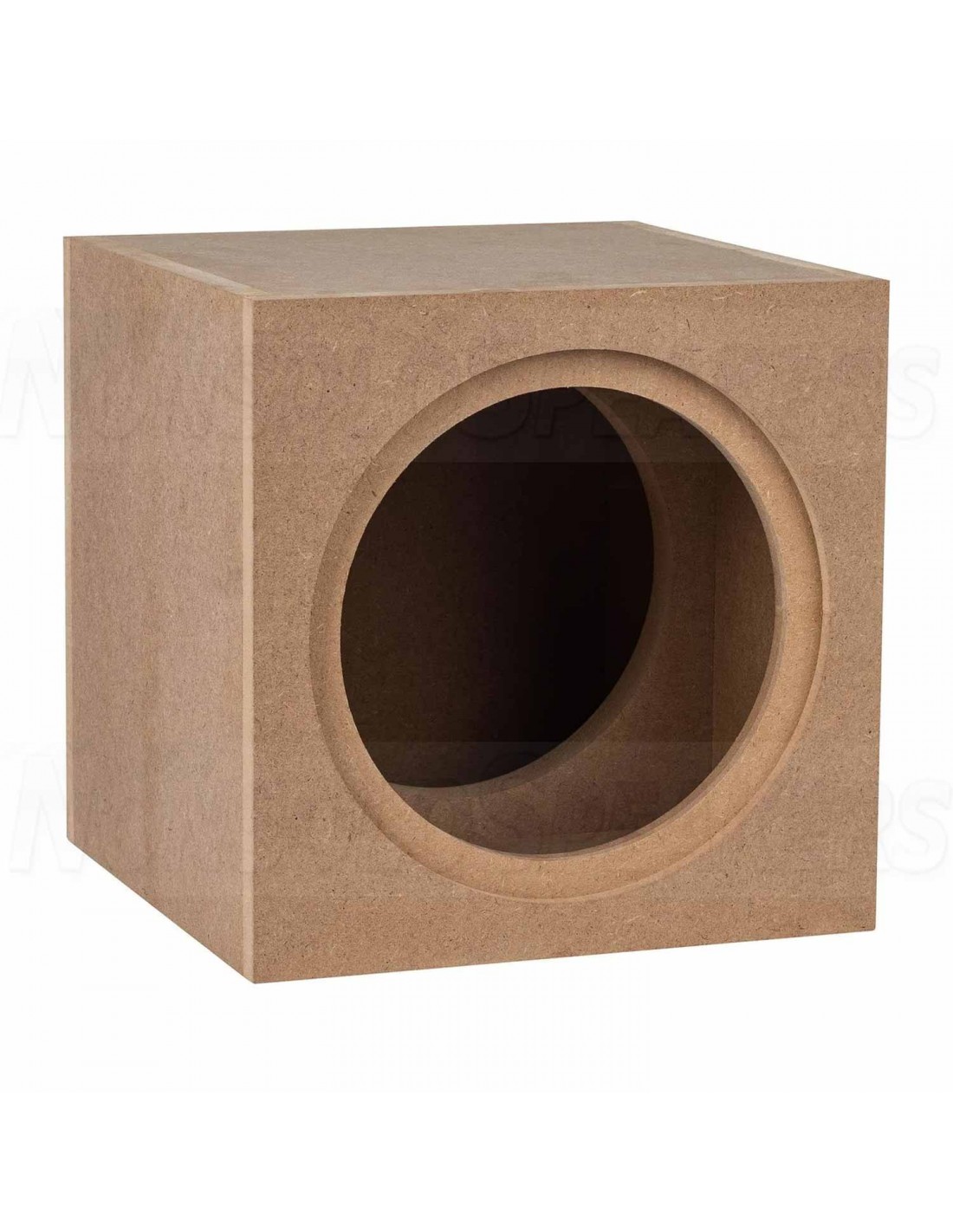

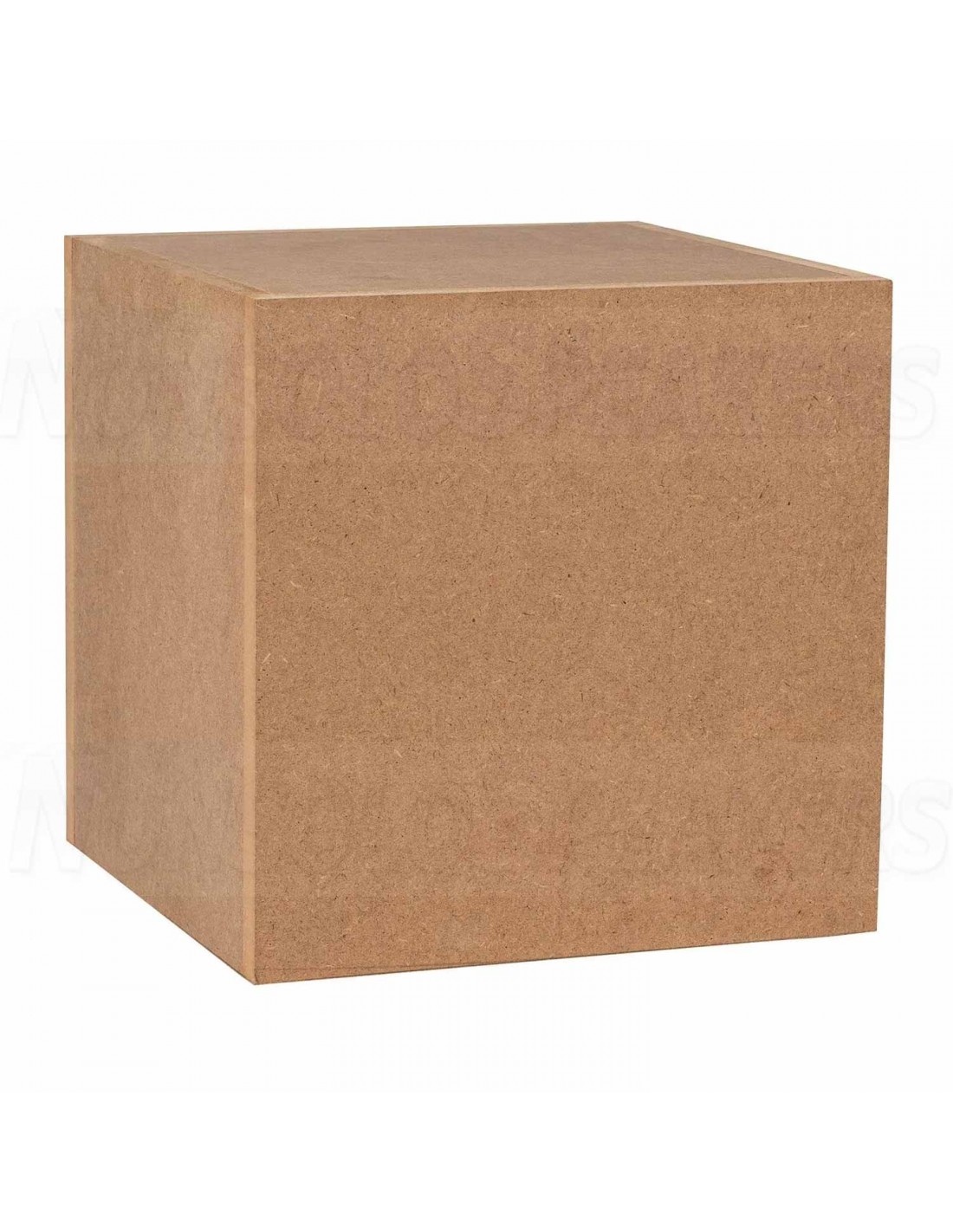

Enclosure Specifications:

• Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 9.9L • External dimensions: 2,54cm H x 2,54cm W x 2,54cm D • Weight: 10.43kg. • Made in the USA.

.

Note: Mounting screws, binding posts and feet are not included.
