Passive Ultimax 8" Mini Subwoofer Kit

Product description

Occupying only 9,9L, this Hi-Performance passive mini 8" subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the popular Dayton Audio UM8-22 8" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.

.

Highlights

Extremely compact design will fit almost anywhere

Use multiples to help minimize room modes for more even, room-filling low end

High excursion Dayton Audio UM8-22 8" driver provides powerful output capability

CNC-cut 19,05cm MDF panels for precise fit, easy assembly, and smooth finish

.

Product details

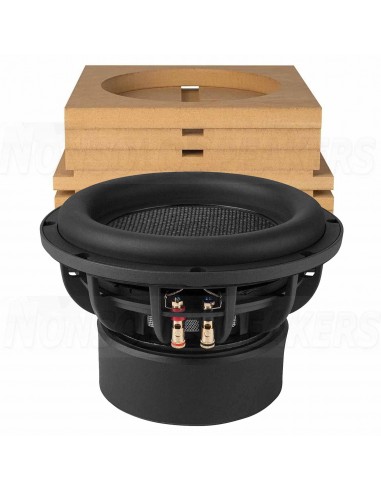

Hi-Performance: Passive Dayton Audio Ultimax 8" Mini Subwoofer Kit

Housed in just a 25,4cm cube, the Hi-Performance Dayton Audio UM8-22 20,32cm (8") Passive Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With the high excursion Dayton Audio UM8-22 20,32cm (8") subwoofer driver you can expect incredibly accurate response with low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

The Hi-Performance Ultimax mini subwoofer kit is the last stop for small home theater applications. It will amaze you with incredible dynamics and seemingly endless low-end capabilities.

.

Simulated Performance Specifications:

• Maximum output: 107.2 dB • F3: 48 Hz • F10: 31 Hz

.

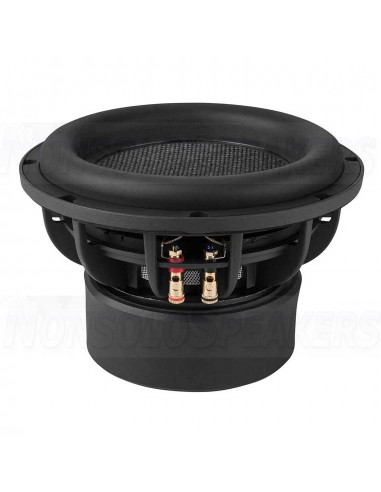

Dayton Audio UM8-22 8" Subwoofer Specifications:

• Power handling: 300 watts RMS/600 watts max • Le: 1.14 mH • Impedance: 4 ohms • Re: 4.2 ohms • Frequency range: 30 to 800  Hz • Fs: 31.6 Hz • SPL: 84.2 dB 2.83V/1m • Vas 21,2L. • Qms: 2.51 • Qes: 0.75 • Qts: 0.58 • Xmax: 16 mm.

.

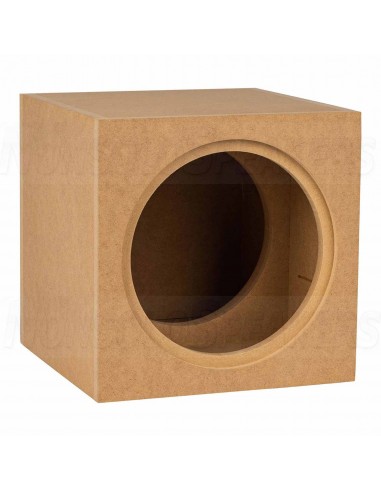

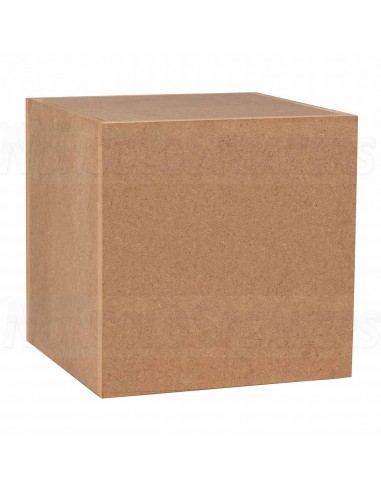

Enclosure Specifications:

• Panel thickness: 19,05mm • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 9,9L • External dimensions: 25,4cm H x 25,4cm W x 25,4cm D • Weight: 10,4kg. • Made in the USA.

.

Note: Mounting screws, binding posts and feet are not included.
